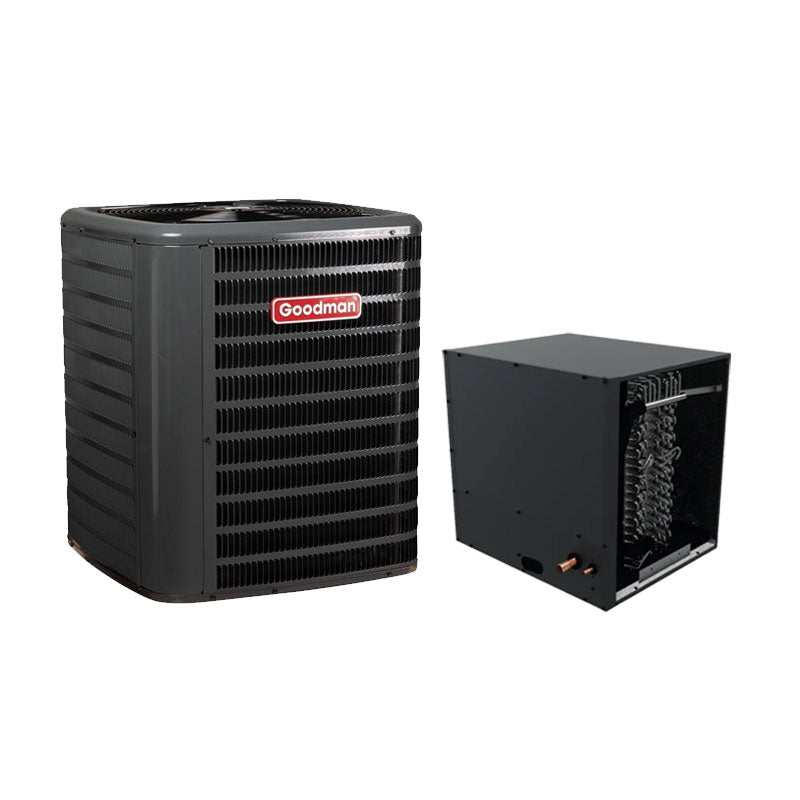

Goodman 3.5 Ton R32 AC & Evaporator Coil 14.3 SEER2 30"W x 21"H Horizontal

Goodman 3.5 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA4210

The Goodman 3.5 Ton (42,000 BTU) R32 Split Air Conditioner (Model GLXS5BA4210) offers efficient cooling with a 15.2 SEER2 rating and a single-stage scroll compressor. It features R-32 refrigerant, a factory-installed filter drier, and is pre-charged for 15' tubing length for quick installation. Durable 5mm copper tubing with enhanced aluminum fin coils ensures optimal heat transfer, while the unit’s robust cabinet provides corrosion resistance and easy servicing. AHRI certified and ETL listed, the unit is designed for longevity, with a hurricane-ready design that meets 2023 Florida Building Code integrity requirements. With extended-life capacitors, sweat connection service valves, and top and side access for maintenance, it’s built for consistent, long-lasting performance.

• Refrigerant Type: R-32
• Unit Height: 36.5 in
• Unit Width: 35.5 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 30 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 3.5
• 42,000 BTU
• Model Efficiency: 15.2 SEER2
• Unit Depth: 35.5 in

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable grille-style top compliant with UL 60335-2-40 for safety and easy maintenance.
• Venturi design enhances airflow velocity for improved performance.
• Architectural gray powder-paint finish offers corrosion resistance with 500-hour salt-spray approval.
• Wire fan discharge grille protects internal components while maintaining airflow efficiency.
• Steel louver coil guard provides robust protection for the coils.
• Top and side maintenance access for convenient servicing.
• Single-panel access to controls with space for field-installed accessories.
• Hurricane-ready design meets 2023 Florida Building Code integrity requirements when properly anchored (anchor bracket kits available).

Goodman R32 3.5 Ton Cased Evaporator Coil Horizontal 30"W with Internal TXV CHPTA4230C3

Goodman R32 3.5 Ton Cased Evaporator Coil offers exceptional performance with a 30"W design optimized for horizontal applications. It features a durable all-aluminum construction, specifically designed for efficient R-32 refrigerant use. The coil includes a long-lasting R-32 sensor and factory-installed thermal expansion valves for versatility in cooling and heat pump systems. It has a standardized copper suction tube stub length for simplified installation, a single front access panel for easy maintenance, and foil-faced insulation to minimize condensation. The rust-resistant drain pan ensures longevity and compliance with safety standards, being AHRI certified and ETL listed.

• Refrigerant Type: R-32
• Unit Height: 21 in
• Unit Width: 30 in
• Cased/Uncased: Cased
• Coil Application: Horizontal A
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
