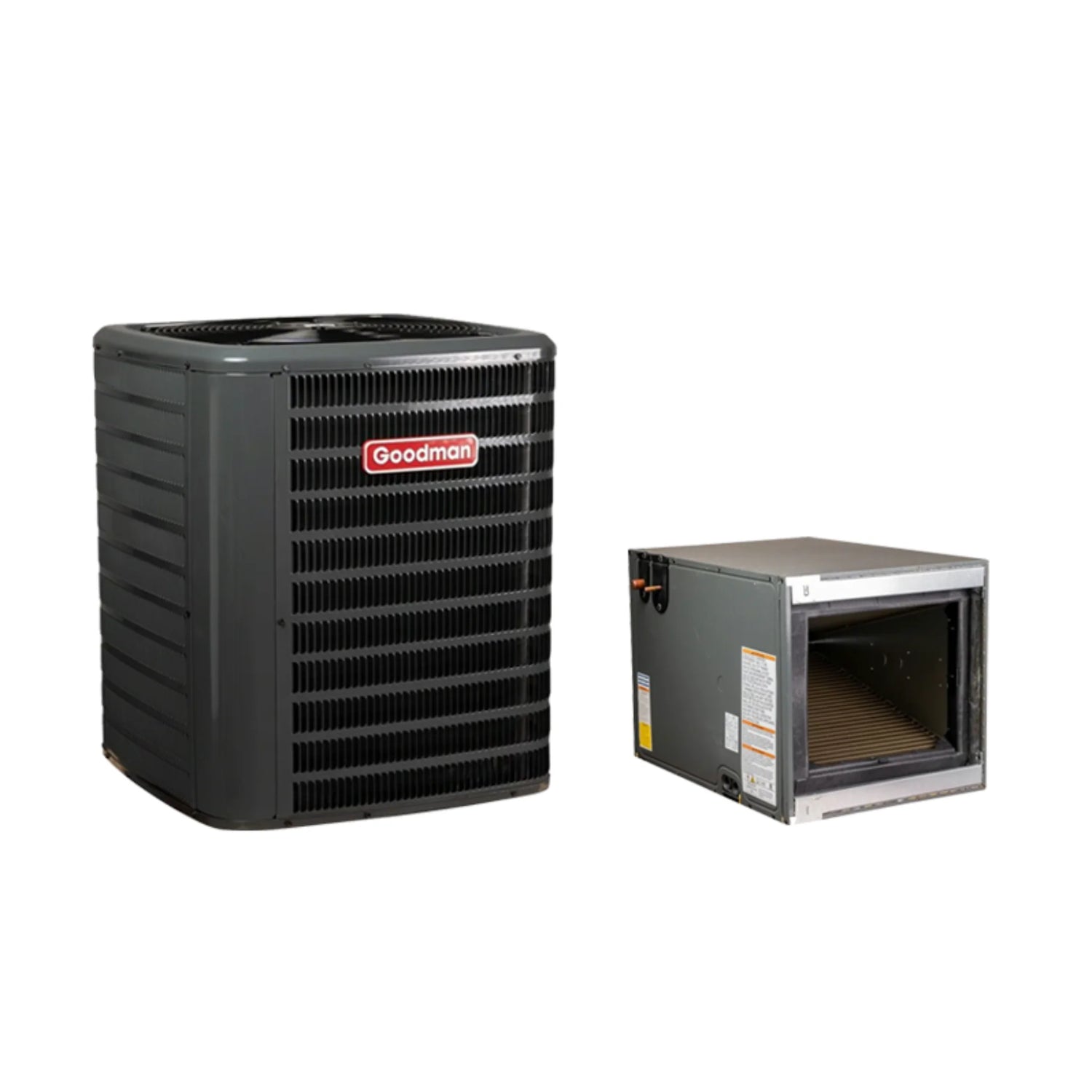

Goodman 3.5 Ton 15.2 SEER2 Air Conditioner Coil System Horizontal TXV R32

Goodman 3.5 Ton 15.2 SEER2 Split System Air Conditioner Single-Stage R32 GLXS5BA4210

Elevate your cooling with the Goodman 3.5 Ton Air Conditioner, featuring R-32 refrigerant and a 15.2 SEER2 efficiency rating. With a durable scroll compressor and factory-installed filter drier, it delivers reliable performance and long-lasting operation. Compact at 36.5" tall and 35.5" wide, it operates on a single-phase 208/230V power supply. User-friendly features include easy-access gauge ports, sweat connection valves, and a hurricane-ready design. The enhanced aluminum fin coil and rugged cabinet ensure durability and energy efficiency.

• Refrigerant Type: R-32
• Unit Height: 36.5 in
• Unit Width: 35.5 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 30 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 3.5
• Model Efficiency: 15.2 SEER2
• Unit Depth: 35.5 in

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable grille-style top meets UL 60335-2-40 safety standards.
• Venturi design enhances airflow velocity for better cooling efficiency.
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray resistance.
• Wire fan discharge grille for additional protection.
• Steel louver coil guard ensures coil durability and safety.
• Top and side access for easier maintenance and servicing.
• Single-panel control access with space for field-installed accessories.
• Designed to meet 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available).

Goodman 4 Ton Cased Evaporator Coil 21" Height Horizontal R32 With TXV CHPTA4830C3

This evaporator coil is a high-performance, all-aluminum unit specifically designed for R-32 refrigerant, featuring integrated thermal expansion valves for both cooling and heat pump applications. It offers flexible installation options with vertical and horizontal models, and its 21-inch depth facilitates easier access in attic spaces. The coil is equipped with a foil-faced insulation to reduce condensation and includes a rust-resistant, UV-resistant drain pan with additional drainage connections. Its durable galvanized finish and easy-to-remove drain pan rails enhance both longevity and maintenance convenience. Certified by AHRI and listed by ETL, this coil combines efficiency, durability, and ease of use for a reliable HVAC solution.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
