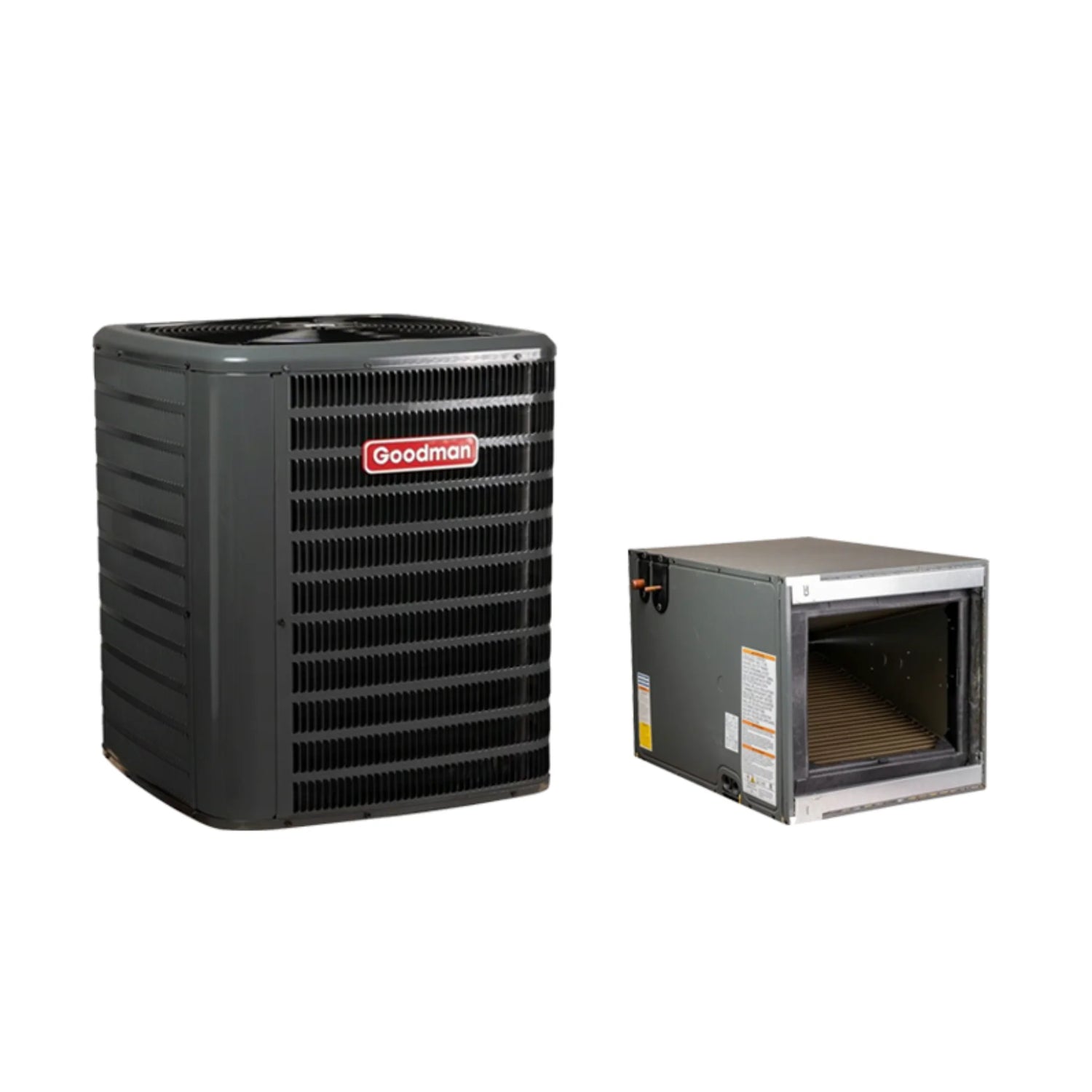

Goodman 1.5 Ton 15.2 SEER2 Air Conditioner Coil Split System Horizontal R32

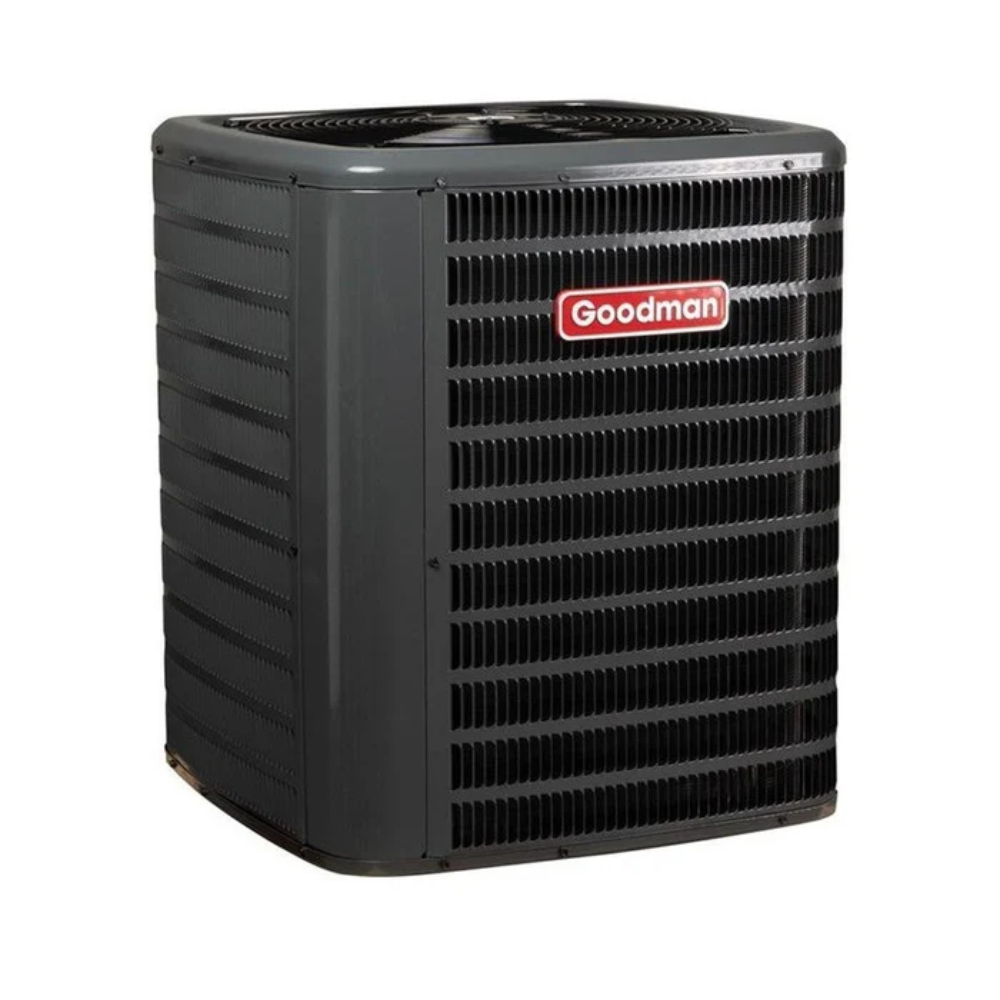

Goodman 1.5 Ton 15.2 SEER2 R32 Split Air Conditioner Condenser Single Stage

The Goodman 1.5 Ton Air Conditioner, featuring R-32 refrigerant, offers efficient cooling with a single-stage scroll compressor and a 1 SEER efficiency rating. This compact 27" high, 26" wide unit is pre-charged for up to 15 feet of refrigerant tubing and includes durable copper/aluminum coils for long-lasting performance. Designed for easy installation with sweat connection service valves and convenient maintenance with accessible gauge ports. AHRI-certified and ETL-listed for energy efficiency and safety, it also meets hurricane safety standards when properly anchored.

• Refrigerant Type: R-32
• Unit Height: 27 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 1.5
• Model Efficiency: 1


Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable grille-style top meets UL 60335-2-40 safety standards.
• Venturi design enhances airflow velocity for better cooling efficiency.
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray resistance.
• Wire fan discharge grille for additional protection.
• Steel louver coil guard ensures coil durability and safety.
• Top and side access for easier maintenance and servicing.
• Single-panel control access with space for field-installed accessories.
• Designed to meet 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available).

Goodman 2 Ton Cased Evaporator Coil 17.5" Height Horizontal R32 With TXV CHPTA2426B3

The Goodman CHPTA2426B3 2 Ton Horizontal Evaporator Coil is the ideal choice for residential HVAC systems that demand energy efficiency, reliability, and precise climate control. Designed for horizontal applications and fully compatible with both AC-only and heat pump systems, this coil includes a factory-installed TXV for optimized refrigerant flow and long-term performance.

Built to meet strict R32 refrigerant standards, this evaporator coil supports eco-conscious system upgrades while keeping installation simple and efficient.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Capacity: Delivers 18,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Product Application and Requirements

The Goodman CHPTA2426B3 is rated for 2 tons of cooling and is best suited for horizontally configured duct systems. This coil must be paired with a compatible R32 outdoor condenser and a blower or furnace for full system functionality. It is not designed to serve as a replacement coil in packaged units or one-piece air handlers.

Built for Durability and Easy Installation

With an aluminum coil construction and a factory-installed TXV kit, this model reduces install time and long-term maintenance costs. The insulated galvanized steel cabinet ensures a tight seal against air leakage while maintaining coil protection. The split-seam front panel provides fast access for routine service.

Comfort Through Precision Engineering

The Goodman CHPTA2426B3 horizontal evaporator coil maximizes indoor comfort with precision refrigerant control and efficient air distribution. Combined with its mold-resistant drain pan and sealed cabinet, this coil supports better air quality and temperature stability—delivering consistent, energy-efficient comfort for your home.
