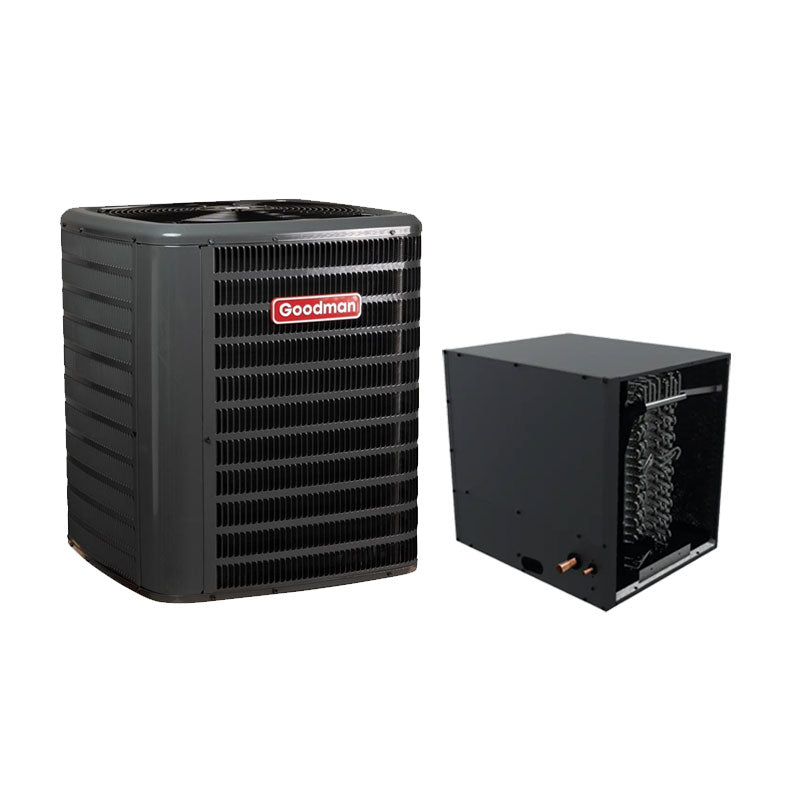

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Coil System 22"W Horizontal
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 18,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
Seer Rating: 14.3 SEER2
Tonnage: 1.5 Ton
Product Details
Product Details
Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Coil System 22"W Horizontal
Goodman 1.5 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA1810
The Goodman 1.5 Ton R32 Split Air Conditioner delivers 18,000 BTU cooling with 15.2 SEER2 efficiency, ensuring reliable performance and energy savings. Equipped with a high-efficiency scroll compressor and factory-installed filter drier, it offers enhanced protection and longevity. Its 5mm copper tube with aluminum fin coil ensures superior heat transfer, while the enclosed contactor, high-pressure switch, and extended-life capacitors prioritize safety and durability. This compact, single-stage unit is AHRI-certified, ETL-listed, and optimized for dependable cooling.
- Refrigerant Type: R-32
- Unit Height: 27 in
- Unit Width: 26 in
- Communication Feature Type: Non-Communicating
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 208/230 V
- Compressor Stages: Single Stage
- Compressor Type: Scroll
- Tonnage: 1.5
- Model Efficiency: 15.2 SEER2
- 18,000 BTU Cooling
- Unit Depth: 26 in
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 18,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
Cabinet Features
- Removable Grille-Style Top Design: UL 60335-2-40 compliant for safe operation.
- Venturi Design: Enhances airflow velocity for improved efficiency.
- Architectural Gray Powder-Paint Finish: Durable, weather-resistant finish approved for 500-hour salt spray.
- Wire Fan Discharge Grille: Provides protection and optimized airflow.
- Steel Louver Coil Guard: Shields coils from damage while maintaining airflow.
- Top and Side Maintenance Access: Simplifies service and upkeep.
- Single-Panel Access to Controls: Includes space for field-installed accessories.
- Hurricane-Resistant Design: Meets the 2023 Florida Building Code for high winds when properly anchored (anchor bracket kits available).
Goodman 1.5 Ton R32 Evaporator Coil Horizontal Cased 22"W with Internal TXV CHPTA1822B3
The Goodman 1.5 Ton R32 Evaporator Coil is a cased unit for horizontal applications, measuring 17.5 inches high, 22 inches wide, and 21 inches deep. Optimized for R-32 refrigerant, this all-aluminum coil features factory-installed thermal expansion valves for improved efficiency. Its design allows for both vertical and horizontal installations, ideal for attic access. With foil-faced insulation to minimize condensation and rust-resistant drain pans with secondary connections, this AHRI Certified and ETL Listed evaporator coil ensures reliable performance and safety compliance, making it a solid choice for efficient HVAC systems.
- Refrigerant Type: R-32
- Unit Height: 17.5 in
- Unit Width: 22 in
- Cased/Uncased: Cased
- Coil Application: Horizontal A
- Unit Depth: 21 in
- All-aluminum evaporator coil
- R-32 refrigerant compatibility
- Thermal expansion valves
- Vertical and horizontal models
- Attic access evaporator coil
- Foil-faced insulation
- Rust-resistant drain pans
- AHRI certified HVAC equipment
- ETL listed cooling systems
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 18,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
