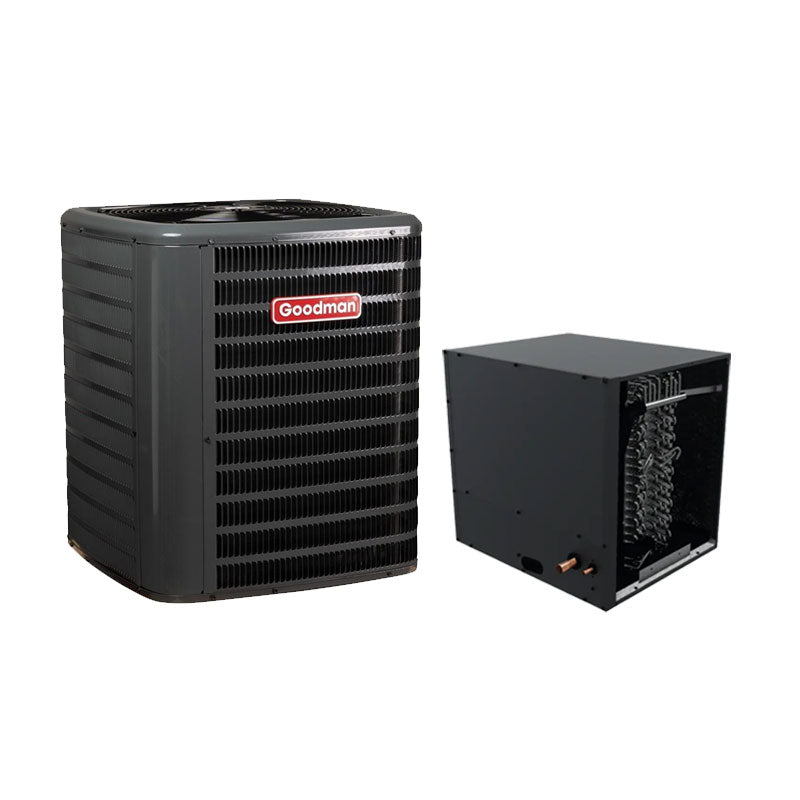

Goodman 2 Ton R32 AC & Evaporator Coil 14.3 SEER2 26"W x 21"H Horizontal
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 24,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
Seer Rating: 14.3 SEER2
Tonnage: 2 Ton
Product Details
Product Details
Goodman 2 Ton R32 AC & Evaporator Coil 14.3 SEER2 26"W x 21"H Horizontal
Goodman 2 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA2410
The Goodman 2 Ton (24,000 BTU) R32 Split Air Conditioner (Model GLXS5BA2410) combines efficiency and reliability with its 15.2 SEER2 single-stage scroll compressor and R-32 refrigerant for optimal energy savings. Compact yet powerful, the unit features a durable 5mm copper tube with aluminum fin coil, factory-installed filter drier, and enclosed contactor for added safety and ease of maintenance. With AHRI certification and ETL listing, this 208/230V system delivers superior cooling performance and hassle-free installation.
- Refrigerant Type: R-32
- Unit Height: 32 in
- Unit Width: 29 in
- Communication Feature Type: Non-Communicating
- Max Overcurrent Protection: 20 A
- Power Phase: 1 Ph
- Power Voltage: 208/230 V
- Compressor Stages: Single Stage
- Compressor Type: Scroll
- Tonnage: 2
- Model Efficiency: 15.2 SEER2
- Unit Depth: 29 in
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 24,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
Cabinet Features
- Removable Grille-Style Top: Compliant with UL 60335-2-40 for safety and service access.
- Venturi Design: Increases airflow velocity for optimal performance.
- Architectural Gray Powder-Paint Finish: Provides corrosion resistance with 500-hour salt-spray approval.
- Wire Fan Discharge Grille: Protects the fan while maintaining airflow.
- Steel Louver Coil Guard: Shields coils from damage for enhanced durability.
- Top and Side Maintenance Access: Simplifies servicing and cleaning.
- Single-Panel Control Access: Includes space for field-installed accessories.
- Hurricane-Ready Design: Meets 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available).
Goodman 2 Ton R32 Evaporator Coil Horizontal-A 26" Wide Cabinet w/ TXV Expansion CHPTA2426C3
The Goodman CHPTA2426C3 R32 Evaporator Coil features a 26" wide cased horizontal-A design, with optimized R-32 compatibility and factory-installed TXV for efficient cooling and heat pump support. This all-aluminum coil includes a durable galvanized cabinet, UV-resistant, DecaBDE-free thermoplastic drain pan with secondary connections, and foil-faced insulation to minimize condensation. Its 21" depth ensures easy attic access, while a single front panel allows for streamlined servicing. AHRI certified and ETL listed, this coil is engineered for efficiency, safety, and longevity in demanding HVAC applications.
- Refrigerant Type: R-32
- Unit Height: 21 in
- Unit Width: 26 in
- Cased/Uncased: Cased
- Coil Application: Horizontal A
- Unit Depth: 21 in
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 24,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
