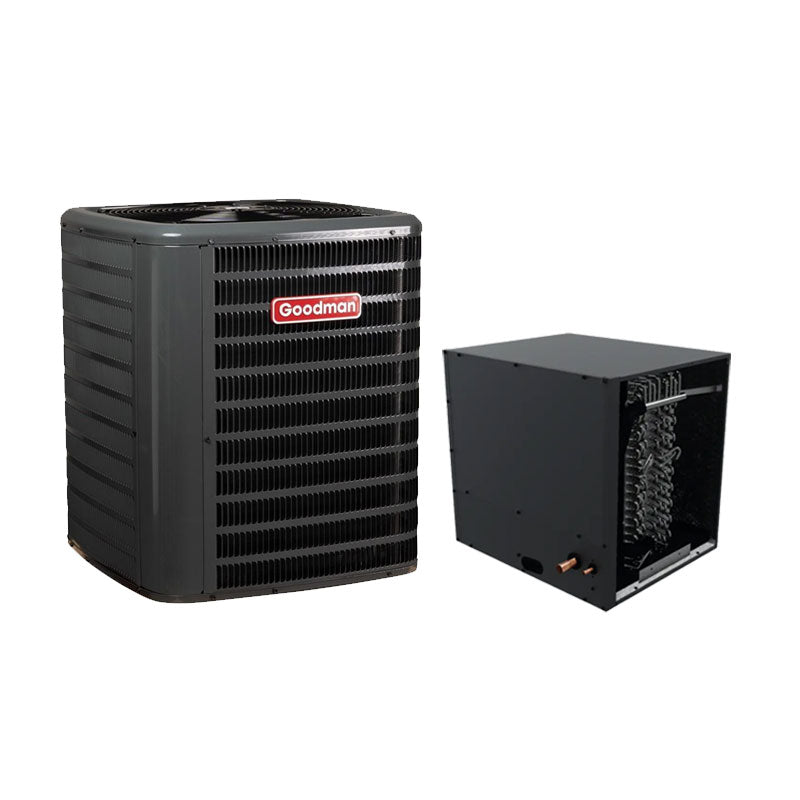

Goodman 2 Ton R32 AC & Evaporator Coil 14.3 SEER2 26"W x 17.5H Horizontal

Goodman 2 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA2410

The Goodman 2 Ton (24,000 BTU) R32 Split Air Conditioner (Model GLXS5BA2410) combines efficiency and reliability with its 15.2 SEER2 single-stage scroll compressor and R-32 refrigerant for optimal energy savings. Compact yet powerful, the unit features a durable 5mm copper tube with aluminum fin coil, factory-installed filter drier, and enclosed contactor for added safety and ease of maintenance. With AHRI certification and ETL listing, this 208/230V system delivers superior cooling performance and hassle-free installation.

• Refrigerant Type: R-32
• Unit Height: 32 in
• Unit Width: 29 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 20 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 2
• Model Efficiency: 15.2 SEER2
• Unit Depth: 29 in

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable Grille-Style Top: Compliant with UL 60335-2-40 for safety and service access.
• Venturi Design: Increases airflow velocity for optimal performance.
• Architectural Gray Powder-Paint Finish: Provides corrosion resistance with 500-hour salt-spray approval.
• Wire Fan Discharge Grille: Protects the fan while maintaining airflow.
• Steel Louver Coil Guard: Shields coils from damage for enhanced durability.
• Top and Side Maintenance Access: Simplifies servicing and cleaning.
• Single-Panel Control Access: Includes space for field-installed accessories.
• Hurricane-Ready Design: Meets 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available).

Goodman 2 Ton R32 Horizontal Evaporator Coil 26"W x 17.5"H CHPTA2426B3

This high-performance evaporator coil is designed for R-32 refrigerant and includes integrated thermal expansion valves for cooling and heat pump applications. It offers flexible installation with both vertical and horizontal models and a 21-inch depth for easy attic access. Equipped with foil-faced insulation to reduce condensation, it features a rust-resistant, UV-resistant drain pan with extra drainage connections. Its durable galvanized finish and removable drain pan rails enhance longevity and maintenance. Certified by AHRI and ETL listed, this coil provides efficiency, durability, and ease of use for a reliable HVAC solution.

• Refrigerant Type: R-32
• Unit Height: 17.5 in
• Unit Width: 26 in
• Cased/Uncased: Cased
• Coil Application: Horizontal A
• Unit Depth: 21 in

• R-32 refrigerant optimized coil
• R-32 sensor lifespan
• Thermal expansion valves
• Copper suction tube stub
• Check Flowrator design
• Horizontal installation evaporator
• Compact attic access coil
• Foil-faced insulation benefits
• Durable galvanized finish
• Rust-resistant drain pan
• Secondary drain connections
• UV-resistant coil design
• AHRI certified efficiency

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 24,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
