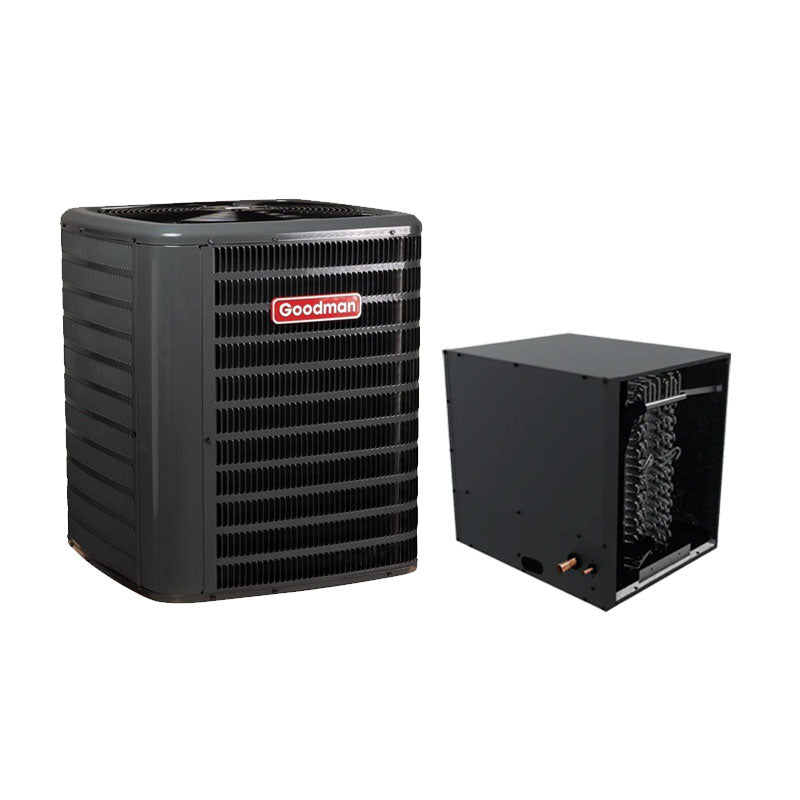

Goodman 2 Ton AC Evaporator Coil 14.3 SEER2 26"W x 17.5"H Horizontal R32
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 24,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Rotary compressor ensures quiet, consistent, and energy-efficient operation
Seer Rating: 14.3 SEER2
Tonnage: 2 Ton
Product Details
Product Details
Goodman 2 Ton AC Evaporator Coil 14.3 SEER2 26"W x 17.5"H Horizontal R32
Goodman 2 Ton R32 Air Conditioner Condenser 14.3 SEER2 GLXS4BA2410
This HVAC system features a high-efficiency scroll compressor for optimal cooling and energy savings. It includes a high-density foam sound blanket for quieter operation and advanced Copeland CoreSense Technology for enhanced reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system boasts a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-to-access service valves. It also has a secure enclosed contactor, a high-pressure switch for safety, and long-lasting capacitors. Certified by AHRI for performance and ETL Listed for safety, it ensures reliable, efficient operation.
- Refrigerant Type: R-32
- SEER 2: 14.3
- Unit Height: 27 in
- Unit Width: 26 in
- Communication Feature Type: Non-Communicating
- Cooling Capacity Nominal: 24000 Btu/H
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 208/240 V
- Compressor Stages: Single Stage
- Compressor Type: Rotary
- Unit Weight: 70 lb
- Tonnage: 2
- Unit Depth: 26 in
- Brand: Goodman
- Model: GLXS4BA2410
- Refrigerant Type: R-32
- SEER2 Rating: 14.3
- Cooling Capacity: 24,000 Btu/H
Product Features for Goodman 2 Ton R32 AC Condenser (GLXS4BA2410)
- High-Efficiency Scroll Compressor: Provides optimal cooling and energy savings.
- Sound Reduction: Equipped with a high-density foam sound blanket for quieter operation.
- Advanced Copeland CoreSense Technology: Ensures enhanced reliability and diagnostics.
- Pre-Charged Refrigerant: Ready for up to 15 feet of tubing, simplifying installation.
- Durable Coil Design: Copper tube with enhanced aluminum fin coil (5mm diameter).
- Factory-Installed Filter Drier: Improves system longevity.
- Easy Service Access: Sweat connection service valves with easy access to gauge ports.
- Safety Features: Includes an enclosed contactor with lug connection, high-pressure switch, and long-lasting capacitors.
- Certified for Quality: AHRI Certified for performance and ETL Listed for safety.
- Removable Grille-Style Top: UL 60335-2-40 compliant for safety.
- Venturi Design: Enhances airflow velocity for improved cooling efficiency.
- Architectural Gray Finish: Powder-coated with 500-hour salt-spray approval for durability.
- Wire Fan Grille & Steel Coil Guard: Ensures protection and safety.
- Maintenance & Control Access: Convenient top and side access, with a single-panel control area.
- Hurricane Compliance: Meets 2023 Florida Building Code for wind integrity when anchored.
Goodman 2 Ton R32 Horizontal Evaporator Coil 26"W x 17.5"H CHPTA2426B3
This high-performance evaporator coil is designed for R-32 refrigerant and includes integrated thermal expansion valves for cooling and heat pump applications. It offers flexible installation with both vertical and horizontal models and a 21-inch depth for easy attic access. Equipped with foil-faced insulation to reduce condensation, it features a rust-resistant, UV-resistant drain pan with extra drainage connections. Its durable galvanized finish and removable drain pan rails enhance longevity and maintenance. Certified by AHRI and ETL listed, this coil provides efficiency, durability, and ease of use for a reliable HVAC solution.
- Refrigerant Type: R-32
- Unit Height: 17.5 in
- Unit Width: 26 in
- Cased/Uncased: Cased
- Coil Application: Horizontal A
- Unit Depth: 21 in
- R-32 refrigerant optimized coil
- R-32 sensor lifespan
- Thermal expansion valves
- Copper suction tube stub
- Check Flowrator design
- Horizontal installation evaporator
- Compact attic access coil
- Foil-faced insulation benefits
- Durable galvanized finish
- Rust-resistant drain pan
- Secondary drain connections
- UV-resistant coil design
- AHRI certified efficiency
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 24,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Rotary compressor ensures quiet, consistent, and energy-efficient operation
