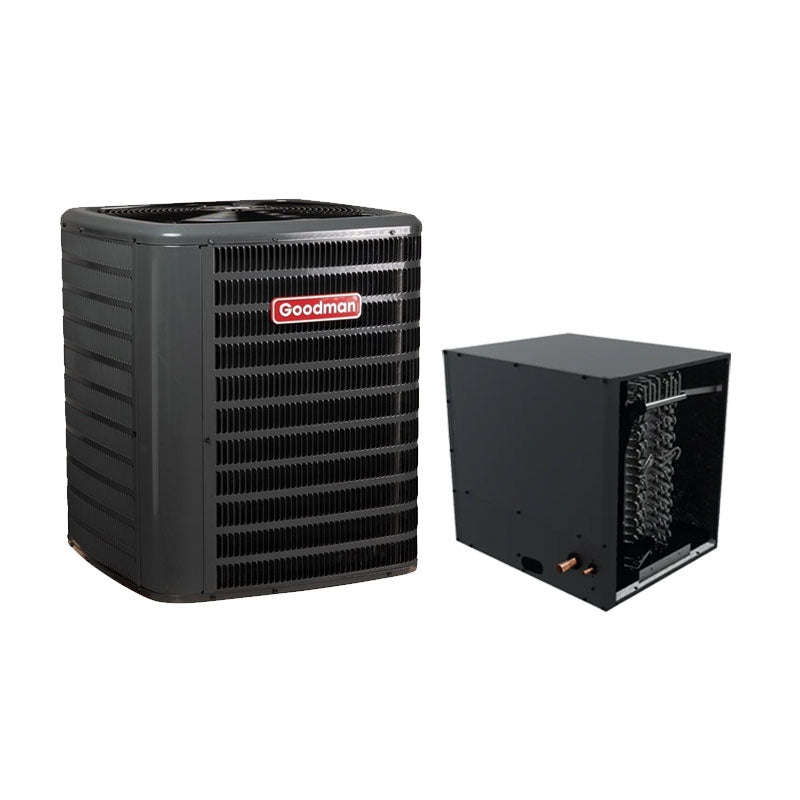

Goodman 2.5 Ton R32 AC & Evaporator Coil 14.3 SEER2 26"W x 21"H Horizontal

Goodman 2.5 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA3010

The Goodman 2.5 Ton (30,000 BTU) R32 Split Air Conditioner (Model GLXS5BA3010) offers exceptional energy efficiency with a 15.2 SEER2 rating and a high-performance single-stage scroll compressor. Designed for reliability, it features R-32 refrigerant, factory-installed filter drier, and pre-charged for 15' tubing length to streamline installation. The unit’s durable 5mm copper tubing with aluminum fin coil ensures efficient heat transfer, while the robust cabinet with removable grille and architectural gray powder-paint finish provides long-lasting protection and ease of maintenance. AHRI certified and ETL listed for industry-leading safety and performance.

• Refrigerant Type: R-32
• Unit Height: 39.5 in
• Unit Width: 35.5 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 25 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 2.5
• 30,000 BTU
• Model Efficiency: 15.2 SEER2
• Unit Depth: 35.5 in

Standard Features

• High-efficiency scroll compressor for reliable performance and energy savings.
• Factory-installed filter drier protects against moisture and contaminants.
• Fully pre-charged for 15' tubing length to simplify installation.
• 5mm copper tubing with enhanced aluminum fin coil for optimal heat transfer and durability.
• Sweat connection service valves with accessible gauge ports for easier servicing.
• Enclosed contactor ensures secure and reliable electrical connections.
• High-pressure switch for added system protection and safety.
• Ground lug connection for proper grounding and system integrity.
• Extended-life capacitors for consistent and long-lasting performance.
• AHRI Certified and ETL Listed to meet industry efficiency and safety standards.

Cabinet Features

• Removable grille-style top compliant with UL 60335-2-40 for safety and easy maintenance.
• Venturi design enhances airflow velocity for improved performance.
• Architectural gray powder-paint finish offers corrosion resistance with 500-hour salt-spray approval.
• Wire fan discharge grille protects internal components while maintaining airflow efficiency.
• Steel louver coil guard provides robust protection for the coils.
• Top and side maintenance access for convenient servicing.
• Single-panel access to controls with space for field-installed accessories.
• Hurricane-ready design meets 2023 Florida Building Code integrity requirements when properly anchored (anchor bracket kits available).

Goodman 2.5 Ton R32 Cased Evaporator Coil Horizontal-A 21" Cabinet with TXV CHPTA3026C3

The Goodman R32 2.5 Ton Cased Evaporator Coil features a compact 21" cabinet designed for horizontal installation, optimized for R-32 refrigerant to enhance efficiency and minimize environmental impact. This all-aluminum evaporator coil ensures superior thermal conductivity, while factory-installed thermal expansion valves (TXV) improve cooling and heat pump applications. The unit includes a single front access panel for easy servicing and foil-faced insulation to reduce cabinet condensation. With rust-resistant thermoplastic drain pans and UV-resistant features, this durable coil meets AHRI certification and ETL listing standards for performance and safety, making it an ideal choice for efficient HVAC systems.

• Refrigerant Type: R-32
• Unit Height: 21 in
• Unit Width: 26 in
• Cased/Uncased: Cased
• Coil Application: Horizontal A
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 30,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
