Goodman 4 Ton 17 SEER2 Heat Pump Split System Variable Speed 21" Horizontal

By: Goodman
SKU: GZV6SA4810 / CHPEA4830C3|ID: 101527
$4,752.00
+ Free shipping

Key Features

  • Efficiency: Rated at 17 SEER2 for energy-efficient performance
  • Capacity: Delivers 48,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Seer Rating: 17.0 SEER2

14.3 SEER214.7 SEER215.2 SEER216.0 SEER217.0 SEER217.5 SEER2

Tonnage: 4 Ton

3.5 Ton4 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

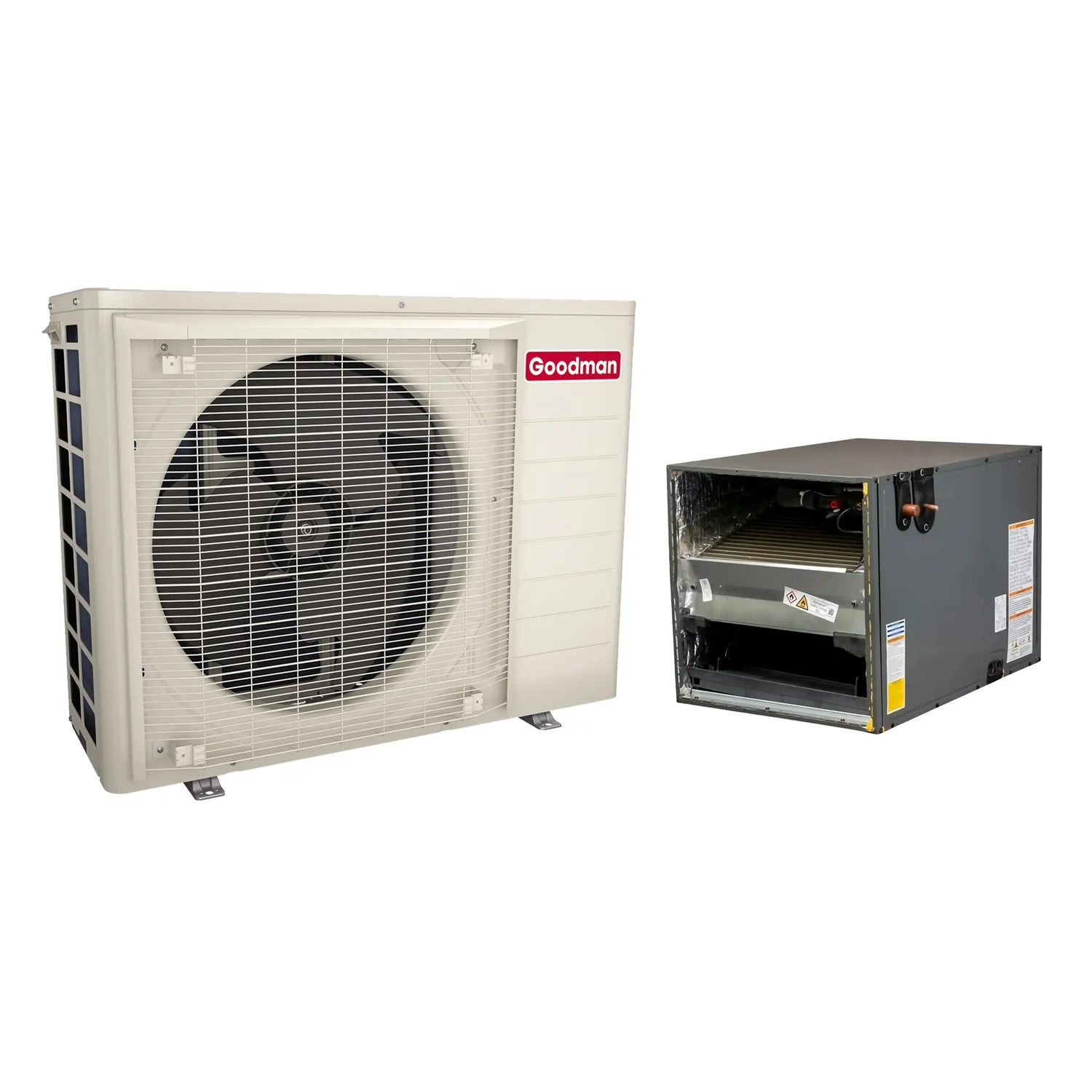

Goodman 4 Ton 17 SEER2 Heat Pump Split System Variable Speed 21" Horizontal

Goodman 4 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4810

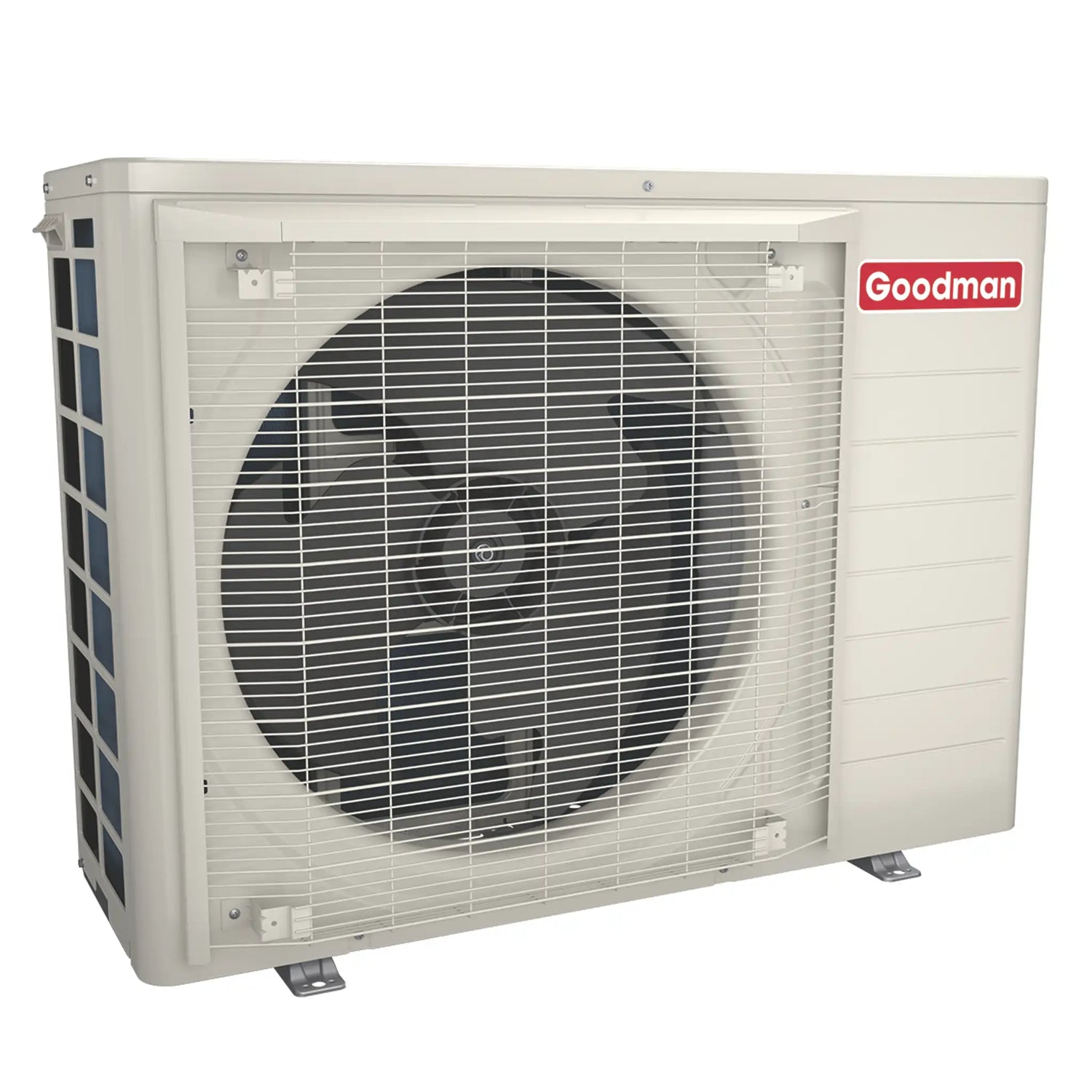

The Goodman GZV6SA4810 is a high-efficiency 4-ton side discharge heat pump condenser designed to deliver reliable comfort with advanced inverter technology. Utilizing an R-32 refrigerant system and a variable-speed inverter compressor, this unit provides precise capacity control, improved efficiency, and quiet operation. Built with a durable cabinet and engineered to meet the 2023 M1 Test Standards, it is an excellent solution for residential and light commercial HVAC applications.

Key Features

  • Efficiency: Rated at 17 SEER2 for energy-efficient performance
  • Capacity: Delivers 48,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

This 4-ton condenser is ideal for applications requiring compact side-discharge installation, quiet operation, and modern energy efficiency standards.

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

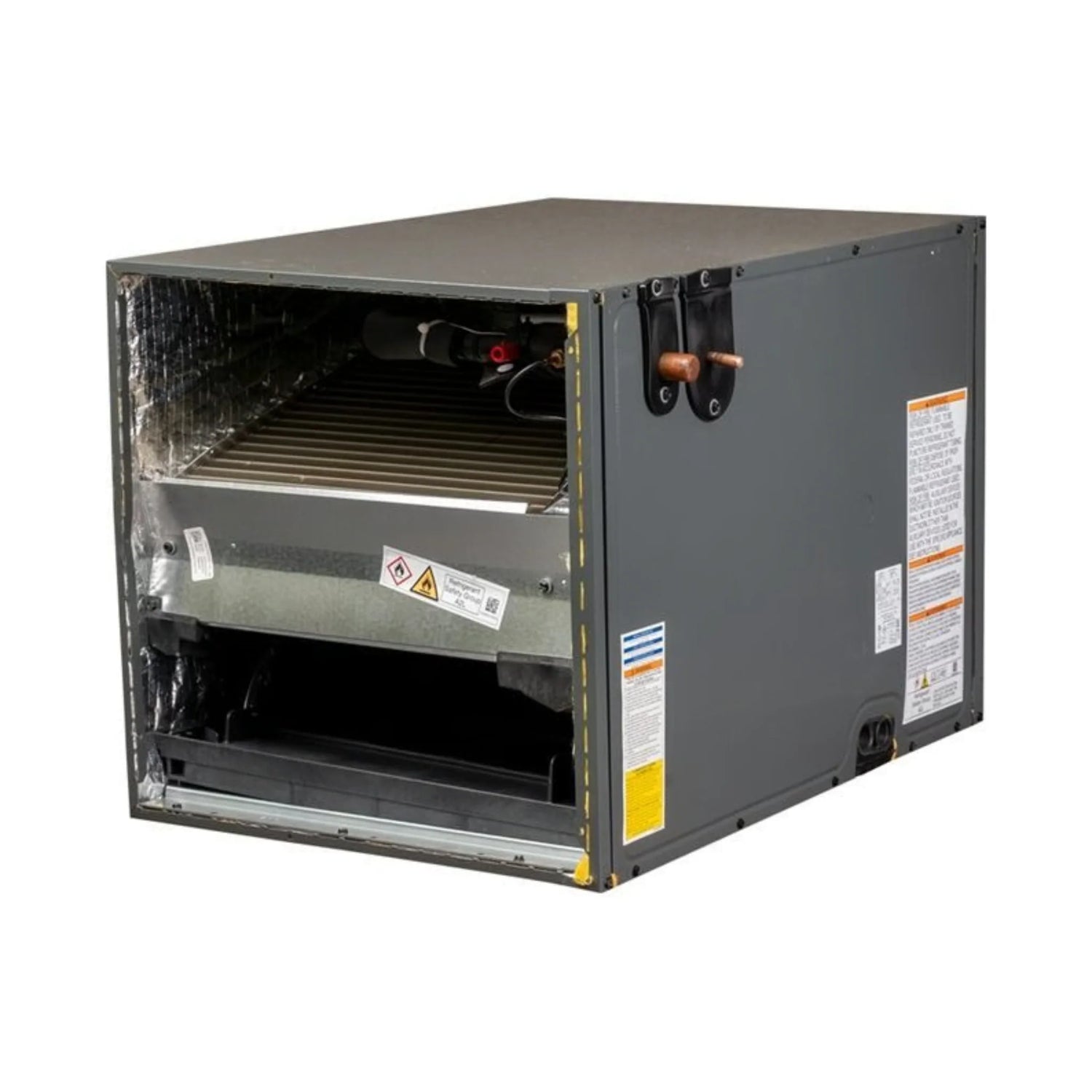

The Goodman  CHPEA4830C3 is a 4 Ton evaporator coil suitable for split system air conditioners and heat pumps. This unit is designed for horizontal airflow applications and comes with a factory-installed thermostatic expansion valve (TXV). Constructed from aluminum, it is optimized for use with R-32 refrigerant. The evaporator includes a secure cabinet and an effective condensate management system.

Key Features

  • Efficiency: Rated at 17 SEER2 for energy-efficient performance
  • Capacity: Delivers 48,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Product Highlights

This evaporator coil ensures efficient cooling performance and reliability in various HVAC systems.

Learning Resources

GZV6S Application Guide GZV6S Installation Manual GZV6S Warranty Certificate CHPEA Installation Manual CHPEA Specifications Sheet CHPEA Warranty Information

Specifications

Goodman 4 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4810

BrandGoodman
SKUGZV6SA4810
Tonnage4 Ton
Heating Capacity48,000 BTU/H
Refrigerant TypeR32
SEER217
Model Efficiency16.2 SEER2
Compressor TypeVariable-Speed Inverter
Power Voltage208/230 V
Power Phase1 Phase
Max Overcurrent Protection35 A
Communication TypeNon-Communicating
Unit Width37 in
Unit Height39 in
Unit Depth12.625 in
Unit Weight168 lb

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

BrandGoodman
Model NumberCHPEA4830C3
Product TypeEvaporator Coil
Coil TypeA Coil
ConfigurationHorizontal
CasingCased
Refrigerant TypeR32
Cooling Capacity4.0 Tons
Cooling BTU48000 BTU
Suction Connection Size7/8 Inch
Liquid Connection Size3/8 Inch
TXV InstalledYes
Cabinet Width21 Inches
Product Width30 Inches
Product Depth21 Inches
Product Height21 Inches
Product Weight63 Pounds
Dimensions21 W x 21 D x 30 H
AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
Metering DeviceTXV
Metering Device Refrigerant CompatibilityR32
Plenum Opening Width19 Inches
Plenum Opening Height20 Inches
Parts Warranty10 Limited Years

Warranty and Product Information

Goodman 4 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4810

Manufacturer Warranty10 Years

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

Standard Warranty5 years
Registered Warranty10 years
