Goodman 3 Ton 14.7 SEER2 Heat Pump Inverter Split System 21" W Horizontal

By: Goodman
SKU: GZV7SA3610 / CHPEA4830C3|ID: 101533
$4,825.00
+ Free shipping

Key Features

  • Efficiency: Rated at 14.7 SEER2 for energy-efficient performance
  • Capacity: Delivers 36,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Seer Rating: 14.7 SEER2

14.3 SEER214.7 SEER215.2 SEER216.0 SEER217.0 SEER217.5 SEER2

Tonnage: 3 Ton

3 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

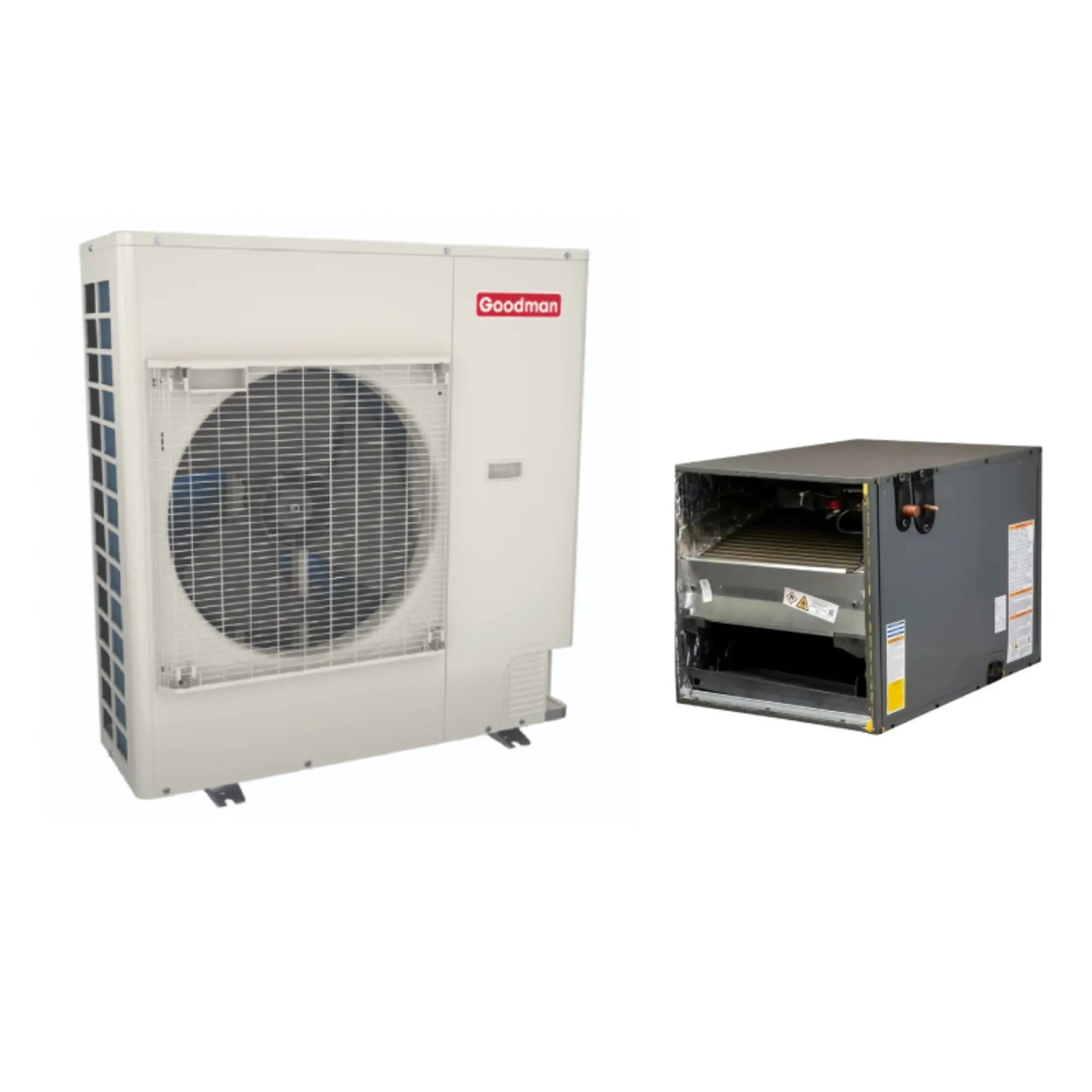

Goodman 3 Ton 14.7 SEER2 Heat Pump Inverter Split System 21" W Horizontal

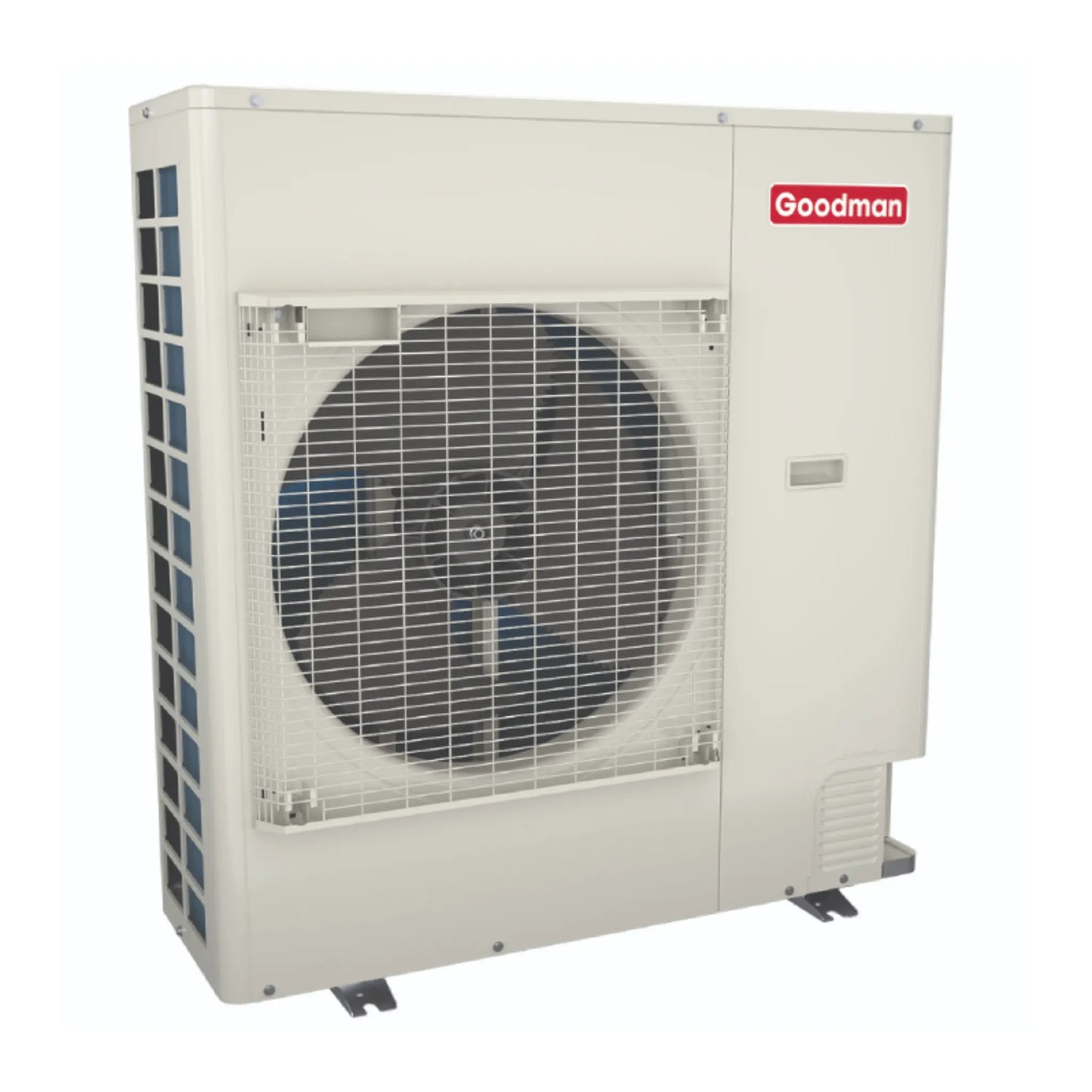

Goodman 3 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA3610

The Goodman GZV7SA3610 is a high-efficiency 3-ton side discharge heat pump condenser designed for superior comfort, quiet performance, and long-term durability. Featuring a variable-speed inverter compressor and environmentally friendly R-32 refrigerant, this unit delivers precise temperature control while meeting the latest 2023 M1 test standards. ENERGY STAR® certification ensures optimal energy savings for residential and light commercial applications.

Key Features

  • Efficiency: Rated at 14.7 SEER2 for energy-efficient performance
  • Capacity: Delivers 36,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

  • Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Side Design
  • Custom Ivory White Powder-Paint Finish
  • High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
  • 500-Hour Salt Spray Tested for Enhanced Corrosion Resistance
  • Wire Fan Discharge Grille
  • Top and Side Maintenance Access Panels
  • Meets 2023 Florida Building Code Unit Integrity Requirements When Properly Anchored

This 3-ton inverter heat pump condenser is ideal for installations requiring high efficiency, compact outdoor design, and reliable performance.

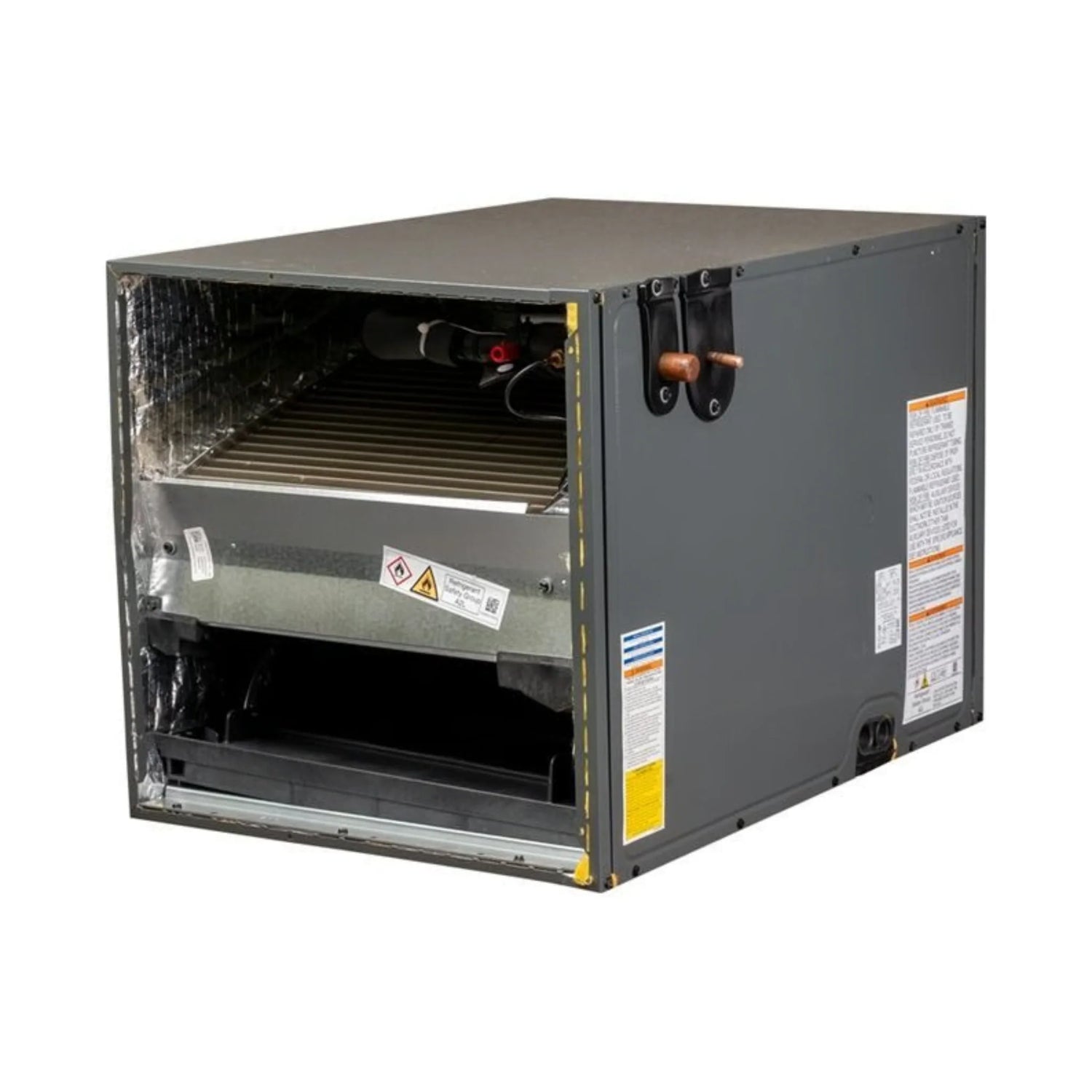

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

The Goodman  CHPEA4830C3 is a 4 Ton evaporator coil suitable for split system air conditioners and heat pumps. This unit is designed for horizontal airflow applications and comes with a factory-installed thermostatic expansion valve (TXV). Constructed from aluminum, it is optimized for use with R-32 refrigerant. The evaporator includes a secure cabinet and an effective condensate management system.

Key Features

  • Efficiency: Rated at 14.7 SEER2 for energy-efficient performance
  • Capacity: Delivers 36,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Product Highlights

This evaporator coil ensures efficient cooling performance and reliability in various HVAC systems.

Learning Resources

GZV7S Application Guide GZV7S Installation Manual GZV7S Warranty Certificate CHPEA Installation Manual CHPEA Specifications Sheet CHPEA Warranty Information

Specifications

Goodman 3 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA3610

BrandGoodman
SKUGZV7SA3610
Tonnage3 Ton
Heating Capacity36,000 BTU/H
Refrigerant TypeR32
SEER219
Model Efficiency17.5 SEER2
Compressor TypeVariable-Speed Inverter
Power Voltage208/230 V
Power Phase1 Phase
Max Overcurrent Protection35 A
Communication TypeNon-Communicating
Unit Width37 in
Unit Height39 in
Unit Depth12.625 in
Unit Weight168 lb

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

BrandGoodman
Model NumberCHPEA4830C3
Product TypeEvaporator Coil
Coil TypeA Coil
ConfigurationHorizontal
CasingCased
Refrigerant TypeR32
Cooling Capacity4.0 Tons
Cooling BTU48000 BTU
Suction Connection Size7/8 Inch
Liquid Connection Size3/8 Inch
TXV InstalledYes
Cabinet Width21 Inches
Product Width30 Inches
Product Depth21 Inches
Product Height21 Inches
Product Weight63 Pounds
Dimensions21 W x 21 D x 30 H
AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
Metering DeviceTXV
Metering Device Refrigerant CompatibilityR32
Plenum Opening Width19 Inches
Plenum Opening Height20 Inches
Parts Warranty10 Limited Years

Warranty and Product Information

Goodman 3 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA3610

Manufacturer Warranty10 Years

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

Standard Warranty5 years
Registered Warranty10 years
