Goodman 3.5 Ton 17 SEER2 Heat Pump Inverter Split System 24" Horizontal R32

By: Goodman
SKU: GZV6SA4210 / CHPEA4830C3|ID: 101525
$4,449.00
+ Free shipping

Key Features

  • Efficiency: Rated at 17 SEER2 for energy-efficient performance
  • Capacity: Delivers 42,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Seer Rating: 17.0 SEER2

14.3 SEER214.7 SEER215.2 SEER216.0 SEER217.0 SEER217.5 SEER2

Tonnage: 3.5 Ton

3.5 Ton4 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

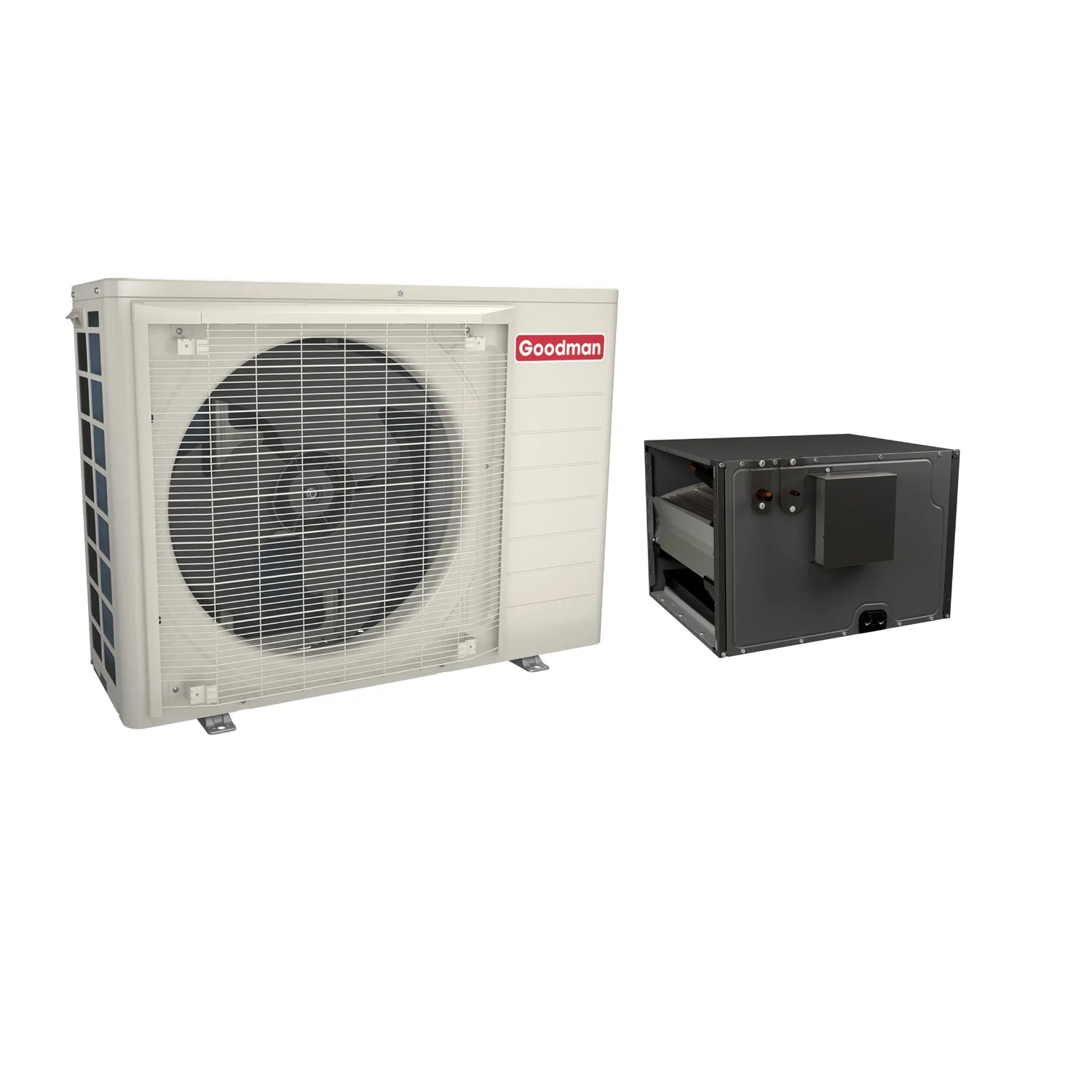

Goodman 3.5 Ton 17 SEER2 Heat Pump Inverter Split System 24" Horizontal R32

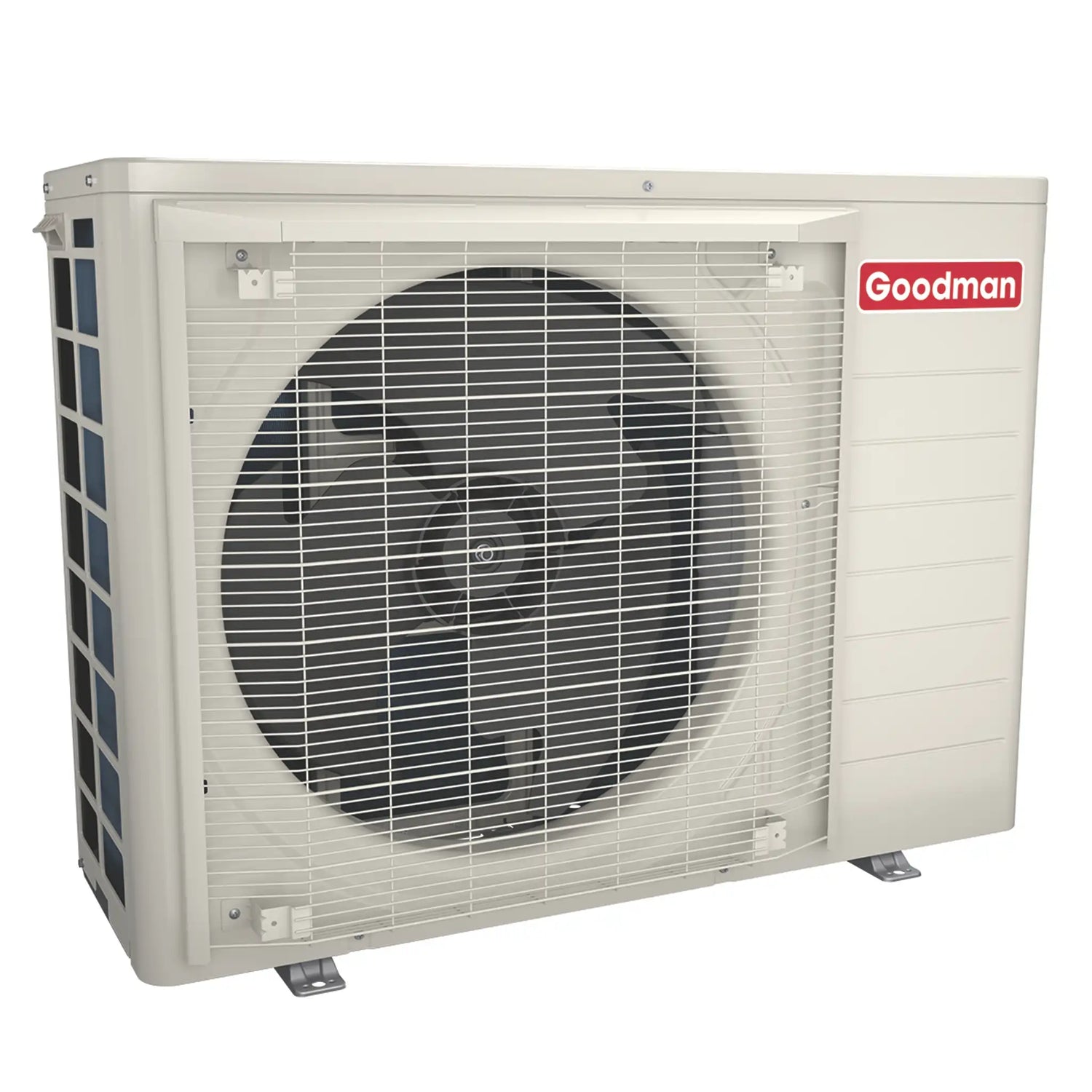

Goodman 3.5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4210

The Goodman GZV6SA4210 is a high-efficiency 3.5-ton side discharge heat pump condenser designed for reliable comfort, quiet operation, and advanced energy performance. Featuring a variable-speed inverter compressor and R-32 refrigerant, this unit delivers precise temperature control while meeting modern efficiency and durability standards. Its compact side-discharge design makes it ideal for residential installations with limited space.

Key Features

  • Efficiency: Rated at 17 SEER2 for energy-efficient performance
  • Capacity: Delivers 42,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Cabinet Features

  • Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Side Design
  • Custom Ivory White Powder-Paint Finish
  • High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
  • 500-Hour Salt Spray Tested for Enhanced Corrosion Resistance
  • Wire Fan Discharge Grille
  • Top and Side Maintenance Access Panels
  • Meets 2023 Florida Building Code Unit Integrity Requirements When Properly Anchored

This 3.5-ton condenser is an excellent solution for homeowners seeking modern inverter technology, compact installation, and dependable heating and cooling performance.

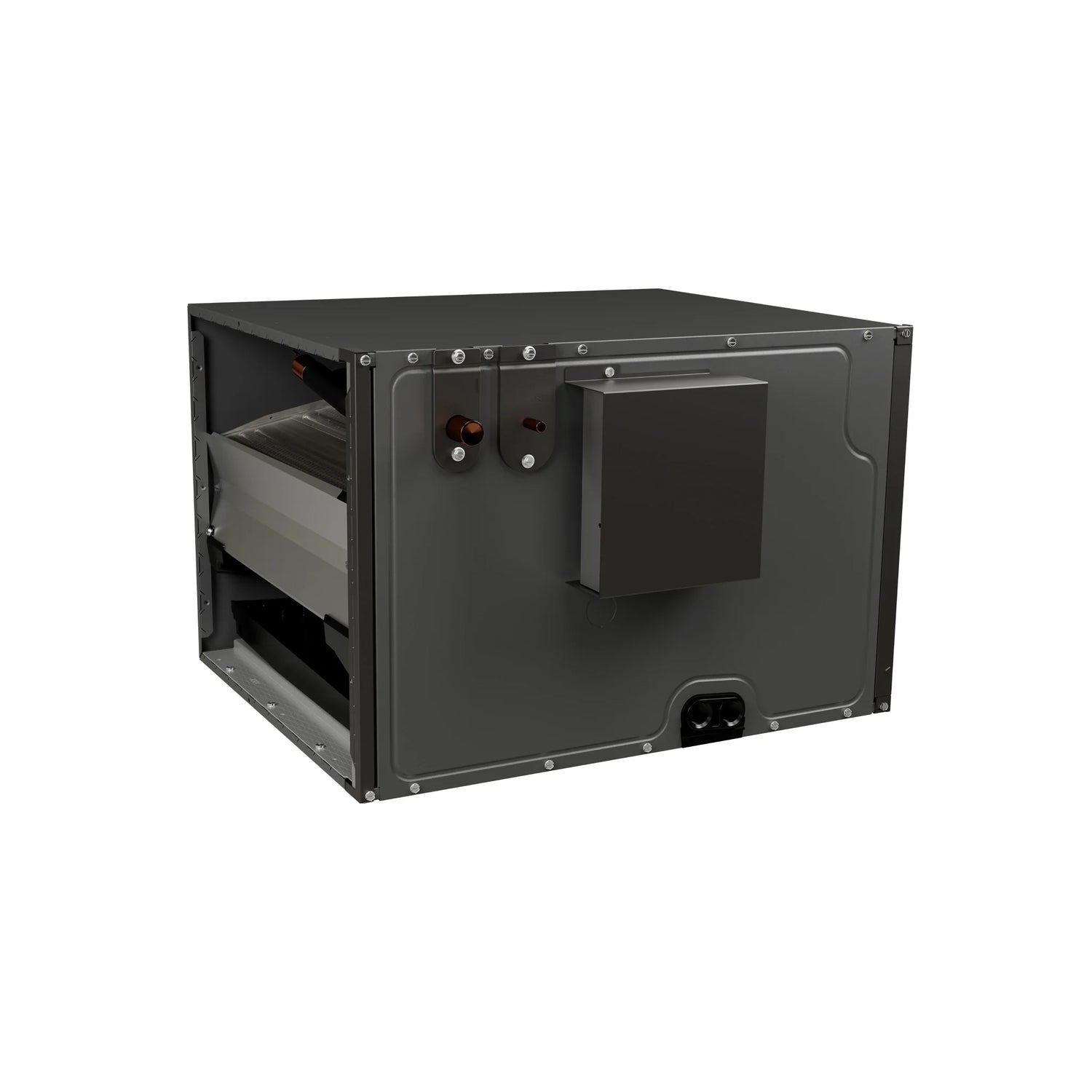

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

The Goodman  CHPEA4830C3 is a 4 Ton evaporator coil suitable for split system air conditioners and heat pumps. This unit is designed for horizontal airflow applications and comes with a factory-installed thermostatic expansion valve (TXV). Constructed from aluminum, it is optimized for use with R-32 refrigerant. The evaporator includes a secure cabinet and an effective condensate management system.

Key Features

  • Efficiency: Rated at 17 SEER2 for energy-efficient performance
  • Capacity: Delivers 42,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards

Product Highlights

This evaporator coil ensures efficient cooling performance and reliability in various HVAC systems.

Goodman 3.5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4210

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

Learning Resources

GZV6S Application Guide GZV6S Installation Manual GZV6S Warranty Certificate CHPEA Installation Manual CHPEA Specifications Sheet CHPEA Warranty Information

Specifications

Goodman 3.5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4210

BrandGoodman
SKUGZV6SA4210
Tonnage3.5 Ton
Heating Capacity42,000 BTU/H
Refrigerant TypeR-32
SEER217
Model Efficiency16.2 SEER2
Compressor TypeVariable-Speed Inverter
Power Voltage208/230 V
Power Phase1 Phase
Max Overcurrent Protection35 A
Communication TypeNon-Communicating
Unit Width37 in
Unit Height39 in
Unit Depth12.625 in
Unit Weight168 lb

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

TypeEvaporator Coil
SKUCHPEA4830C3
Product CategoryEvaporator Coil
Refrigerant TypeR-32
CasingCased
StyleA Coil
ConfigurationHorizontal
TXV InstalledYes
Capacity4.0 Tons
Cooling BTU48000 BTU
Suction Connection Size7/8 Inch
Liquid Connection Size3/8 Inch
Cabinet Width21 Inches
Product Height21 Inches
Product Width30 Inches
Product Depth21 Inches
Product Weight63 Pounds
Dimensions21 W x 21 D x 30 H
AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
Metering DeviceTXV
Metering Device Refrigerant CompatibilityR-32
Plenum Opening Width19 Inches
Plenum Opening Height20 Inches
Parts Warranty10 Limited Years

Warranty and Product Information

Goodman 3.5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4210

Manufacturer Warranty10 Years

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

Standard Warranty5 years
Registered Warranty10 years
