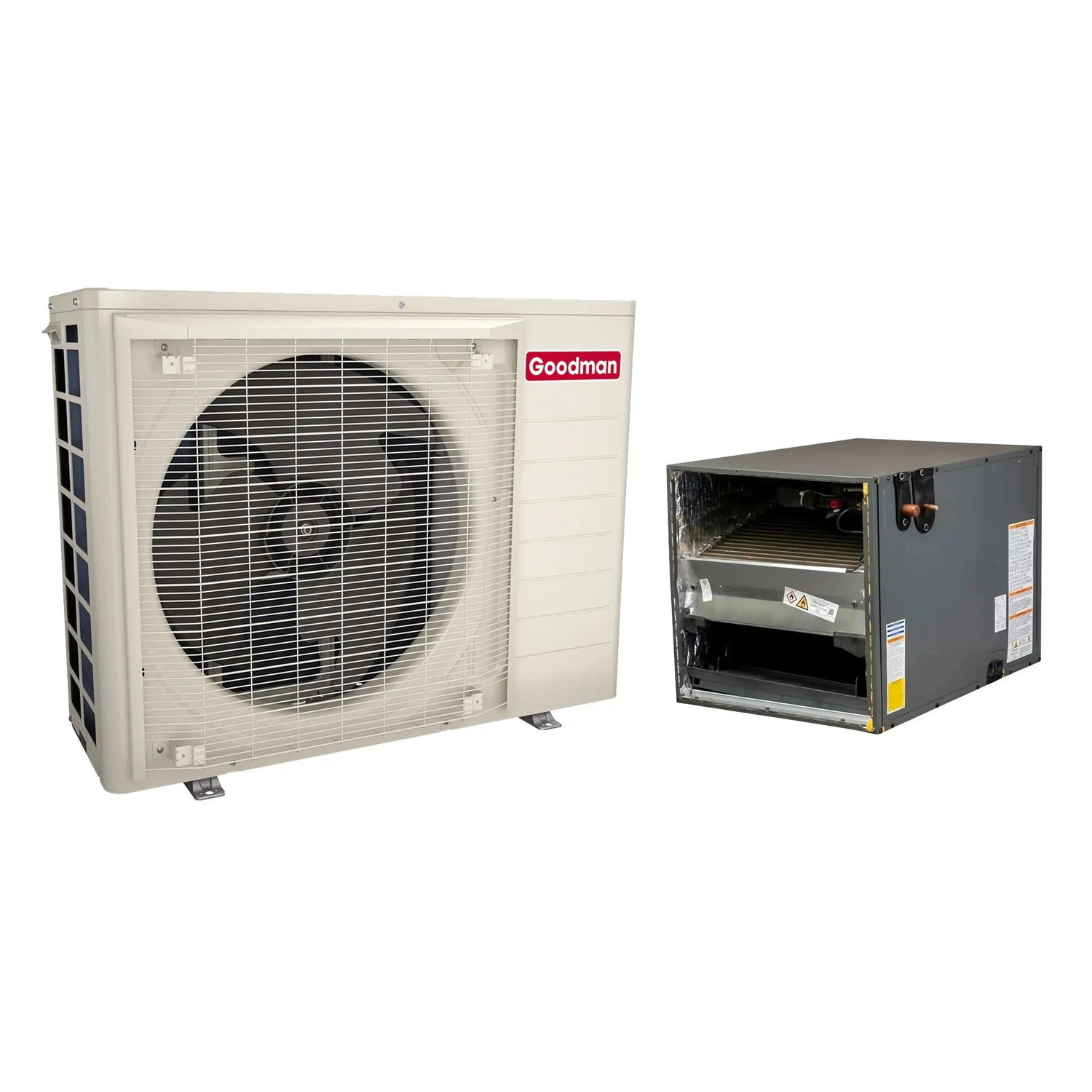

Goodman 4 Ton 17 SEER2 Heat Pump Inverter Split System 24.5" Horizontal R32

By: Goodman
SKU: GZV6SA4810 / CHPEA6030D3|ID: 101530
$4,776.00
+ Free shipping

Key Features

  • Efficiency: Rated at 17 SEER2 for energy-efficient performance
  • Capacity: Delivers 48,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Seer Rating: 17.0 SEER2

14.3 SEER214.7 SEER215.2 SEER216.0 SEER217.0 SEER217.5 SEER2

Tonnage: 4 Ton

3.5 Ton4 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 4 Ton 17 SEER2 Heat Pump Inverter Split System 24.5" Horizontal R32

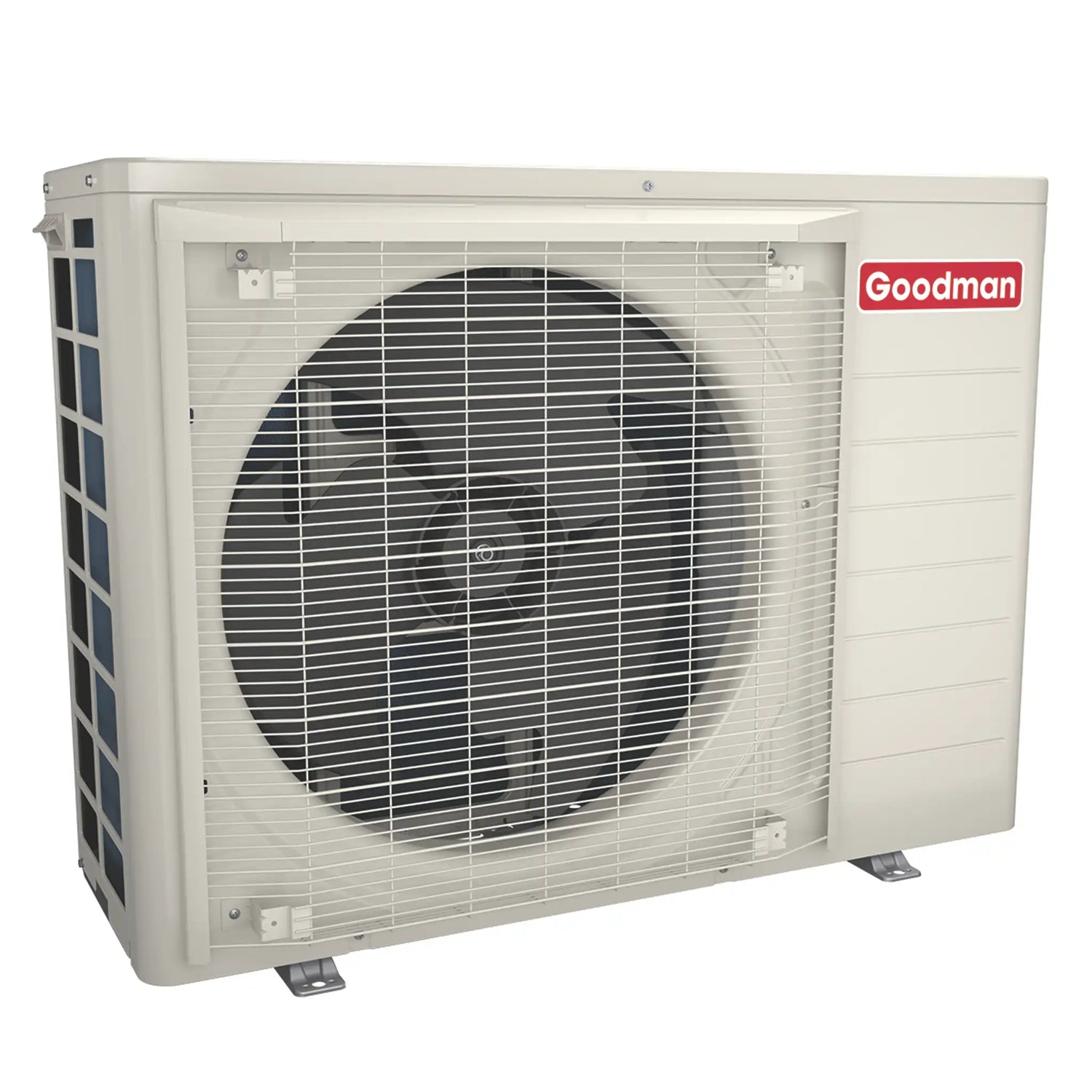

Goodman 4 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4810

The Goodman GZV6SA4810 is a high-efficiency 4-ton side discharge heat pump condenser designed to deliver reliable comfort with advanced inverter technology. Utilizing an R-32 refrigerant system and a variable-speed inverter compressor, this unit provides precise capacity control, improved efficiency, and quiet operation. Built with a durable cabinet and engineered to meet the 2023 M1 Test Standards, it is an excellent solution for residential and light commercial HVAC applications.

Key Features

  • Efficiency: Rated at 17 SEER2 for energy-efficient performance
  • Capacity: Delivers 48,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

This 4-ton condenser is ideal for applications requiring compact side-discharge installation, quiet operation, and modern energy efficiency standards.

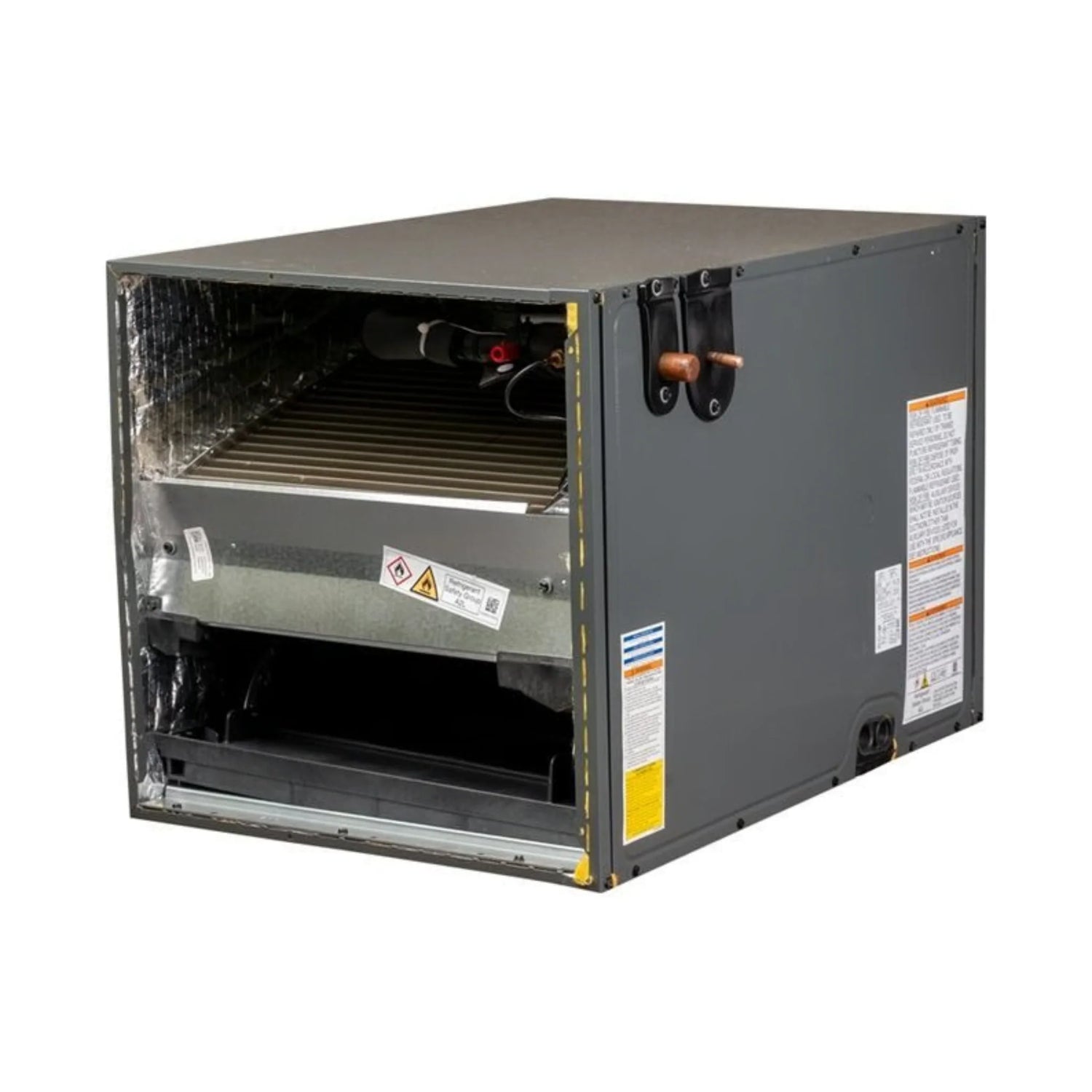

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3

The Goodman CHPEA6030D3 is a 5-ton horizontal evaporator coil engineered for efficient cooling performance. It includes a factory-installed electronic expansion valve (EEV) for enhanced refrigerant control and is optimized for use with R-32 refrigerant. The 21-inch depth allows easier installation in tight attic spaces, and its durable cabinet construction ensures long-lasting performance. Ideal for residential or light commercial HVAC systems requiring horizontal airflow configurations.

Key Features

  • Efficiency: Rated at 17 SEER2 for energy-efficient performance
  • Capacity: Delivers 48,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

This coil is ideal for heat pump or air conditioner applications requiring horizontal orientation. Its design ensures reliable cooling performance and compatibility with advanced refrigerants like R-32.

Learning Resources

GZV6S Application Guide GZV6S Installation Manual GZV6S Warranty Certificate CHPEA Installation Manual CHPEA Specifications Sheet CHPEA Warranty Information

Specifications

Goodman 4 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4810

BrandGoodman
SKUGZV6SA4810
Tonnage4 Ton
Heating Capacity48,000 BTU/H
Refrigerant TypeR32
SEER217
Model Efficiency16.2 SEER2
Compressor TypeVariable-Speed Inverter
Power Voltage208/230 V
Power Phase1 Phase
Max Overcurrent Protection35 A
Communication TypeNon-Communicating
Unit Width37 in
Unit Height39 in
Unit Depth12.625 in
Unit Weight168 lb

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3

BrandGoodman
Model NumberCHPEA6030D3
Product TypeEvaporator Coil
Product LineCHPTA
Coil StyleA Coil
Tonnage5 Ton
Cooling Capacity60000 BTU
Refrigerant TypeR32
Air Flow DirectionHorizontal
CasingCased
TXV InstalledYes
Suction Connection Size7/8 Inch
Liquid Connection Size3/8 Inch
Cabinet Width24.5 Inches
Product Height24.5 Inches
Product Width30 Inches
Product Depth21 Inches
Weight67 Pounds
Shipping Weight82 Pounds
AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
Warranty10 Limited Years

Warranty and Product Information

Goodman 4 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4810

Manufacturer Warranty10 Years

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3

Standard Warranty5 years
Registered Warranty10 years
