Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow

By: Goodman
SKU: CAPEA6030C3|ID: 101273
$998.00
+ Shipping
Width: 21"
Depth: 21"

Key Features

  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Cabinet Width: 21"

17.5"21"24.5"

Configuration: Vertical

Vertical

Tonnage: 5 Ton

2 Ton2.5 Ton3 Ton4 Ton5 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

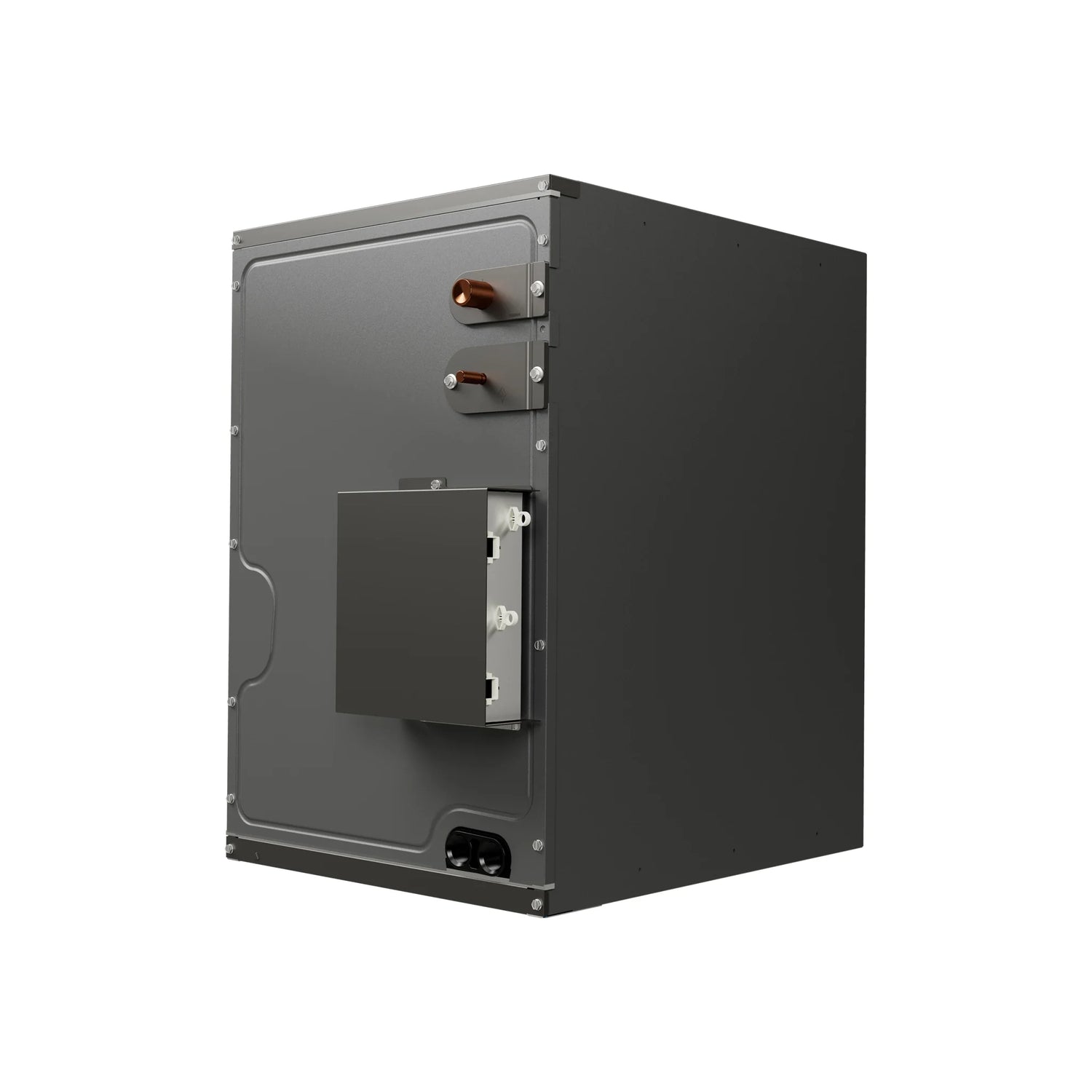

Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow

Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow CAPEA6030C3

The Goodman CAPEA6030C3 is a 5-ton cased A coil evaporator designed for use in both split system air conditioners and heat pumps. Built with durable all-aluminum construction, this coil delivers reliable performance and superior heat transfer. It supports both upflow and downflow configurations and includes a factory-installed thermal expansion valve (TXV) for precise refrigerant control. Compatible with R-32 refrigerant, the coil also features foil-faced insulation and a thermoplastic drain pan to manage condensation effectively, all within a compact cabinet featuring a galvanized, leather grain-embossed finish.

Key Features

  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

This 5-ton evaporator coil is an excellent fit for high-capacity residential HVAC systems requiring reliable performance, R-32 compatibility, and energy-efficient design in a flexible upflow/downflow configuration.

Learning Resources

CAPEA Installation Manual CAPEA Specifications Sheet CAPEA Warranty Information

Specifications

BrandGoodman
SKUCAPEA6030C3
Product TypeEvaporator Coil
Tonnage5.0 Tons
Cooling Capacity60000 BTU
Refrigerant TypeR32
Model Efficiency17 SEER
ConfigurationUpflow/Downflow
Coil TypeA Coil
CasingCased
TXV InstalledYes
Suction Line Size7/8 Inches
Liquid Line Size3/8 Inches
Cabinet Width21 Inches
Width21 Inches
Depth21 Inches
Height30 Inches
Product Weight51 Pounds
Shipping Weight66 Pounds
CertificationsAHRI, ETL, ISO
Airflow OrientationDownflow, Upflow
Voltage208, 230V
Electrical Phases1
Frequency60 Hz
Amperage31.1A
Warranty10 Year Limited Parts

Warranty and Product Information

Standard Warranty5 years
Registered Warranty10 years
