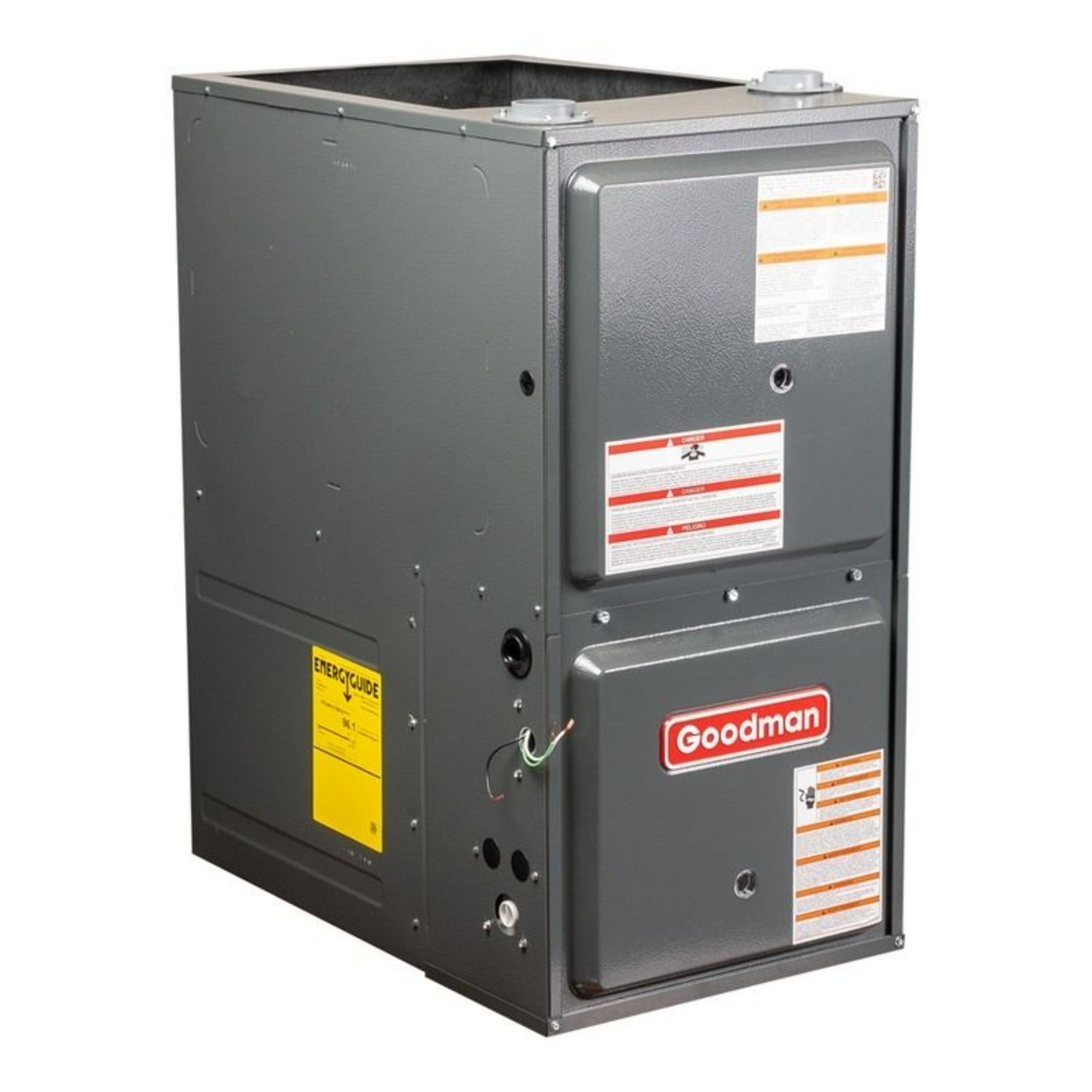

Goodman 96% AFUE Gas Furnace 120K BTU 24.5"W Nine-Speed Downflow/Horizontal

By: Goodman
SKU: GD9S961205DN|ID: 101067
$2,702.00
+ Free shipping
Width: 24.5"
Depth: 28 7/8"

Key Features

  • Efficiency: 96% AFUE rating delivers reliable, energy-efficient home heating
  • Capacity: Outputs 120,000 BTU/h of reliable heat to keep your home warm all winter
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 96% AFUE Gas Furnace 120K BTU 24.5"W Nine-Speed Downflow/Horizontal

Goodman R32 96% AFUE Gas Furnace 120K BTU Nine-Speed Downflow/Horizontal GD9S961205DN

The Goodman GD9S961205DN is a high-performance gas furnace engineered to deliver dependable, energy-efficient heating. With a powerful 120,000 BTU input and 96% AFUE efficiency rating, this furnace is ideal for heating larger homes while reducing energy waste. Its single-stage operation and advanced 9-speed ECM blower motor ensure consistent airflow, quieter performance, and improved electrical efficiency. Designed for horizontal or downflow configurations, this model features a heavy-duty steel cabinet, hot surface igniter, and self-diagnostic control board for ease of use and maintenance.

Key Features

  • Heating: 96% AFUE gas furnace provides efficient whole-home heating
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Perfect for large residential spaces, the GD9S961205DN is built to meet high heating demands while keeping energy costs low and maintenance simple.

Learning Resources

Installation Manual Specifications Sheet Goodman Furnace Warranty

Specifications

BrandGoodman
SKUGD9S961205DN
TypeGas Heat
CategoryGas Furnaces
Refrigerant TypeR32
AHRI Certificate Number215224962
Airflow DirectionDownflow/Horizontal
Exhaust Flue RequirementPlastic / PVC
Brand/ManufacturerGoodman
Product FeaturesNew Refrigerant Compliant
Furnace Efficiency / AFUE96%
Heating BTU120,000
High Fire Output115,320
Blower Motor9 Speed - ECM
Maximum CFM2000
Horsepower1 HP
ConfigurationDownflow/Horizontal
Energy StarYes
Electrical115 V. 1 Phase 60 Hz
Max Breaker Size25 Amps
Min. Breaker Size16.7 Amps
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height34.5"
Width24.5"
Depth28.75"
Filter Size(1) 14 x 20 (bottom) or (1) 20 x 25 (top return)
No. of Burners6
Vent Diameter3"
ReplacesGC9S961205DN

Warranty and Product Information

Standard Warranty5 Years
Registered WarrantyLifetime
