Goodman 80% AFUE 60K BTU Gas Furnace Low NOx 14" Width Downflow/Horizontal

By: Goodman
SKU: GD9S800603AX|ID: 101123
$1,272.00
+ Free shipping

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

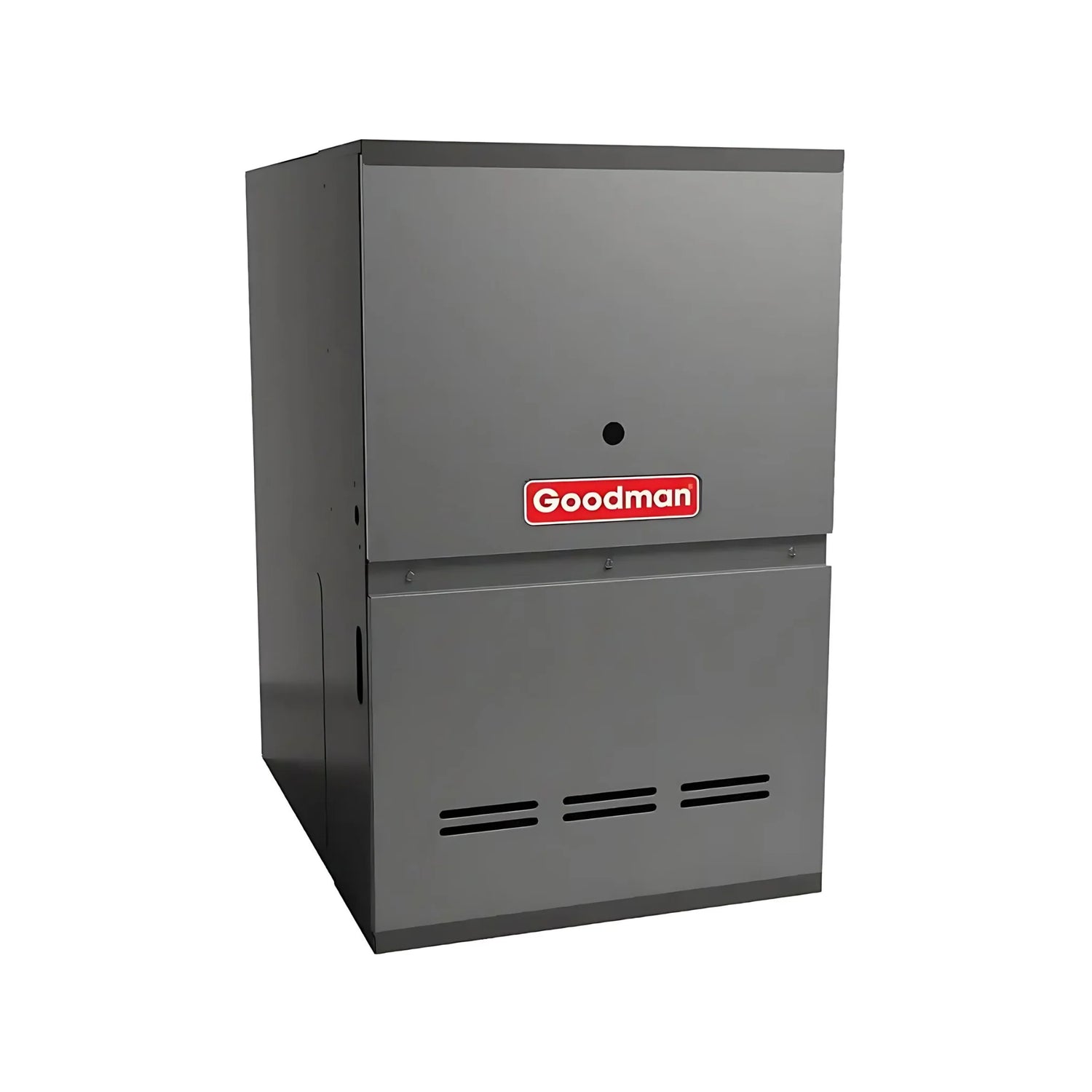

Goodman 80% AFUE 60K BTU Gas Furnace Low NOx 14" Width Downflow/Horizontal

Goodman R32 80% AFUE Gas Furnace 60K BTU 14"W Low NOx Downflow/Horizontal GD9S800603AX

The Goodman GD9S800603AX is a reliable, high-efficiency furnace offering 60,000 BTU heating capacity and 80% AFUE. Its Low NOx emissions design makes it ideal for homes in California counties with stricter air quality regulations. With a 9-speed ECM blower motor, heavy-gauge steel cabinet, and smart diagnostic controls, this unit delivers dependable performance, quiet operation, and energy savings — all in a compact, flexible installation package.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Important California Compliance Note

This model meets California Low NOx requirements, but it cannot be installed in the following counties: Los Angeles, Fresno, San Joaquin, Kern, Kings, Madera, Merced, Orange, Riverside, San Bernardino, Stanislaus, and Tulare.
These areas require Ultra-Low NOx models. Contact us if you need help finding compliant alternatives.

Learning Resources

GR9S80 / GD9S80 Installation Manual GR9S80 / GD9S80 Specification Sheets GR9S80 / GD9S80 Warranty Information

Specifications

BrandGoodman
SKUGD9S800603AX
TypeGas Heat
CategoryGas Furnaces
Refrigerant TypeR-32
Heating BTU60,000
Temperature Rise Range (°F)30-60
Vent Diameter4"
AHRI Certificate Number215358038
Airflow DirectionDownflow/Horizontal
Exhaust Flue RequirementMetal
Product FeaturesLow NOx, New Refrigerant Compliant
Furnace Efficiency / AFUE80%
Blower Motor9-Speed - ECM
Maximum CFM1200
Horsepower1/2 HP
ConfigurationDownflow/Horizontal
Electrical115 V. 1 Phase 60 Hz
Max Breaker Size15 Amps
Min. Breaker Size7.7 Amps
Low NOxYES
NOx= < 40 NG/J NOx
Burner StagesSingle
No. of Burners3
Fuel TypePropane, Natural Gas
Height33 3/8"
Width14"
Depth28"
Shipping Weight (lbs)94
UPC633190210050

Warranty and Product Information

Standard Warranty5 year parts residential, 5 year parts multi-family, 5 year parts commercial
Registered Warranty10 year parts residential, 10 year parts multi-family, 5 year parts commercial
