Goodman 80% AFUE 100K BTU Gas Furnace Low NOx 21" Width Downflow/Horizontal

By: Goodman
SKU: GD9T801005CX|ID: 101132
$1,720.00
+ Free shipping

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

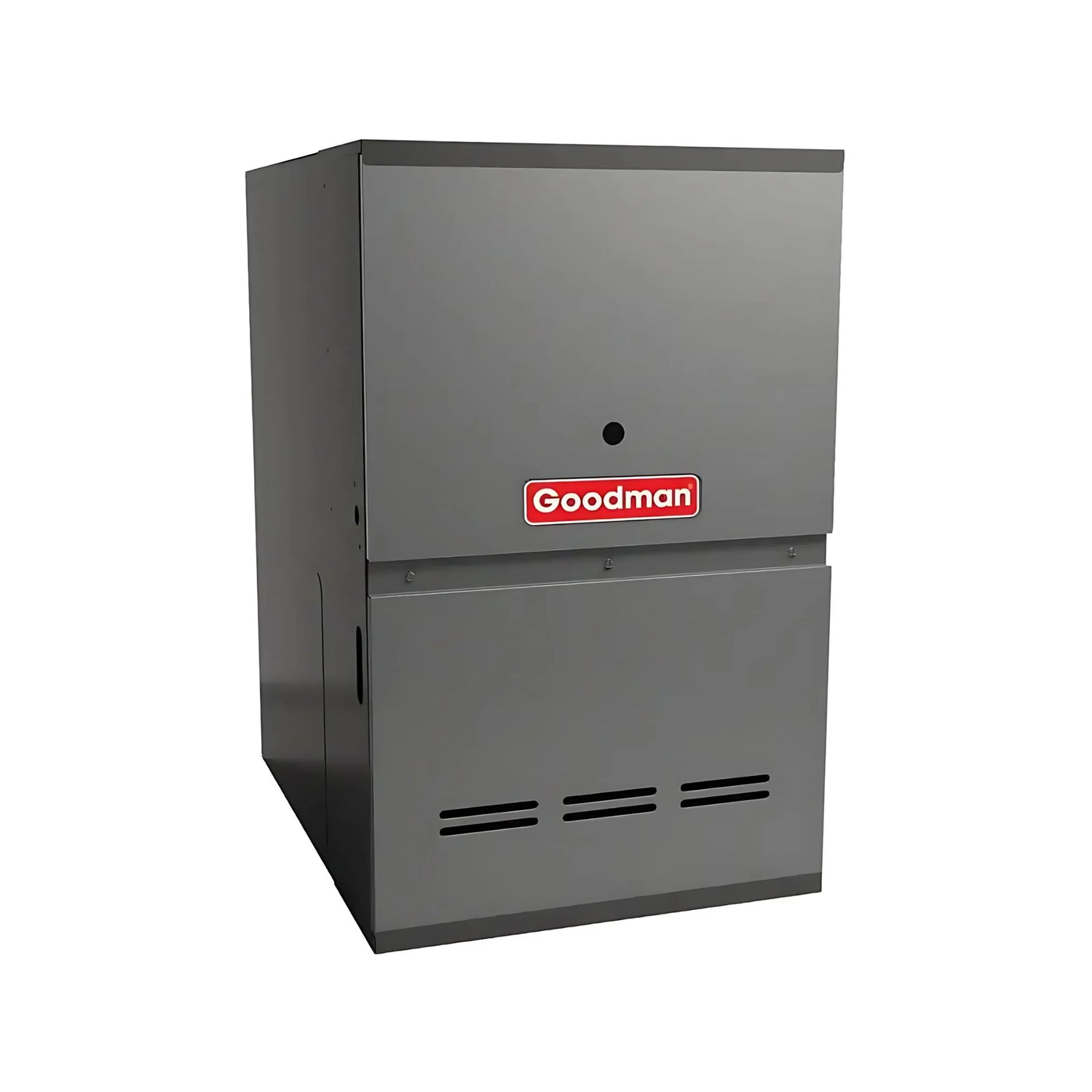

Goodman 80% AFUE 100K BTU Gas Furnace Low NOx 21" Width Downflow/Horizontal

Goodman R32 80% AFUE Gas Furnace 100K BTU 2-Stage 21" Wide Low NOx Downflow GD9T801005CX

The Goodman GD9T801005CX gas furnace delivers dependable two-stage heating performance with an 80% AFUE efficiency rating and 100,000 BTUs of input capacity. Equipped with a multi-speed ECM blower motor and SureStart® silicon nitride igniter, this model ensures quiet operation, long-lasting durability, and consistent airflow. Designed with California Low NOx compliance and flexible installation in mind, the unit features a heavy-gauge, fully insulated steel cabinet and is compatible with downflow and horizontal configurations. With AHRI certification and ETL listing, the GD9T801005CX offers high-quality performance and energy-conscious heating for your home.

Key Features

  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Learning Resources

GR9T80 / GD9T80 Installation Manual GR9T80 / GD9T80 Specification Sheets GR9T80 / GD9T80 Warranty Information

Specifications

UPC633190210210

BrandGoodman
SKUGD9T801005CX
TypeGas Heat
CategoryGas Furnaces
Refrigerant TypeR-32
Heating BTU100,000
Temperature Rise Range (°F)30-60
AHRI Certificate Number215358016
Airflow DirectionDownflow/Horizontal
Exhaust Flue RequirementMetal
BrandGoodman
Product FeaturesLow NOx, New Refrigerant Compliant
Furnace Efficiency / AFUE80%
High Fire Output BTU80,000
Blower Motor9 Speed - ECM
Maximum CFM2000
Horsepower1 HP
ConfigurationDownflow/Horizontal
Electrical115 V. 1 Phase 60 Hz
Max Breaker Size25 Amps
Min. Breaker Size14.3 Amps
Low NOxYES
NOx< 40 NG/J NOx
Burner StagesTwo
Number of Burners5
Fuel TypePropane, Natural Gas
Height33 3/8"
Width21"
Depth28"
Shipping Weight (lbs)131

Warranty and Product Information

Standard Warranty5 year parts residential, 5 year parts multi-family, 5 year parts commercial
Registered Warranty10 year parts residential, 10 year parts multi-family, 5 year parts commercial
