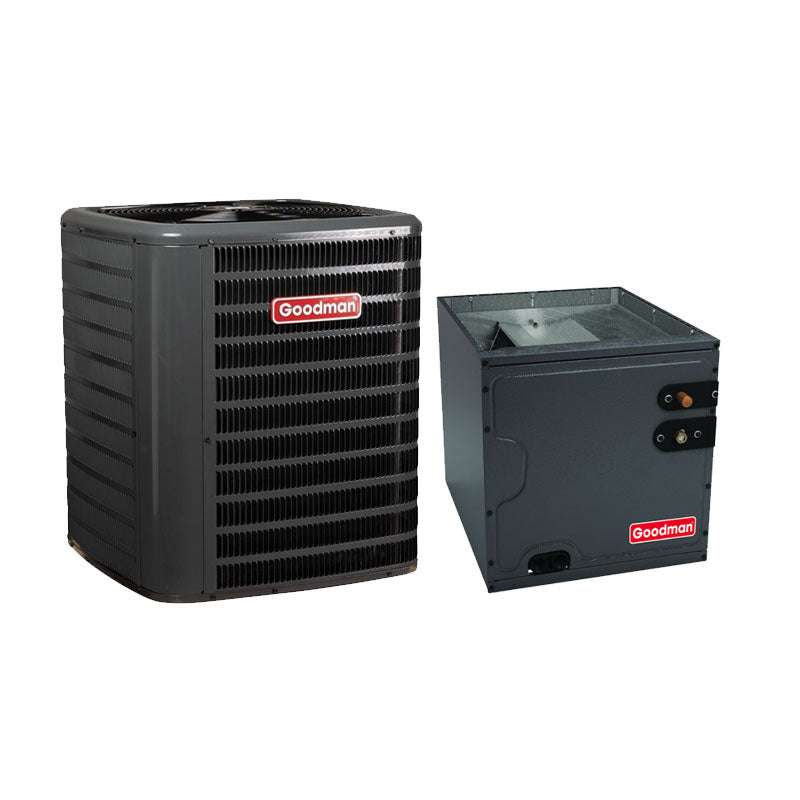

Goodman 5 Ton R32 AC & Evaporator Coil 14.5 SEER2 24.5"W Cased Vertical
Key Features
- Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
- Capacity: Delivers 60,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
Product Details
Product Details
Goodman 5 Ton R32 AC & Evaporator Coil 14.5 SEER2 24.5"W Cased Vertical
Goodman 5 Ton R32 Split System Air Conditioner 15.2 SEER2 208/230V 1-Phase GLXS5BA6010
Upgrade your cooling system with the Goodman 5 Ton Air Conditioner, featuring R-32 refrigerant and 60,000 BTU of cooling power. With a two-stage scroll compressor and 15.2 SEER2 efficiency, it offers optimal performance and energy savings. The 41.625" height and 35.5" width unit is pre-charged for up to 15 feet of tubing and includes durable copper/aluminum coils. Designed with safety in mind, it includes an enclosed contactor, high-pressure switch, and a hurricane-ready cabinet for reliable operation. AHRI-certified and ETL-listed for performance and safety compliance.
- Refrigerant Type: R-32
- Unit Height: 41.625 in
- Unit Width: 35.5 in
- Communication Feature Type: Non-Communicating
- Max Overcurrent Protection: 60 A
- Power Phase: 1 Ph
- Power Voltage: 208/230 V
- Compressor Stages: Two Stage
- Compressor Type: Scroll
- Tonnage: 5
- 60,000 BTU Cooling
- Model Efficiency: 15.2 SEER2
- Unit Depth: 35.5 in
Key Features
- Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
- Capacity: Delivers 60,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
Cabinet Features
- Removable grille-style top meets UL 60335-2-40 safety standards.
- Venturi design enhances airflow velocity for better cooling efficiency.
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray resistance.
- Wire fan discharge grille for additional protection.
- Steel louver coil guard ensures coil durability and safety.
- Top and side access for easier maintenance and servicing.
- Single-panel control access with space for field-installed accessories.
- Designed to meet 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available).
Goodman 5 Ton R32 Evaporator Coil Upflow/Downflow Cased 30"H x 24.5"W with Built-in TXV CAPTA6030D3
This high-performance, all-aluminum evaporator coil is designed for R-32 refrigerant and features integrated thermal expansion valves for cooling and heat pump applications. It offers vertical and horizontal installation options, with a 21-inch depth for easy attic access. The coil has foil-faced insulation to reduce condensation and a rust- and UV-resistant drain pan. With a durable galvanized finish, it’s AHRI certified and ETL listed, ensuring efficiency, durability, and easy maintenance.
- Refrigerant Type: R-32
- Unit Height: 30 in
- Unit Width: 24.5 in
- Cased/Uncased: Cased
- Tonnage: 5
- Coil Application: Upflow/Downflow
- Unit Depth: 21 in
Key Features
- Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
- Capacity: Delivers 60,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
