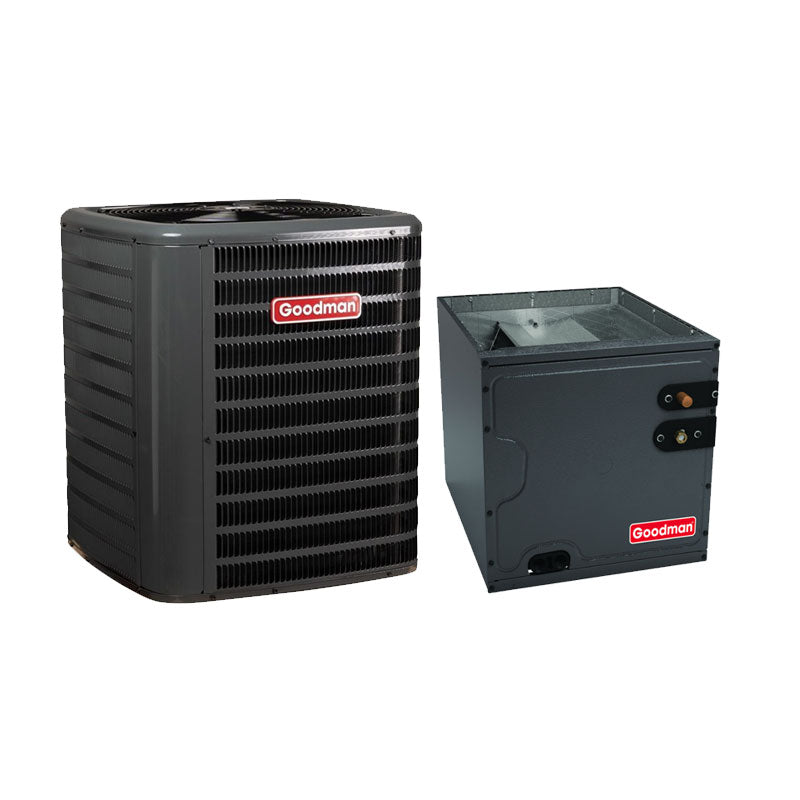

Goodman 5 Ton R32 AC & Evaporator Coil 14.5 SEER2 21"W Cased Vertical

Goodman 5 Ton R32 Split System Air Conditioner 15.2 SEER2 208/230V 1-Phase GLXS5BA6010

Upgrade your cooling system with the Goodman 5 Ton Air Conditioner, featuring R-32 refrigerant and 60,000 BTU of cooling power. With a two-stage scroll compressor and 15.2 SEER2 efficiency, it offers optimal performance and energy savings. The 41.625" height and 35.5" width unit is pre-charged for up to 15 feet of tubing and includes durable copper/aluminum coils. Designed with safety in mind, it includes an enclosed contactor, high-pressure switch, and a hurricane-ready cabinet for reliable operation. AHRI-certified and ETL-listed for performance and safety compliance.

• Refrigerant Type: R-32
• Unit Height: 41.625 in
• Unit Width: 35.5 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 60 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Two Stage
• Compressor Type: Scroll
• Tonnage: 5
• 60,000 BTU Cooling
• Model Efficiency: 15.2 SEER2
• Unit Depth: 35.5 in


Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Capacity: Delivers 60,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable grille-style top meets UL 60335-2-40 safety standards.
• Venturi design enhances airflow velocity for better cooling efficiency.
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray resistance.
• Wire fan discharge grille for additional protection.
• Steel louver coil guard ensures coil durability and safety.
• Top and side access for easier maintenance and servicing.
• Single-panel control access with space for field-installed accessories.
• Designed to meet 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available).

Goodman 5 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA6030C3

This high-performance R-32 evaporator coil features all-aluminum construction with integrated thermal expansion valves for cooling and heat pump use. It offers flexible installation in vertical or horizontal configurations, and its compact 21-inch depth allows easy access in tight spaces like attics. The foil-faced insulation reduces condensation, while the rust-resistant drain pan ensures durability with extra drainage connections. A galvanized finish boosts longevity, and the easy-to-remove drain pan rails simplify maintenance. AHRI Certified and ETL Listed, this coil delivers reliability, energy efficiency, and hassle-free installation.
