Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32

By: Goodman
SKU: CHPEA6030D3|ID: 101279
$896.00
+ Shipping
Width: 24.5"
Depth: 21"

Key Features

  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Cabinet Width: 24.5"

17.5"21"24.5"

Configuration: Horizontal

Horizontal

Tonnage: 5 Ton

4 Ton5 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32

Goodman 5 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet EEV R32 CHPEA6030D3

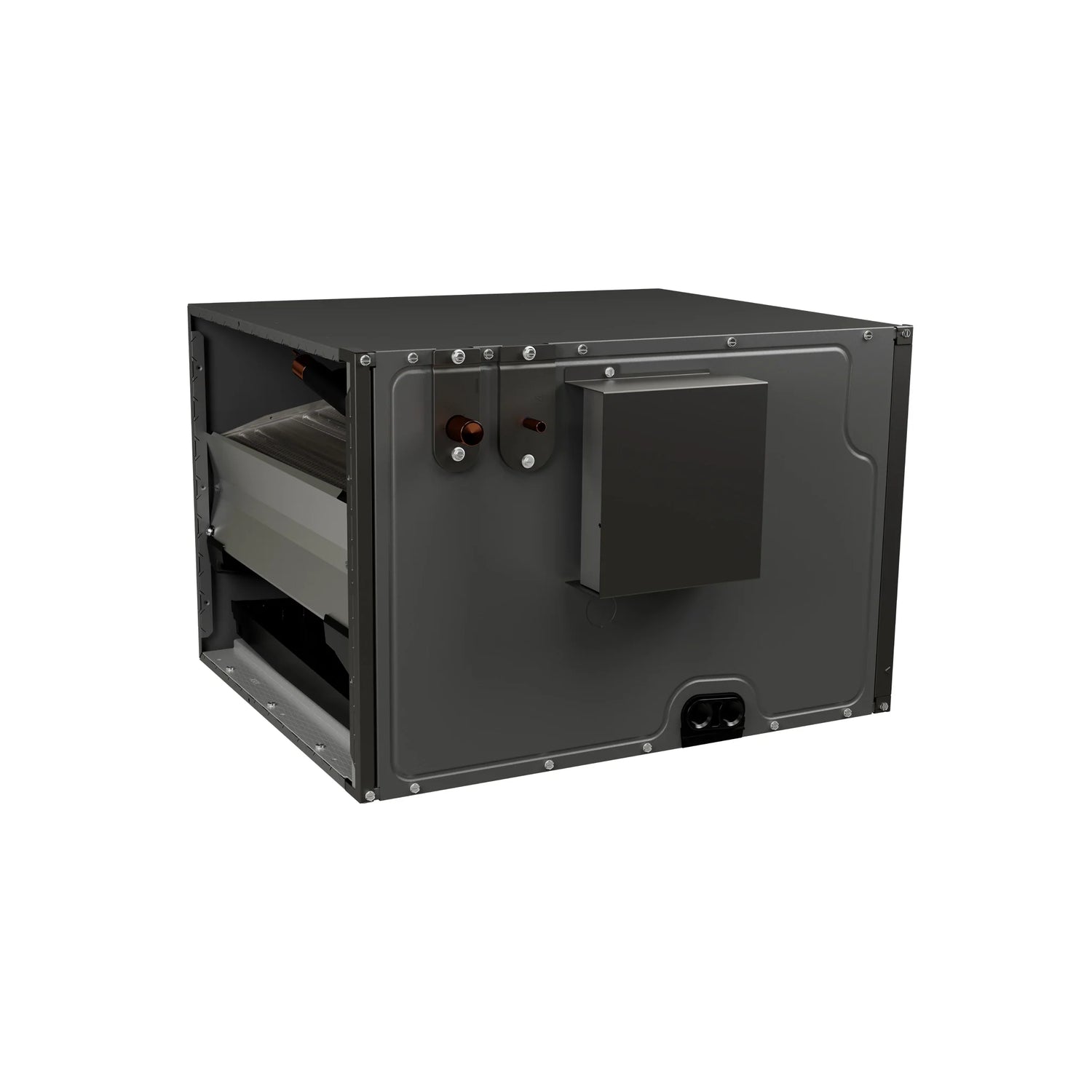

The Goodman CHPEA6030D3 is a 5-ton horizontal evaporator coil engineered for efficient cooling performance. It includes a factory-installed electronic expansion valve (EEV) for enhanced refrigerant control and is optimized for use with R-32 refrigerant. The 21-inch depth allows easier installation in tight attic spaces, and its durable cabinet construction ensures long-lasting performance. Ideal for residential or light commercial HVAC systems requiring horizontal airflow configurations.

Key Features

  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

This coil is ideal for heat pump or air conditioner applications requiring horizontal orientation. Its design ensures reliable cooling performance and compatibility with advanced refrigerants like R-32.

Learning Resources

CHPEA Installation Manual CHPEA Specifications Sheet CHPEA Warranty Information

Specifications

BrandGoodman
Model NumberCHPEA6030D3
Product TypeEvaporator Coil
Product LineCHPTA
Coil StyleA Coil
Tonnage5 Ton
Cooling Capacity60000 BTU
Refrigerant TypeR32
Air Flow DirectionHorizontal
CasingCased
TXV InstalledYes
Suction Connection Size7/8 Inch
Liquid Connection Size3/8 Inch
Cabinet Width24.5 Inches
Product Height24.5 Inches
Product Width30 Inches
Product Depth21 Inches
Weight67 Pounds
Shipping Weight82 Pounds
AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
Warranty10 Limited Years

Warranty and Product Information

Standard Warranty5 years
Registered Warranty10 years
