Goodman 5 Ton Air Handler Multi-Position 24-5/8" Cabinet TXV Expansion R32
Key Features
- Capacity: Delivers 60,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Nine Speed ECM motor provides precise airflow control for consistent comfort
- Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
Product Details
Product Details

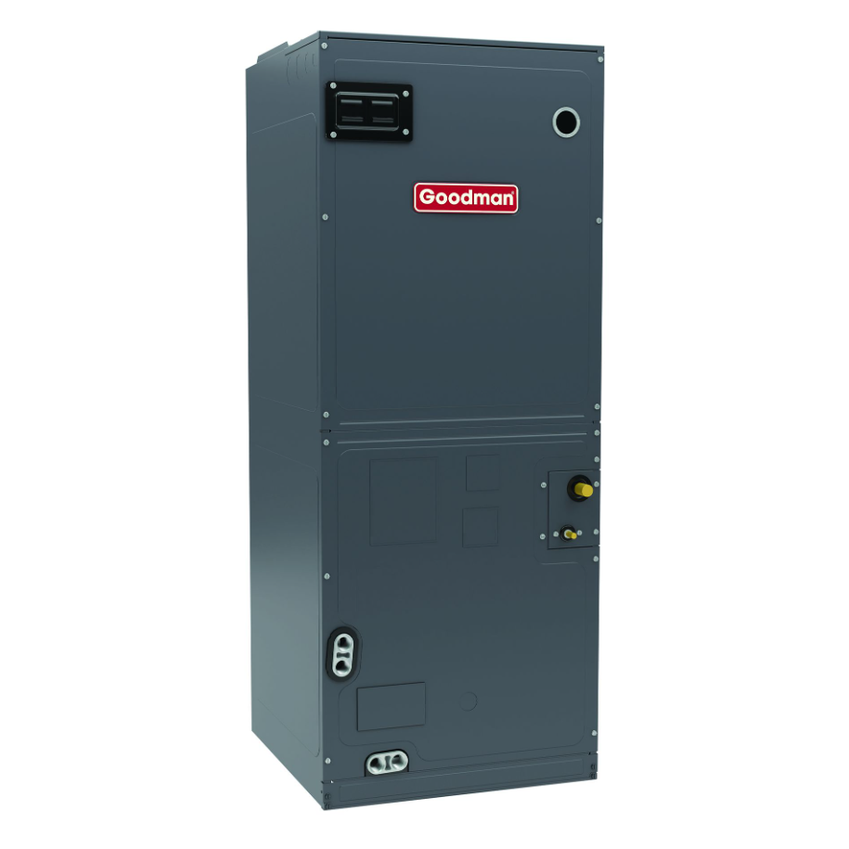

Goodman 5 Ton Air Handler Multi-Position 24-5/8" Cabinet TXV Expansion R32
Goodman 5 Ton Air Handler R32 Multi-Position 24-5/8" Cabinet TXV Expansion
The AMST Ducted Multi-Position Air Handler is designed for high efficiency and flexible installation. With a robust 24-5/8 inch cabinet, it accommodates systems ranging from 2 to 5 tons, making it suitable for diverse applications. The advanced nine-speed ECM motor ensures precise airflow control and energy efficiency, while the integrated TXV (Thermostatic Expansion Valve) optimizes refrigerant performance for reliable cooling.
This air handler provides consistent comfort and operational ease, supported by its durable construction and efficient design. Ideal for both residential and commercial settings, it combines performance with flexibility to meet your HVAC needs effectively.
Product Features
- Coil Design: All-aluminum tube/aluminum fin coil
- Motor: Direct-drive, resilient-mount, nine-speed ECM motor
- Heating Options: Available with rust-resistant nickel chromium heating elements (5, 6, 8, or 10 kW) or without heat (sold separately)
- Efficiency: High-efficiency evaporator coil
- Operation: Quiet operation
- Drain Connections: Primary/secondary drain in a high-temperature plastic drain pan
- Installation Flexibility: Suitable for free-return (non-ducted) installation
- Construction: Galvanized-steel construction
- Disconnect: Factory-installed pull-type disconnect
- Service Access: Easy service access
- Certifications: AHRI Certified, ETL Listed
Cabinet Features
- Frame: Rigid SmartFrame cabinet
- Configuration: Horizontal or vertical installation capabilities
- Access: 21” depth for easier attic access
- Drain Pan: DecaBDE-free thermoplastic drain pan with secondary drain connections
- Design: Screw-less sides and back to reduce condensation in humid locations
- Insulation: Foil-faced insulation to reduce cabinet condensation
- Finish: Galvanized, leather grain-embossed finish
- Insulation Retention: Glue-less cabinet insulation retention
- Filter Access: Tool-less filter access
