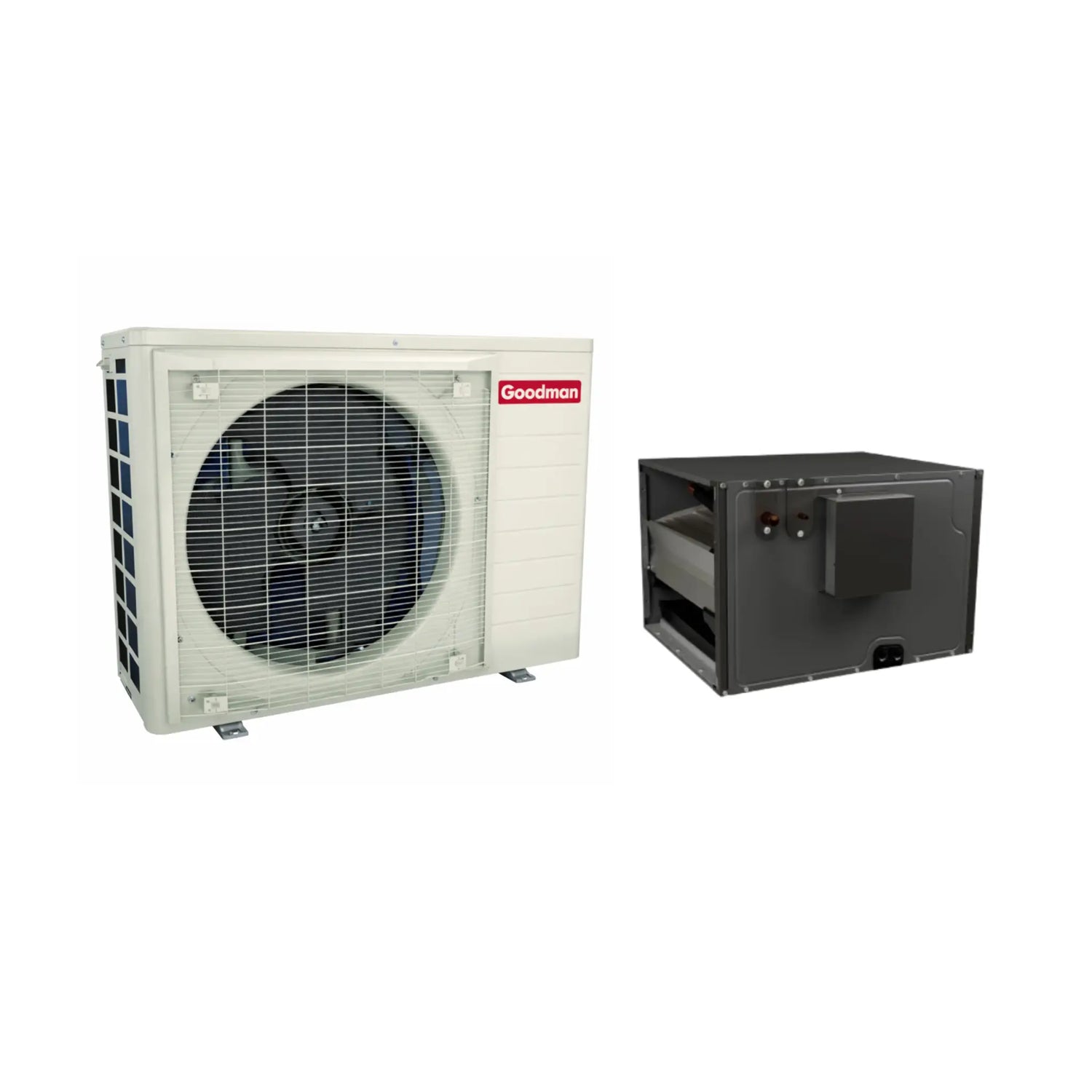

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Coil System 24.5" Horizontal

By: Goodman
SKU: GZV6SA6010 / CHPEA4830D3|ID: 102604
$5,355.00
+ Free shipping

Key Features

  • Efficiency: Rated at 16.2 SEER2 for energy-efficient performance
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Coil System 24.5" Horizontal

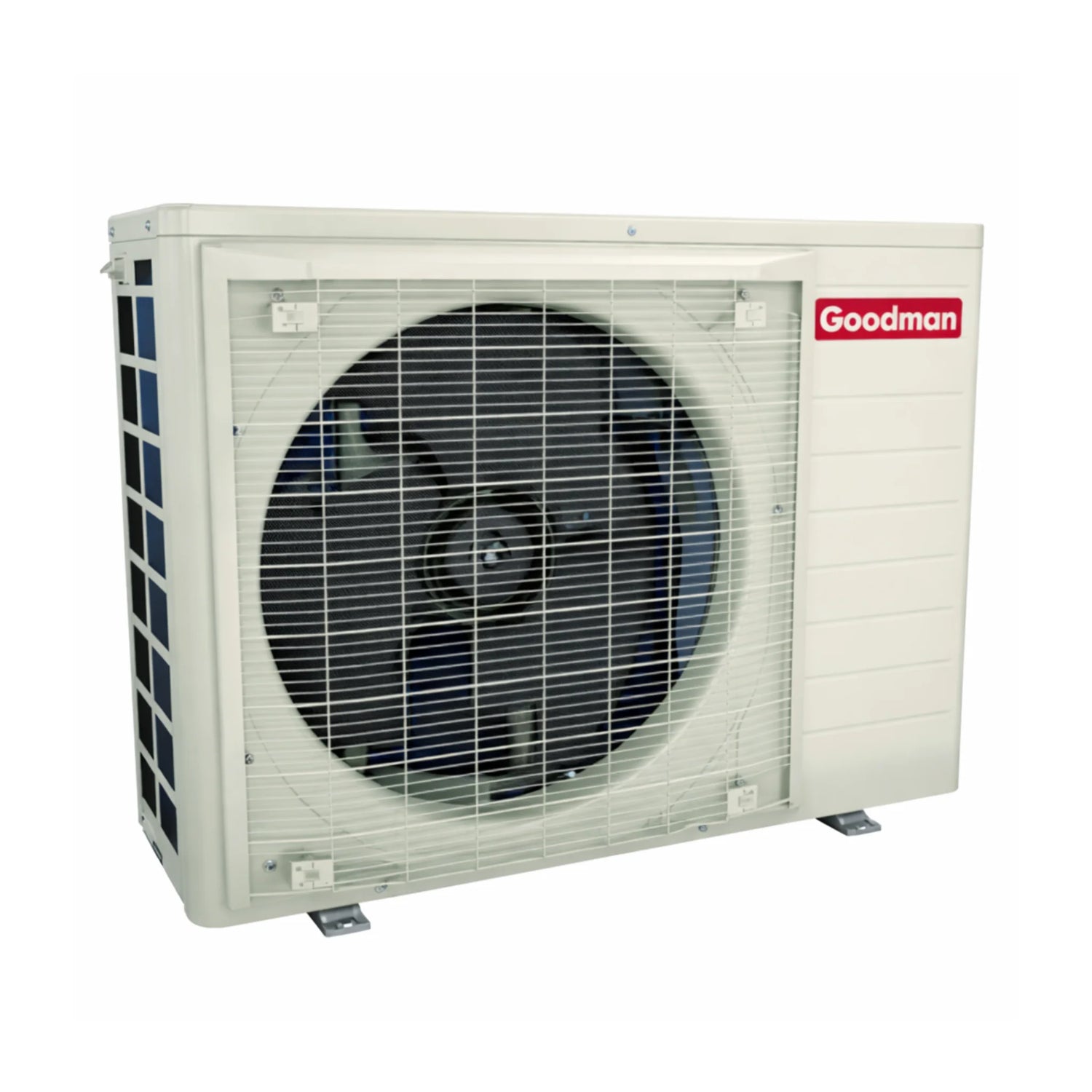

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010

The Goodman GZV6SA6010 is a high-efficiency 5-ton side discharge heat pump condenser engineered for reliable performance and advanced comfort control. Featuring a variable-speed inverter compressor and quiet digitally commutated fan motor, this unit delivers consistent heating and cooling while maintaining low sound levels. Designed for use with R-32 refrigerant, it meets modern efficiency standards and offers enhanced diagnostics, durability, and installation flexibility for residential and light commercial applications.

Key Features

  • Efficiency: Rated at 16.2 SEER2 for energy-efficient performance
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

  • Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Design
  • Custom Ivory White Powder-Paint Finish
  • High-Corrosion ZAM® Steel Bottom Frame and Legs
  • 500-Hour Salt Spray Tested for Enhanced Durability
  • Wire Fan Discharge Grille
  • Top and Side Service Access Panels
  • Meets 2023 Florida Building Code Wind Load Requirements When Properly Anchored

This condenser is ideal for homeowners seeking quiet operation, advanced inverter technology, and dependable year-round comfort in a compact side-discharge design.

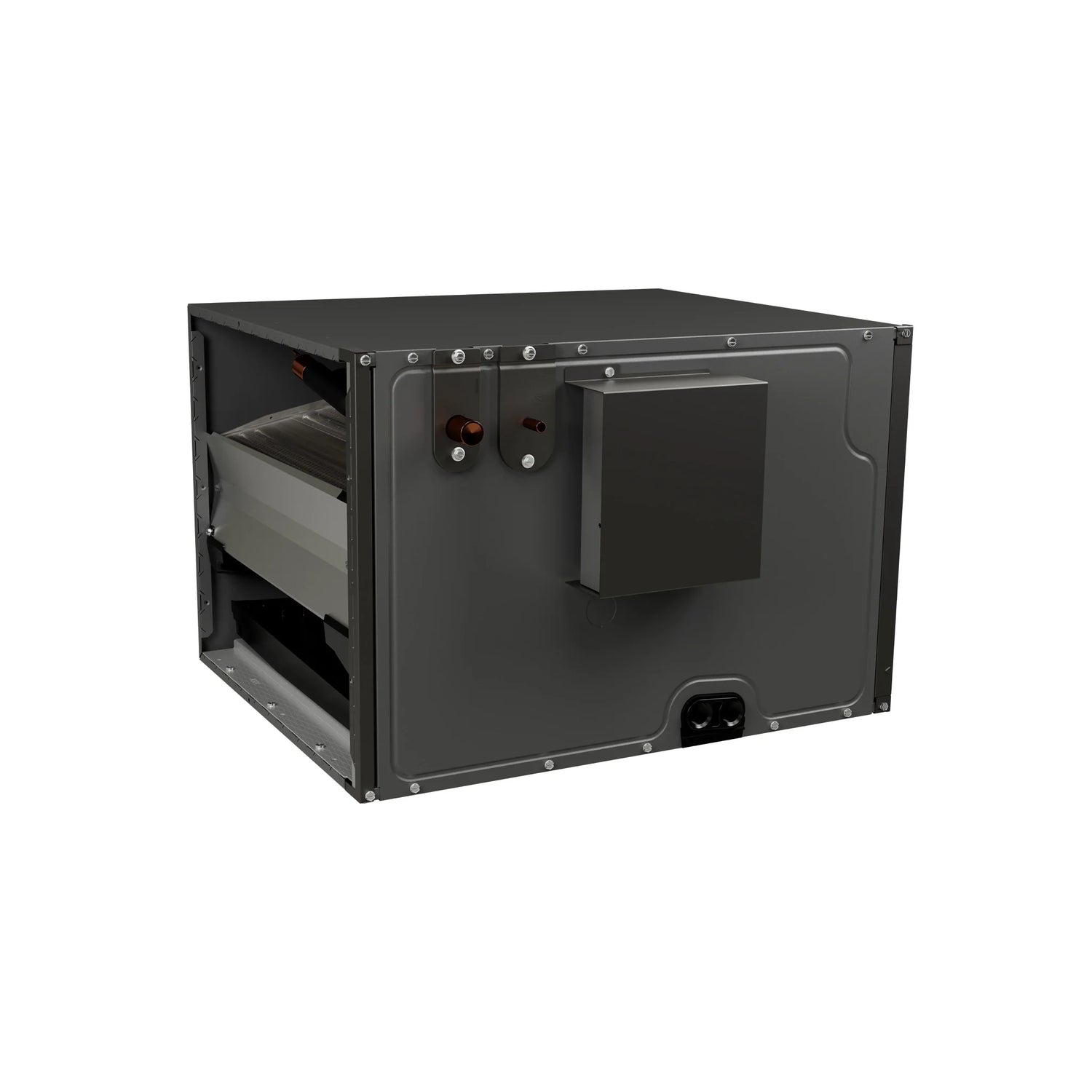

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3

An air conditioner or heat pump is only as good as its evaporator coil. The Goodman CHPEA series is designed with accessibility, longevity, and value in mind, matching the quality of Goodman’s heating and cooling equipment. This cased A coil is made for horizontal airflow applications, with an all-aluminum construction that improves durability and heat transfer efficiency.

Key Features

  • Efficiency: Rated at 16.2 SEER2 for energy-efficient performance
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Learning Resources

GZV6S Application Guide GZV6S Installation Manual GZV6S Warranty Certificate CHPEA Installation Manual CHPEA Specifications Sheet CHPEA Warranty Information

Specifications

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010

BrandGoodman
SKUGZV6SA6010
Tonnage5 Ton
Refrigerant TypeR32
SEER216.6
Model Efficiency16.2 SEER2
Heating Capacity60,000 BTU/H
Compressor TypeVariable-Speed Inverter
Power Voltage208/230 V
Power Phase1 Phase
Max Overcurrent Protection40 A
Communication TypeNon-Communicating
Unit Width37 in
Unit Height39 in
Unit Depth12.625 in
Unit Weight179 lb

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3

TypeEvaporator Coil
SKUCHPEA4830D3
Product CategoryEvaporator Coil
Refrigerant TypeR32
CasingCased
StyleA Coil
ConfigurationHorizontal
TXV InstalledYes
Capacity4.0 Tons
Cooling BTU48000
Nominal Minimum Cooling Capacity48000 BTU
Suction Connection Size1 1/8 Inches
Liquid Connection Size3/8 Inch
Cabinet Width30 Inches
Product Height24 1/2 Inches
Product Width30 Inches
Product Depth21 Inches
Product Weight63 Pounds
Shipping Weight78 Pounds
ETL ListedYes
AHRI CertifiedYes
ISO CertifiedYes
Parts Warranty12 Years

Warranty and Product Information

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010

Manufacturer Warranty10 Years

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3

Standard Warranty5 Years
Registered Warranty12 Years
