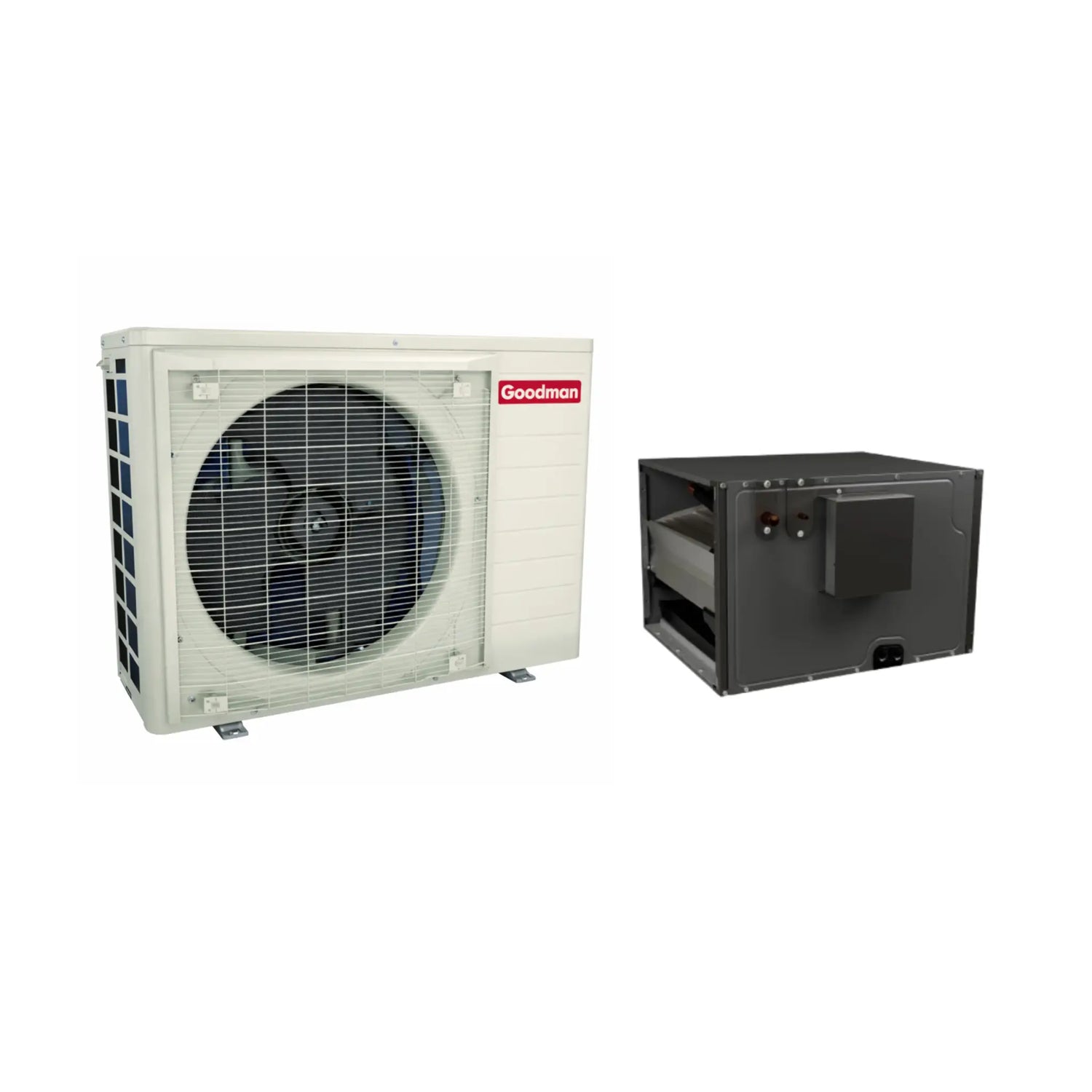

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Coil System 21" Horizontal R32

By: Goodman
SKU: GZV6SA6010 / CHPEA4830C3|ID: 102600
$5,347.00
+ Free shipping

Key Features

  • Efficiency: Rated at 16.2 SEER2 for energy-efficient performance
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Coil System 21" Horizontal R32

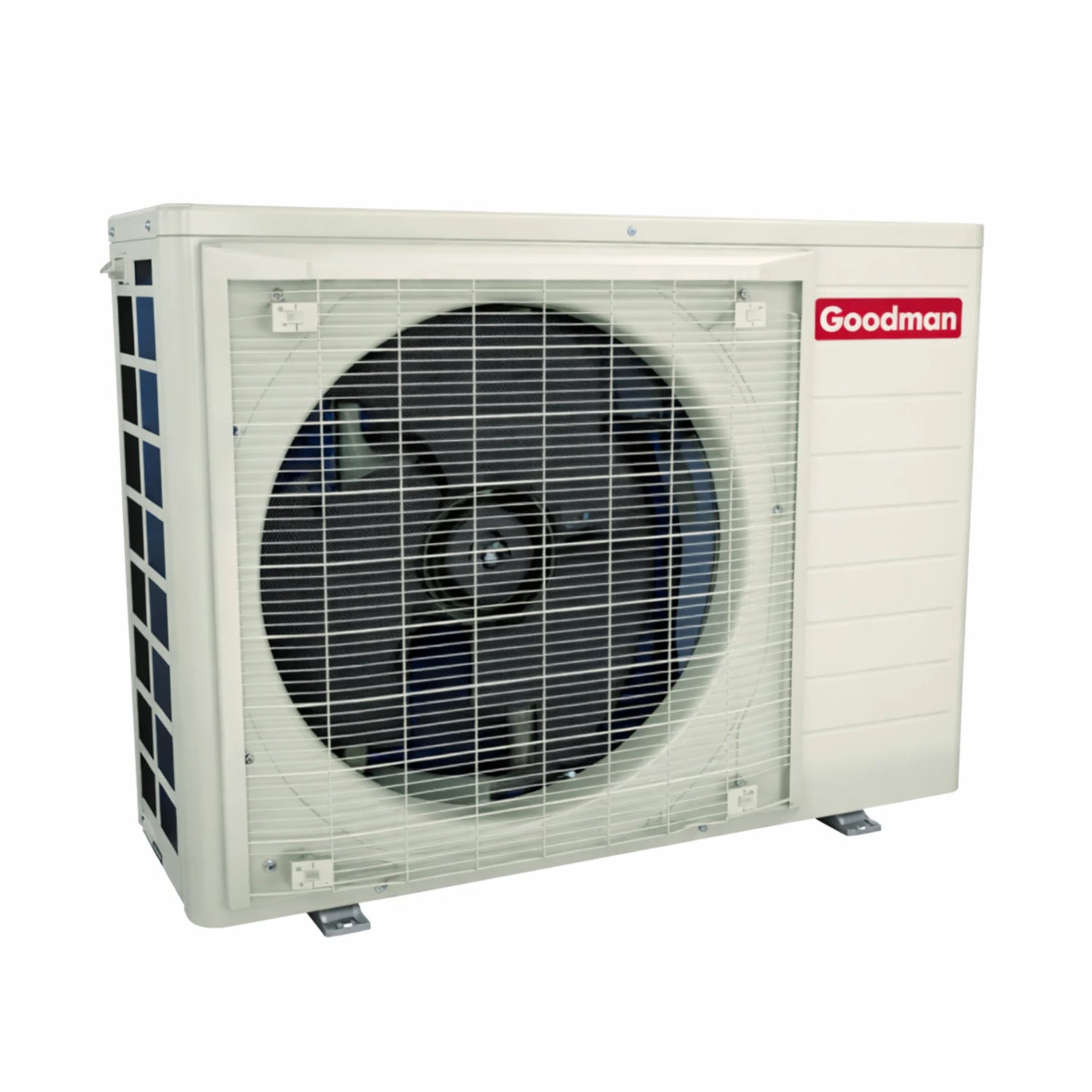

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010

The Goodman GZV6SA6010 is a high-efficiency 5-ton side discharge heat pump condenser engineered for reliable performance and advanced comfort control. Featuring a variable-speed inverter compressor and quiet digitally commutated fan motor, this unit delivers consistent heating and cooling while maintaining low sound levels. Designed for use with R-32 refrigerant, it meets modern efficiency standards and offers enhanced diagnostics, durability, and installation flexibility for residential and light commercial applications.

Key Features

  • Efficiency: Rated at 16.2 SEER2 for energy-efficient performance
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

  • Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Design
  • Custom Ivory White Powder-Paint Finish
  • High-Corrosion ZAM® Steel Bottom Frame and Legs
  • 500-Hour Salt Spray Tested for Enhanced Durability
  • Wire Fan Discharge Grille
  • Top and Side Service Access Panels
  • Meets 2023 Florida Building Code Wind Load Requirements When Properly Anchored

This condenser is ideal for homeowners seeking quiet operation, advanced inverter technology, and dependable year-round comfort in a compact side-discharge design.

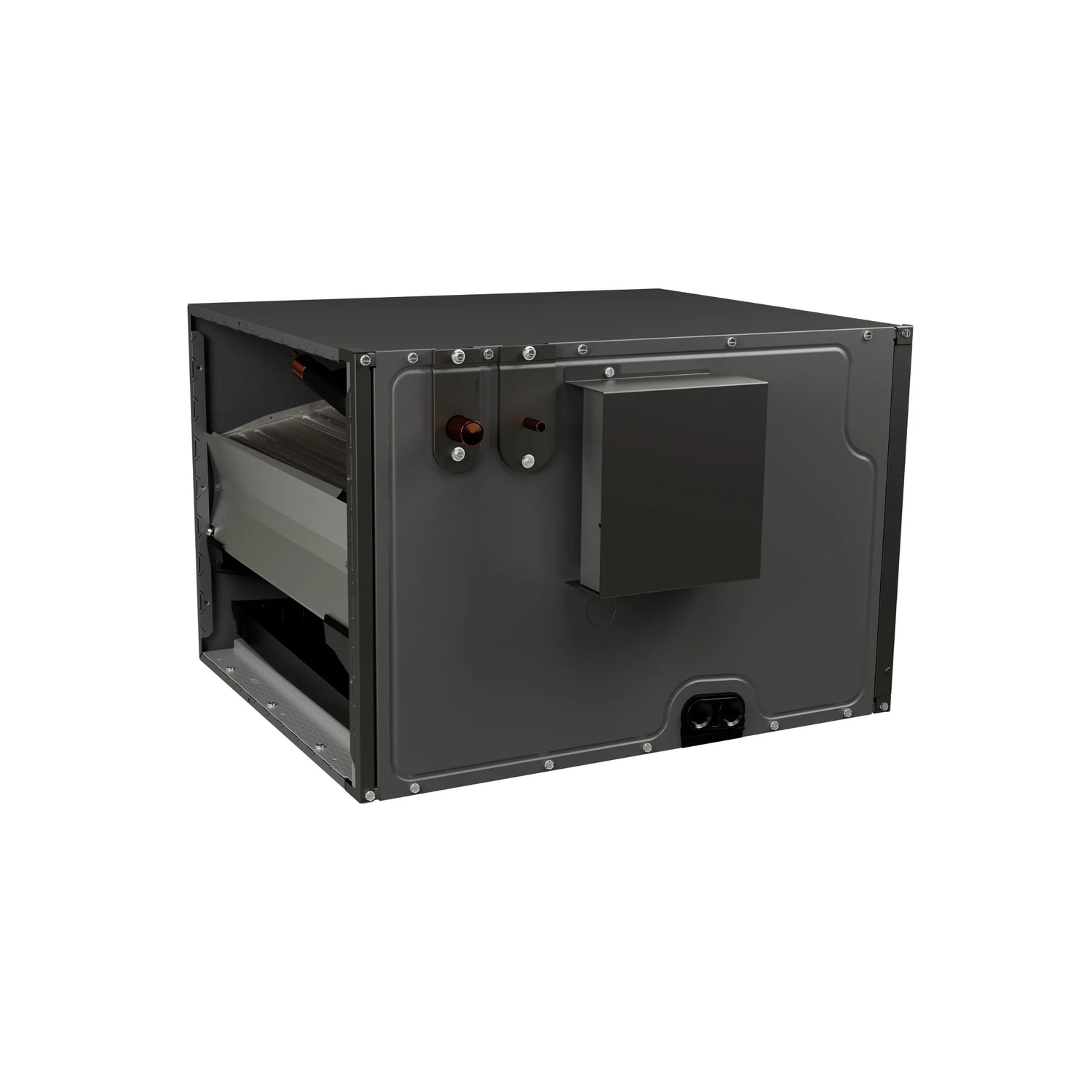

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

The Goodman  CHPEA4830C3 is a 4 Ton evaporator coil suitable for split system air conditioners and heat pumps. This unit is designed for horizontal airflow applications and comes with a factory-installed thermostatic expansion valve (TXV). Constructed from aluminum, it is optimized for use with R-32 refrigerant. The evaporator includes a secure cabinet and an effective condensate management system.

Key Features

  • Efficiency: Rated at 16.2 SEER2 for energy-efficient performance
  • Capacity: Delivers 60,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Performance: Variable-Speed Inverter compressor ensures quiet, consistent, and energy-efficient operation

Product Highlights

This evaporator coil ensures efficient cooling performance and reliability in various HVAC systems.

Learning Resources

GZV6S Application Guide GZV6S Installation Manual GZV6S Warranty Certificate CHPEA Installation Manual CHPEA Specifications Sheet CHPEA Warranty Information

Specifications

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010

BrandGoodman
SKUGZV6SA6010
Tonnage5 Ton
Refrigerant TypeR32
SEER216.6
Model Efficiency16.2 SEER2
Heating Capacity60,000 BTU/H
Compressor TypeVariable-Speed Inverter
Power Voltage208/230 V
Power Phase1 Phase
Max Overcurrent Protection40 A
Communication TypeNon-Communicating
Unit Width37 in
Unit Height39 in
Unit Depth12.625 in
Unit Weight179 lb

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

BrandGoodman
Model NumberCHPEA4830C3
Product TypeEvaporator Coil
Coil TypeA Coil
ConfigurationHorizontal
CasingCased
Refrigerant TypeR32
Cooling Capacity4.0 Tons
Cooling BTU48000 BTU
Suction Connection Size7/8 Inch
Liquid Connection Size3/8 Inch
TXV InstalledYes
Cabinet Width21 Inches
Product Width30 Inches
Product Depth21 Inches
Product Height21 Inches
Product Weight63 Pounds
Dimensions21 W x 21 D x 30 H
AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
Metering DeviceTXV
Metering Device Refrigerant CompatibilityR32
Plenum Opening Width19 Inches
Plenum Opening Height20 Inches
Parts Warranty10 Limited Years

Warranty and Product Information

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010

Manufacturer Warranty10 Years

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

Standard Warranty5 years
Registered Warranty10 years
