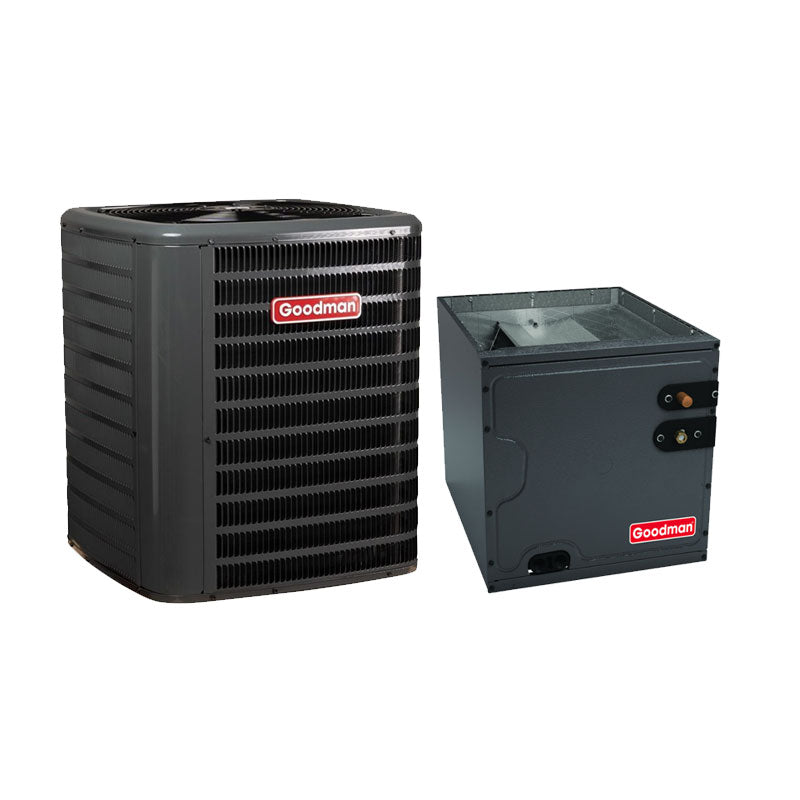

Goodman 4 Ton R32 Split AC & Evaporator Coil System 14.3 SEER2 Vertical
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 48,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
Product Details
Product Details
Goodman 4 Ton R32 Split AC & Evaporator Coil System 14.3 SEER2 Vertical
Goodman 4 Ton R32 Air Conditioner Condenser 14.3 SEER2 Single Stage GLXS4BA4810
This HVAC system delivers exceptional cooling and energy efficiency with its high-efficiency scroll compressor. It features a high-density foam sound blanket for quiet operation and advanced Copeland CoreSense Technology for reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system includes a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-access service valves. Safety features consist of a secure enclosed contactor and a high-pressure switch. AHRI certified for performance and ETL listed for safety, this system ensures reliable and efficient cooling.
- Refrigerant Type: R-32
- Unit Height: 35.75 in
- Unit Width: 35.5 in
- Communication Feature Type: Non-Communicating
- Cooling Capacity Nominal: 48000 Btu/H
- Max Overcurrent Protection: 40 A
- Power Phase: 1 Ph
- Power Voltage: 208/240 V
- Compressor Stages: Single Stage
- Compressor Type: Scroll
- Unit Weight: 73 lb
- Tonnage: 4
- Model Efficiency: 14.3 SEER2
- Unit Depth: 35.5 in
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 48,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
Cabinet Features
- Removable grille-style top design compliant with UL 60335-2-40 for easy access
- Venturi design increases airflow velocity for improved efficiency
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval for durability
- Wire fan discharge grille enhances airflow efficiency
- Steel louver coil guard provides added protection
- Top and side maintenance access for convenient servicing
- Single-panel access to controls with space for field-installed accessories
- Meets the 2023 Florida Building Code requirements for hurricane-type winds when properly anchored (anchor bracket kits available)
Goodman 3.5 to 5 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA6030C3
This high-performance R-32 evaporator coil features all-aluminum construction with integrated thermal expansion valves for cooling and heat pump use. It offers flexible installation in vertical or horizontal configurations, and its compact 21-inch depth allows easy access in tight spaces like attics. The foil-faced insulation reduces condensation, while the rust-resistant drain pan ensures durability with extra drainage connections. A galvanized finish boosts longevity, and the easy-to-remove drain pan rails simplify maintenance. AHRI Certified and ETL Listed, this coil delivers reliability, energy efficiency, and hassle-free installation.
- Refrigerant Type: R-32
- Unit Height: 30 in
- Unit Width: 21 in
- Cased/Uncased: Cased
- Tonnage: 5
- Coil Application: Upflow/Downflow
- Unit Depth: 21 in
Key Features
- Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
- Capacity: Delivers 48,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
