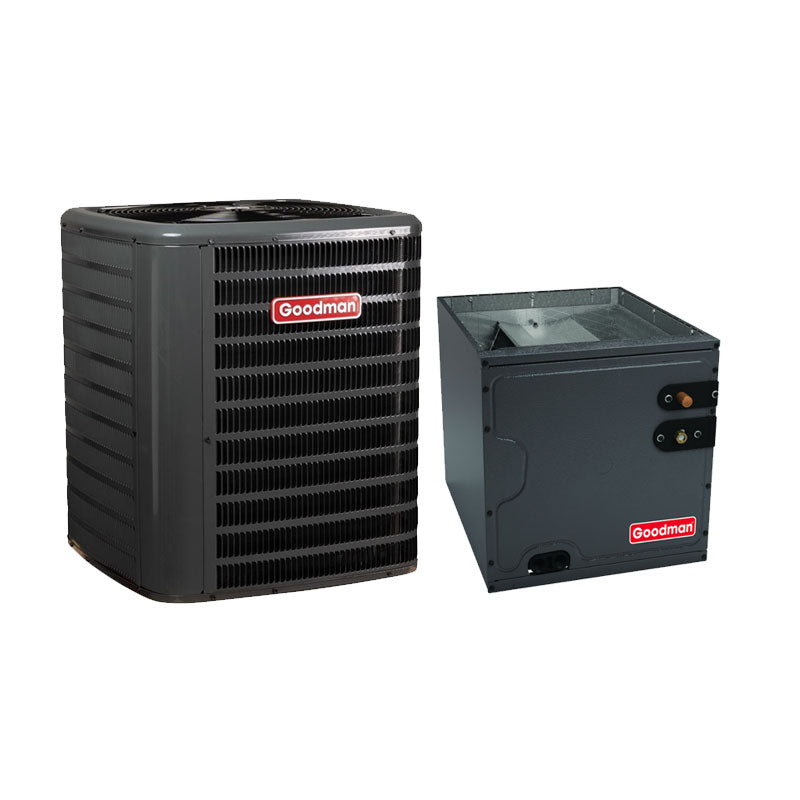

Goodman 4 Ton R32 AC & Evaporator Coil 13.8 SEER2 21"W Cased Vertical
Key Features
- Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
- Capacity: Delivers 48,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
Product Details
Product Details
Goodman 4 Ton R32 AC & Evaporator Coil 13.8 SEER2 21"W Cased Vertical
Goodman 4 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA4810
The Goodman 4 Ton (48,000 BTU) R32 Split Air Conditioner (Model GLXS5BA4810) combines energy-efficient performance with advanced design features. With a 15.2 SEER2 rating, its high-efficiency scroll compressor and R-32 refrigerant ensure reliable cooling while reducing energy costs. The unit comes fully pre-charged for 15' tubing length, simplifying installation. It features durable 5mm copper tubing, an enclosed contactor for electrical safety, and a high-pressure switch for added protection. The corrosion-resistant cabinet includes a Venturi design for improved airflow and a steel louver coil guard for durability. AHRI certified and ETL listed, it meets industry safety standards and 2023 Florida Building Code requirements for hurricane readiness. Maintenance is easy with top and side access, plus extended-life capacitors for long-lasting efficiency.
- Refrigerant Type: R-32
- Unit Height: 36.5 in
- Unit Width: 35.5 in
- Communication Feature Type: Non-Communicating
- Max Overcurrent Protection: 40 A
- Power Phase: 1 Ph
- Power Voltage: 208/230 V
- Compressor Stages: Single Stage
- Compressor Type: Scroll
- Tonnage: 4
- Model Efficiency: 15.2 SEER2
- Unit Depth: 35.5 in
Key Features
- Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
- Capacity: Delivers 48,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
Cabinet Features
- Removable grille-style top design complies with UL 60335-2-40 for safety and quick access during maintenance.
- Venturi design increases airflow velocity, maximizing cooling and heating efficiency.
- Architectural gray powder-paint finish offers 500-hour salt-spray approval, providing long-term corrosion resistance.
- Wire fan discharge grille protects system components while maintaining optimal airflow efficiency.
- Steel louver coil guard ensures the protection of delicate coil components, enhancing durability.
- Top and side maintenance access allows for convenient servicing, reducing downtime.
- Single-panel access to controls, with space provided for easy installation of field-installed accessories.
- Hurricane-ready design meets 2023 Florida Building Code requirements, providing robust unit integrity when properly anchored (anchor bracket kits available).
Goodman 3.5 to 5 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA6030C3
This high-performance R-32 evaporator coil features all-aluminum construction with integrated thermal expansion valves for cooling and heat pump use. It offers flexible installation in vertical or horizontal configurations, and its compact 21-inch depth allows easy access in tight spaces like attics. The foil-faced insulation reduces condensation, while the rust-resistant drain pan ensures durability with extra drainage connections. A galvanized finish boosts longevity, and the easy-to-remove drain pan rails simplify maintenance. AHRI Certified and ETL Listed, this coil delivers reliability, energy efficiency, and hassle-free installation.
- Refrigerant Type: R-32
- Unit Height: 30 in
- Unit Width: 21 in
- Cased/Uncased: Cased
- Tonnage: 5
- Coil Application: Upflow/Downflow
- Unit Depth: 21 in
Key Features
- Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
- Capacity: Delivers 48,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
- Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
