Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV

By: Goodman
SKU: CHPEA4830C3|ID: 101275
$872.00
+ Shipping
Width: 30"
Depth: 21"

Key Features

  • Capacity: Delivers 48,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Cabinet Width: 21"

17.5"21"24.5"

Configuration: Horizontal

Horizontal

Tonnage: 4 Ton

2.5 Ton3 Ton4 Ton5 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV

Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal Cabinet with EEV CHPEA4830C3

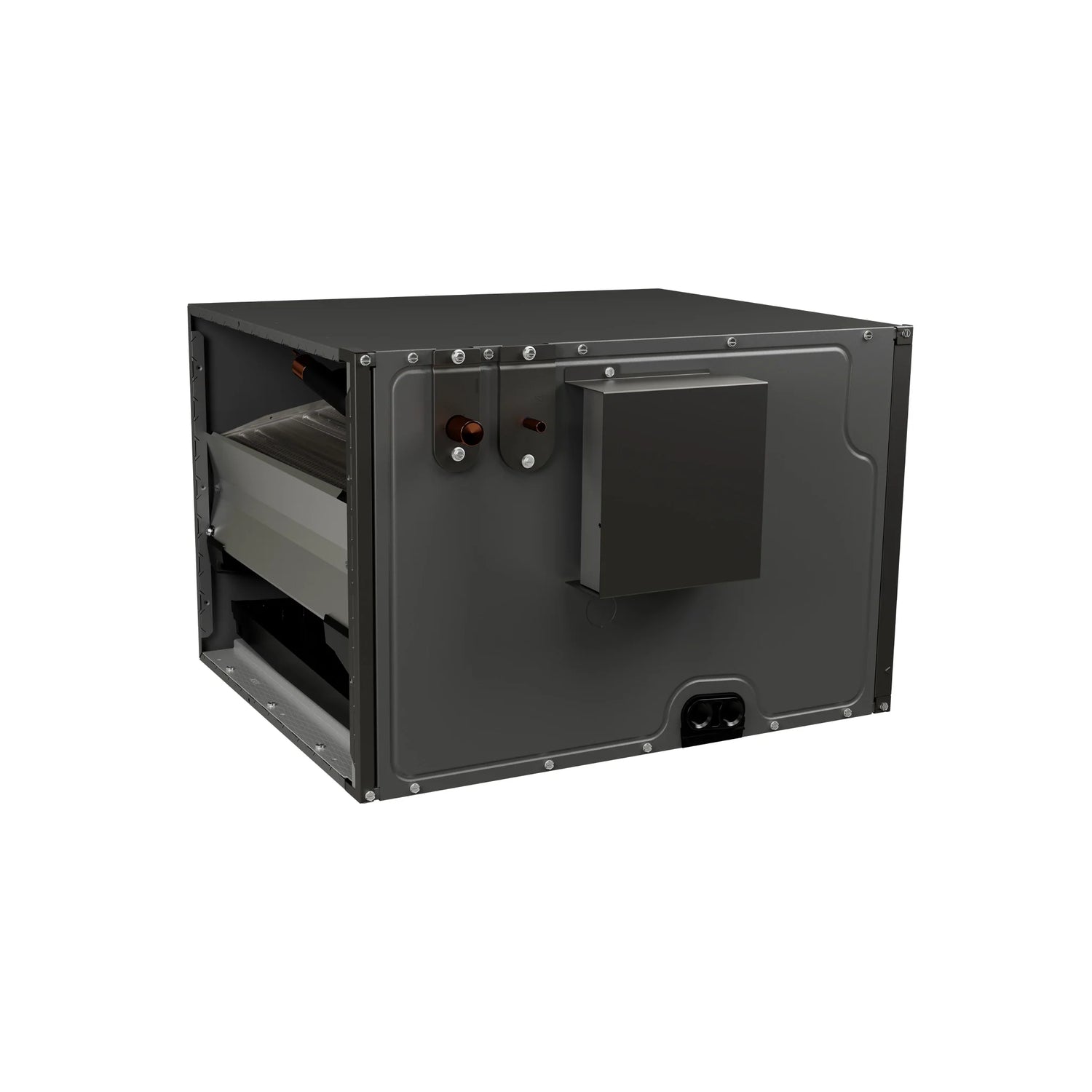

The Goodman  CHPEA4830C3 is a 4 Ton evaporator coil suitable for split system air conditioners and heat pumps. This unit is designed for horizontal airflow applications and comes with a factory-installed thermostatic expansion valve (TXV). Constructed from aluminum, it is optimized for use with R-32 refrigerant. The evaporator includes a secure cabinet and an effective condensate management system.

Key Features

  • Capacity: Delivers 48,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Product Highlights

This evaporator coil ensures efficient cooling performance and reliability in various HVAC systems.

Learning Resources

CHPEA Installation Manual CHPEA Specifications Sheet CHPEA Warranty Information

Specifications

BrandGoodman
Model NumberCHPEA4830C3
Product TypeEvaporator Coil
Coil TypeA Coil
ConfigurationHorizontal
CasingCased
Refrigerant TypeR32
Cooling Capacity4.0 Tons
Cooling BTU48000 BTU
Suction Connection Size7/8 Inch
Liquid Connection Size3/8 Inch
TXV InstalledYes
Product Width30 Inches
Product Depth21 Inches
Product Height21 Inches
Product Weight63 Pounds
Dimensions21 W x 21 D x 30 H
AHRI CertifiedYes
ETL ListedYes
ISO CertifiedYes
Metering DeviceTXV
Metering Device Refrigerant CompatibilityR32
Plenum Opening Width19 Inches
Plenum Opening Height20 Inches
Parts Warranty10 Limited Years

Warranty and Product Information

Standard Warranty5 years
Registered Warranty10 years
