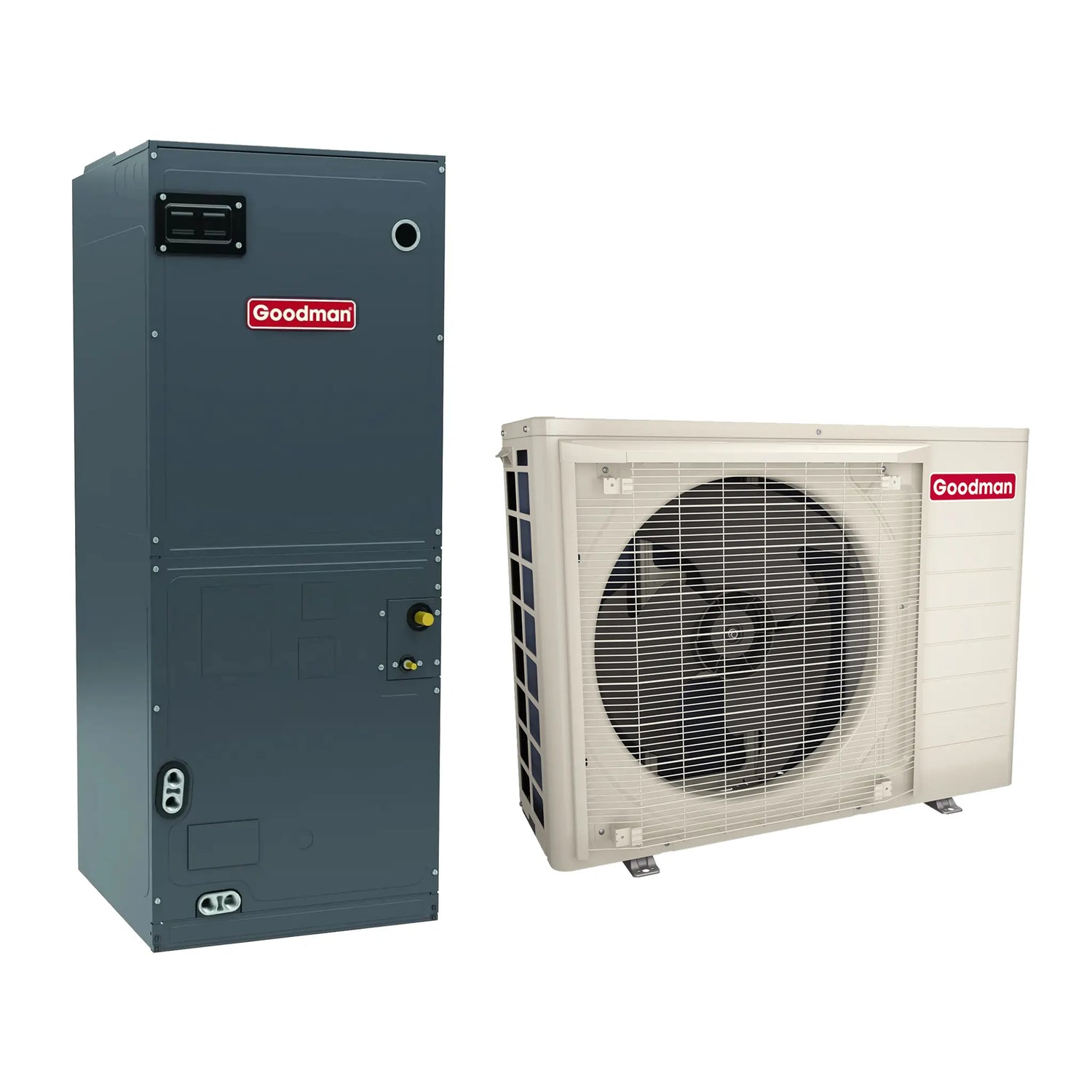

Goodman 4 Ton 17 SEER2 Variable-Speed Heat Pump Split System 21"W Cabinet

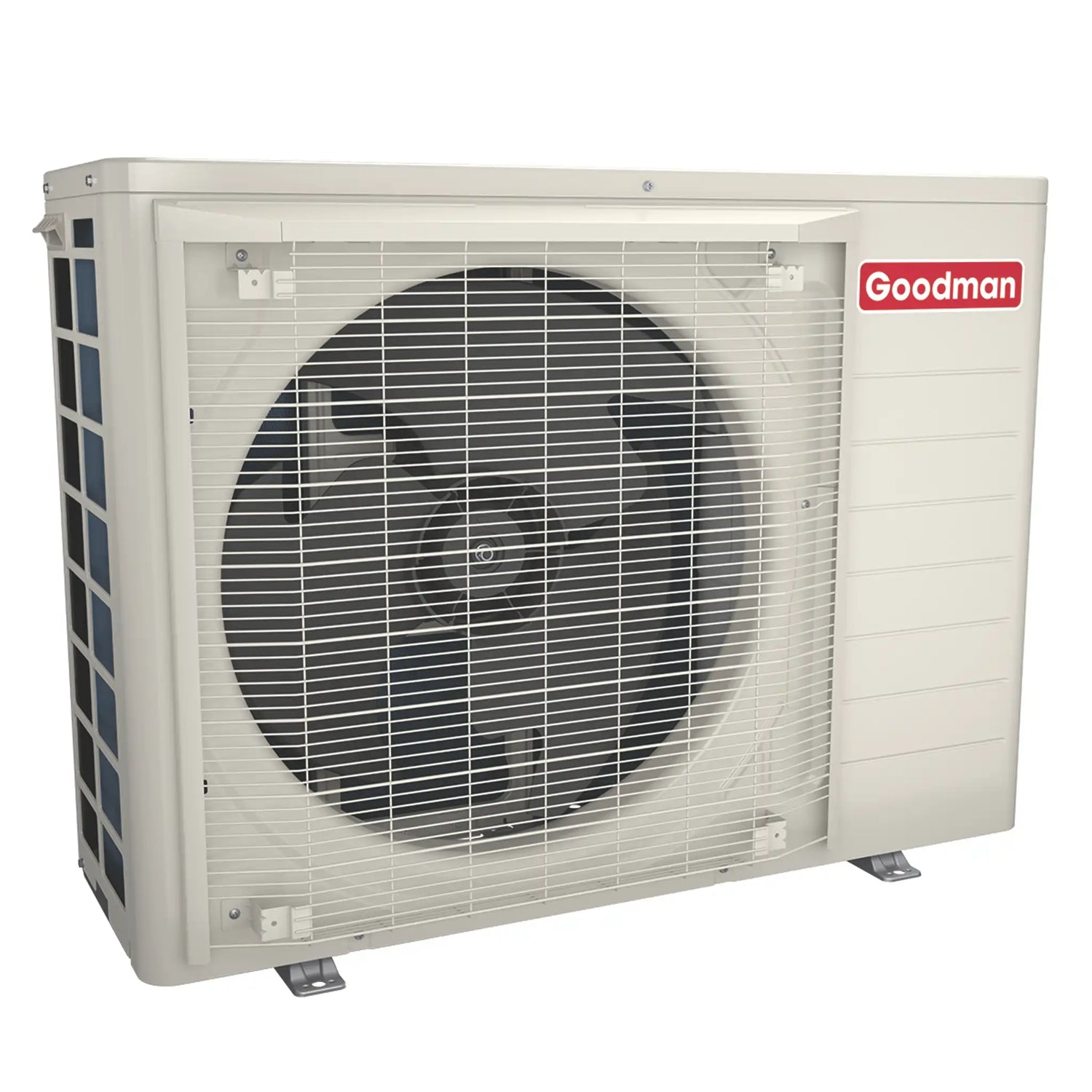

Goodman 4 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4810

The Goodman GZV6SA4810 is a high-efficiency 4-ton side discharge heat pump condenser designed to deliver reliable comfort with advanced inverter technology. Utilizing an R-32 refrigerant system and a variable-speed inverter compressor, this unit provides precise capacity control, improved efficiency, and quiet operation. Built with a durable cabinet and engineered to meet the 2023 M1 Test Standards, it is an excellent solution for residential and light commercial HVAC applications.

Key Features

• Variable-Speed Inverter Compressor for Enhanced Energy Efficiency
• Quiet Digitally Commutated Fan Motor
• High-Density Compressor Sound Blanket for Reduced Noise
• Advanced Proprietary Control Algorithmic Logic
• Non-Communicating System Configuration
• Field-Selectable Boost Mode for High Load Conditions
• Diagnostic Indicator Lights with Fault Code Storage
• AHRI Certified and ETL Listed
• Meets 2023 M1 Test Standards
• Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Design
• Custom Ivory White Powder-Paint Finish
• High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
• 500-Hour Salt Spray Tested for Long-Term Durability
• Wire Fan Discharge Grille
• Top and Side Maintenance Access Panels
• Meets 2023 Florida Building Code Wind Load Requirements When Properly Anchored

This 4-ton condenser is ideal for applications requiring compact side-discharge installation, quiet operation, and modern energy efficiency standards.

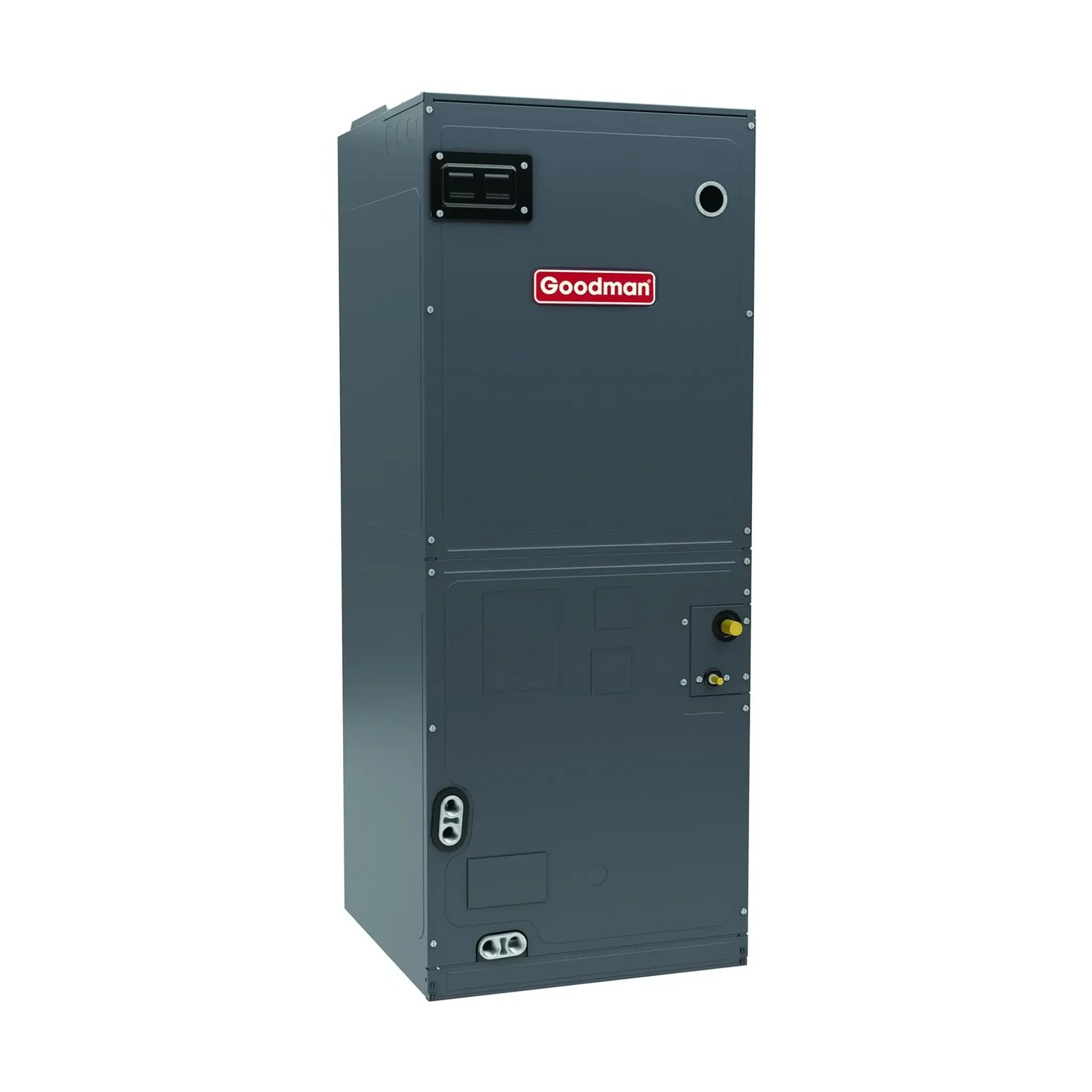

Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 115V R32 AHVE60DP0300

This 115V AHVE ducted multi-position air handler is a 5-ton unit with a variable-speed ECM blower motor in a compact 24.5-inch cabinet designed for horizontal or vertical installation. It features anelectronic expansion valve (EEV) for cooling and heat pump applications, an all-aluminum 7 mm evaporator coil, and delivers constant CFM across a wide range of static pressures for consistent comfort and improved humidity control. The unit is ComfortNet compatible, works with the Daikin One+ smart thermostat, and is built with a low-leakage, insulated cabinet to reduce air loss and condensation. It is AHRI certified, ETL listed, and includes a 21-inch cabinet depth for easier attic access.

Key Features & Cabinet Features:

• Electronic Expansion Valve (EEV) for cooling and heat pump applications
• Variable-speed ECM blower motor with constant CFM control
• All-aluminum 7 mm evaporator coil
• ComfortNet compatible; supports Daikin One+ smart thermostat
• Low cabinet air leakage per ASHRAE Standard 193
• Improved humidity control and adjustable low CFM fan-only operation
• Horizontal or vertical installation capability
• 21" cabinet depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back to help reduce condensation in humid environments
• Foil-faced internal insulation to minimize cabinet condensation
• Galvanized, leather grain-embossed cabinet finish
• Glue-less cabinet insulation retention
• Tool-less filter access
