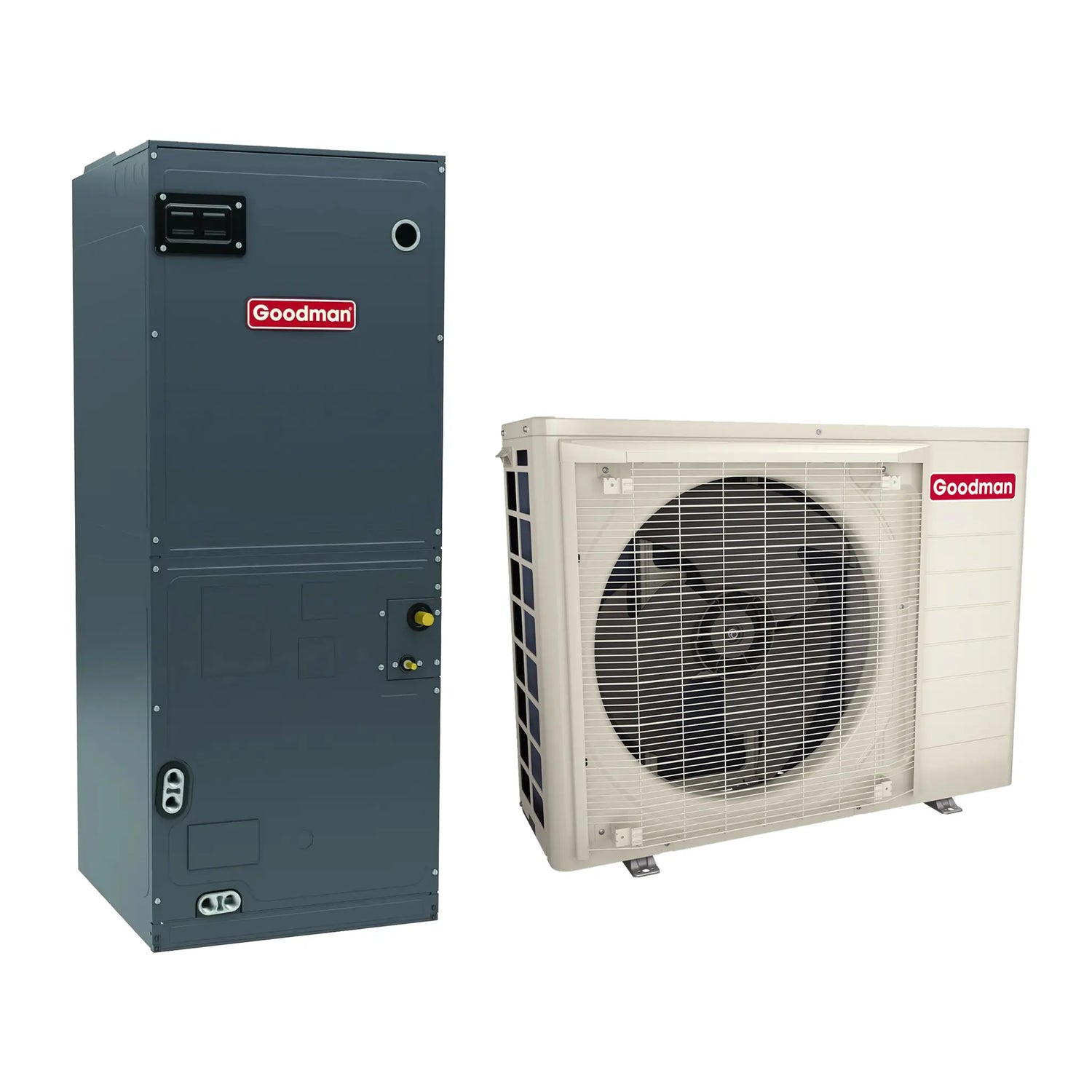

Goodman 4 Ton 17 SEER2 Heat Pump Split System Multi Position 21"W Cabinet

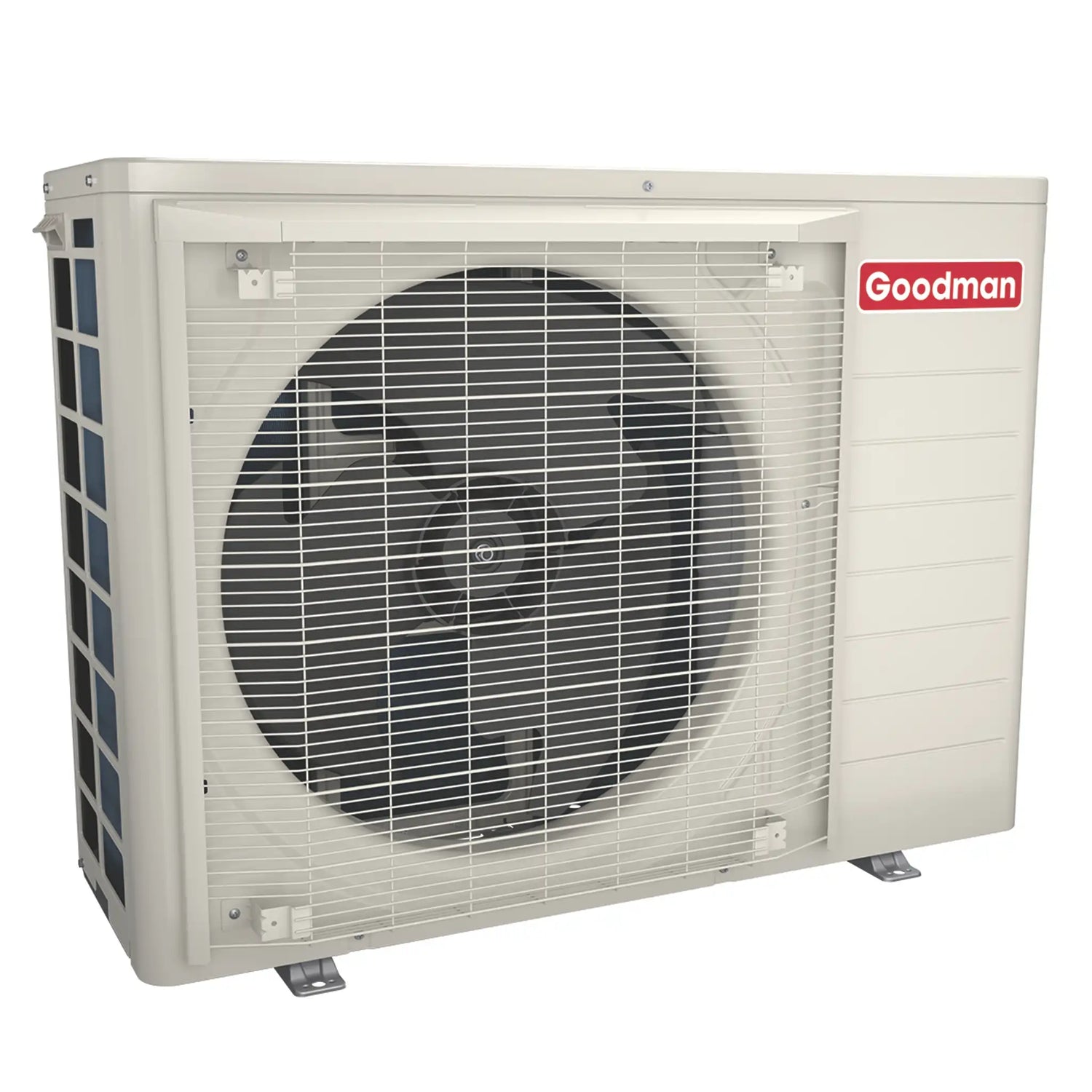

Goodman 4 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA4810

The Goodman GZV6SA4810 is a high-efficiency 4-ton side discharge heat pump condenser designed to deliver reliable comfort with advanced inverter technology. Utilizing an R-32 refrigerant system and a variable-speed inverter compressor, this unit provides precise capacity control, improved efficiency, and quiet operation. Built with a durable cabinet and engineered to meet the 2023 M1 Test Standards, it is an excellent solution for residential and light commercial HVAC applications.

Key Features

• Variable-Speed Inverter Compressor for Enhanced Energy Efficiency
• Quiet Digitally Commutated Fan Motor
• High-Density Compressor Sound Blanket for Reduced Noise
• Advanced Proprietary Control Algorithmic Logic
• Non-Communicating System Configuration
• Field-Selectable Boost Mode for High Load Conditions
• Diagnostic Indicator Lights with Fault Code Storage
• AHRI Certified and ETL Listed
• Meets 2023 M1 Test Standards
• Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Design
• Custom Ivory White Powder-Paint Finish
• High-Corrosion ZAM® Unpainted Steel Bottom Frame and Legs
• 500-Hour Salt Spray Tested for Long-Term Durability
• Wire Fan Discharge Grille
• Top and Side Maintenance Access Panels
• Meets 2023 Florida Building Code Wind Load Requirements When Properly Anchored

This 4-ton condenser is ideal for applications requiring compact side-discharge installation, quiet operation, and modern energy efficiency standards.

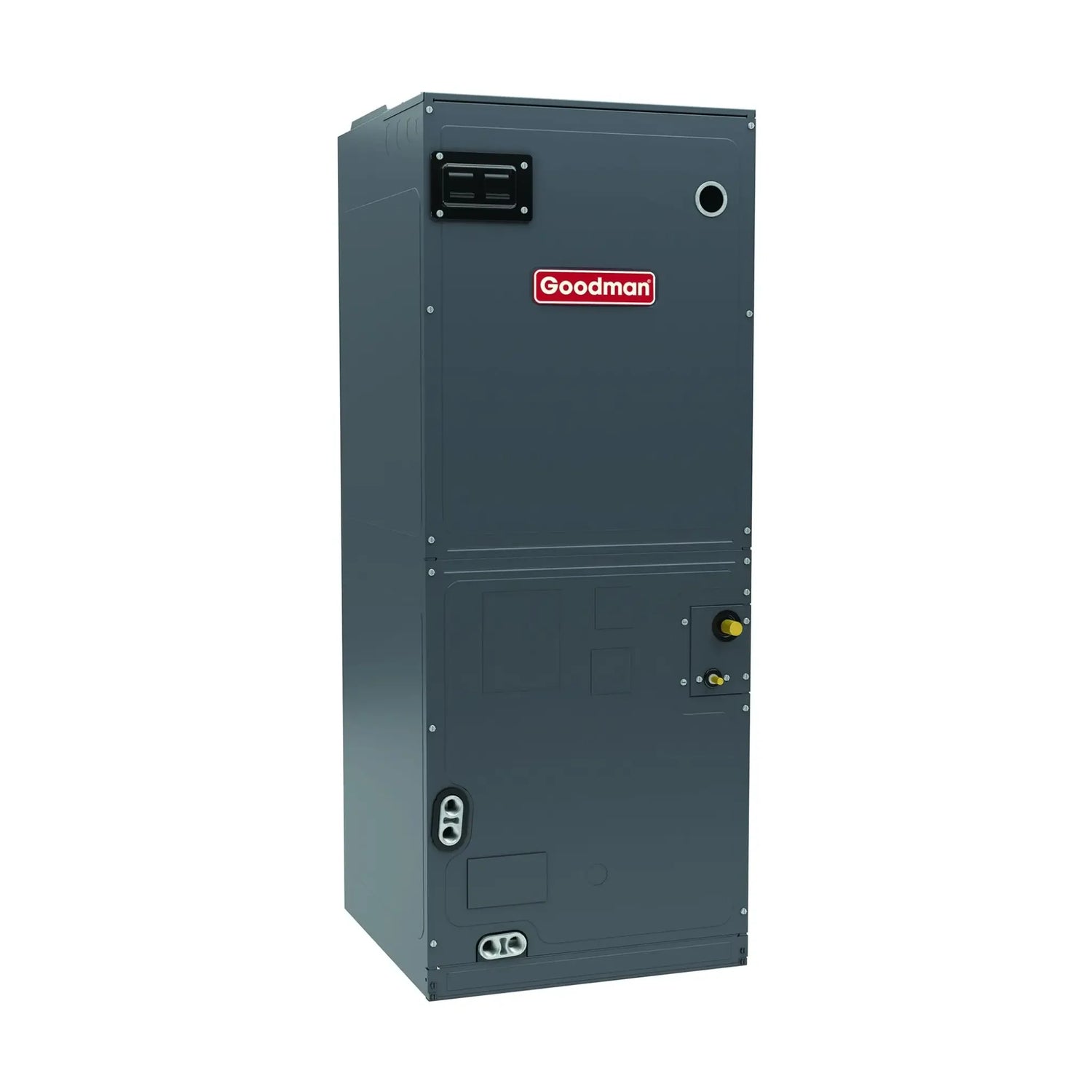

Goodman 4 Ton Ducted Air Handler Multi-Position Variable Speed 24.5"W 115V AHVE48DP0300

The Multi-Position, Variable-Speed ECM Air Handler is a high-performance HVAC solution designed to optimize comfort, efficiency, and reliability. This advanced air handler features a built-in Electronic Expansion Valve (EEV) for precise refrigerant control, making it ideal for both cooling and heat pump applications. Compatible with Goodman brand smart thermostats, this system integrates seamlessly with your existing HVAC setup to deliver energy-efficient, year-round comfort. It supports S-Series matchups for superior performance and communication and is available in sizes ranging from 1½ to 5 tons, suitable for residential and light commercial installations.

Key Product Features:

• Electronic Expansion Valve (EEV): Ensures precise refrigerant control for improved system efficiency in cooling and heat pump applications.
• Variable-Speed ECM Blower Motor: Offers customizable airflow to maintain consistent comfort levels across various static pressure conditions.
• All-Aluminum Evaporator Coil: Provides durability and improved heat transfer for long-lasting performance.
• Smart Thermostat Compatibility: Fully compatible with Goodman brand smart thermostats for enhanced control and efficiency.
• Constant CFM Across Static Pressure Variations: Delivers reliable airflow regardless of changes in the duct system, maintaining optimal system performance.
• CFM Indicator: Conveniently monitors airflow levels for quick troubleshooting and performance tracking.
• Adjustable Low CFM: The thermostat allows for energy-efficient fan-only operation with customizable low airflow settings.
• Coil Mounting Track: Simplifies repositioning of the evaporator coil for fast and flexible installation.
• R-32 Refrigerant Optimized: Factory-installed R-32 sensor ensures optimal compatibility with R-32 refrigerant, a more environmentally friendly option.
• Improved Humidity and Comfort Control: Designed to provide better humidity management and overall comfort.
• Fault Recall Function: Stores the six most recent faults, aiding quick diagnostics and repairs.
• Rigid SmartFrame™ Cabinet: Offers increased durability and structural integrity for the system.
• Energy Efficiency: Meets AHRI certification standards and is UL 60335 2-40 compliant for high performance and safety.
• Low Cabinet Air Leakage: Ensures efficient operation with less than 2.0% air leakage at 1.0 inch H₂O (tested per ASHRAE standard 193).
• Flexible Configuration Options: Can be installed in horizontal or vertical configurations for versatile placement in various spaces.
• 21" Depth for Easier Attic Access: Compact design simplifies installation in tight or challenging spaces such as attics.
• DecaBDE-Free Thermoplastic Drain Pan: Includes secondary drain connections for added reliability.
• Foil-Faced Insulation: Reduces internal casing condensation and improves overall system performance.
• Galvanized Leather Grain-Embossed Finish: Durable, attractive finish ensures longevity and resistance to wear and tear.
• Screw-less Sides and Back: Helps reduce condensation in humid environments for reliable operation.
• Tool-less Filter Access: Easy filter removal and replacement for convenient maintenance.

The Multi-Position ECM Air Handler is the ideal choice for anyone seeking superior energy efficiency, easy installation, and long-lasting performance for both residential and commercial applications.
