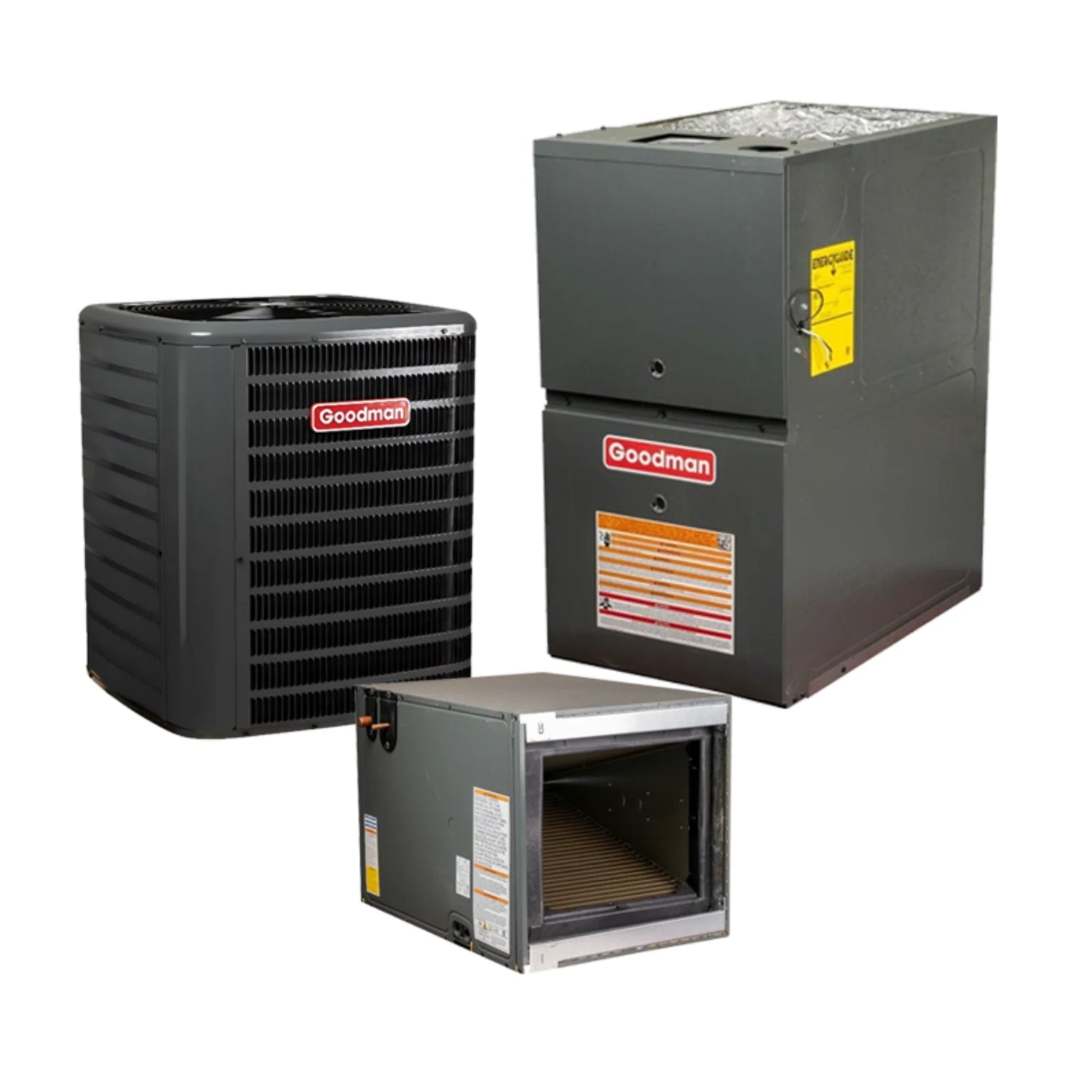

Goodman 4 Ton 15 SEER2 AC Furnace System 80% 80000 BTU Two Stage Horizontal

Goodman 4 Ton 15.2 SEER2 Split Air Conditioner Condenser High Efficiency R32 GLXS5BA4810

An Goodman Furnace and Air Conditioner System is the ideal solution for homeowners looking for dependable, year-round comfort. Designed with advanced energy-saving technology and built for long-lasting performance, an Goodman furnace and air conditioner combo delivers quiet, consistent heating and cooling in any climate. Whether you're upgrading an older unit or building a new home, this system provides the power, efficiency, and reliability you need—all at a price that won’t break the bank.

High-Efficiency Air Conditioner Condenser – Model GLXS5BA4810

Goodman continues to set industry standards for superior comfort, high energy efficiency, and cost-effective solutions. The Goodman GLXS5BA4810 model exemplifies this commitment by offering durability, reliability, and one of the highest efficiencies available in the market. Perfect for larger homes, this high-performance 4-ton condenser ensures optimal cooling while maintaining energy efficiency and reducing overall costs.

Key Features

• Efficiency: Rated at 15 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 80,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Warranty

The Goodman GLXS5BA4810 condenser comes with Goodman’s standard 10-year parts warranty, which is available with online registration through the manufacturer. The warranty remains valid if installation follows state and local codes.

Installation and Maintenance

• Maintenance Access Panels – Designed with two easy-to-access panels, one on the top and one on the side, allowing for easier servicing and routine maintenance of the system.
• Service Valves with Sweat Connections – Equipped with easy-access gauge ports and sweat connections for faster installation and maintenance, reducing the overall installation time and costs.
• Secure Electrical Grounding – Features a ground lug connection for secure electrical grounding, enhancing safety during operation and installation.

Comfort and Performance

The Goodman GLXS5BA4810 condenser is engineered for optimal comfort and efficiency. Built with high-quality components, it operates at a low sound output, ensuring minimal disruption in your home environment. Whether you're cooling a larger home or need a reliable air conditioning solution, this unit helps keep you comfortable while lowering your energy bills.

Important Safety Notice

This air conditioner condenser contains R-32 refrigerant, which is classified as an A2L refrigerant and requires a refrigerant leakage detection system to be installed. To comply with safety standards, the unit must be paired with an R-32 air handler or evaporator coil that already includes a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.

Goodman 80,000 BTU 80% Gas Furnace Two-Stage 2000 CFM 21" Upflow/Horizontal R32 GR9T800805CN

The Goodman GR9T800805CN gas furnace delivers outstanding performance, value, and energy efficiency for medium-sized homes. Built with durable components and designed for flexible installation, this two-stage, 80,000 BTU furnace uses a 9-speed ECM blower motor to maintain comfort throughout your space while keeping energy consumption low. Whether you’re upgrading an old system or outfitting a new HVAC install, the GR9T800805CN offers an ideal balance of performance and cost savings.

Key Features of the Goodman GR9T800805CN Gas Furnace

• 80,000 BTU Heating Capacity
  Heats most medium-sized homes in cold and moderate climates with 64,000 BTU output (based on 80% AFUE efficiency).
• 80% AFUE Energy Efficiency
  Converts 80% of the gas into heat for your home, with only 20% vented—ideal for reducing heating bills.
• Two-Stage Gas Valve
  Offers lower-stage operation for quieter, more efficient heating in mild weather, and full-stage output when needed in cold conditions.
• 9-Speed ECM Blower Motor
  Provides smart, efficient airflow with reduced power usage, enhancing both performance and comfort compared to older PSC motors.
• Natural Gas or Propane Compatible
  Factory set for natural gas; easily converted to LP (propane) with an optional LP conversion kit.
• Quiet Operation
  Low constant fan speed and two-speed induced draft blower minimize noise and maintain consistent air circulation.
• SureStart® Silicon Nitride Hot Surface Igniter
  Designed for a long life and reliable ignition without the need for a standing pilot.
• Self-Diagnostic Control Board
  Monitors internal performance and simplifies troubleshooting with built-in error codes.
• Heavy-Gauge Steel Cabinet
  Insulated, durable cabinet reduces sound and heat loss; finished in long-lasting baked enamel.
• Flexible Installation Options
  Multi-position setup (upflow and horizontal) with removable bottom panel for side- or bottom-return applications; suitable for attic or basement installs.
• Cabinet Air Leakage ≤ 2%
  Factory-sealed cabinet design enhances airflow control and reduces wasted heat.
• Certified Performance
  AHRI Certified, ETL Listed, and available in Low NOx models (not for use in SCAQMD or SJVAPCD areas of California).
• Reliable Warranty Coverage
  Includes a lifetime heat exchanger warranty, 10-year unit replacement warranty, and 10-year parts warranty with online registration.

Why Choose the Goodman GR9T800805CN Gas Furnace?

The Goodman GR9T800805CN offers the perfect mix of affordability and modern HVAC technology. Its two-stage heating, smart 9-speed ECM motor, and diagnostic control system ensure your home stays comfortable while saving energy. Engineered for flexibility and long-term performance, it’s an excellent choice for homeowners who want premium features without the premium price tag.

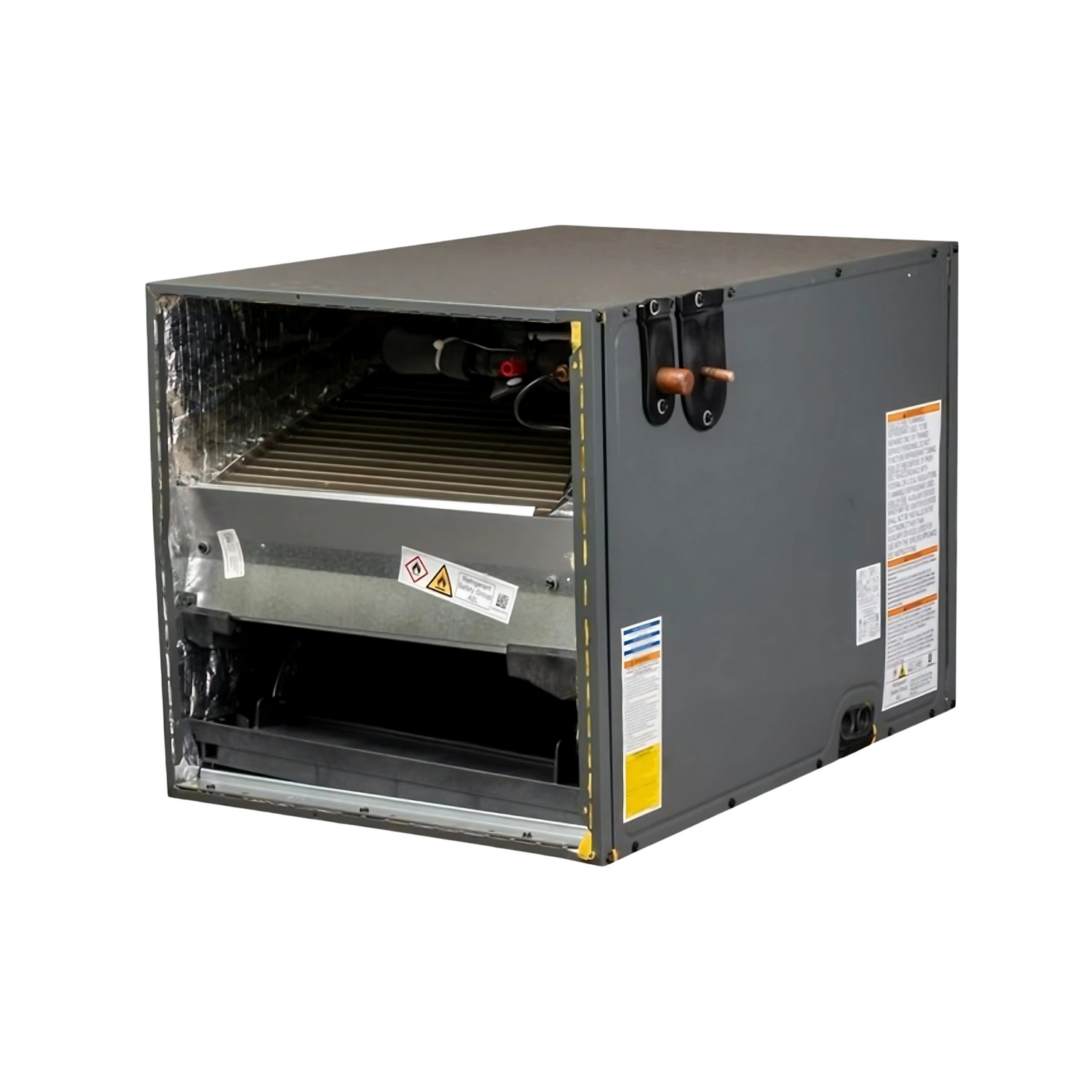

Goodman 5 Ton Cased Evaporator Coil 24.5" Height Horizontal R32 With TXV CHPTA6030D3

The Goodman CHPTA6030D3 5 Ton Horizontal Evaporator Coil is engineered to deliver exceptional performance and efficiency in larger residential HVAC systems. This coil is ideal for horizontal airflow installations and comes with a factory-installed TXV (thermostatic expansion valve) to optimize refrigerant flow, ensuring superior energy efficiency and indoor comfort. Fully compliant with R32 refrigerant standards, this evaporator coil meets modern environmental regulations while providing reliable, long-lasting operation.

Perfect for pairing with heat pump and AC-only condensers, the CHPTA6030D3 enhances the performance of your HVAC system, helping maintain consistent, comfortable temperatures in your home.

Key Features

• Efficiency: Rated at 15 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 80,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

System Requirements and Compatibility

The Goodman CHPTA6030D3 evaporator coil is designed for 5-ton systems and must be installed with a compatible R32 condenser and a blower or furnace (sold separately). This coil is not intended for use with single-package air handler systems.

Built for Efficiency and Long-Term Durability

This evaporator coil is constructed with high-quality aluminum tubing and fin coils to reduce wear and tear while maintaining excellent heat transfer performance. With the TXV kit factory-installed, the coil is easier to install, saving time and installation costs. The insulated galvanized cabinet ensures that the unit operates efficiently, minimizing energy loss and maximizing system durability.

Unmatched Comfort and Energy Efficiency

The Goodman CHPTA6030D3 offers an advanced TXV system that provides more precise refrigerant control, improving overall system efficiency and creating more consistent, comfortable temperatures in your home. Additionally, the mold-resistant drain pan reduces the potential for harmful particle buildup, enhancing air quality and system performance.
