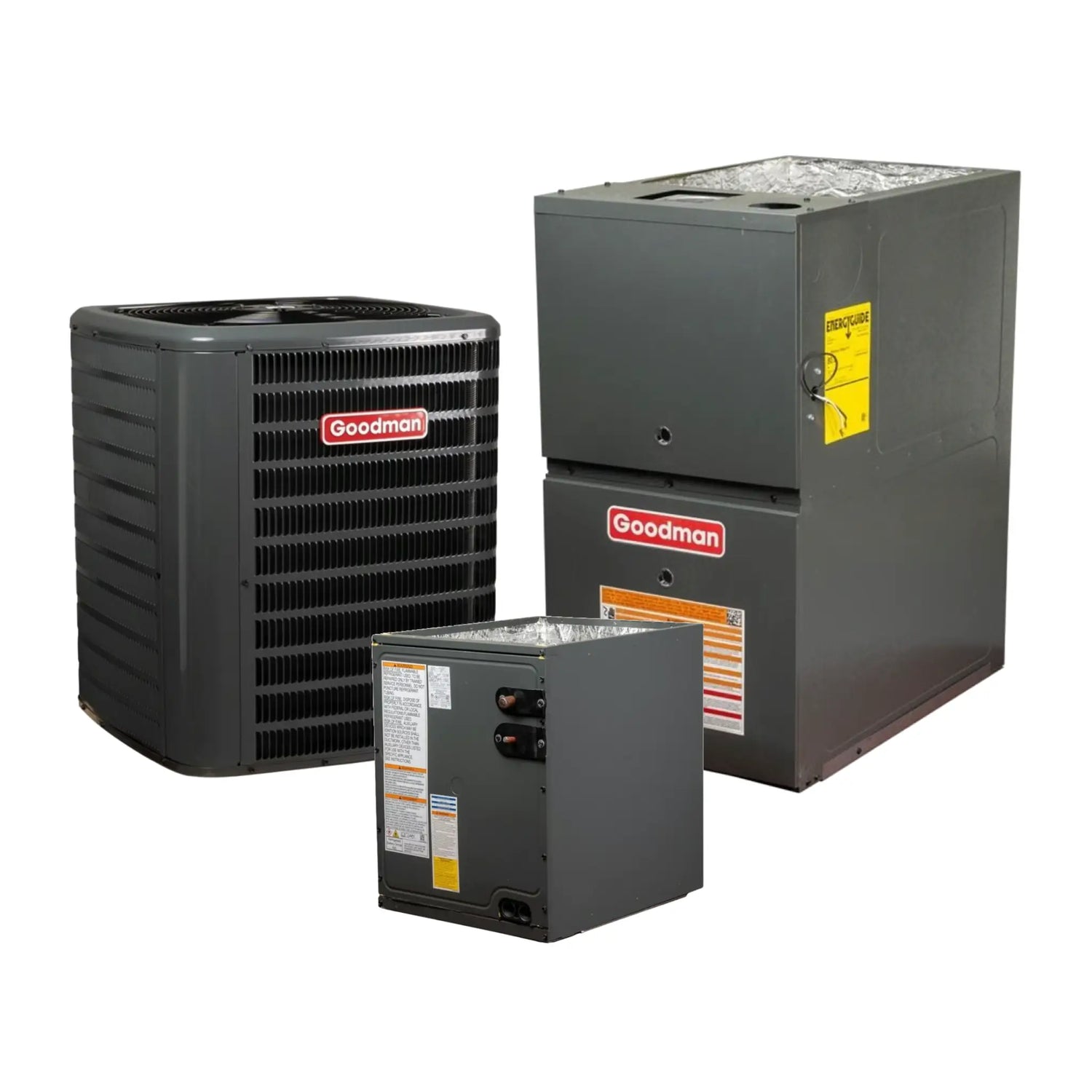

Goodman 4 Ton 14.5 SEER2 AC & Gas Furnace System 80% Vertical 80K BTU R32

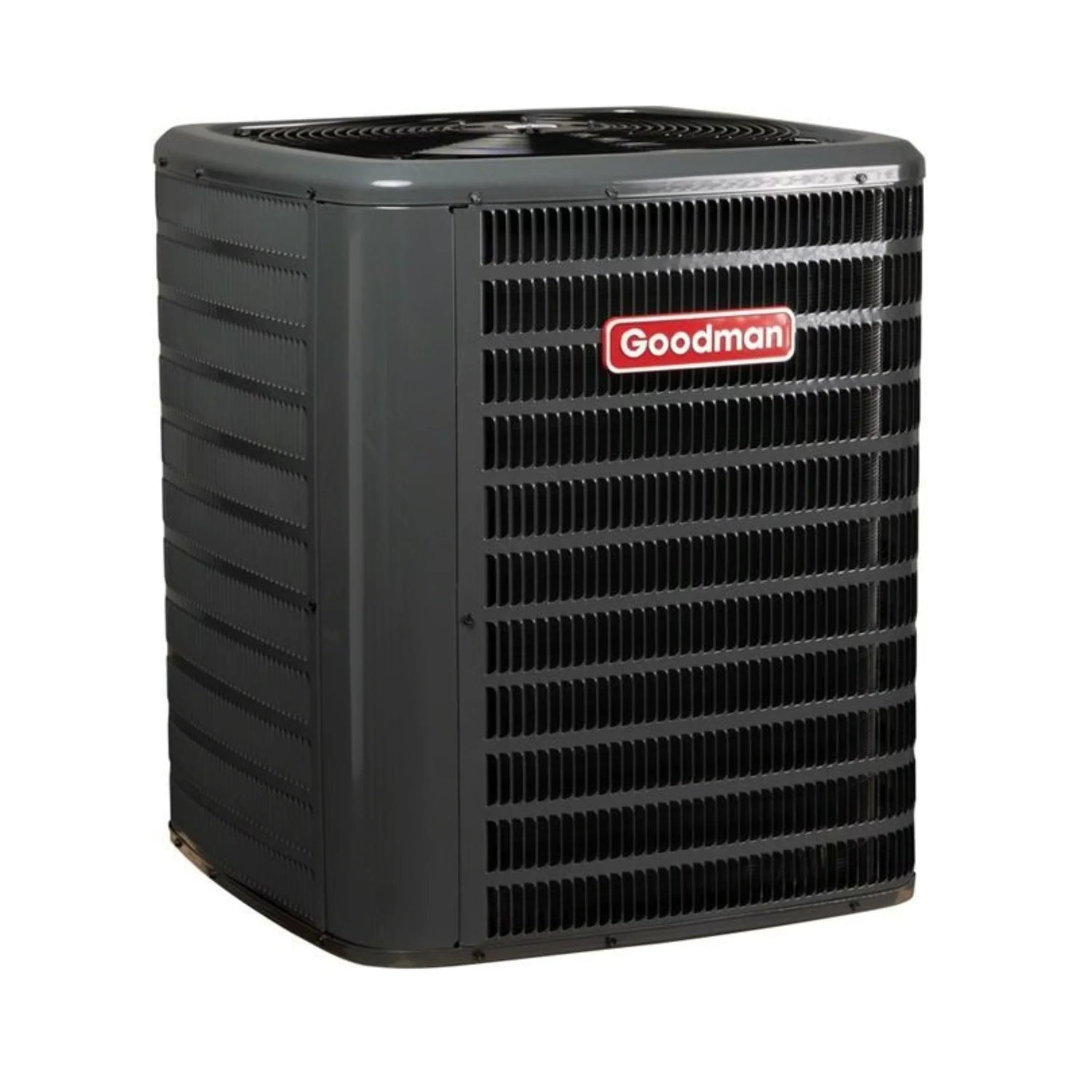

Goodman 4 Ton 14.3 SEER2 Central Air Conditioner Condenser Single Stage R32 GLXS4BA4810

The Goodman GLXS4BA4810 is a high-value, standard-efficiency air conditioner condenser built for long-term performance and homeowner comfort. Designed with durable components and compliant with modern refrigerant regulations, this 4-ton, 14.3 SEER2 condenser provides reliable cooling for medium to large homes in ideal climates. Featuring R-32 refrigerant, factory-installed filter drier, and sound-dampening construction, it's a dependable choice for efficient and quiet home cooling.

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 48,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Disclaimer: This condenser uses R-32 refrigerant (classified as A2L) and must be paired with an R-32 compatible air handler or evaporator coil equipped with a refrigerant leak detection system. Failure to follow these safety requirements may void the warranty and pose potential hazards.

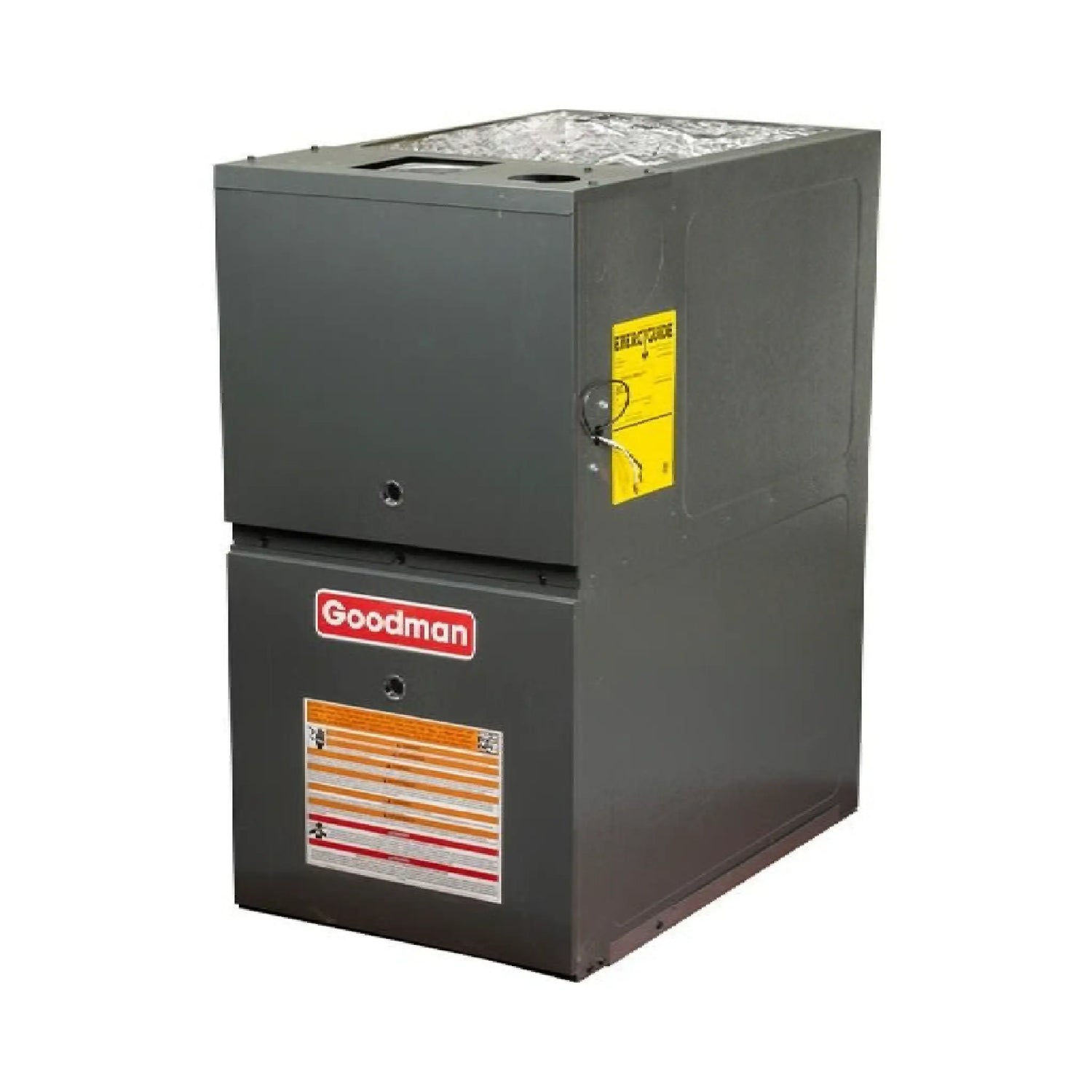

Goodman 80% AFUE 80K BTU Gas Furnace Two-Stage 21"W Upflow/Horizontal R32 GR9T800805CN

The Goodman 80% AFUE R32 2-Stage Gas Furnace delivers powerful, energy-efficient heating with quiet operation and advanced comfort control. Offering 80,000 BTU of heat output and featuring a two-stage gas valve, this gas furnace is engineered for optimal performance and long-term reliability. With its multi-speed ECM circulator motor, SureStart® Silicon Nitride igniter, and quiet two-speed draft blower, it’s an excellent choice for residential heating systems requiring consistent airflow and low emissions.

Designed for flexible installation, the furnace is AHRI Certified, ETL Listed, and compliant with California Low NOx emissions standards. The durable, insulated cabinet, self-diagnostic control board, and multiple configuration options make it ideal for homeowners and HVAC professionals alike.

Product Features

• 80% AFUE (Annual Fuel Utilization Efficiency) – Offers consistent, efficient performance while keeping fuel costs low.
• 80,000 BTU Heating Capacity – Delivers reliable heat output for medium to large homes.
• Multi-Speed ECM Circulator Motor – Ensures energy efficiency and quieter airflow throughout the home.
• Two-Stage Gas Valve – Operates at low and high heat levels for improved comfort and energy savings.
• SureStart® Silicon Nitride Igniter – Designed for durability and long operational life.
• Quiet, Two-Speed Induced Draft Blower – Minimizes noise while maintaining airflow performance.
• Low Constant Fan Speed – Circulates air continuously for enhanced indoor air quality and temperature control.
• Self-Diagnostic Control Board – Simplifies troubleshooting and service.
• AHRI Certified & ETL Listed – Ensures the unit meets industry standards for safety and performance.
• California Low NOx Emissions Compliant – Meets state requirements for reduced emissions (except SCAQMD and SJVAPCD regions).
• Installation Configuration – Supports Upflow/Horizontal installation with flexible options for various layouts.
• Airflow Capacity – 2000 CFM for strong air distribution.
• Electrical Specs – 115V, 1 Phase, 25A max overcurrent protection.
• Heat Exchanger Type – Air-cooled design enhances reliability and longevity.
• Powerful Yet Compact – 33-3/8" H x 21" W x 28" D; weight: 129 lb.

Cabinet Features

• Heavy-Gauge Steel Cabinet – Fully insulated and finished with baked enamel for enhanced durability and noise reduction.
• Multi-Position Installation –
  • GR9T80: Upflow, horizontal left or right
  • GD9T80: Downflow, horizontal left or right
• Removable Bottom Panel – Allows side- or bottom-return configurations for easier setup.
• Convenient Gas/Electric Connections – Service connections available on left or right side for installation flexibility.
• Cabinet Air Leakage ≤ 2% – Meets industry standards for air-tight construction.
• Flush Fit Design – Coil and furnace align seamlessly for streamlined installation.

The Goodman R32 2-Stage Gas Furnace is built for comfort, efficiency, and installation ease—making it an ideal solution for homeowners looking to upgrade their heating system with modern, environmentally conscious technology.

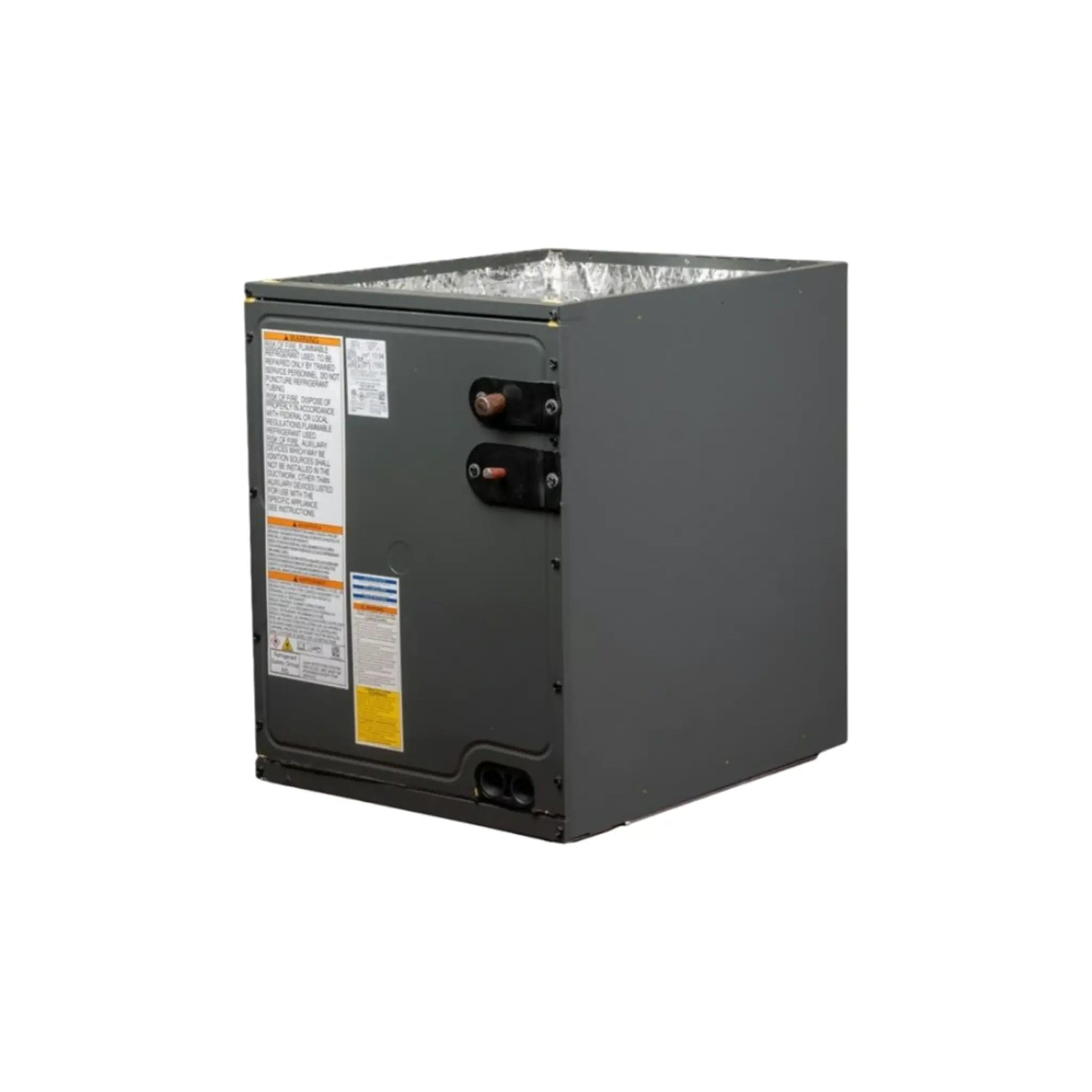

Goodman 5 Ton Evaporator Coil TXV Expansion 21" Cabinet Upflow/Downflow R32 CAPTA6030C3

This evaporator coil is a high-performance, all-aluminum unit specifically designed for R-32 refrigerant, featuring integrated thermal expansion valves for both cooling and heat pump applications. It offers flexible installation options with vertical and horizontal models, and its 21-inch depth facilitates easier access in attic spaces. The coil is equipped with a foil-faced insulation to reduce condensation and includes a rust-resistant, UV-resistant drain pan with additional drainage connections. Its durable galvanized finish and easy-to-remove drain pan rails enhance both longevity and maintenance convenience. Certified by AHRI and listed by ETL, this coil combines efficiency, durability, and ease of use for a reliable HVAC solution.

• Optimized for R-32 Refrigerant - Designed to maximize performance and energy efficiency with R-32 refrigerant, enhancing system efficiency and environmental friendliness.
• Durable R-32 Sensor - Specially engineered sensor to extend the lifespan of the coil and improve long-term performance with R-32 refrigerant.
• Factory-Installed Thermal Expansion Valves (CAPTA and CHPTA Models) - Ensures precise refrigerant flow regulation for enhanced cooling and energy efficiency.
• Standardized Copper Suction Tube Stub Length - Consistent design for easy installation and improved system compatibility.
• Single Front Access Panel (CAPTA and CHPTA Models) - Simplifies maintenance and servicing with a user-friendly front access panel.
• Foil-Faced Insulation for Condensation Control - Reduces cabinet condensation, enhancing the durability and reliability of your HVAC system.
• Galvanized, Leather Grain-Embossed Finish - Provides a stylish and corrosion-resistant exterior for a longer-lasting product life.
• Rust-Resistant Thermoplastic Drain Pans - Ensures high durability and resistance to rust, with low water retention to prevent system issues.
• DecaBDE-Free Drain Pan with Secondary Drain Connections - Environmentally safe, free from harmful chemicals, and designed with secondary drain connections for added security.
• UV-Resistant Drain Pan - Protects against damage from UV exposure, ensuring long-term reliability.
• Drain Pan Rails for Easy Coil Removal - Simplifies maintenance and servicing by allowing quick removal and repositioning of coils.
• AHRI Certified and ETL Listed - Assures high-quality performance, safety, and compliance with industry standards.
