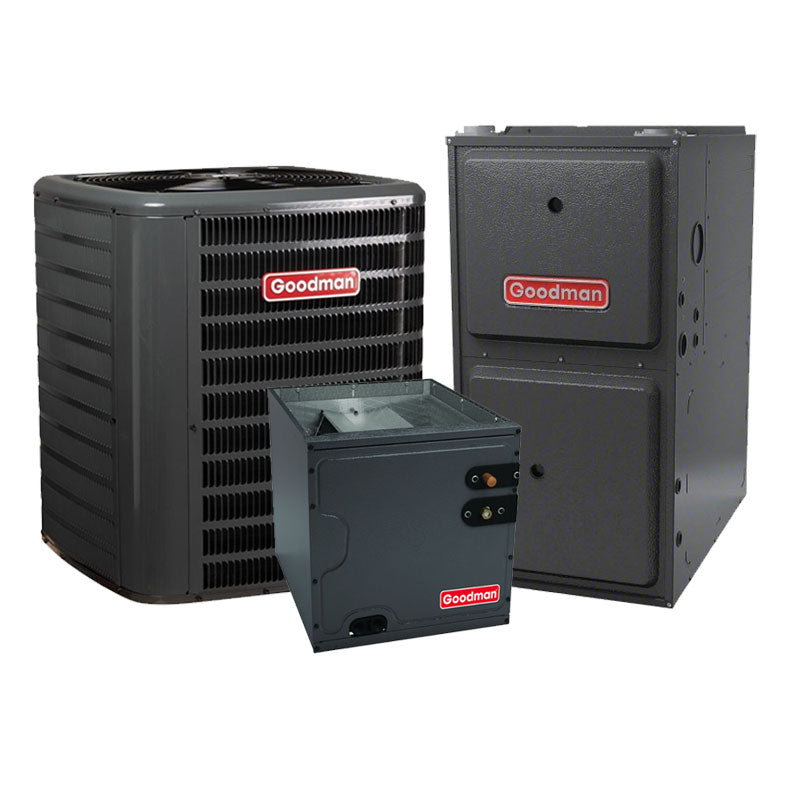

Goodman 3 Ton Split AC Gas Furnace 13.6 SEER2 92% AFUE 80K BTU R32 Vertical
Key Features
- Efficiency: Rated at 13.6 SEER2 for energy-efficient performance
- Heating: 92% AFUE gas furnace provides efficient whole-home heating
- Capacity: Delivers 36,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
Product Details
Product Details
Goodman 3 Ton Split AC Gas Furnace 13.6 SEER2 92% AFUE 80K BTU R32 Vertical
Goodman 3 Ton R32 Air Conditioner Condenser 13.4 SEER2 208/230V Single-Phase GLXS3BN3610
The Goodman 3 Ton R32 Air Conditioner Condenser with a 13.4 SEER2 rating and single-phase 208/230V operation delivers reliable cooling with 36,000 BTU capacity. Featuring a single-stage, energy-efficient scroll compressor, it’s designed for cost-effective operation. The unit is pre-charged for a 15' tubing length for quick installation and includes a durable copper tube with an aluminum fin coil. A factory-installed filter drier extends system life, while high-pressure switches and extended-life capacitors enhance safety and longevity. AHRI Certified and ETL Listed.
- Energy Star Certified: No
- Refrigerant Type: R-32
- SEER 2: 13.4
- Unit Height: 32.5 in
- Unit Width: 26 in
- Communication Feature Type: Non-Communicating
- Cooling Capacity Nominal: 36000 Btu/H
- Max Overcurrent Protection: 30 A
- Power Phase: 1 Ph
- Power Voltage: 208/230 V
- Compressor Stages: Single Stage
- Compressor Type: Scroll
- Unit Weight: 136 lb
- Tonnage: 3
- Model Efficiency: 13.4 SEER2
- Unit Depth: 26 in
Key Features
- Efficiency: Rated at 13.6 SEER2 for energy-efficient performance
- Heating: 92% AFUE gas furnace provides efficient whole-home heating
- Capacity: Delivers 36,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
Cabinet Features
- Removable grille-style top: UL 60335-2-40 compliant for safety and service access
- Venturi design: Enhances airflow velocity for better performance
- Architectural Gray powder-paint finish: 500-hour salt-spray approval for corrosion resistance
- Wire fan discharge grille: Protects the fan and system components
- Steel louver coil guard: Shields coils for added durability
- Top and side maintenance access: Simplifies servicing and maintenance
- Single-panel access to controls: Space provided for field-installed accessories
- Hurricane-ready: When properly anchored, meets 2023 Florida Building Code for hurricane-type winds (Anchor bracket kits available)
Goodman R32 92% AFUE Gas Furnace 80,000 BTU Multi-Speed Upflow/Horizontal GR9S920803BN
Upgrade your home heating with the Goodman R32 gas furnace, offering an impressive 92% AFUE efficiency and a robust 80,000 BTU capacity. Designed for versatile installation in upflow or horizontal configurations, this unit features a durable aluminized-steel heat exchanger and a stainless-steel secondary heat exchanger for enhanced performance and longevity. With a multi-speed ECM blower motor, enjoy energy-efficient airflow and minimal noise. Its self-diagnostic control board simplifies maintenance, while compliance with California's low NOx standards ensures eco-friendliness. AHRI certified and ETL listed, this furnace guarantees reliability and safety, making it the perfect choice for efficient home comfort.
- 80,000 BTU
- R32
- Unit Height: 33-3/8 in
- Unit Width: 17-1/2 in
- AFUE: 92 %
- Installation Configuration: Upflow/Horizontal
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 115 V
- Motor Speed Type: Multi Speed ECM
- Unit Weight: 117 lb
- Model Efficiency: 0.92
- Unit Depth: 28 in
- Heat Exchanger Type: Air Cooled
Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace
- Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
- Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
- Single-Stage Gas Valve: Simplifies operation with reliable gas control.
- Durable Silicon Nitride Igniter: Offers consistent ignition performance.
- Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
- Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
- Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
- California Compliance: Meets the 40 ng/J Low NOx emissions standard.
- Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
- AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
- Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
- Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
- Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
- Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.
Cabinet Features
- Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
- Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
- Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
- Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

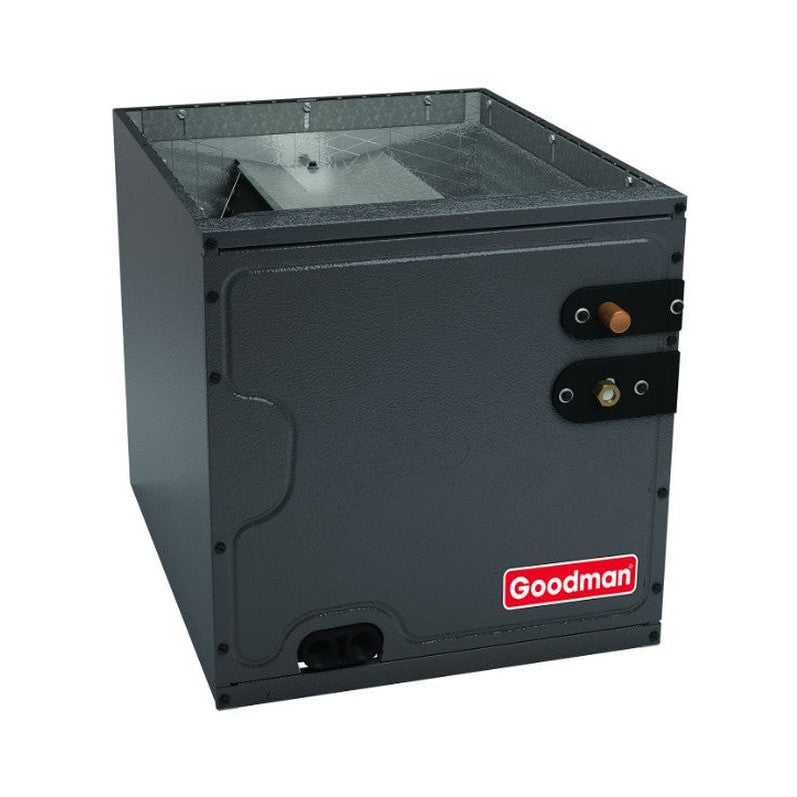

Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA3626B3
The Goodman 3 Ton R32 Evaporator Coil (CAPTA3626B3) is a compact, cased unit with built-in TXV, optimized for R-32 refrigerant. It offers flexible upflow/downflow installation, durable all-aluminum construction, and rust-resistant drain pan. AHRI certified and ETL listed, it's designed for efficient performance in tight spaces with easy access for maintenance.
- Refrigerant Type: R-32
- Unit Height: 26 in
- Unit Width: 17.5 in
- Cased/Uncased: Cased
- Tonnage: 3.0
- Coil Application: Upflow/Downflow
- Unit Depth: 21 in
- R-32 Evaporator Coil
- High-Performance HVAC Solution
- Integrated Thermal Expansion Valves
- Flexible Installation Options
- Foil-Faced Insulation
- Durable Drain Pan
- Galvanized Finish
- AHRI Certified
- ETL Listed
Product Features for High-Performance R-32 Evaporator Coil
- All-Aluminum Construction: Designed for durability and efficient heat exchange, ensuring long-lasting performance in HVAC systems.
- Optimized for R-32 Refrigerant: Specially engineered with circuits and manifolds for efficient cooling and heating applications.
- Integrated Thermal Expansion Valves: Factory-installed in CAPTA and CHPTA models, enhancing efficiency for both cooling and heat pump use.
- Flexible Installation Options: Available in vertical and horizontal configurations, with a compact 21-inch depth for easy access in tight spaces like attics.
- Foil-Faced Insulation: Reduces cabinet condensation, improving overall efficiency and preventing moisture-related issues.
- Durable Drain Pan: Rust-resistant, UV-resistant thermoplastic design with low water retention and additional drainage connections for reliable operation.
- User-Friendly Design: Easy-to-remove drain pan rails simplify maintenance and repositioning of the coil.
- Galvanized Finish: Leather grain-embossed coating ensures durability and resistance to wear and tear.
- Standardized Copper Suction Tube Stub Length: Facilitates easier installation and compatibility with existing systems.
- Single Front Access Panel: Enhances convenience for maintenance on CAPTA and CHPTA models.
- AHRI Certified and ETL Listed: Confirms adherence to industry standards for performance, safety, and reliability.
