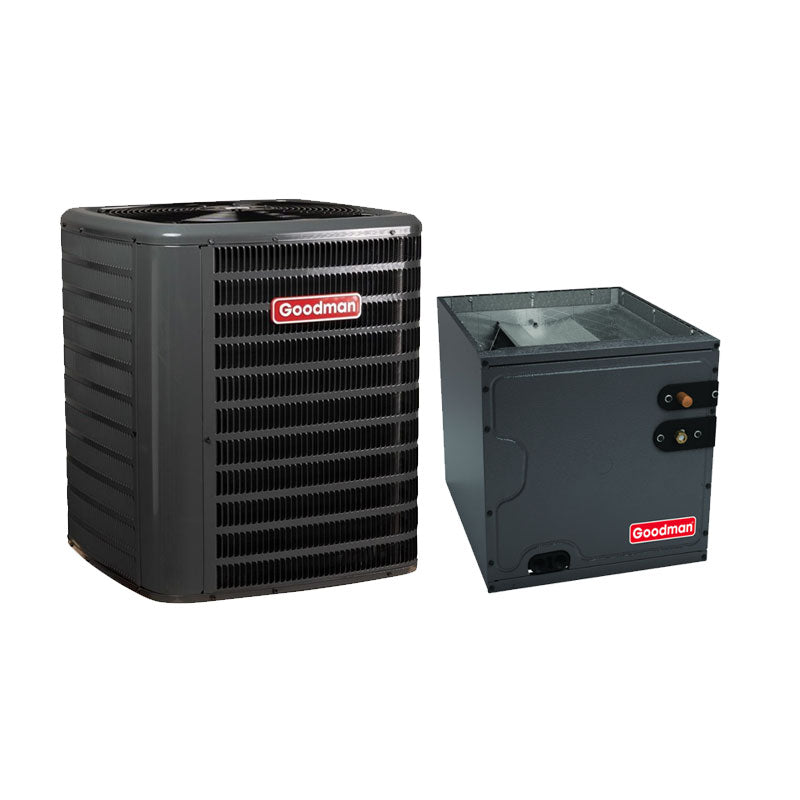

Goodman 3 Ton R32 Split AC & Evaporator Coil 14.3 SEER2 21"W Cased Vertical

Goodman 3 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA3610

The Goodman 3 Ton (36,000 BTU) R32 Split Air Conditioner (Model GLXS5BA3610) delivers superior efficiency with a 15.2 SEER2 rating and a high-performance single-stage scroll compressor. It uses R-32 refrigerant and is factory pre-charged for 15' tubing length, simplifying installation. Features include 5mm copper tubing with enhanced aluminum fin coils for excellent heat transfer, sweat connection service valves for easy maintenance, and extended-life capacitors for long-lasting performance. The robust cabinet is corrosion-resistant, with a Venturi design for improved airflow, while the unit is AHRI certified and ETL listed. Designed for durability, it meets 2023 Florida Building Code integrity requirements for hurricane readiness and offers easy access for servicing.

• Refrigerant Type: R-32
• Unit Height: 39.5 in
• Unit Width: 35.5 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 30 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 3
• 36,000 BTU
• Model Efficiency: 15.2 SEER2

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable grille-style top compliant with UL 60335-2-40 for safety and easy maintenance.
• Venturi design enhances airflow velocity for improved performance.
• Architectural gray powder-paint finish offers corrosion resistance with 500-hour salt-spray approval.
• Wire fan discharge grille protects internal components while maintaining airflow efficiency.
• Steel louver coil guard provides robust protection for the coils.
• Top and side maintenance access for convenient servicing.
• Single-panel access to controls with space for field-installed accessories.
• Hurricane-ready design meets 2023 Florida Building Code integrity requirements when properly anchored (anchor bracket kits available).

Goodman 2 - 3 Ton R32 Evaporator Coil Upflow/Downflow 21"W x 26"H CAPTA3626C3

The Goodman CAPTA3626C3 Evaporator Coil is a high-performance, all-aluminum unit designed for R-32 refrigerant. With integrated thermal expansion valves, it efficiently supports both cooling and heat pump applications. Its flexible installation options allow for upflow or downflow configurations, while a compact 21-inch depth ensures easy access in tight spaces like attics. Featuring foil-faced insulation to minimize condensation, the coil also includes a rust-resistant, UV-resistant drain pan with extra drainage connections. The durable galvanized finish and easy-to-remove drain pan rails enhance maintenance convenience. AHRI certified and ETL listed, this evaporator coil promises exceptional efficiency and long-lasting performance.

• Refrigerant Type: R-32
• Unit Height: 26 in
• Unit Width: 21 in
• Cased/Uncased: Cased
• Tonnage: 3.0
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

Product Features Goodman 2 - 3 Ton R32 Vertical Evaporator Coil CAPTA3626C3

• High-Performance All-Aluminum Design: Engineered for durability and efficiency with R-32 refrigerant compatibility.
• Integrated Thermal Expansion Valves: Factory-installed for optimal performance in both cooling and heat pump applications.
• Flexible Installation Options: Suitable for vertical and horizontal configurations to fit various HVAC setups.
• Compact 21-Inch Depth: Facilitates easy access in tight spaces, such as attics, for convenient installation and maintenance.
• Foil-Faced Insulation: Reduces condensation, improving overall efficiency and performance.
• Rust-Resistant, UV-Resistant Drain Pan: Durable design with low water retention and additional drainage connections for reliability.
• Galvanized Finish: Leather grain-embossed for enhanced longevity and aesthetic appeal.
• Easy-to-Remove Drain Pan Rails: Simplifies maintenance and coil repositioning for hassle-free service.
• AHRI Certified and ETL Listed: Ensures safety, efficiency, and compliance with industry standards.
• Optimized for R-32 Refrigerant: Designed with circuits and manifolds specifically for R-32, enhancing eco-friendliness.
• Standardized Copper Suction Tube Stub Length: Simplifies installation and compatibility with existing systems.
• Single Front Access Panel: Provides easy access for maintenance and inspection on CAPTA and CHPTA models.

Upgrade to the Goodman CAPTA3626C3 Evaporator Coil for a reliable, efficient HVAC solution tailored to modern needs!
