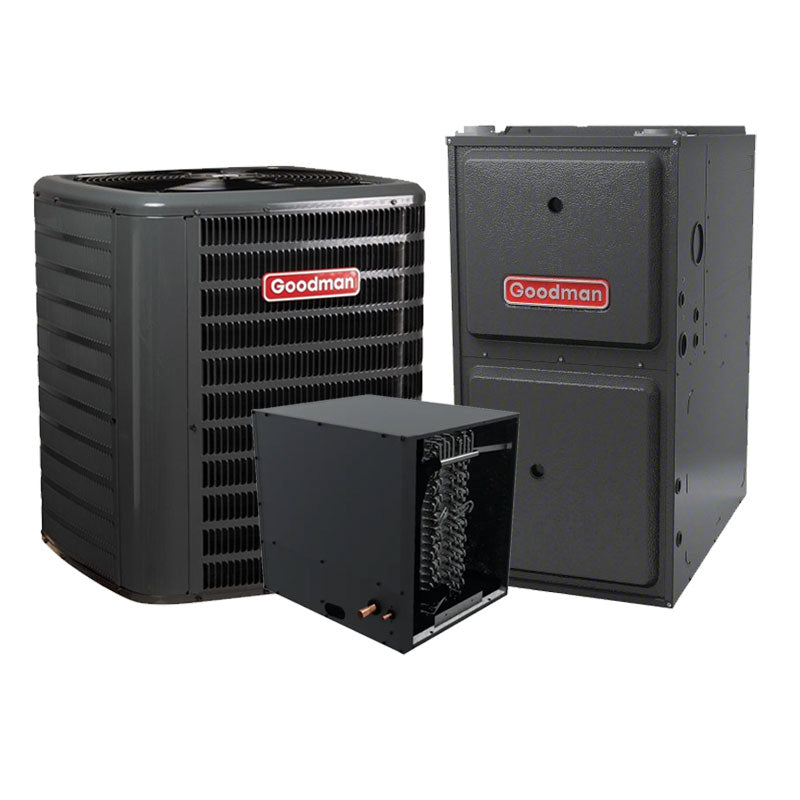

Goodman 3 Ton R32 Heat Pump & Gas Furnace 14.5 SEER2 92% 60K BTU Horizontal

Goodman 3 Ton 15.2 SEER2 Split Heat Pump Condenser High Efficiency R32

This 3-ton Energy Star-certified R-32 split heat pump offers 36,000 BTU/h heating capacity and up to 16 SEER2 efficiency, ensuring energy savings and comfort. Featuring a high-efficiency scroll compressor, SmartShift® technology for quiet defrost cycles, and a corrosion-resistant aluminum fin coil, it delivers reliable performance. Factory-installed safety features include high/low-pressure switches, a crankcase heater, and suction-line accumulator. The galvanized-steel cabinet with hurricane-resistant design meets 2023 Florida codes. AHRI Certified and ETL Listed for safety and performance. Ideal for efficient, long-lasting home heating and cooling.

• Energy Star Certified: Yes
• Heating Capacity Nominal: 36000 Btu/H
• Refrigerant Type: R-32
• SEER 2: 15.2
• Unit Height: 39.5 in
• Unit Width: 35.5 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 40 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Unit Weight: 222 lb
• Tonnage: 3
• Model Efficiency: up to16 SEER2
• Unit Depth: 35.5 in

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top: Designed to meet UL 60335-2-40 standards.
• Steel Louver Coil Guard: Provides robust coil protection.
• Heavy-Gauge Galvanized-Steel Cabinet: Durable construction for long-lasting use.
• Architectural Gray Powder-Paint Finish: Resistant to corrosion with 500-hour salt-spray approval.
• Maintenance Access: Top and side entry points for convenient servicing.
• Single-Panel Access: Allows for easy control adjustments and accessory installations.
• Hurricane-Resistant Design: Meets 2023 Florida Building Code requirements for hurricane winds when properly anchored (optional anchor bracket kits available).

Goodman 92% AFUE 60K BTU Gas Furnace Multi-Speed ECM Upflow/Horizontal R32 GR9S920603BN

The Goodman GR9S920603BN is a high-quality, energy-efficient natural gas furnace engineered to deliver reliable comfort and long-lasting performance. With a 92% AFUE rating, a 9-speed ECM blower motor, and a rugged cabinet design, this furnace is ideal for small to medium homes seeking dependable heating and reduced energy costs.

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

92% AFUE High-Efficiency Heating

This Goodman furnace features a 92% Annual Fuel Utilization Efficiency rating, meaning 92% of the fuel consumed is used to directly heat your home. This high-efficiency rating helps reduce utility costs while minimizing fuel waste. PVC flue venting is required for all installations.

Reliable Single-Stage Performance

The single-stage burner operates at full capacity whenever heat is required, offering consistent comfort with a simple and proven design. This makes it a reliable solution for homeowners in a wide range of climate zones.

Energy-Efficient ECM Blower

Equipped with a 9-speed ECM motor, the GR9S920603BN delivers smoother airflow and more efficient electricity use compared to traditional PSC motors. This results in quieter operation and improved air circulation throughout your home.

Durability and Safety

The furnace is built with a heavy-duty steel cabinet, a durable hot surface igniter, and a self-diagnostic control board for enhanced safety and long-term system protection. Its cabinet design minimizes air leakage, reduces sound levels, and maximizes heating performance.

Flexible Installation

Designed for upflow or horizontal applications, the GR9S920603BN offers flexible installation options suitable for basements, attics, or utility rooms. Color-coded terminals simplify wiring and reduce labor time during setup.

Warranty Protection

Goodman offers a strong warranty package with this furnace: a 10-year limited parts warranty and a lifetime heat exchanger warranty, provided the unit is registered online after installation. This ensures peace of mind and long-term value.

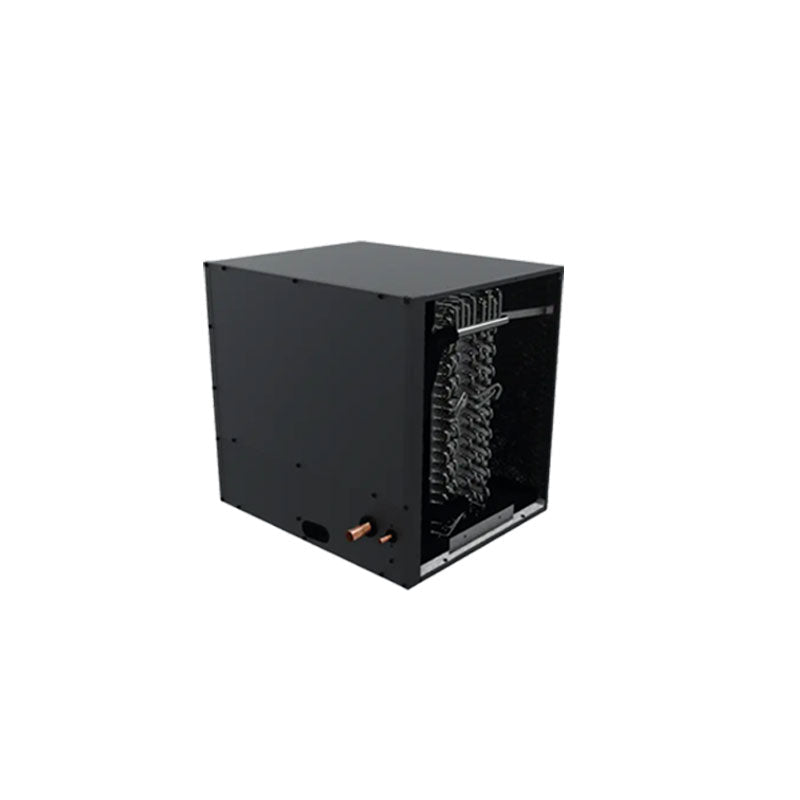

Goodman 3.5 Ton Cased Evaporator Coil R32 Horizontal 21"W With Internal TXV CHPTA4230C3

The Goodman CHPTA4230C3 is a high-performance 3.5-ton horizontal evaporator coil designed for use with R-32 refrigerant systems. Built from durable, all-aluminum components and equipped with factory-installed TXVs for both cooling and heat pump applications, this coil offers exceptional system efficiency, corrosion resistance, and reliable comfort. Compact and installer-friendly, it’s ideal for attics, crawl spaces, or horizontal configurations where space and accessibility are critical.

Key Specifications

• Tonnage - 3.5 tons, optimized for high-efficiency R-32 refrigerant systems.
• Construction - All-aluminum tubing and fin design for superior heat transfer and long-term durability.
• Thermal Expansion Valves (TXVs) - Factory-installed for both cooling and heat pump applications to ensure precise refrigerant control and enhanced system efficiency.
• Design - Compact 21" depth optimized for horizontal installation in space-limited areas such as attics or mechanical closets.
• Insulation - Foil-faced interior insulation minimizes cabinet condensation and thermal loss.
• Drain Pan - Molded thermoplastic drain pan with rust and UV resistance, featuring low water retention and secondary drainage connections.
• Serviceability - Removable rails and a single front access panel simplify maintenance and inspection.
• Refrigerant Lines - Standardized copper suction and liquid line stub lengths for easy system matching.
• Certifications - ETL Listed and AHRI Certified, ensuring compliance with safety and performance standards.

Performance & Installation Advantages

• High Efficiency - Designed specifically for R-32 refrigerant to improve energy transfer and system SEER2 performance.
• Corrosion Resistance - Aluminum construction eliminates the risk of galvanic corrosion for longer coil life.
• Compact Profile - 21-inch depth enables installation in tighter spaces without sacrificing capacity or efficiency.
• Easy Access - Single removable front panel allows quick coil inspection and cleaning.
• Flexible Installation - Ideal for horizontal left or right airflow configurations in residential HVAC systems.

Why Choose the Goodman CHPTA4230C3?

The Goodman CHPTA4230C3 3.5-Ton Horizontal Evaporator Coil is a versatile and reliable component for R-32 HVAC systems. Its all-aluminum build, factory-installed TXVs, and service-friendly design make it a perfect match for homeowners and HVAC professionals seeking durable, efficient, and space-saving performance. Whether used in new installations or retrofit projects, it ensures long-term reliability and compliance with modern refrigerant standards.
