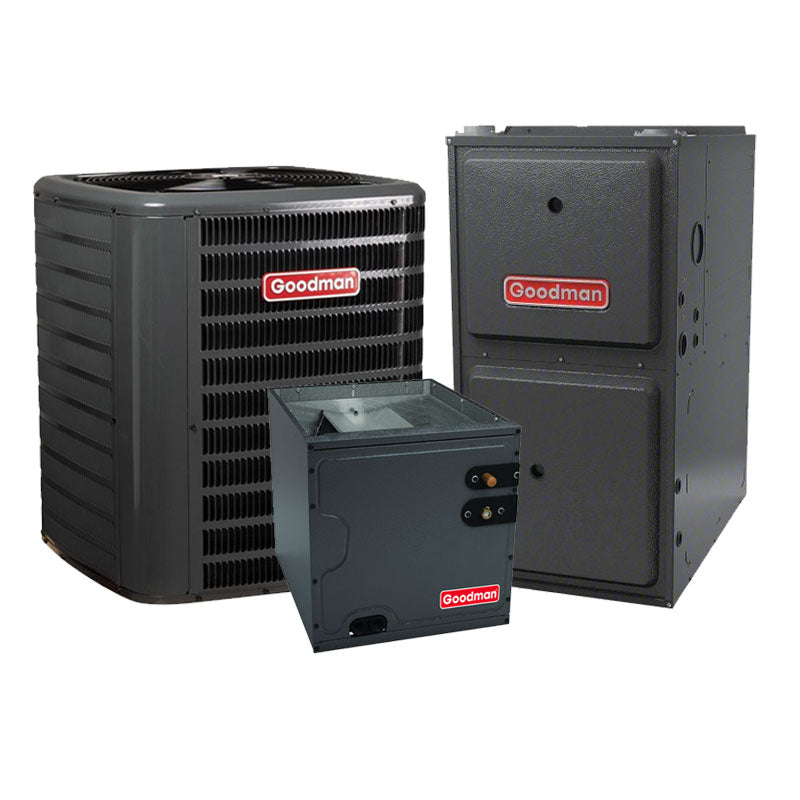

Goodman 3 Ton R32 AC & Gas Furnace 13.8 SEER2 92% 60K BTU Vertical Coil

Goodman 3 Ton R32 Air Conditioner Condenser 13.4 SEER2 208/230V Single-Phase GLXS3BN3610

The Goodman 3 Ton R32 Air Conditioner Condenser with a 13.4 SEER2 rating and single-phase 208/230V operation delivers reliable cooling with 36,000 BTU capacity. Featuring a single-stage, energy-efficient scroll compressor, it’s designed for cost-effective operation. The unit is pre-charged for a 15' tubing length for quick installation and includes a durable copper tube with an aluminum fin coil. A factory-installed filter drier extends system life, while high-pressure switches and extended-life capacitors enhance safety and longevity. AHRI Certified and ETL Listed.

• Energy Star Certified: No
• Refrigerant Type: R-32
• SEER 2: 13.4
• Unit Height: 32.5 in
• Unit Width: 26 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 36000 Btu/H
• Max Overcurrent Protection: 30 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Unit Weight: 136 lb
• Tonnage: 3
• Model Efficiency: 13.4 SEER2
• Unit Depth: 26 in

Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable grille-style top: UL 60335-2-40 compliant for safety and service access
• Venturi design: Enhances airflow velocity for better performance
• Architectural Gray powder-paint finish: 500-hour salt-spray approval for corrosion resistance
• Wire fan discharge grille: Protects the fan and system components
• Steel louver coil guard: Shields coils for added durability
• Top and side maintenance access: Simplifies servicing and maintenance
• Single-panel access to controls: Space provided for field-installed accessories
• Hurricane-ready: When properly anchored, meets 2023 Florida Building Code for hurricane-type winds (Anchor bracket kits available)

Goodman R32 92% AFUE Gas Furnace 60K BTU Multi-Speed ECM Upflow/Horizontal GR9S920603BN

Upgrade your home heating with the Goodman R32 gas furnace, offering an impressive 92% AFUE efficiency and a robust 60,000 BTU capacity. Designed for versatile installation in upflow or horizontal configurations, this unit features a durable aluminized-steel heat exchanger and a stainless-steel secondary heat exchanger for enhanced performance and longevity. With a multi-speed ECM blower motor, enjoy energy-efficient airflow and minimal noise. Its self-diagnostic control board simplifies maintenance, while compliance with California's low NOx standards ensures eco-friendliness. AHRI certified and ETL listed, this furnace guarantees reliability and safety, making it the perfect choice for efficient home comfort.

• Unit Height: 33-3/8 in
• Unit Width: 17-1/2 in
• AFUE: 92 %
• 60,000 BTU
• R32
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 114 lb
• Model Efficiency: 0.92
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled

Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

• Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
• Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
• Single-Stage Gas Valve: Simplifies operation with reliable gas control.
• Durable Silicon Nitride Igniter: Offers consistent ignition performance.
• Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
• Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
• Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
• California Compliance: Meets the 40 ng/J Low NOx emissions standard.
• Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
• Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
• Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
• Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
• Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

• Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
• Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
• Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
• Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

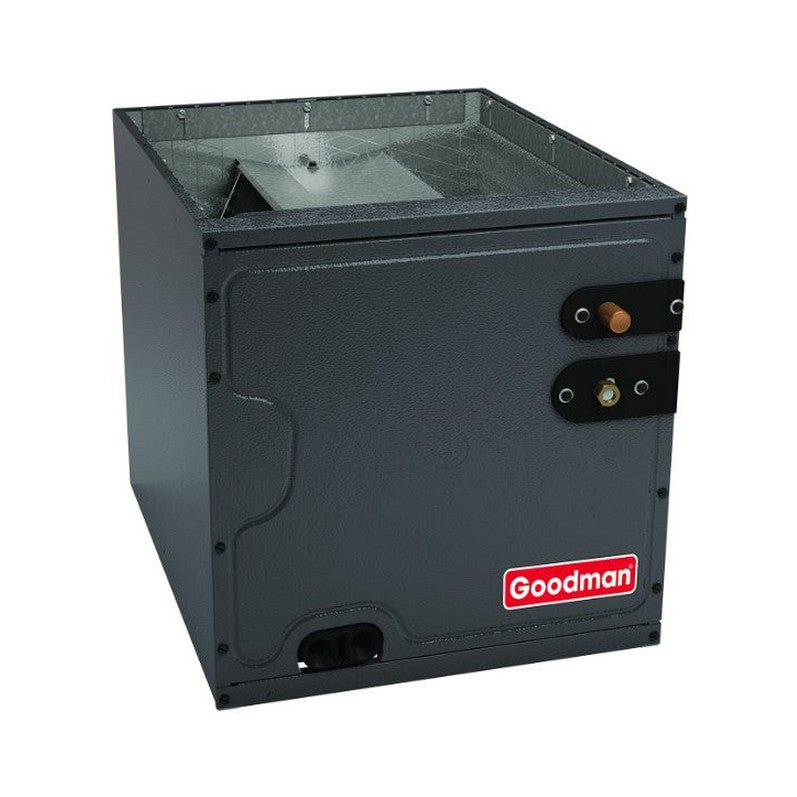

Goodman 3.5 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA4230C3

The Goodman CAPTA4230C3 Evaporator Coil is a high-performance unit designed for R32 refrigerant, perfect for upflow or downflow applications. With a compact size of 30" high and 21" wide, it features built-in thermal expansion valves (TXV) for enhanced efficiency in cooling and heat pump systems. This all-aluminum coil minimizes condensation with its foil-faced insulation and ensures durability with its galvanized finish. AHRI certified and ETL listed, this evaporator coil guarantees reliable performance and energy savings for your HVAC system.

• Refrigerant Type: R-32
• Unit Height: 30 in
• Unit Width: 21 in
• Cased/Uncased: Cased
• Tonnage: 3.5
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

Product Features of Goodman CAPTA4230C3 Evaporator Coil

• High-Performance All-Aluminum Design: Specifically engineered for R-32 refrigerant to optimize efficiency in cooling and heat pump applications.
• Integrated Thermal Expansion Valves: Factory-installed TXVs enhance performance and adaptability in various HVAC systems.
• Flexible Installation Options: Compatible with both vertical and horizontal configurations, ensuring versatility for different setups.
• Compact 21-Inch Depth: Facilitates easy access, making it ideal for installation in tight attic spaces.
• Foil-Faced Insulation: Reduces cabinet condensation, improving overall energy efficiency and performance.
• Durable Construction: Galvanized finish with a leather grain-embossed texture enhances longevity and resistance to wear.
• Rust-Resistant Drain Pan: Low water retention and UV-resistant properties, equipped with secondary drain connections for effective drainage.
• Maintenance Convenience: Easy-to-remove drain pan rails simplify cleaning and maintenance tasks.
• Certified Reliability: AHRI certified and ETL listed, ensuring compliance with industry standards for safety and efficiency.
• Optimized Circuits and Manifolds: Standardized copper suction tube stub length for improved installation and efficiency.
• Single Front Access Panel: Simplifies access to internal components for easier servicing.

This evaporator coil combines efficiency, durability, and user-friendly features for a dependable HVAC solution.
