Goodman 3 Ton Evaporator Coil EEV Expansion 17.5" Cabinet Upflow/Downflow

By: Goodman
SKU: CAPEA3626B3|ID: 101265
$876.00
+ Shipping
Width: 17.5"
Depth: 21"

Key Features

  • Capacity: Delivers 36,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Cabinet Width: 17.5"

17.5"21"24.5"

Configuration: Vertical

Vertical

Tonnage: 3 Ton

2 Ton3 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

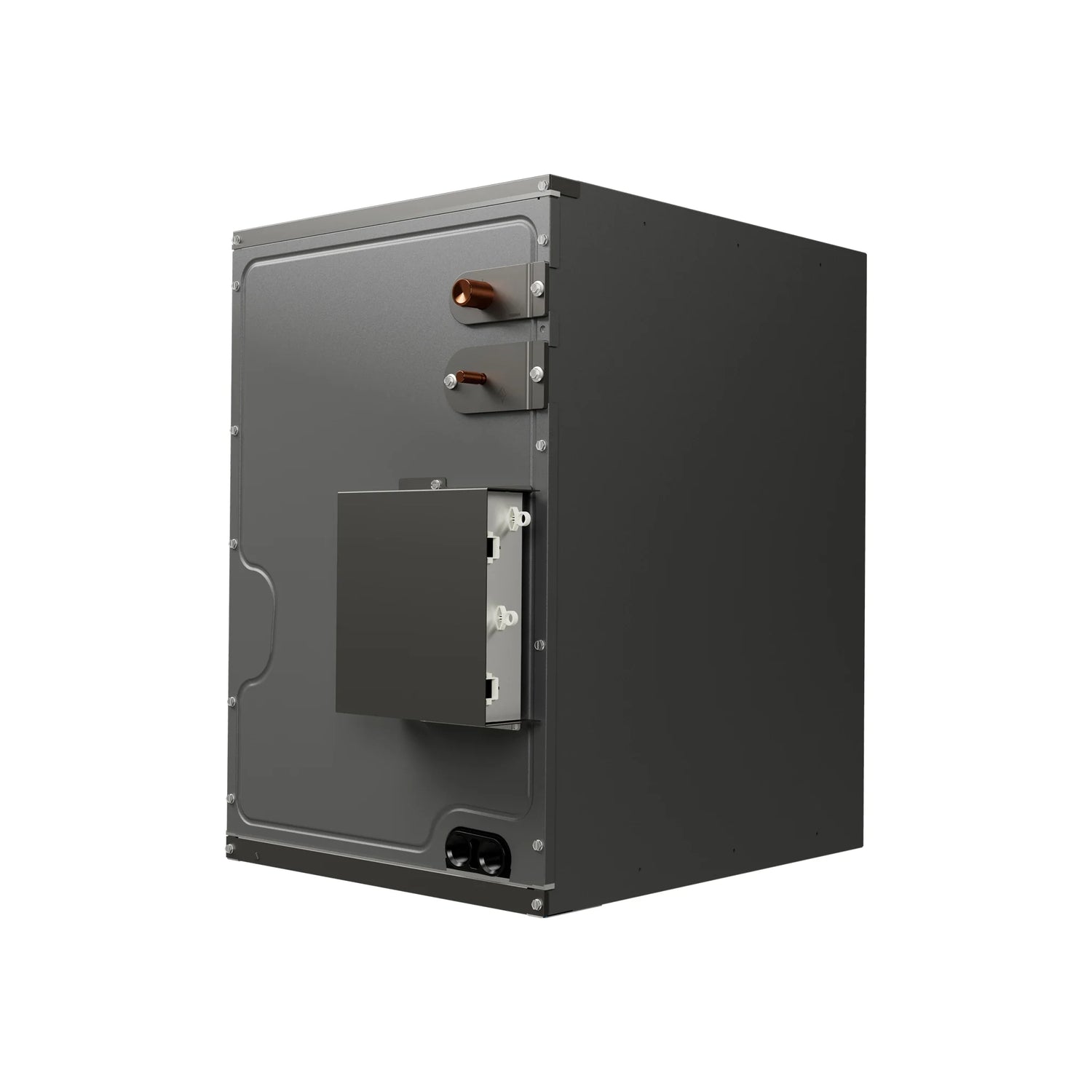

Goodman 3 Ton Evaporator Coil EEV Expansion 17.5" Cabinet Upflow/Downflow

Goodman 3 Ton Evaporator Coil EEV Expansion 17.5" Cabinet Upflow/Downflow CAPEA3626B3

The Goodman CAPEA3626B3 is a 3-ton cased evaporator coil engineered for use in split system air conditioners and heat pumps. Designed for both upflow and downflow installations, this A coil provides reliable cooling performance and exceptional heat transfer with its all-aluminum construction. It features a factory-installed thermal expansion valve (TXV) for consistent refrigerant flow and optimized system performance. The coil's cabinet includes a durable galvanized steel finish with a leather grain-embossed texture and foil-faced insulation to reduce cabinet condensation.

Key Features

  • Capacity: Delivers 36,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
  • Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
  • Installation: Designed for easy installation as a matched system with compatible Goodman components

Perfect for residential applications requiring reliability, energy efficiency, and simplified maintenance, this coil is a strong choice for both new installations and system replacements using R-32 refrigerant.

Learning Resources

CAPEA Installation Manual CAPEA Specifications Sheet CAPEA Warranty Information

Specifications

BrandGoodman
SKUCAPEA3626B3
Refrigerant TypeR32
ConfigurationDownflow / Upflow
CasingCased
Coil TypeA Coil
Capacity3.0 Tons
Cooling BTU36000
Nominal Minimum Cooling Capacity36000 BTU
Suction Connection Size7/8 Inch
Liquid Connection Size3/8 Inch
Cabinet Width17.5 Inches
Product Width17.5 inches
Product Height26 inches
Product Depth21 inches
Product Weight33 lbs.
Shipping Weight48 lbs.
TXV InstalledYes
CertificationsAHRI, ETL, ISO
Parts Warranty10 Limited Years

Warranty and Product Information

Standard Warranty5 years
Registered Warranty10 years
