Goodman 3 Ton Evaporator Coil Cased 17.5" Height Horizontal With TXV R32

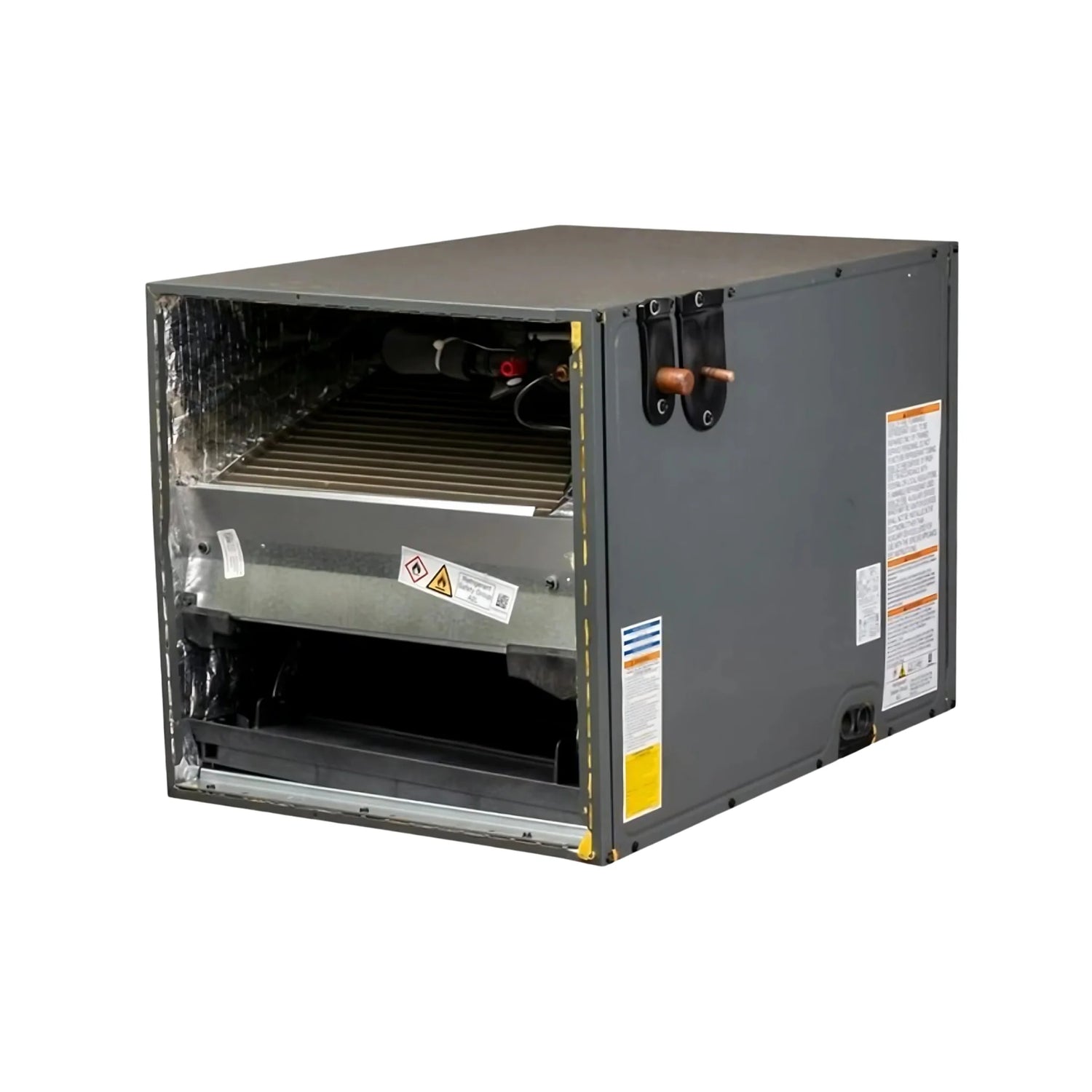

Goodman 3 Ton Evaporator Coil Cased 17.5" Height Horizontal With TXV CHPTA3630B3

The Goodman CHPTA3630B3 3 Ton Horizontal Evaporator Coil is built for energy-efficient performance and reliability in residential HVAC systems. Designed for horizontal installations, this evaporator coil is compatible with both AC-only and heat pump condensers and comes with a factory-installed TXV kit to enhance system precision and overall performance. Engineered to support the latest R32 refrigerant requirements, this coil delivers comfort, compliance, and value.

Whether you're upgrading an older system or building a new HVAC configuration, the CHPTA3630B3 provides long-term reliability and efficient cooling performance.

Key Features

• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Certifications: AHRI Certified and ETL Listed for verified safety and performance standards
• Installation: Designed for easy installation as a matched system with compatible Goodman components

System Compatibility and Use

The Goodman CHPTA3630B3 is designed for 3-ton cooling systems and should be installed in horizontal ducted configurations. It requires a compatible R32 outdoor condenser and a blower or furnace for operation. This coil is not compatible with packaged HVAC units or as a direct replacement in one-piece air handlers.

Easy Installation and Durable Build

Featuring aluminum coil construction and a pre-installed TXV valve, this model reduces installation time and improves reliability. The insulated galvanized cabinet protects against environmental wear and energy loss, while the split-seam front panel allows technicians to quickly access the coil for service or cleaning.

Reliable Comfort and Energy Efficiency

Engineered for optimal performance, the Goodman CHPTA3630B3 ensures better refrigerant control, lower energy consumption, and consistent indoor comfort. The built-in TXV kit fine-tunes refrigerant flow, and the mold-resistant drain pan helps prevent buildup of harmful particulates—making it an excellent choice for both comfort and air quality.
