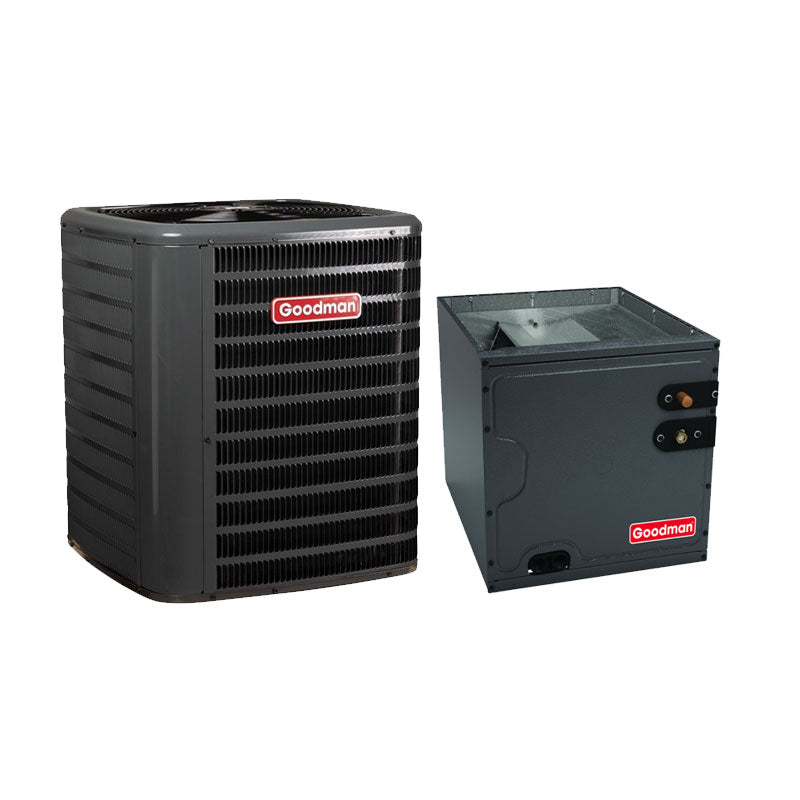

Goodman 3 Ton Central AC Coil Split System 14.3 SEER2 24.5"W Vertical R32

Goodman 3 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA3610

The Goodman 3 Ton (36,000 BTU) R32 Split Air Conditioner (Model GLXS5BA3610) delivers superior efficiency with a 15.2 SEER2 rating and a high-performance single-stage scroll compressor. It uses R-32 refrigerant and is factory pre-charged for 15' tubing length, simplifying installation. Features include 5mm copper tubing with enhanced aluminum fin coils for excellent heat transfer, sweat connection service valves for easy maintenance, and extended-life capacitors for long-lasting performance. The robust cabinet is corrosion-resistant, with a Venturi design for improved airflow, while the unit is AHRI certified and ETL listed. Designed for durability, it meets 2023 Florida Building Code integrity requirements for hurricane readiness and offers easy access for servicing.

• Refrigerant Type: R-32
• Unit Height: 39.5 in
• Unit Width: 35.5 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 30 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 3
• 36,000 BTU
• Model Efficiency: 15.2 SEER2

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable grille-style top compliant with UL 60335-2-40 for safety and easy maintenance.
• Venturi design enhances airflow velocity for improved performance.
• Architectural gray powder-paint finish offers corrosion resistance with 500-hour salt-spray approval.
• Wire fan discharge grille protects internal components while maintaining airflow efficiency.
• Steel louver coil guard provides robust protection for the coils.
• Top and side maintenance access for convenient servicing.
• Single-panel access to controls with space for field-installed accessories.
• Hurricane-ready design meets 2023 Florida Building Code integrity requirements when properly anchored (anchor bracket kits available).

Goodman 2.5 - 3.5 Ton R32 Evaporator Coil Upflow/Downflow 24.5"W x 30"H CAPTA4230D3

The Goodman R32 Cased Evaporator Coil (CAPTA4230D3) is designed for optimal durability and efficiency. With a 3.5-ton capacity, it is compatible with R-32 refrigerant and features an all-aluminum evaporator coil, thermal expansion valves, and a copper suction tube stub for easy installation. The unit's vertical design allows for upflow or downflow applications, and its 21" depth ensures efficient use of space. A galvanized, leather-grain finish offers durability, while the rust-resistant, UV-protected drain pan ensures reliable performance. AHRI-certified and ETL listed for quality and safety.

• Refrigerant Type: R-32
• Unit Height: 30 in
• Unit Width: 24.5 in
• Cased/Uncased: Cased
• Tonnage: 3.5
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation
