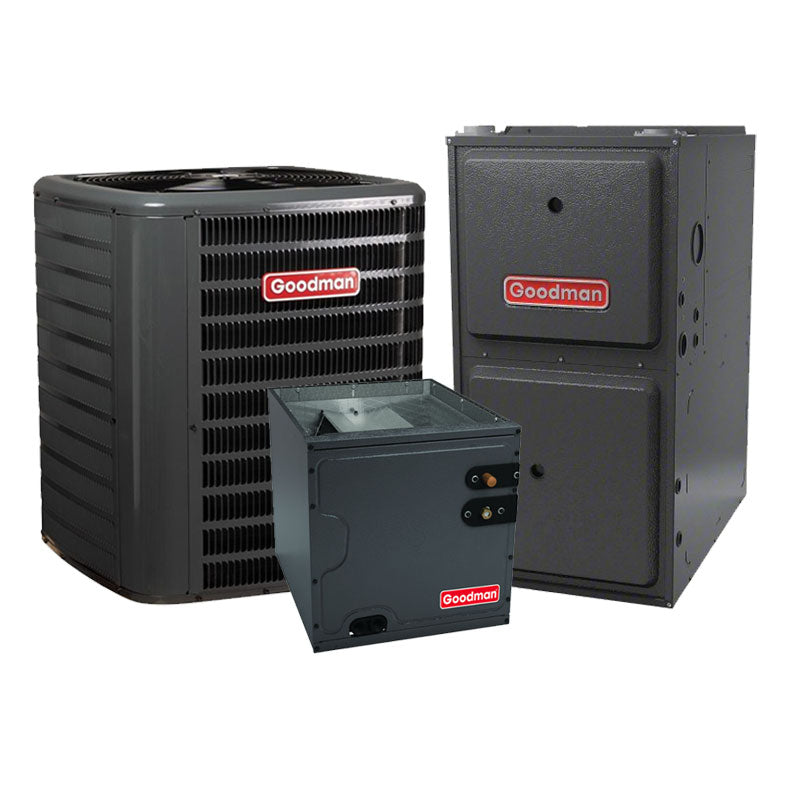

Goodman 3 Ton AC Gas Furnace System 15.2 SEER2 92% 80000 BTU Vertical R32
Key Features
- Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
- Heating: 92% AFUE gas furnace provides efficient whole-home heating
- Capacity: Delivers 80,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
Product Details
Product Details
Goodman 3 Ton AC Gas Furnace System 15.2 SEER2 92% 80000 BTU Vertical R32
Goodman 3 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA3610
The Goodman 3 Ton (36,000 BTU) R32 Split Air Conditioner (Model GLXS5BA3610) delivers superior efficiency with a 15.2 SEER2 rating and a high-performance single-stage scroll compressor. It uses R-32 refrigerant and is factory pre-charged for 15' tubing length, simplifying installation. Features include 5mm copper tubing with enhanced aluminum fin coils for excellent heat transfer, sweat connection service valves for easy maintenance, and extended-life capacitors for long-lasting performance. The robust cabinet is corrosion-resistant, with a Venturi design for improved airflow, while the unit is AHRI certified and ETL listed. Designed for durability, it meets 2023 Florida Building Code integrity requirements for hurricane readiness and offers easy access for servicing.
- Refrigerant Type: R-32
- Unit Height: 39.5 in
- Unit Width: 35.5 in
- Communication Feature Type: Non-Communicating
- Max Overcurrent Protection: 30 A
- Power Phase: 1 Ph
- Power Voltage: 208/230 V
- Compressor Stages: Single Stage
- Compressor Type: Scroll
- Tonnage: 3
- 36,000 BTU
- Model Efficiency: 15.2 SEER2
Key Features
- Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
- Heating: 92% AFUE gas furnace provides efficient whole-home heating
- Capacity: Delivers 80,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
Cabinet Features
- Removable grille-style top compliant with UL 60335-2-40 for safety and easy maintenance.
- Venturi design enhances airflow velocity for improved performance.
- Architectural gray powder-paint finish offers corrosion resistance with 500-hour salt-spray approval.
- Wire fan discharge grille protects internal components while maintaining airflow efficiency.
- Steel louver coil guard provides robust protection for the coils.
- Top and side maintenance access for convenient servicing.
- Single-panel access to controls with space for field-installed accessories.
- Hurricane-ready design meets 2023 Florida Building Code integrity requirements when properly anchored (anchor bracket kits available).
Goodman R32 92% AFUE Gas Furnace 80,000 BTU Multi-Speed Upflow/Horizontal GR9S920803BN
Upgrade your home heating with the Goodman R32 gas furnace, offering an impressive 92% AFUE efficiency and a robust 80,000 BTU capacity. Designed for versatile installation in upflow or horizontal configurations, this unit features a durable aluminized-steel heat exchanger and a stainless-steel secondary heat exchanger for enhanced performance and longevity. With a multi-speed ECM blower motor, enjoy energy-efficient airflow and minimal noise. Its self-diagnostic control board simplifies maintenance, while compliance with California's low NOx standards ensures eco-friendliness. AHRI certified and ETL listed, this furnace guarantees reliability and safety, making it the perfect choice for efficient home comfort.
- 80,000 BTU
- R32
- Unit Height: 33-3/8 in
- Unit Width: 17-1/2 in
- AFUE: 92 %
- Installation Configuration: Upflow/Horizontal
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 115 V
- Motor Speed Type: Multi Speed ECM
- Unit Weight: 117 lb
- Model Efficiency: 0.92
- Unit Depth: 28 in
- Heat Exchanger Type: Air Cooled
Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace
- Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
- Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
- Single-Stage Gas Valve: Simplifies operation with reliable gas control.
- Durable Silicon Nitride Igniter: Offers consistent ignition performance.
- Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
- Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
- Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
- California Compliance: Meets the 40 ng/J Low NOx emissions standard.
- Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
- AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
- Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
- Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
- Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
- Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.
Cabinet Features
- Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
- Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
- Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
- Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

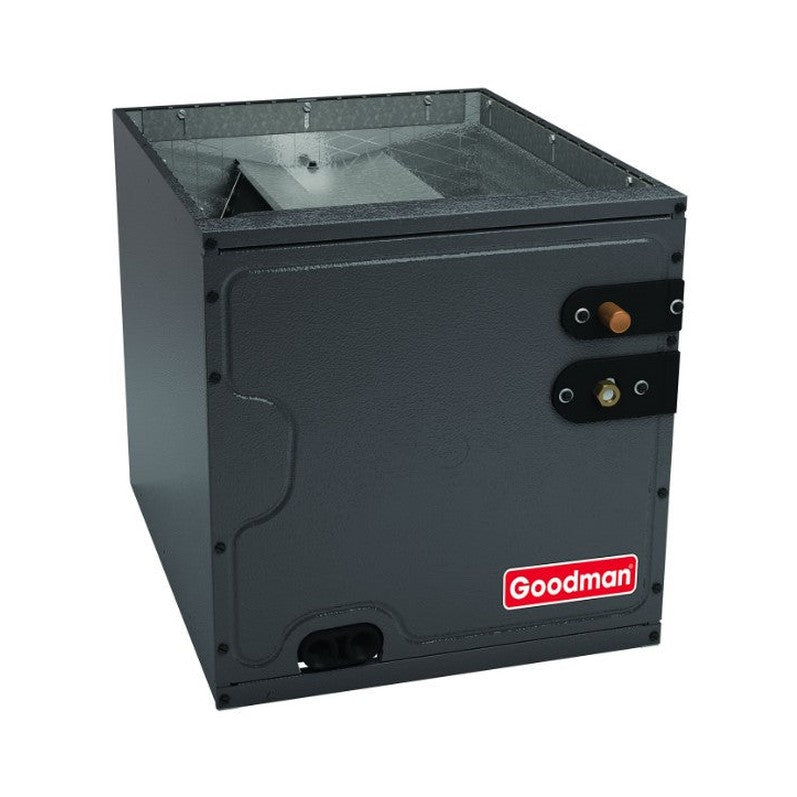

Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA3626B3
The Goodman 3 Ton R32 Evaporator Coil (CAPTA3626B3) is a compact, cased unit with built-in TXV, optimized for R-32 refrigerant. It offers flexible upflow/downflow installation, durable all-aluminum construction, and rust-resistant drain pan. AHRI certified and ETL listed, it's designed for efficient performance in tight spaces with easy access for maintenance.
- Refrigerant Type: R-32
- Unit Height: 26 in
- Unit Width: 17.5 in
- Cased/Uncased: Cased
- Tonnage: 3.0
- Coil Application: Upflow/Downflow
- Unit Depth: 21 in
- R-32 Evaporator Coil
- High-Performance HVAC Solution
- Integrated Thermal Expansion Valves
- Flexible Installation Options
- Foil-Faced Insulation
- Durable Drain Pan
- Galvanized Finish
- AHRI Certified
- ETL Listed
Product Features for High-Performance R-32 Evaporator Coil
- All-Aluminum Construction: Designed for durability and efficient heat exchange, ensuring long-lasting performance in HVAC systems.
- Optimized for R-32 Refrigerant: Specially engineered with circuits and manifolds for efficient cooling and heating applications.
- Integrated Thermal Expansion Valves: Factory-installed in CAPTA and CHPTA models, enhancing efficiency for both cooling and heat pump use.
- Flexible Installation Options: Available in vertical and horizontal configurations, with a compact 21-inch depth for easy access in tight spaces like attics.
- Foil-Faced Insulation: Reduces cabinet condensation, improving overall efficiency and preventing moisture-related issues.
- Durable Drain Pan: Rust-resistant, UV-resistant thermoplastic design with low water retention and additional drainage connections for reliable operation.
- User-Friendly Design: Easy-to-remove drain pan rails simplify maintenance and repositioning of the coil.
- Galvanized Finish: Leather grain-embossed coating ensures durability and resistance to wear and tear.
- Standardized Copper Suction Tube Stub Length: Facilitates easier installation and compatibility with existing systems.
- Single Front Access Panel: Enhances convenience for maintenance on CAPTA and CHPTA models.
- AHRI Certified and ETL Listed: Confirms adherence to industry standards for performance, safety, and reliability.
