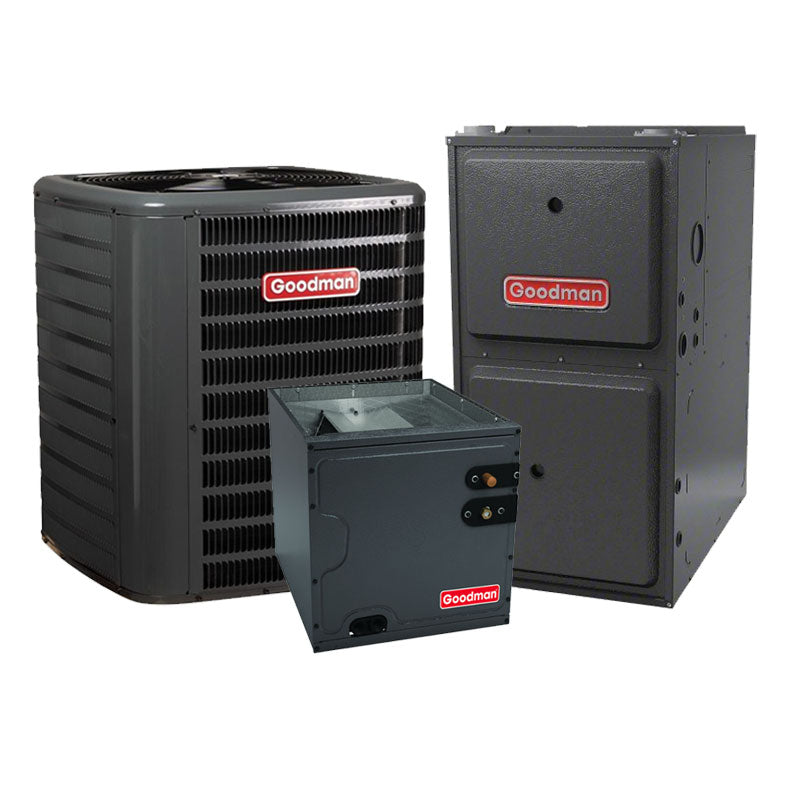

Goodman 3 Ton AC Gas Furnace 13.6 SEER2 92% AFUE 80K BTU Vertical Coil R32
Key Features
- Efficiency: Rated at 13.6 SEER2 for energy-efficient performance
- Heating: 92% AFUE gas furnace provides efficient whole-home heating
- Capacity: Delivers 36,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
Product Details
Product Details
Goodman 3 Ton AC Gas Furnace 13.6 SEER2 92% AFUE 80K BTU Vertical Coil R32
Goodman 3 Ton R32 Air Conditioner Condenser 13.4 SEER2 208/230V Single-Phase GLXS3BN3610
The Goodman 3 Ton R32 Air Conditioner Condenser with a 13.4 SEER2 rating and single-phase 208/230V operation delivers reliable cooling with 36,000 BTU capacity. Featuring a single-stage, energy-efficient scroll compressor, it’s designed for cost-effective operation. The unit is pre-charged for a 15' tubing length for quick installation and includes a durable copper tube with an aluminum fin coil. A factory-installed filter drier extends system life, while high-pressure switches and extended-life capacitors enhance safety and longevity. AHRI Certified and ETL Listed.
- Energy Star Certified: No
- Refrigerant Type: R-32
- SEER 2: 13.4
- Unit Height: 32.5 in
- Unit Width: 26 in
- Communication Feature Type: Non-Communicating
- Cooling Capacity Nominal: 36000 Btu/H
- Max Overcurrent Protection: 30 A
- Power Phase: 1 Ph
- Power Voltage: 208/230 V
- Compressor Stages: Single Stage
- Compressor Type: Scroll
- Unit Weight: 136 lb
- Tonnage: 3
- Model Efficiency: 13.4 SEER2
- Unit Depth: 26 in
Key Features
- Efficiency: Rated at 13.6 SEER2 for energy-efficient performance
- Heating: 92% AFUE gas furnace provides efficient whole-home heating
- Capacity: Delivers 36,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
Cabinet Features
- Removable grille-style top: UL 60335-2-40 compliant for safety and service access
- Venturi design: Enhances airflow velocity for better performance
- Architectural Gray powder-paint finish: 500-hour salt-spray approval for corrosion resistance
- Wire fan discharge grille: Protects the fan and system components
- Steel louver coil guard: Shields coils for added durability
- Top and side maintenance access: Simplifies servicing and maintenance
- Single-panel access to controls: Space provided for field-installed accessories
- Hurricane-ready: When properly anchored, meets 2023 Florida Building Code for hurricane-type winds (Anchor bracket kits available)
Goodman R32 92% AFUE Gas Furnace 80,000 BTU Multi-Speed Upflow/Horizontal GR9S920803BN
Upgrade your home heating with the Goodman R32 gas furnace, offering an impressive 92% AFUE efficiency and a robust 80,000 BTU capacity. Designed for versatile installation in upflow or horizontal configurations, this unit features a durable aluminized-steel heat exchanger and a stainless-steel secondary heat exchanger for enhanced performance and longevity. With a multi-speed ECM blower motor, enjoy energy-efficient airflow and minimal noise. Its self-diagnostic control board simplifies maintenance, while compliance with California's low NOx standards ensures eco-friendliness. AHRI certified and ETL listed, this furnace guarantees reliability and safety, making it the perfect choice for efficient home comfort.
- 80,000 BTU
- R32
- Unit Height: 33-3/8 in
- Unit Width: 17-1/2 in
- AFUE: 92 %
- Installation Configuration: Upflow/Horizontal
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 115 V
- Motor Speed Type: Multi Speed ECM
- Unit Weight: 117 lb
- Model Efficiency: 0.92
- Unit Depth: 28 in
- Heat Exchanger Type: Air Cooled
Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace
- Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
- Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
- Single-Stage Gas Valve: Simplifies operation with reliable gas control.
- Durable Silicon Nitride Igniter: Offers consistent ignition performance.
- Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
- Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
- Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
- California Compliance: Meets the 40 ng/J Low NOx emissions standard.
- Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
- AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
- Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
- Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
- Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
- Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.
Cabinet Features
- Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
- Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
- Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
- Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

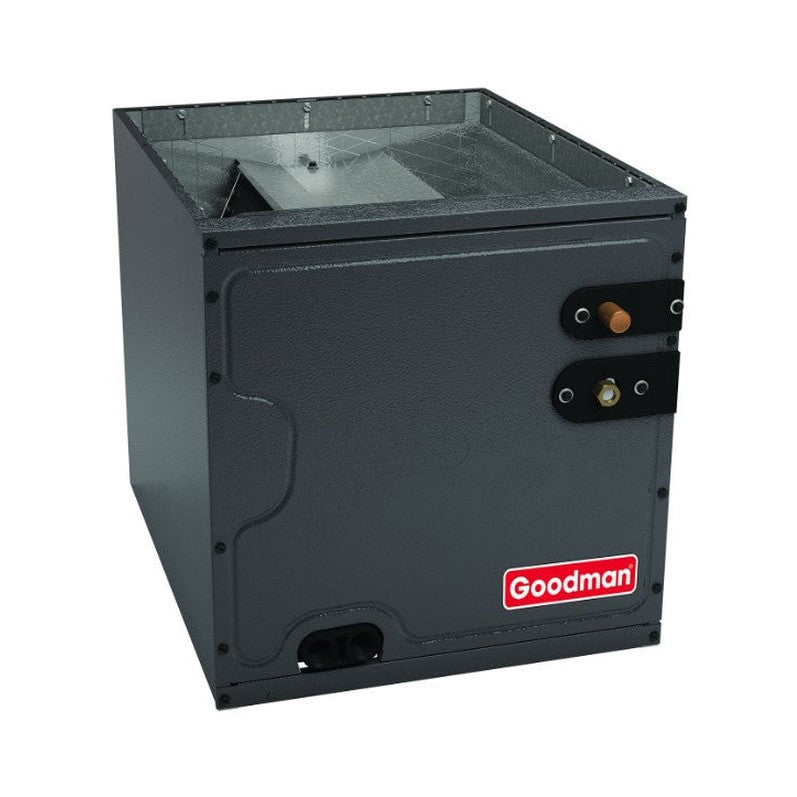

Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow 21"W x 26"H CAPTA3626C3
The Goodman CAPTA3626C3 Evaporator Coil is a high-performance, all-aluminum unit designed for R-32 refrigerant. With integrated thermal expansion valves, it efficiently supports both cooling and heat pump applications. Its flexible installation options allow for upflow or downflow configurations, while a compact 21-inch depth ensures easy access in tight spaces like attics. Featuring foil-faced insulation to minimize condensation, the coil also includes a rust-resistant, UV-resistant drain pan with extra drainage connections. The durable galvanized finish and easy-to-remove drain pan rails enhance maintenance convenience. AHRI certified and ETL listed, this evaporator coil promises exceptional efficiency and long-lasting performance.
- Refrigerant Type: R-32
- Unit Height: 26 in
- Unit Width: 21 in
- Cased/Uncased: Cased
- Tonnage: 3.0
- Coil Application: Upflow/Downflow
- Unit Depth: 21 in
Product Features Goodman 3 Ton R32 Vertical Evaporator Coil CAPTA3626C3
- High-Performance All-Aluminum Design: Engineered for durability and efficiency with R-32 refrigerant compatibility.
- Integrated Thermal Expansion Valves: Factory-installed for optimal performance in both cooling and heat pump applications.
- Flexible Installation Options: Suitable for vertical and horizontal configurations to fit various HVAC setups.
- Compact 21-Inch Depth: Facilitates easy access in tight spaces, such as attics, for convenient installation and maintenance.
- Foil-Faced Insulation: Reduces condensation, improving overall efficiency and performance.
- Rust-Resistant, UV-Resistant Drain Pan: Durable design with low water retention and additional drainage connections for reliability.
- Galvanized Finish: Leather grain-embossed for enhanced longevity and aesthetic appeal.
- Easy-to-Remove Drain Pan Rails: Simplifies maintenance and coil repositioning for hassle-free service.
- AHRI Certified and ETL Listed: Ensures safety, efficiency, and compliance with industry standards.
- Optimized for R-32 Refrigerant: Designed with circuits and manifolds specifically for R-32, enhancing eco-friendliness.
- Standardized Copper Suction Tube Stub Length: Simplifies installation and compatibility with existing systems.
- Single Front Access Panel: Provides easy access for maintenance and inspection on CAPTA and CHPTA models.
Upgrade to the Goodman CAPTA3626C3 Evaporator Coil for a reliable, efficient HVAC solution tailored to modern needs!
