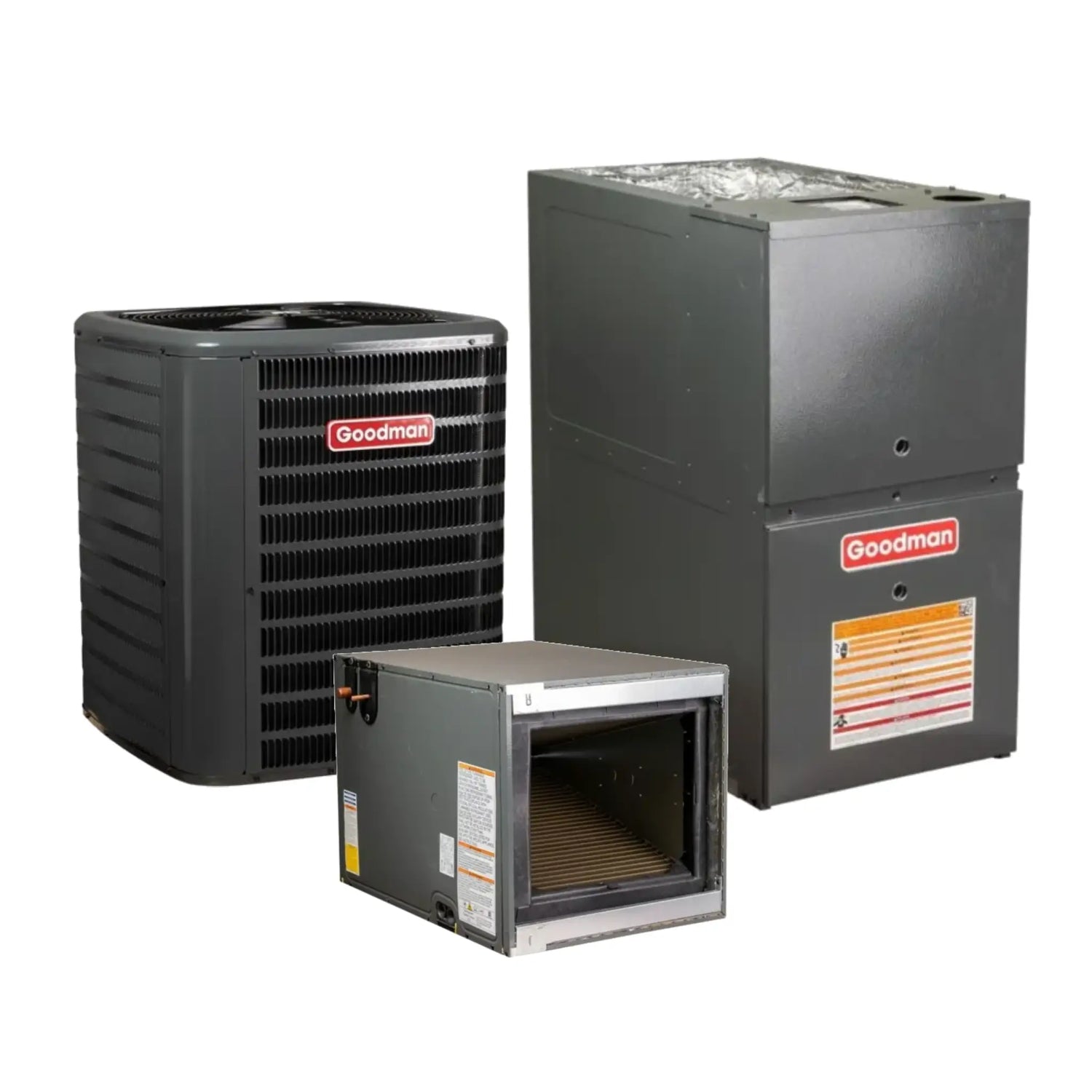

Goodman 3 Ton 15.2 SEER2 AC Gas Furnace LowNox 80% 100K BTU Horizontal R32

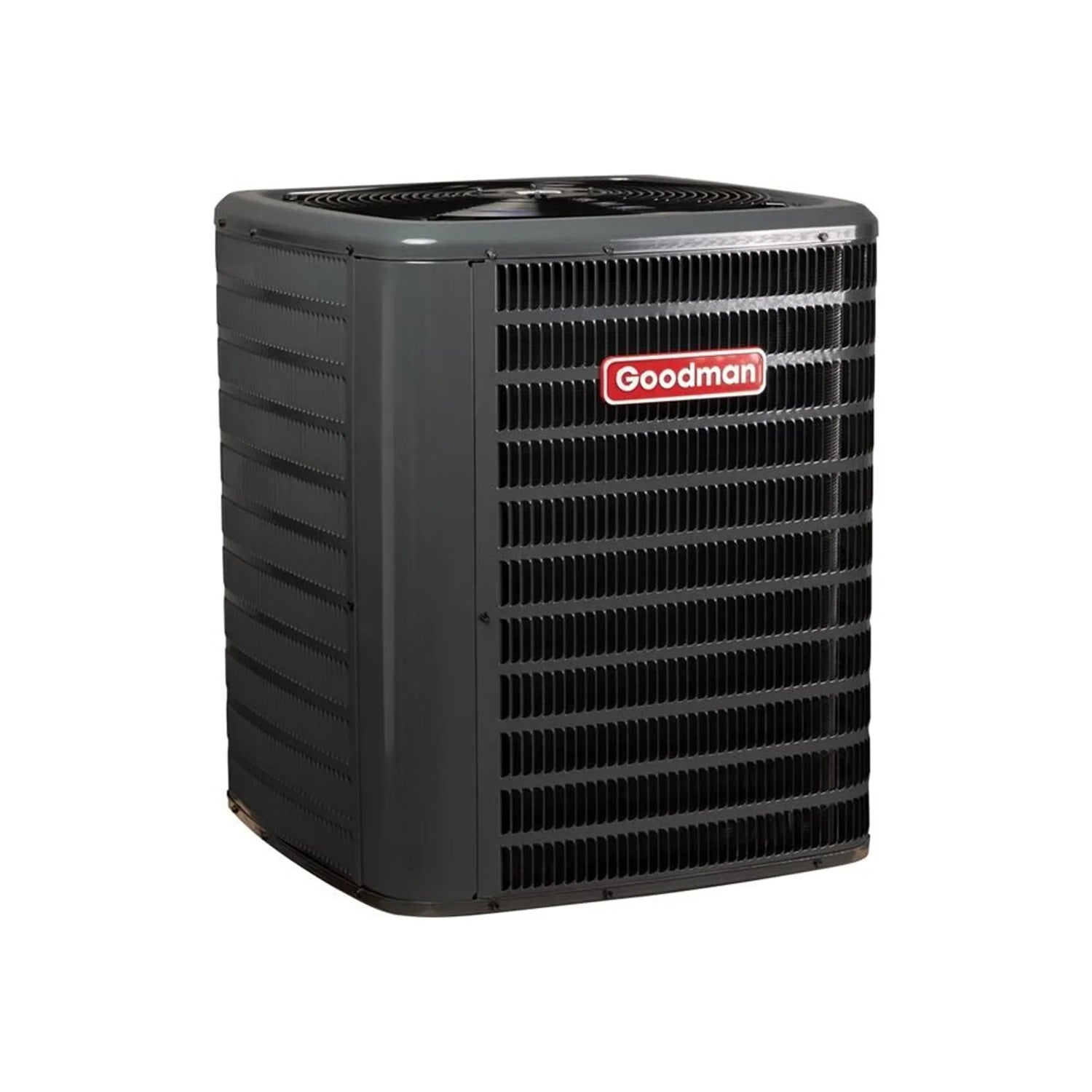

Goodman 3 Ton 14.3 SEER2 Split Air Conditioner Condenser Single-Stage R32 GLXS4BA3610

This high-performance HVAC condenser unit is designed for energy-efficient cooling, advanced diagnostics, and long-term reliability. Featuring a high-efficiency scroll compressor, Copeland CoreSense Technology, and new R32 refrigerant, it meets 2025 refrigerant standards and offers quiet, dependable operation for residential and light commercial applications.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top – UL 60335-2-40 compliant for safe access to internal components
• Architectural Gray Powder-Coat Finish – Tested with 500-hour salt spray approval for weather resistance
• Wire Fan Grille – Provides safety and durability during operation
• Steel Coil Guard – Protects the coil from debris and potential damage

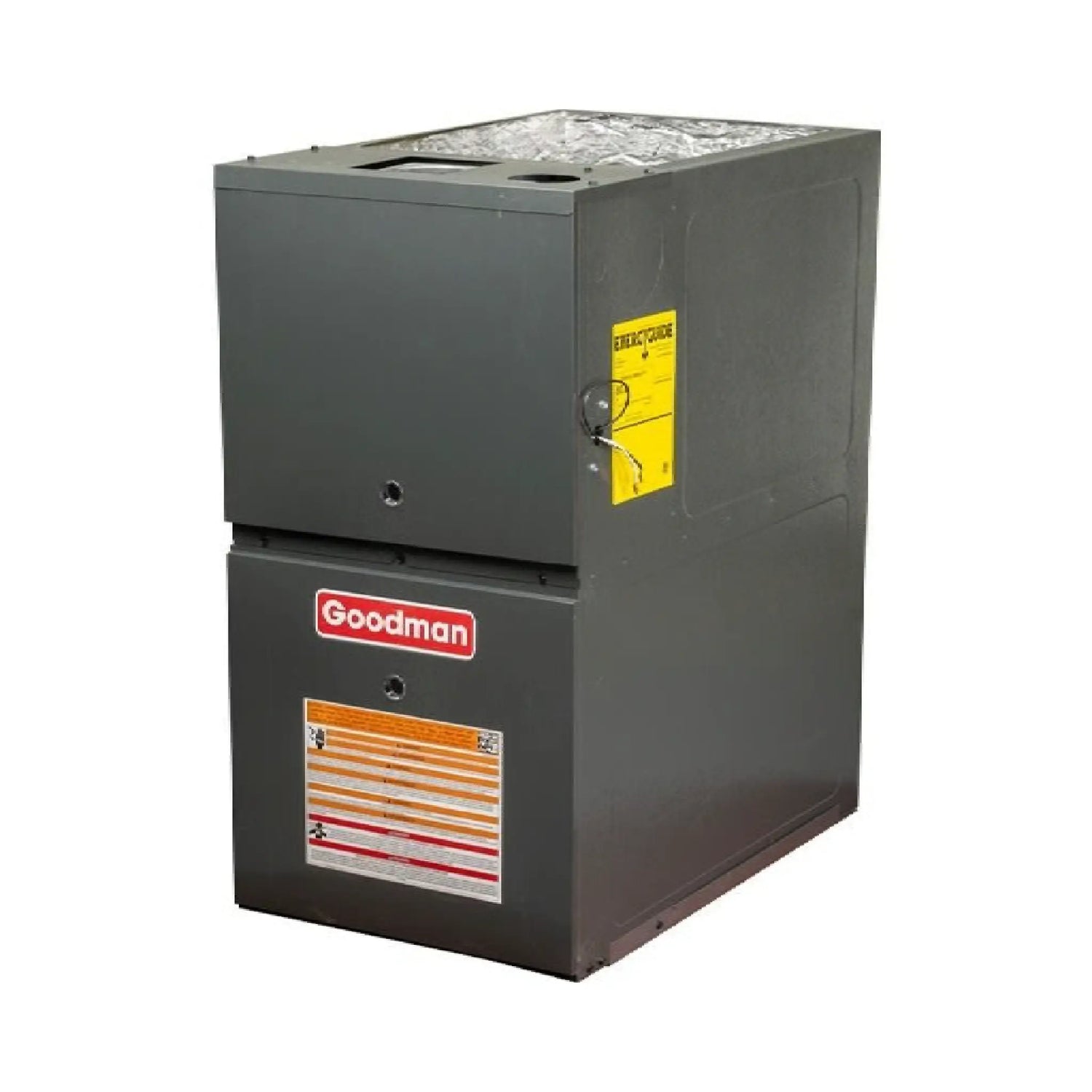

Goodman 80% 100K BTU Gas Furnace Single Stage Low NOx Upflow/Horizontal R32 GR9S801005CX

The Goodman GR9S801005CX 80% AFUE R32 Gas Furnace delivers powerful, efficient, and environmentally responsible heating performance. With a 100,000 BTU heating capacity and a multi-speed ECM blower motor, this furnace ensures consistent comfort, reduced energy consumption, and quieter operation. Engineered for reliability, it features a heavy-duty aluminized steel heat exchanger, durable hot-surface igniter, and self-diagnostic control board for simplified maintenance and service. Designed for upflow and horizontal installations, the GR9S801005CX provides flexibility, efficiency, and compliance with California’s Low NOx emission standards.

Key Specifications

• Heating Capacity - 100,000 BTU input with efficient, even heat distribution for medium to large homes.
• AFUE Efficiency - 80% Annual Fuel Utilization Efficiency for reliable, cost-effective heating.
• Airflow - 2000 CFM multi-speed ECM blower motor for improved airflow and energy savings.
• Heat Exchanger Type - Dual-diameter aluminized steel tubular design for durability and high thermal efficiency.
• Power Requirements - 115V, single-phase, 15A maximum overcurrent protection.
• Installation Options - Supports upflow and horizontal configurations; left or right gas and electrical service connections.
• Dimensions - Height: 33-3/8", Width: 21", Depth: 28"; Weight: 132 lbs.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

California Compliance Notice

This Goodman GR9S801005CX Low NOx Furnace is compliant with California’s standard Low NOx regulations and is designed to reduce nitrogen oxide emissions. However, it cannot be installed in the following counties that require Ultra-Low NOx furnaces.

Dependable Comfort and Efficiency

The Goodman 80% AFUE R32 Gas Furnace provides reliable comfort, efficiency, and quiet performance with environmentally conscious Low NOx technology. Its combination of durable construction, intelligent diagnostics, and flexible installation options makes it an excellent choice for homeowners seeking dependable warmth and long-term energy savings.

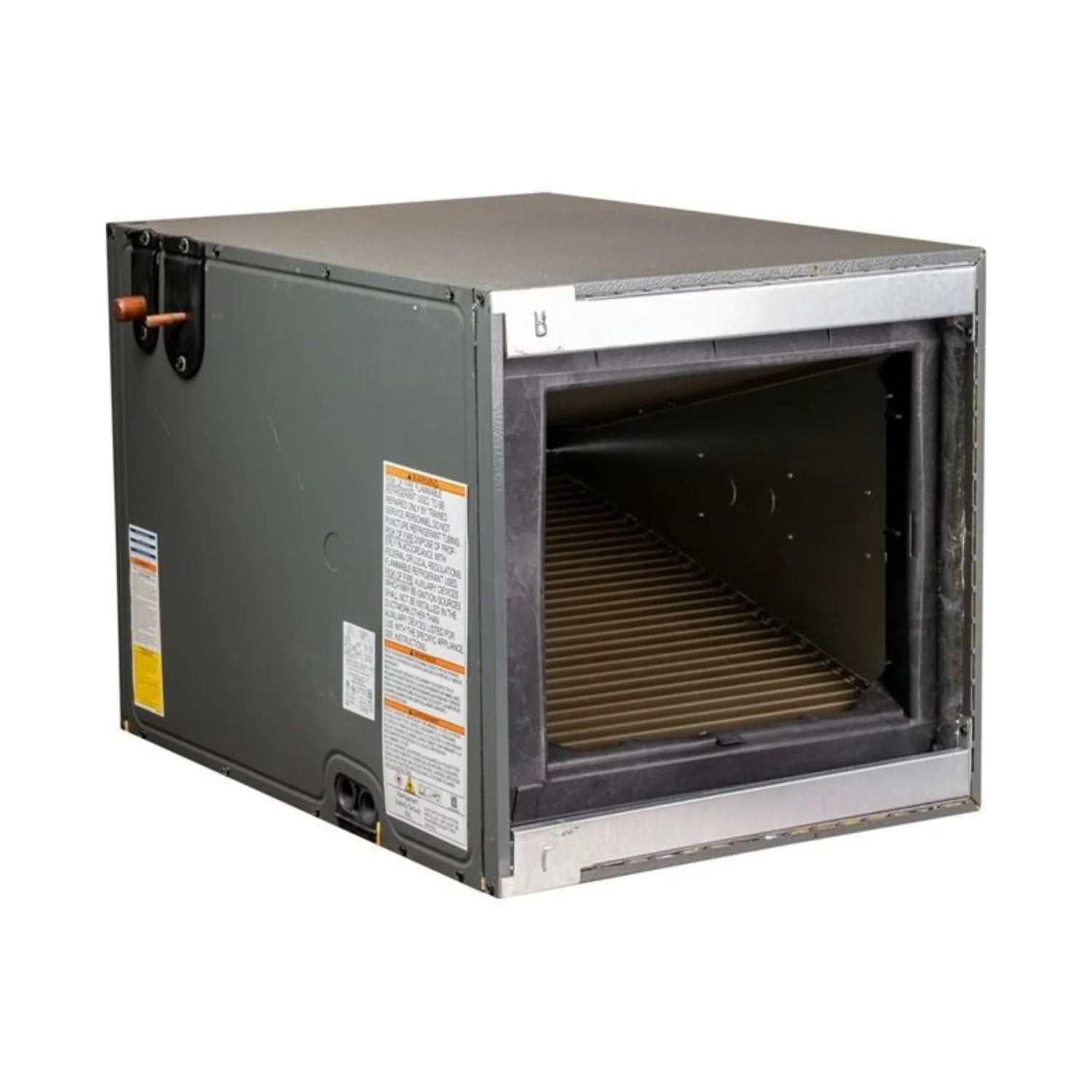

Goodman 3 Ton Evaporator Coil Cased 21" Height Horizontal With TXV CHPTA3630C3

The Goodman CHPTA3630C3 3 Ton Horizontal Evaporator Coil is designed for energy-efficient performance and long-term reliability in residential HVAC systems. Built for horizontal installations, this coil is compatible with both AC-only and heat pump condensers and includes a factory-installed TXV kit for improved refrigerant control and temperature precision. Engineered to meet the latest R32 refrigerant requirements, the CHPTA3630C3 ensures system compatibility, comfort, and compliance for modern home cooling setups.

Whether upgrading an older air conditioning system or building a new HVAC configuration, the CHPTA3630C3 provides dependable performance, efficient cooling, and ease of maintenance.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

System Compatibility and Use

The Goodman CHPTA3630C3 is built for 3-ton cooling systems in horizontal ducted configurations. It requires a compatible R32 outdoor condenser and a furnace or blower unit for complete operation. This evaporator coil is not compatible with packaged HVAC systems or one-piece air handlers.

Easy Installation and Durable Build

Featuring aluminum coil construction and a pre-installed TXV valve, the CHPTA3630C3 minimizes installation time and enhances reliability. Its insulated galvanized steel cabinet protects against energy loss and environmental wear, while the split-seam access panel ensures quick, convenient service and maintenance.

Reliable Comfort and Energy Efficiency

Engineered for modern HVAC systems, the Goodman CHPTA3630C3 provides precise refrigerant control, consistent cooling performance, and enhanced indoor air quality. With its advanced TXV technology and antimicrobial design, it’s the perfect choice for homeowners seeking long-lasting comfort, energy savings, and system reliability.
