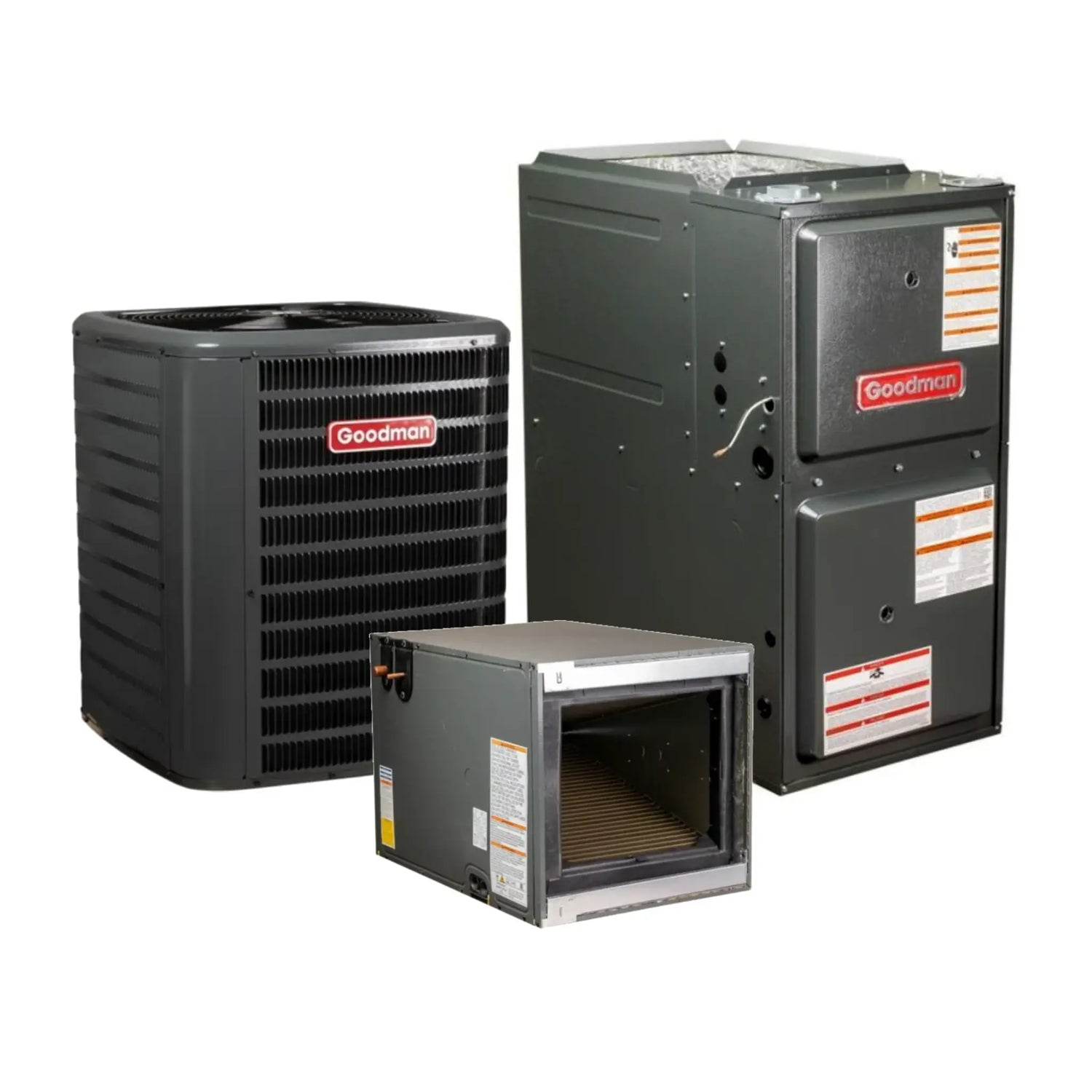

Goodman 3 Ton 13.8 SEER2 AC & Gas Furnace System 96% 80K BTU Horizontal R32

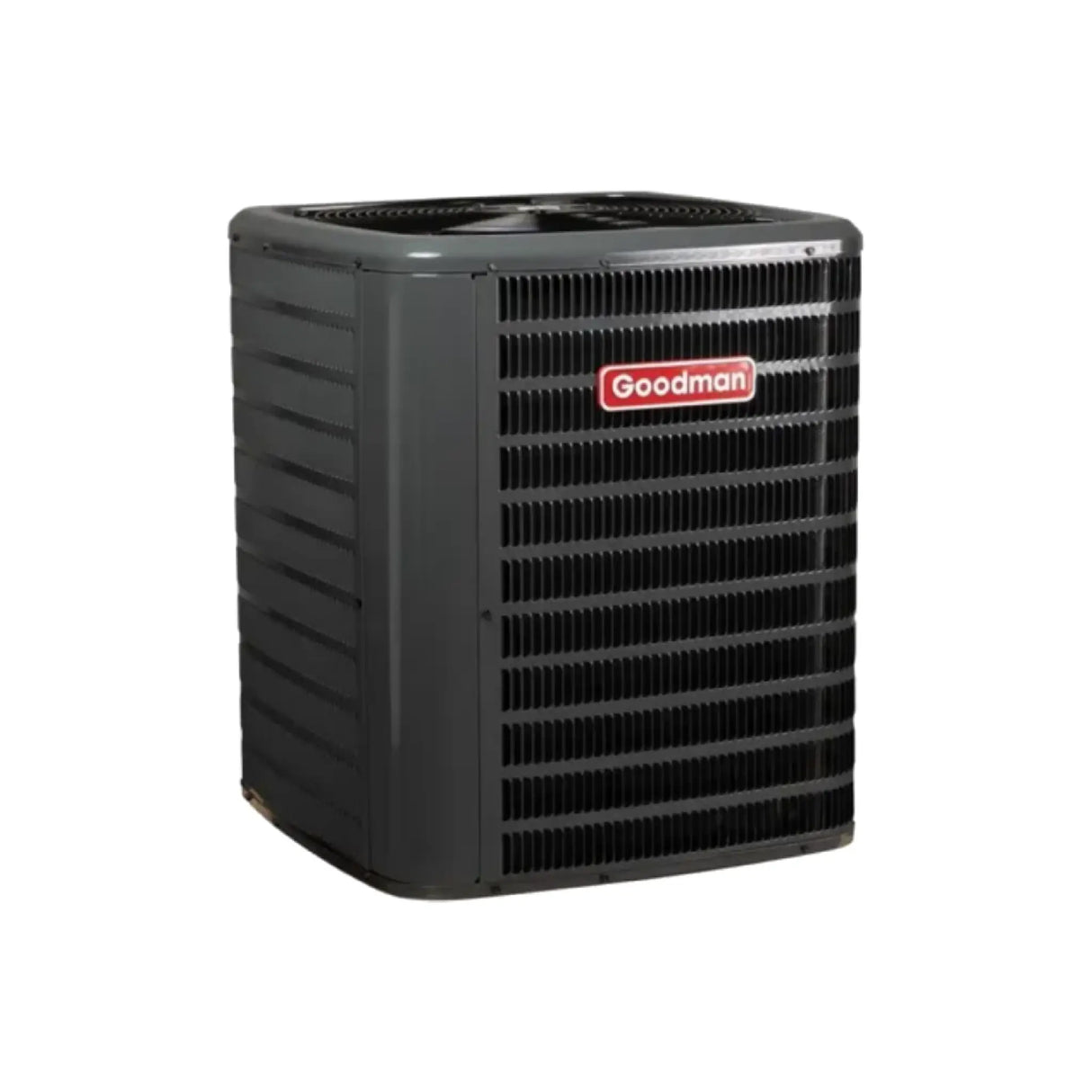

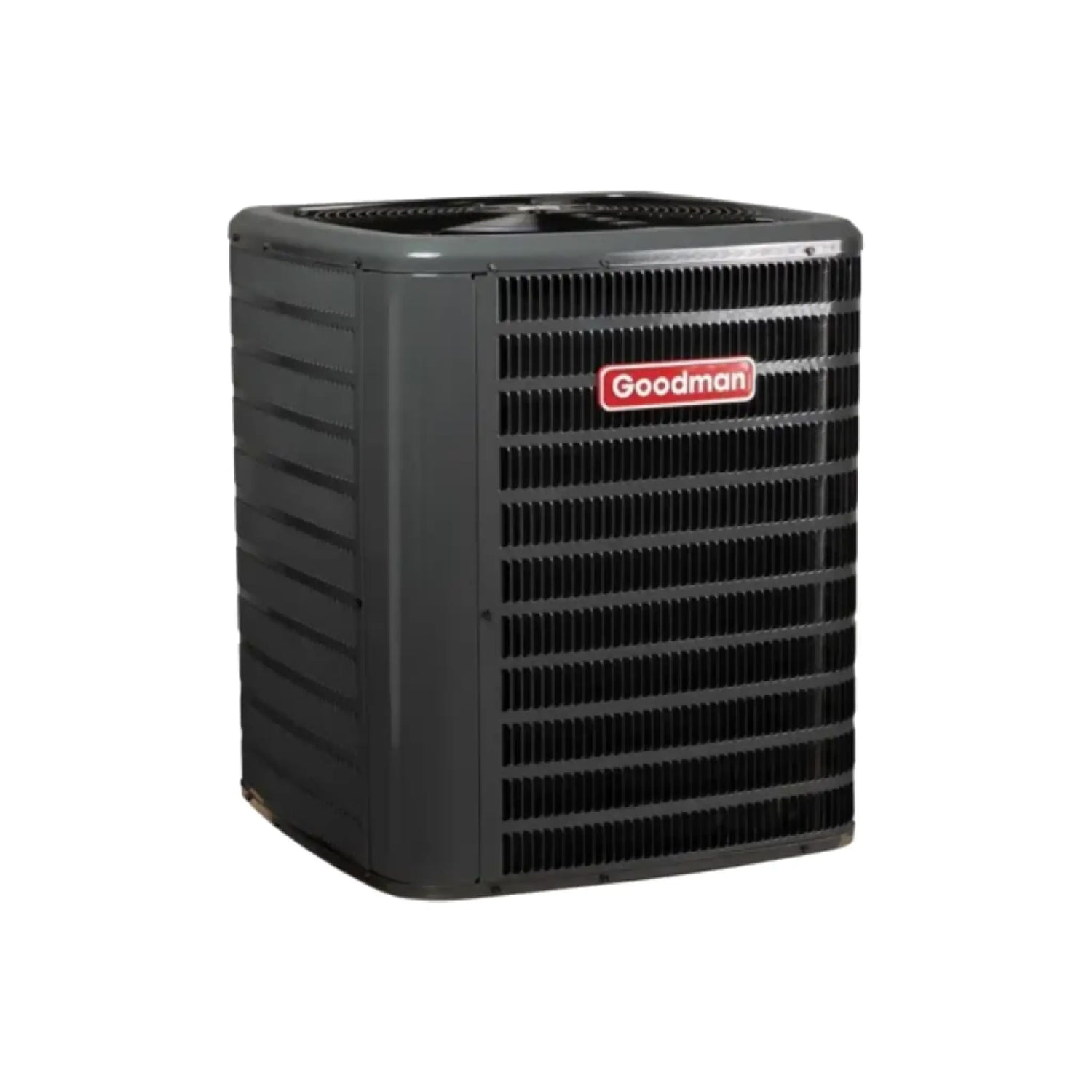

Goodman 3 Ton 13.4 SEER2 Split Air Conditioner Condenser Single Stage R32 GLXS3BN3610

This energy-efficient compressor is designed for optimal performance and reliability. It comes fully charged for up to 15 feet of tubing length and features a robust copper tube with an enhanced aluminum fin coil, boasting a 5mm diameter for improved heat exchange. The unit includes a factory-installed filter drier, sweat connection service valves with convenient access to gauge ports, and an enclosed contactor for safety. Additionally, it is equipped with a high-pressure switch, a ground lug connection for secure grounding, and capacitors designed for extended life. The compressor is AHRI Certified and ETL Listed, ensuring adherence to industry standards for efficiency and safety.

Product Features

• New R32 Freon: Eco-friendly refrigerant for energy-efficient cooling and reduced environmental impact.
• Removable Grille-Style Top Design: Easy maintenance and UL 60335-2-40 compliant for safety and durability.
• Venturi Design for Increased Airflow Velocity: Optimized airflow for improved performance and cooling efficiency.
• Architectural Gray Powder-Paint Finish: Premium, corrosion-resistant finish with 500-hour salt-spray approval for long-lasting durability outdoors.
• Wire Fan Discharge Grille: Provides robust protection for fan components while ensuring smooth airflow.
• Steel Louver Coil Guard: Enhances protection for coils, extending the unit’s service life and reliability.
• Top and Side Maintenance Access: Convenient access points simplify servicing and routine maintenance.
• Single-Panel Access to Controls: Streamlined setup with space for field-installed accessories, enhancing flexibility during installation.
• Meets 2023 Florida Building Code Requirements: Designed to withstand hurricane-type winds when properly anchored, ensuring safety and structural integrity.

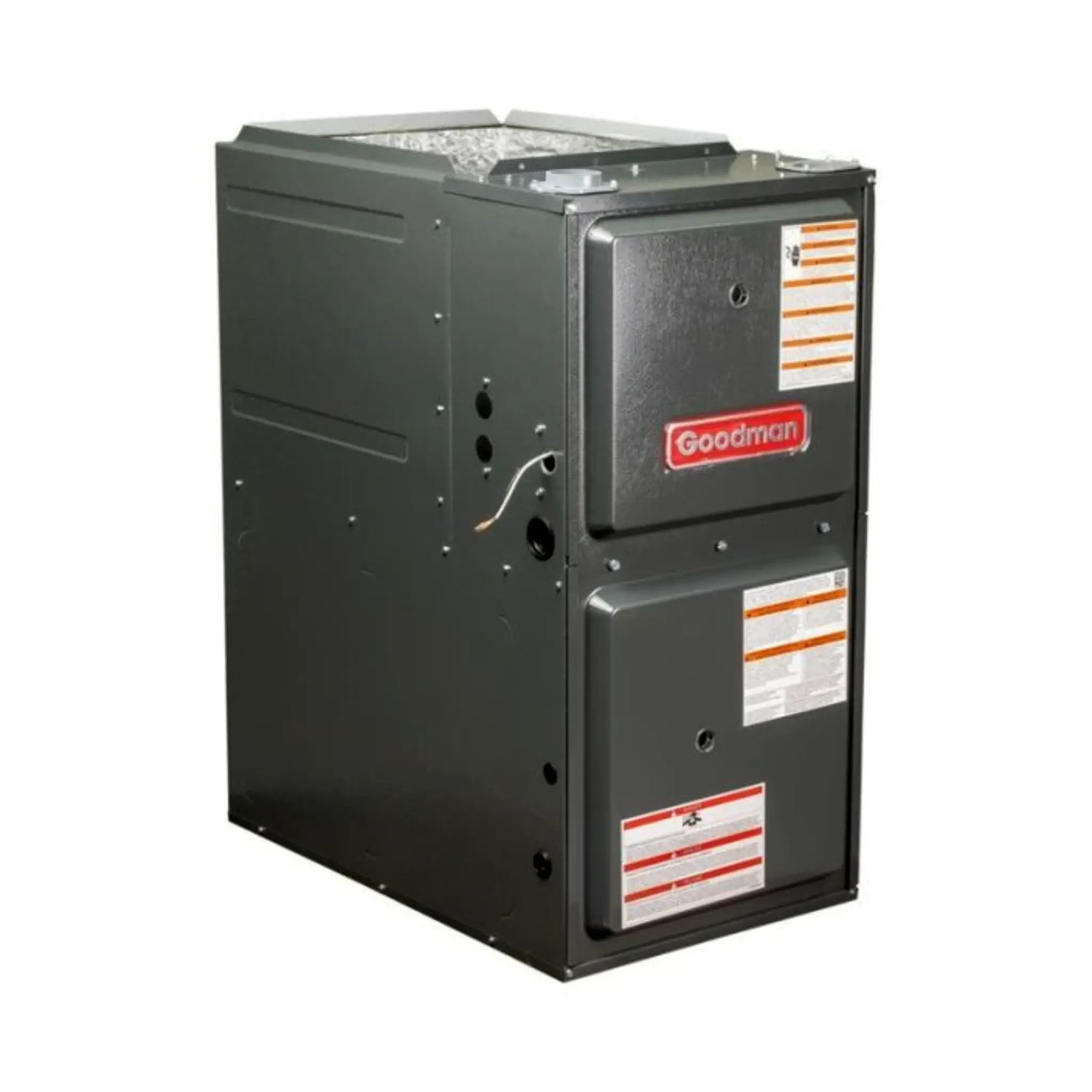

Goodman 96% 80K BTU Gas Furnace Two Stage 21" Width Upflow/Horizontal GR9T960804CN

The Goodman GR9T960804CN Gas Furnace is designed for high efficiency, comfort, and reliable home heating. With a 96% AFUE rating, two-stage burner, and 9-speed ECM blower motor, this model provides powerful, quiet, and energy-saving performance. Built for medium-sized homes, it combines durable construction with modern HVAC technology for long-lasting comfort and lower utility costs.

Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 96% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

80,000 BTU Heating Power

The GR9T960804CN delivers 80,000 BTUs of input and 76,800 BTUs of output at 96% efficiency. It’s ideal for medium-sized homes, providing consistent warmth while minimizing fuel waste and energy costs.

High-Efficiency 96% AFUE

With a 96% AFUE rating, this Goodman gas furnace converts nearly all the fuel it consumes into usable heat. Only 4% escapes through exhaust, helping reduce heating expenses and supporting energy-efficient home upgrades. As a condensing furnace, it requires PVC or plastic flue venting for proper exhaust.

Two-Stage Heating with 9-Speed Blower

The two-stage gas valve allows the furnace to operate at a lower setting during mild weather and ramp up to full capacity in colder conditions. Combined with the 9-speed ECM blower motor, this system maintains quiet performance, steady temperatures, and improved efficiency year-round.

Durability and Reliability

Constructed with a heavy-gauge insulated steel cabinet and a durable aluminized steel heat exchanger, the GR9T960804CN is built for longevity. The hot surface ignitor ensures consistent starts, while insulation reduces both heat loss and noise for greater home comfort.

Warranty Protection

Backed by Goodman’s industry-leading warranty coverage, this model includes a 10-year parts warranty and a lifetime heat exchanger warranty when registered online after professional installation. This provides long-term peace of mind and reliable heating performance.

Installation and Maintenance

The Goodman GR9T960804CN supports upflow and horizontal installations, making it flexible for basements, attics, or utility spaces. It ships ready for natural gas but can be converted to propane with an optional LP conversion kit. Color-coded low-voltage terminals simplify wiring, and the self-diagnostic control board streamlines maintenance. A drain kit is required for horizontal installations, while upflow configurations do not require one.

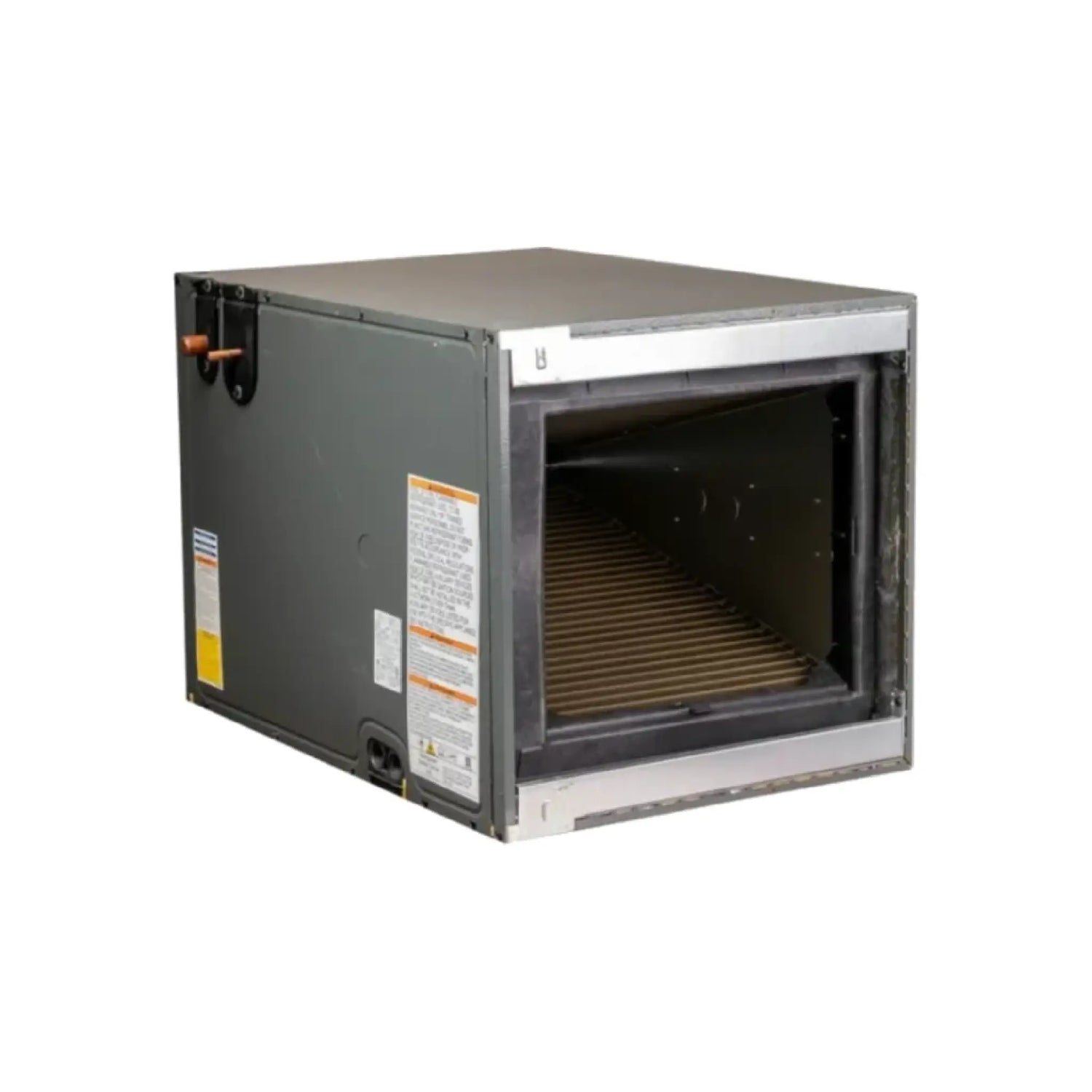

Goodman 3 Ton Evaporator Coil Cased 21" Height Horizontal With TXV CHPTA3630C3

The Goodman CHPTA3630C3 3 Ton Horizontal Evaporator Coil is designed for energy-efficient performance and long-term reliability in residential HVAC systems. Built for horizontal installations, this coil is compatible with both AC-only and heat pump condensers and includes a factory-installed TXV kit for improved refrigerant control and temperature precision. Engineered to meet the latest R32 refrigerant requirements, the CHPTA3630C3 ensures system compatibility, comfort, and compliance for modern home cooling setups.

Whether upgrading an older air conditioning system or building a new HVAC configuration, the CHPTA3630C3 provides dependable performance, efficient cooling, and ease of maintenance.

Key Features

• Efficiency: Rated at 13.8 SEER2 for energy-efficient performance
• Heating: 96% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 36,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

System Compatibility and Use

The Goodman CHPTA3630C3 is built for 3-ton cooling systems in horizontal ducted configurations. It requires a compatible R32 outdoor condenser and a furnace or blower unit for complete operation. This evaporator coil is not compatible with packaged HVAC systems or one-piece air handlers.

Easy Installation and Durable Build

Featuring aluminum coil construction and a pre-installed TXV valve, the CHPTA3630C3 minimizes installation time and enhances reliability. Its insulated galvanized steel cabinet protects against energy loss and environmental wear, while the split-seam access panel ensures quick, convenient service and maintenance.

Reliable Comfort and Energy Efficiency

Engineered for modern HVAC systems, the Goodman CHPTA3630C3 provides precise refrigerant control, consistent cooling performance, and enhanced indoor air quality. With its advanced TXV technology and antimicrobial design, it’s the perfect choice for homeowners seeking long-lasting comfort, energy savings, and system reliability.
