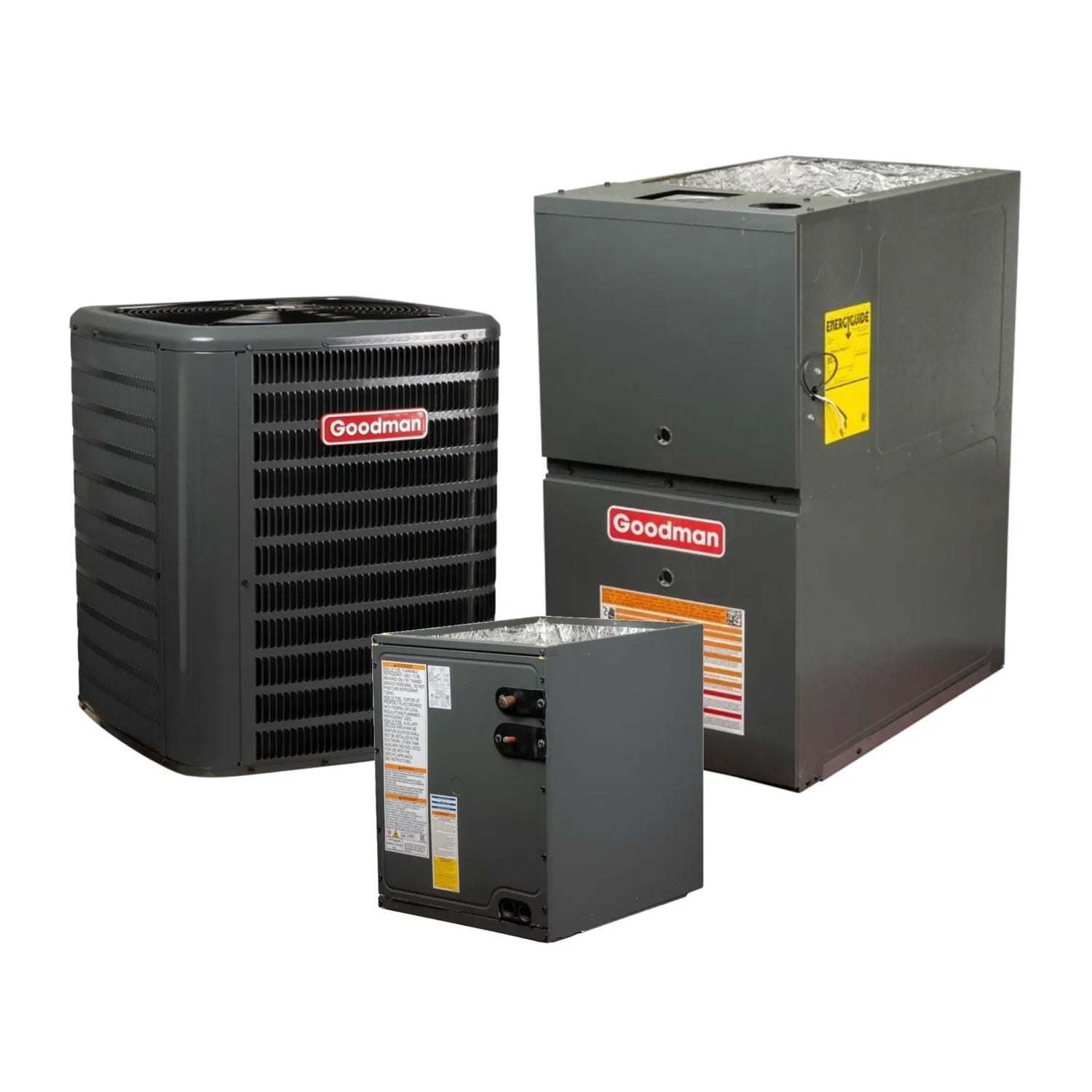

Goodman 3.5 Ton 15.2 SEER2 AC & Gas Furnace System 80% 80K BTU Vertical R32

Goodman 3.5 Ton 14.3 SEER2 Split Air Conditioner Condenser Single Stage R32 GLXS4BA4210

This high-performance HVAC system is engineered for optimal cooling efficiency, quiet operation, and reliable long-term use. Featuring a high-efficiency scroll compressor, advanced Copeland CoreSense Technology, and a durable coil design, it delivers energy savings while maintaining dependable comfort. Pre-charged with environmentally friendly R32 refrigerant, this system meets 2025 compliance standards and is ideal for residential applications seeking efficient and future-ready performance.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top – UL 60335-2-40 compliant for safe and efficient maintenance access
• Venturi Design – Boosts airflow velocity for improved cooling capacity
• Architectural Gray Powder-Coat Finish – Withstands 500-hour salt-spray test for weather resistance
• Durable Wire Fan Grille – Ensures safety and long-lasting protection
• Steel Coil Guard – Shields the coil from damage and debris
• Top and Side Maintenance Access – Improves serviceability and reduces downtime
• Single-Panel Control Access – Includes space for accessories and simplifies system configuration
• Florida Building Code Compliant – Meets 2023 hurricane wind integrity requirements when properly anchored

Goodman 80% AFUE 80K BTU Gas Furnace Two-Stage 21"W Upflow/Horizontal R32 GR9T800805CN

The Goodman 80% AFUE R32 2-Stage Gas Furnace delivers powerful, energy-efficient heating with quiet operation and advanced comfort control. Offering 80,000 BTU of heat output and featuring a two-stage gas valve, this gas furnace is engineered for optimal performance and long-term reliability. With its multi-speed ECM circulator motor, SureStart® Silicon Nitride igniter, and quiet two-speed draft blower, it’s an excellent choice for residential heating systems requiring consistent airflow and low emissions.

Designed for flexible installation, the furnace is AHRI Certified, ETL Listed, and compliant with California Low NOx emissions standards. The durable, insulated cabinet, self-diagnostic control board, and multiple configuration options make it ideal for homeowners and HVAC professionals alike.

Product Features

• 80% AFUE (Annual Fuel Utilization Efficiency) – Offers consistent, efficient performance while keeping fuel costs low.
• 80,000 BTU Heating Capacity – Delivers reliable heat output for medium to large homes.
• Multi-Speed ECM Circulator Motor – Ensures energy efficiency and quieter airflow throughout the home.
• Two-Stage Gas Valve – Operates at low and high heat levels for improved comfort and energy savings.
• SureStart® Silicon Nitride Igniter – Designed for durability and long operational life.
• Quiet, Two-Speed Induced Draft Blower – Minimizes noise while maintaining airflow performance.
• Low Constant Fan Speed – Circulates air continuously for enhanced indoor air quality and temperature control.
• Self-Diagnostic Control Board – Simplifies troubleshooting and service.
• AHRI Certified & ETL Listed – Ensures the unit meets industry standards for safety and performance.
• California Low NOx Emissions Compliant – Meets state requirements for reduced emissions (except SCAQMD and SJVAPCD regions).
• Installation Configuration – Supports Upflow/Horizontal installation with flexible options for various layouts.
• Airflow Capacity – 2000 CFM for strong air distribution.
• Electrical Specs – 115V, 1 Phase, 25A max overcurrent protection.
• Heat Exchanger Type – Air-cooled design enhances reliability and longevity.
• Powerful Yet Compact – 33-3/8" H x 21" W x 28" D; weight: 129 lb.

Cabinet Features

• Heavy-Gauge Steel Cabinet – Fully insulated and finished with baked enamel for enhanced durability and noise reduction.
• Multi-Position Installation –
  • GR9T80: Upflow, horizontal left or right
  • GD9T80: Downflow, horizontal left or right
• Removable Bottom Panel – Allows side- or bottom-return configurations for easier setup.
• Convenient Gas/Electric Connections – Service connections available on left or right side for installation flexibility.
• Cabinet Air Leakage ≤ 2% – Meets industry standards for air-tight construction.
• Flush Fit Design – Coil and furnace align seamlessly for streamlined installation.

The Goodman R32 2-Stage Gas Furnace is built for comfort, efficiency, and installation ease—making it an ideal solution for homeowners looking to upgrade their heating system with modern, environmentally conscious technology.

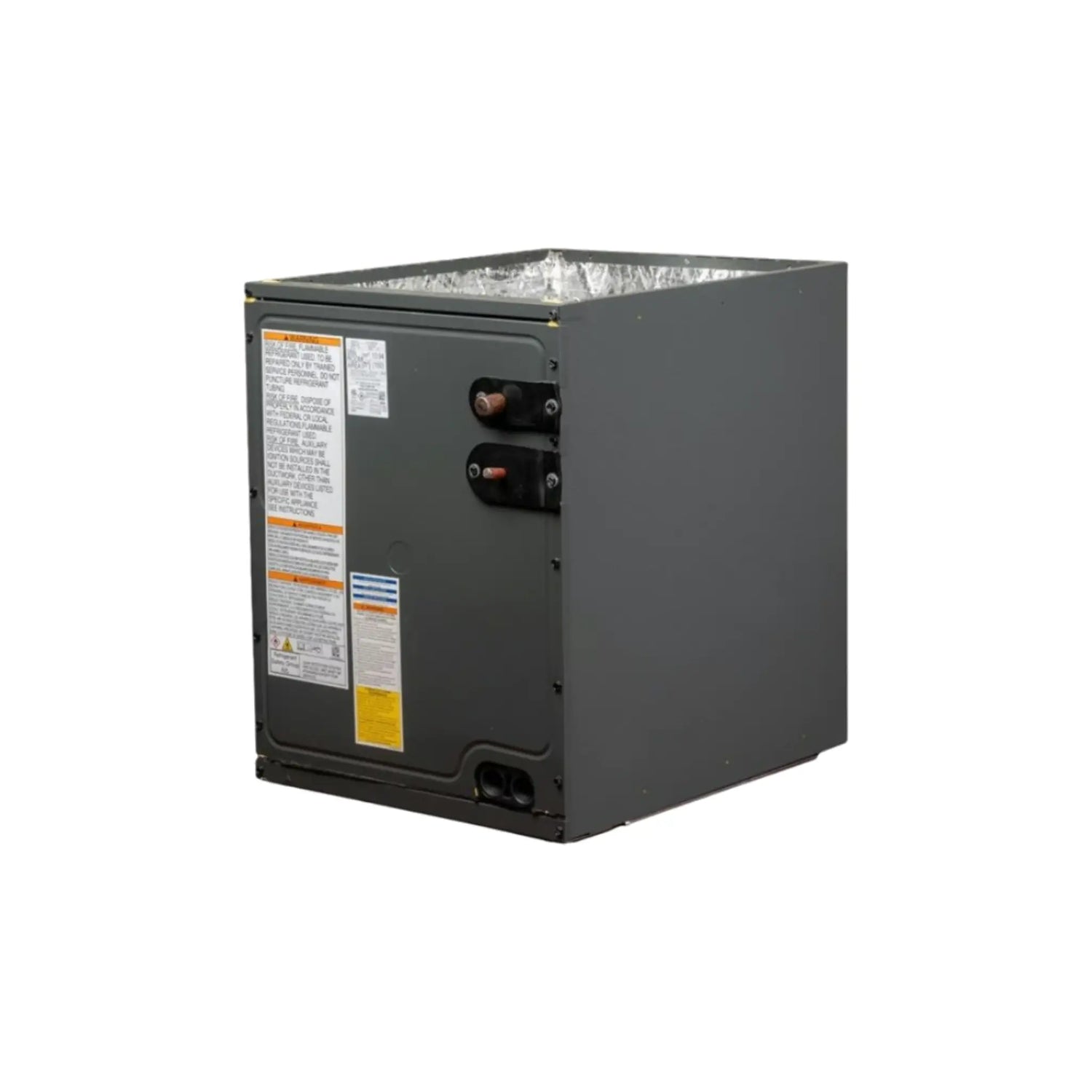

Goodman 3.5 Ton Cased Evaporator Coil 21"W Upflow/Downflow R32 With TXV CAPTA4230C3

An air conditioning or heat pump system is only as efficient as its evaporator coil. With the Goodman CAPTA Series, your HVAC system benefits from durable, all-aluminum construction and high-efficiency design. Engineered for superior performance, easy installation, and long-term reliability, these coils are ideal for both new installations and system upgrades in residential or light commercial settings.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Why Choose Goodman?

Goodman is a trusted name in HVAC, known for delivering high-quality, reliable, and cost-effective heating and cooling solutions. Built with premium materials and designed for lasting performance, Goodman CAPTA coils offer exceptional value, low maintenance, and long-term reliability for homeowners and installers alike.
