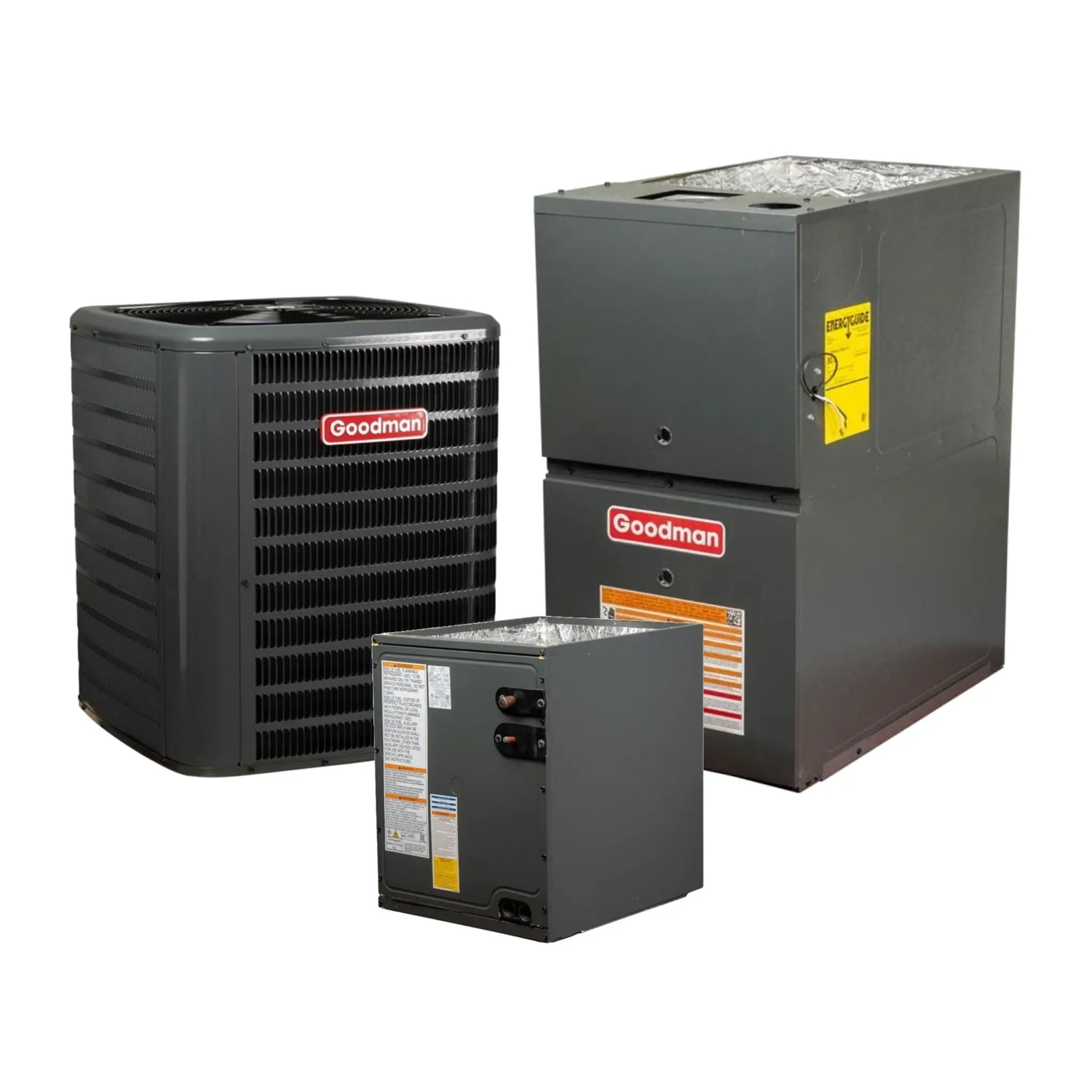

Goodman 3.5 Ton 15.2 SEER2 AC & Furnace System 80% 100K BTU Vertical R32

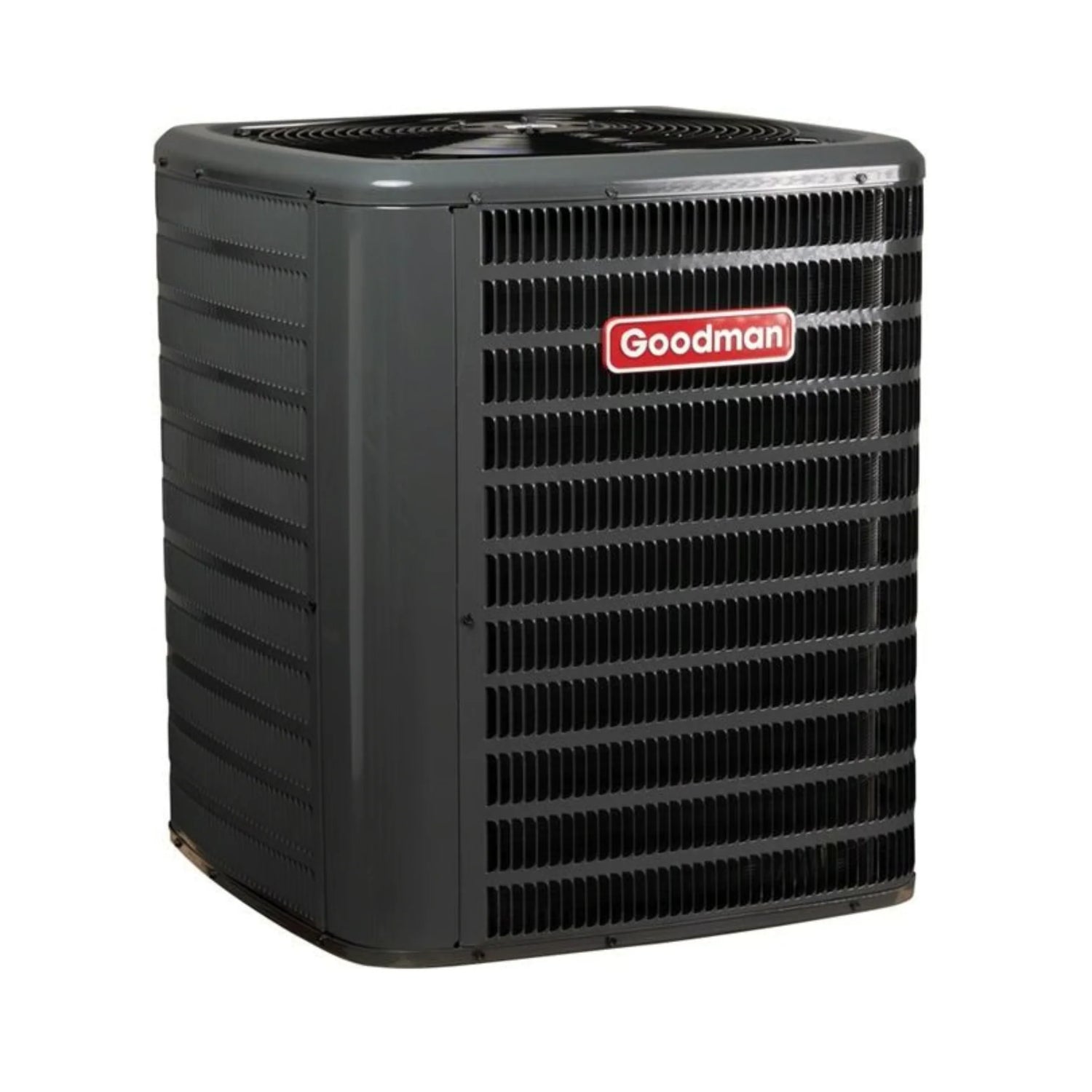

Goodman 3.5 Ton 14.3 SEER2 Split Air Conditioner Condenser Single Stage R32 GLXS4BA4210

This high-performance HVAC system is engineered for optimal cooling efficiency, quiet operation, and reliable long-term use. Featuring a high-efficiency scroll compressor, advanced Copeland CoreSense Technology, and a durable coil design, it delivers energy savings while maintaining dependable comfort. Pre-charged with environmentally friendly R32 refrigerant, this system meets 2025 compliance standards and is ideal for residential applications seeking efficient and future-ready performance.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top – UL 60335-2-40 compliant for safe and efficient maintenance access
• Venturi Design – Boosts airflow velocity for improved cooling capacity
• Architectural Gray Powder-Coat Finish – Withstands 500-hour salt-spray test for weather resistance
• Durable Wire Fan Grille – Ensures safety and long-lasting protection
• Steel Coil Guard – Shields the coil from damage and debris
• Top and Side Maintenance Access – Improves serviceability and reduces downtime
• Single-Panel Control Access – Includes space for accessories and simplifies system configuration
• Florida Building Code Compliant – Meets 2023 hurricane wind integrity requirements when properly anchored

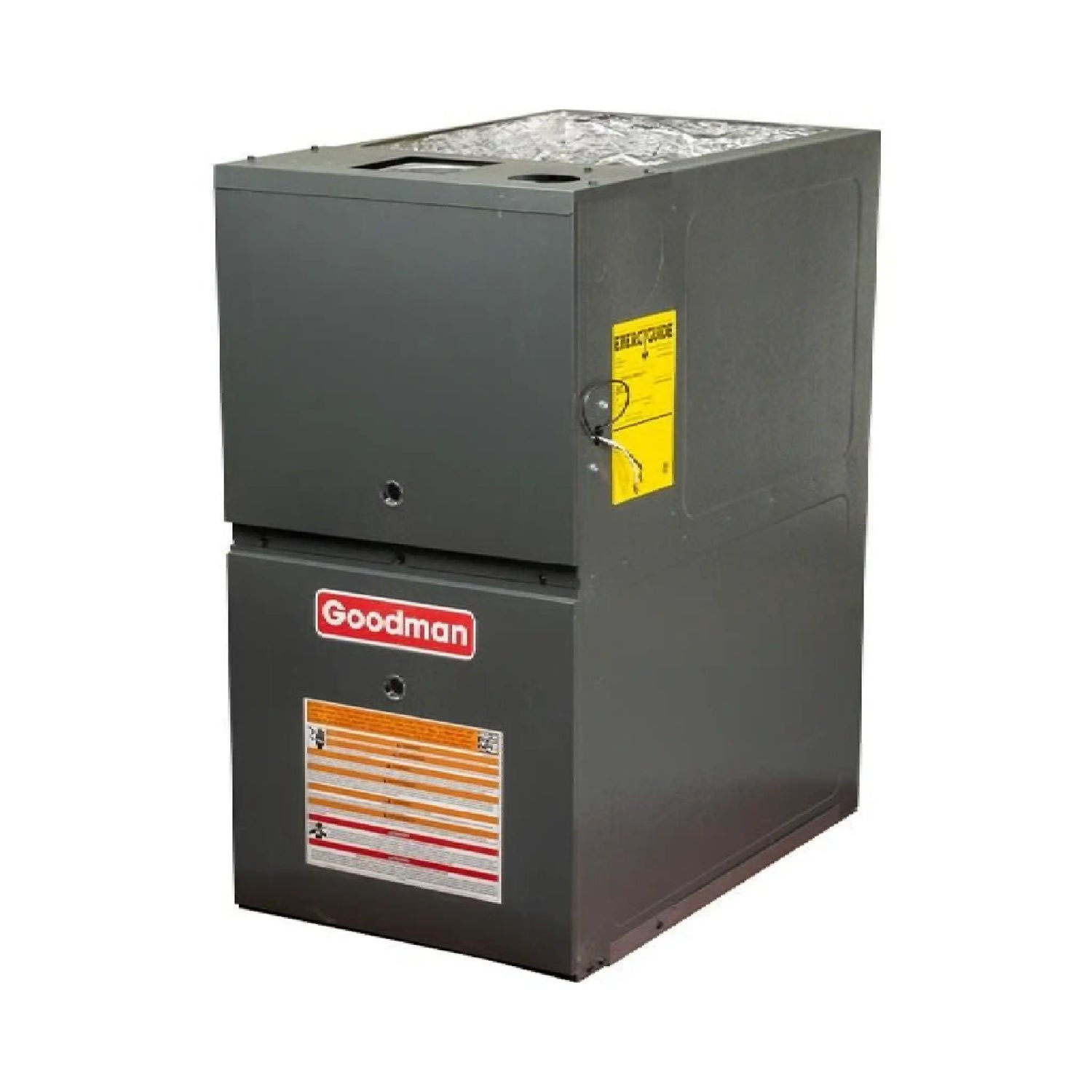

Goodman 80% AFUE 100K BTU Gas Furnace 2-Stage 21"W Upflow/Horizontal R32 GR9T801005CN

The Goodman 80% AFUE R32 2-Stage Gas Furnace delivers reliable, high-capacity heating with quiet operation and efficient performance. With a powerful 100,000 BTU output, this model is ideal for larger homes or colder climates. Designed with a multi-speed ECM circulator motor and a two-stage gas valve, it ensures comfort, energy efficiency, and even temperature control.

This unit features a durable SureStart® Silicon Nitride igniter, quiet two-speed draft blower, and low constant fan speed for continuous air circulation. It is AHRI Certified and ETL Listed for quality assurance and complies with California Low NOx emissions standards. The cabinet is built tough, fully insulated, and allows for multiple installation configurations to simplify setup and maximize performance.

Product Features

• 100,000 BTU Heating Capacity – Designed to deliver consistent warmth for larger living spaces.
• 80% AFUE Efficiency Rating – Reduces fuel consumption and supports lower energy bills.
• Multi-Speed ECM Circulator Motor – Operates quietly while efficiently managing airflow throughout the home.
• Two-Stage Gas Valve – Provides enhanced temperature control and energy savings.
• SureStart® Silicon Nitride Igniter – Ensures reliable startup and extended igniter life.
• Quiet Two-Speed Induced Draft Blower – Supports smooth, quiet operation during both heating stages.
• Low Constant Fan Speed – Improves air circulation and indoor comfort even when not heating.
• Self-Diagnostic Control Board – Streamlines maintenance and service with built-in system monitoring.
• AHRI Certified & ETL Listed – Meets strict industry standards for safety and performance.
• California Low NOx Emissions Compliant – Meets environmental regulations (not suitable for SCAQMD and SJVAPCD regions).
• Airflow Capacity – 2000 CFM ensures robust air movement throughout the duct system.
• Electrical Specs – 115V, 1 Phase, Max Overcurrent Protection: 25A.
• Motor Speed Type – Nine-speed ECM motor supports customizable airflow control.
• Model Efficiency – 0.8 system rating for dependable performance.
• Heat Exchanger Type – Air-cooled for efficient heat transfer and longer life.
• Unit Dimensions – 33-3/8 in (H) x 21 in (W) x 28 in (D), Weight: 124 lb.

Cabinet Features

• Fully Insulated Heavy-Gauge Steel Cabinet – Reduces heat loss and sound levels for quieter operation.
• Durable Baked-Enamel Finish – Protects the cabinet from corrosion and wear.
• Multi-Position Installation –
  • GR9T80: Upflow, horizontal left or right
  • GD9T80: Downflow, horizontal left or right
• Removable Bottom Panel – Supports both side- and bottom-return airflow configurations.
• Left or Right Service Connections – Flexible gas and electrical connection options for simplified installation.
• Cabinet Air Leakage ≤ 2% – Helps maintain energy efficiency and comfort.
• Flush Fit Design – Ensures the coil and furnace align cleanly in most installs.

This Goodman R32 2-Stage Gas Furnace with 100,000 BTU heating capacity is engineered for energy efficiency, quiet performance, and long-lasting comfort. A smart upgrade for residential systems needing dependable, compliant heating power.

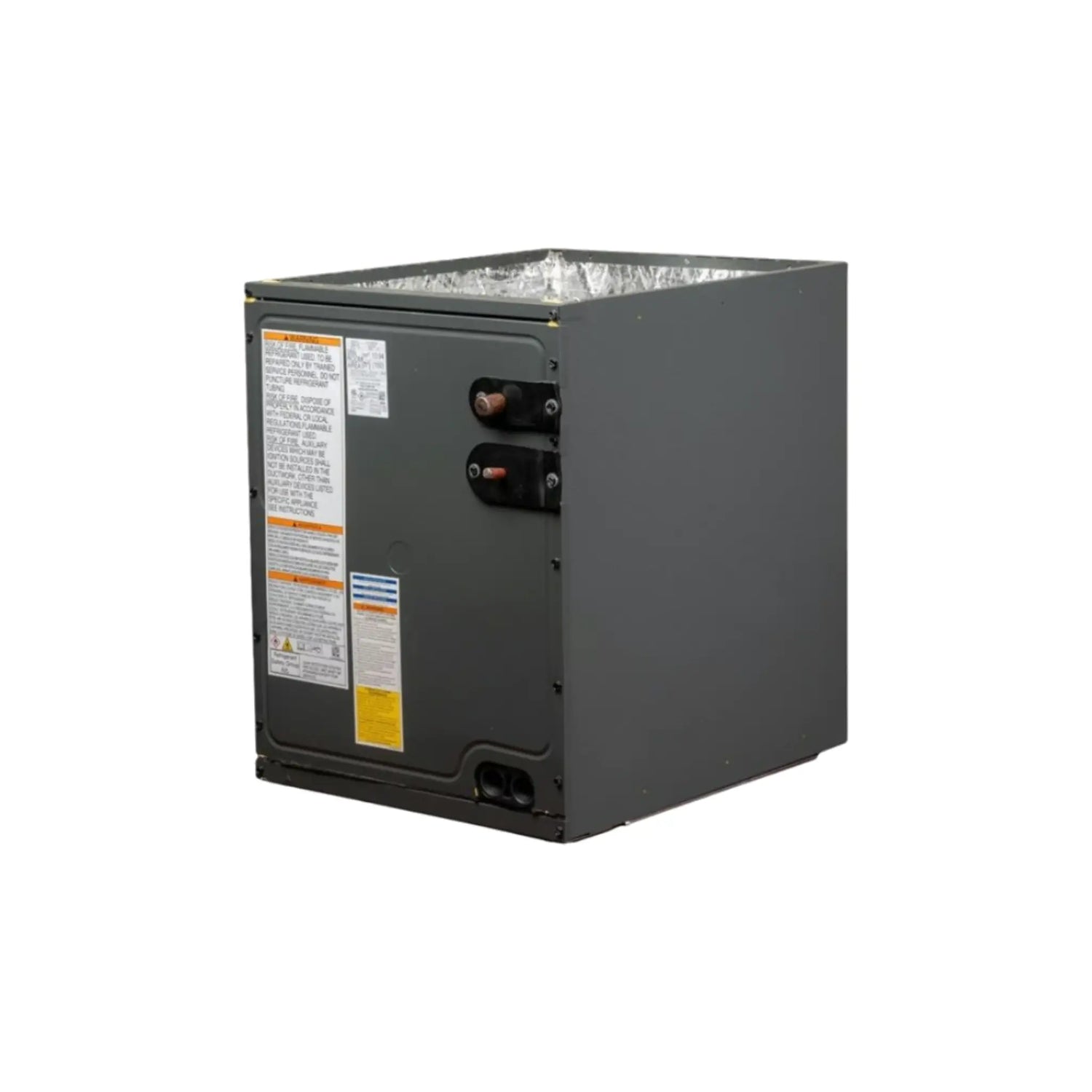

Goodman 3.5 Ton Cased Evaporator Coil 21"W Upflow/Downflow R32 With TXV CAPTA4230C3

An air conditioning or heat pump system is only as efficient as its evaporator coil. With the Goodman CAPTA Series, your HVAC system benefits from durable, all-aluminum construction and high-efficiency design. Engineered for superior performance, easy installation, and long-term reliability, these coils are ideal for both new installations and system upgrades in residential or light commercial settings.

Key Features

• Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Why Choose Goodman?

Goodman is a trusted name in HVAC, known for delivering high-quality, reliable, and cost-effective heating and cooling solutions. Built with premium materials and designed for lasting performance, Goodman CAPTA coils offer exceptional value, low maintenance, and long-term reliability for homeowners and installers alike.
