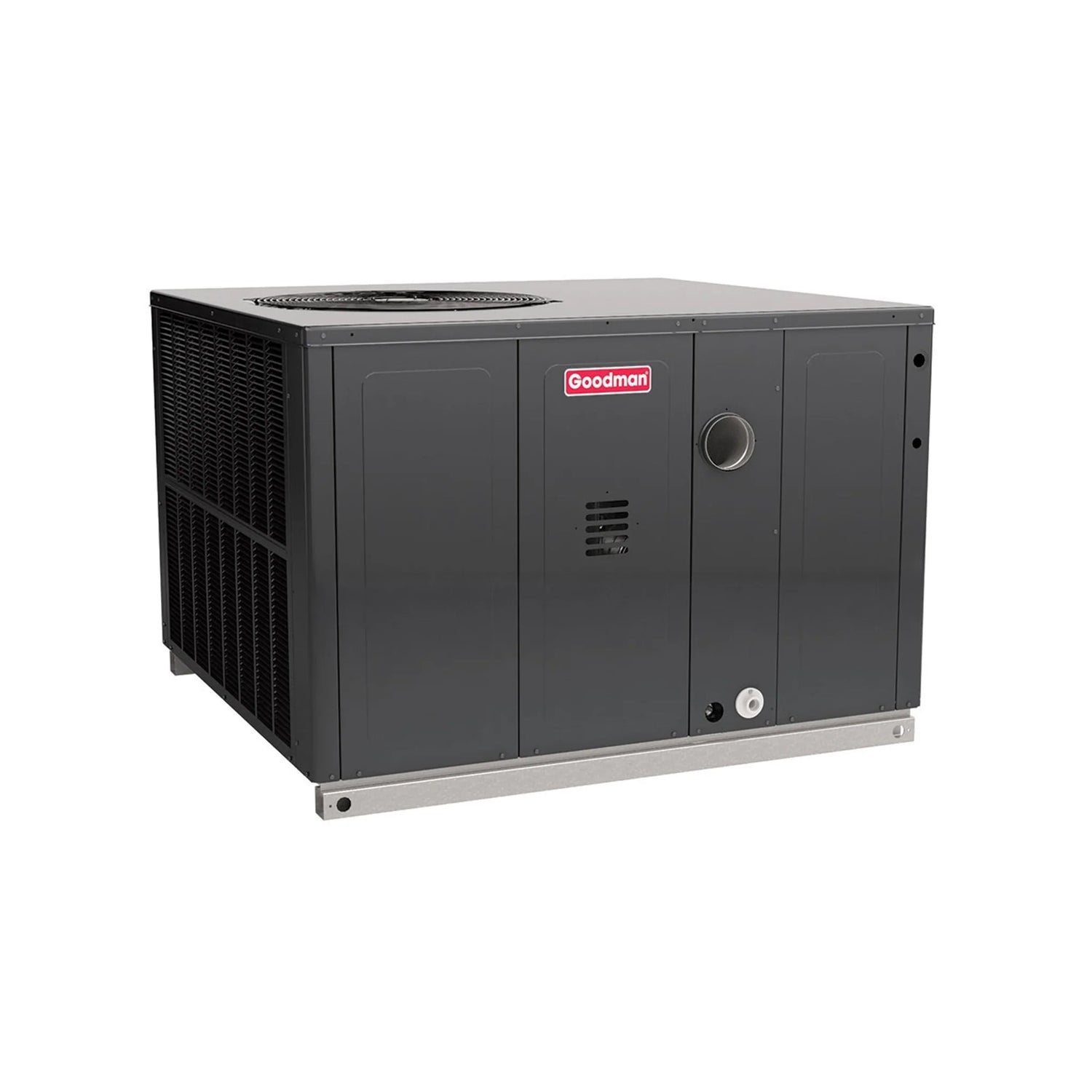

Goodman 3.5 Ton 15.2 SEER2 100K BTU Gas Packaged Unit Downflow/Horizontal

By: Goodman
SKU: GPGM54210031|ID: 101347
$7,174.00
+ Free shipping

Key Features

  • Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 42,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Btu: 100,000 BTUs

40,000 BTUs60,000 BTUs80,000 BTUs100,000 BTUs120,000 BTUs140,000 BTUs

Seer Rating: 15.2 SEER2

13.4 SEER215.2 SEER2

Tonnage: 3.5 Ton

3.5 Ton4 Ton
Working on a big project?
Free Shipping On Orders $1000 See our shipping policy
Flexible Financing Finance with Affirm. See terms
Speak with an Expert Call us at (888)-868-1055

Product Details

Goodman 3.5 Ton 15.2 SEER2 100K BTU Gas Packaged Unit Downflow/Horizontal

Goodman 3.5 Ton 15.2 SEER2 100K BTU Gas Packaged Unit Downflow/Horizontal GPGM54210031

The Goodman GPGM54210031 is a high-efficiency packaged gas and electric unit that provides year-round comfort in a self-contained design. Engineered for convenience and performance, this 3.5-ton unit delivers 40,000 BTU of cooling and 100,000 BTU of heating. With a compact cabinet and downflow/horizontal configuration, it's ideal for rooftop or ground-level installation where traditional split systems are not feasible. This unit features a 15.2 SEER2 cooling efficiency and 80% AFUE heating performance, making it compliant for nationwide installation. Pre-charged with R32 refrigerant and fully assembled, it's installation-ready and built to last with durable steel construction and weather-resistant features.

Key Features

  • Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
  • Heating: 80% AFUE gas furnace provides efficient whole-home heating
  • Capacity: Delivers 42,000 BTU/h as a complete matched system
  • Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

This Goodman packaged unit offers excellent comfort, versatility, and value. Ideal for residential or light commercial applications needing rooftop or ground-based installation where interior air handlers or furnaces are not suitable.

Learning Resources

GPGM3 Specifications Sheet GPGM3 Installation Manual GPGM3 Replacement Parts Manual GPGM3 Service Manual GPGM3 Goodman Packaged Unit Warranty

Specifications

BrandGoodman
SKUGPGM54210031
Weight (in lbs)505
AHRI Certificate Number209319567
ReplacesGPG1642100M41
Furnace Efficiency / AFUE80%
Cooling BTU40,000 BTU
Heating BTU100,000 BTU
Blower MotorMulti-Speed
Maximum CFM1250
Decibel Level (dBA)78 decibels
ConfigurationDownflow/Horizontal
Energy StarYes
RefrigerantR32
SEER2 (Efficiency)15.2
Condenser StagesTwo Stage
Compressor TypeScroll
Electrical208/230v 1Phase 60Hz
PhaseSingle Phase
Max Breaker Size45 amps
Tonnage3.5 Ton
Fuel TypeNatural Gas
Height42 1/2"
Width47"
Depth51"
Warranty10 Years with Online Registration

Warranty and Product Information

Standard Warranty3 years
Registered Warranty5 years
