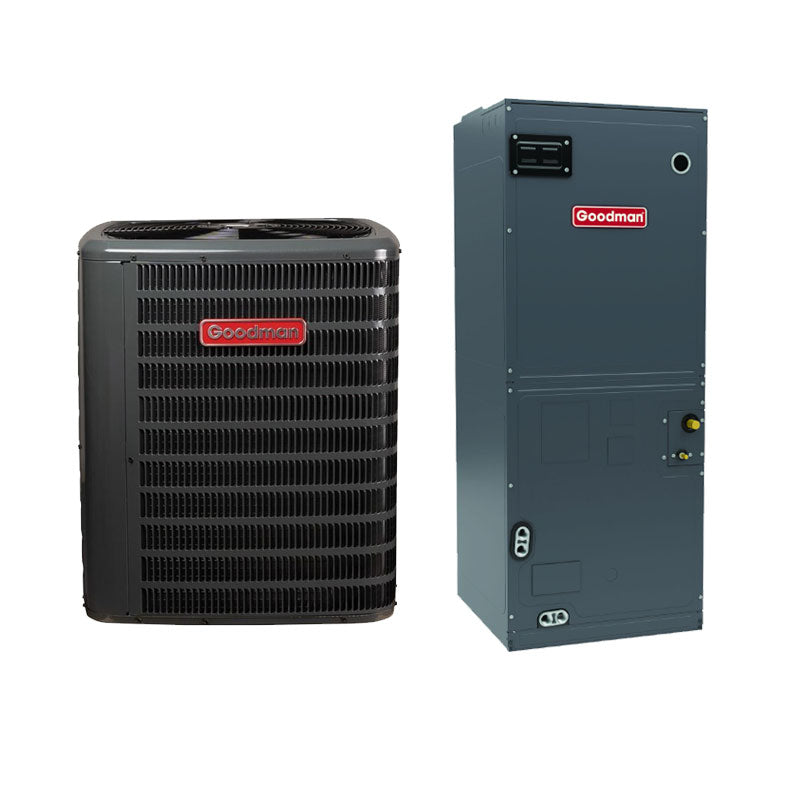

Goodman 3.5 Ton 14.5 SEER2 Air Conditioner Split System 48K BTU R32

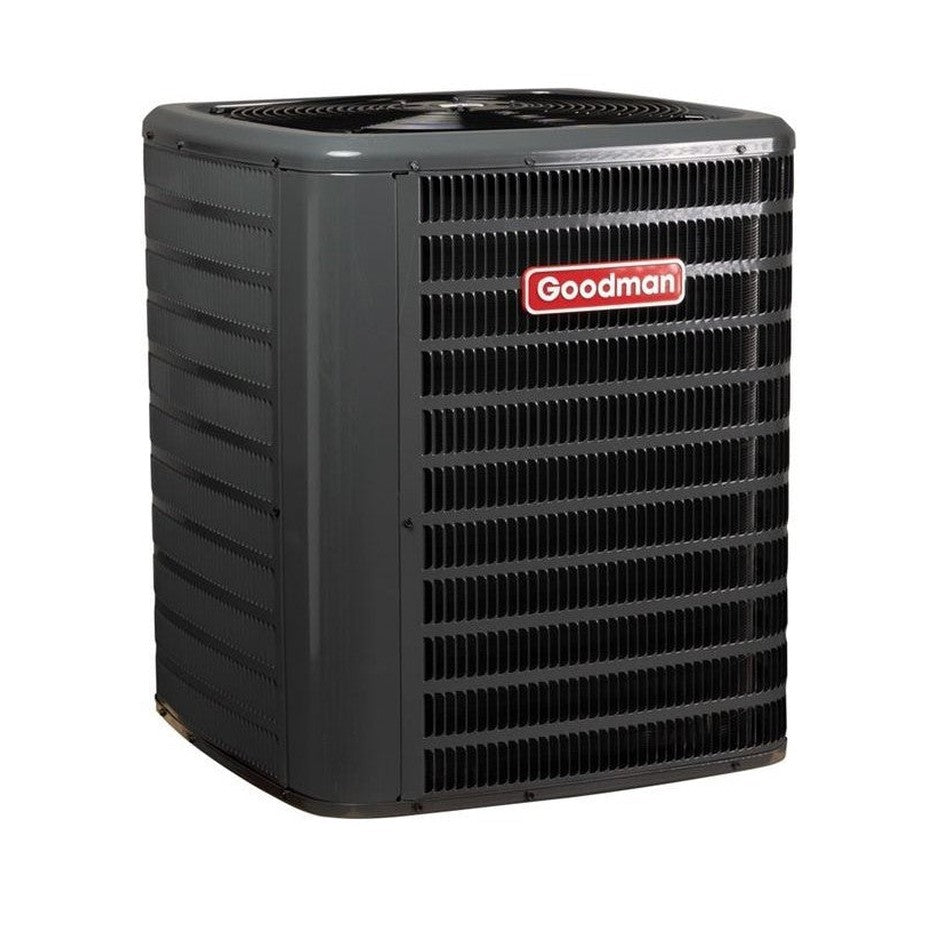

Goodman R32 3.5 Ton Air Conditioner Condenser 14.3 SEER2 42000 BTU GLXS4BA4210

This HVAC system features a high-efficiency scroll compressor for optimal cooling and energy savings. It includes a high-density foam sound blanket for quieter operation and advanced Copeland CoreSense Technology for enhanced reliability and diagnostics. Pre-charged with refrigerant for up to 15 feet of tubing, it simplifies installation. The system boasts a durable copper and aluminum fin coil, a factory-installed filter drier, and easy-to-access service valves. It also has a secure enclosed contactor, a high-pressure switch for safety, and long-lasting capacitors. Certified by AHRI for performance and ETL Listed for safety, it ensures reliable, efficient operation.

• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 35.75 in
• Unit Width: 35.5 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 42000 Btu/H
• Max Overcurrent Protection: 30 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Unit Weight: 72 lb
• Tonnage: 3.5
• Model Efficiency: 15.2 SEER2
• Unit Depth: 35.5 in


• Energy-efficient compressor with filter drier
• Fully charged for 15' tubing
• Copper tube with aluminum fin coil
• Sweat connection valves
• Enclosed contactor and switch
• Ground lug and long-life capacitors
• AHRI Certified and ETL Listed
• Removable grille (UL 60335-2-40)
• Venturi design for airflow
• Architectural Gray finish (500-hour salt-spray)
• Wire fan grille and coil guard
• Top/side access with single-panel controls

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

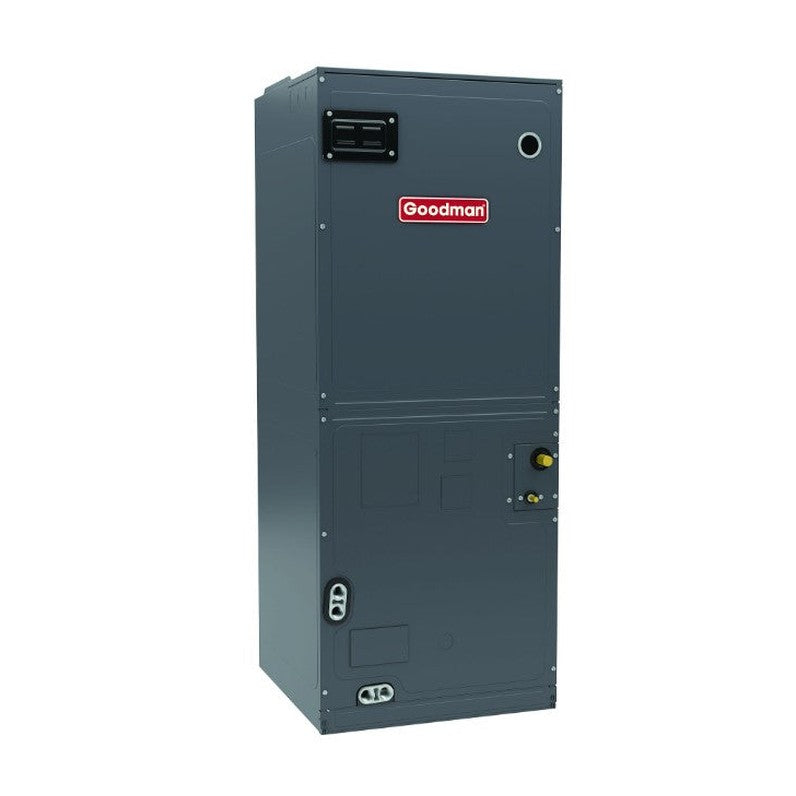

Goodman 4 Ton Ducted Multi-position Air Handler Nine Speed ECM Motor 21-1/8 in Cabinet with TXV Expansion AMST48CU1300

The Goodman 4 Ton R32 Ducted Multi-Position Air Handler (AMST48CU1300) offers efficient cooling with a 48,000 BTU/h nominal capacity and features a nine-speed ECM motor for quiet, adaptable airflow. Equipped with an all-aluminum coil for superior heat transfer and optional rust-resistant nickel chromium heating elements (5–10 kW), this unit ensures reliable performance. The unit's SmartFrame cabinet, easy-to-access service points, and multiple installation configurations provide flexibility and durability. Factory-installed components like the pull-type disconnect and thermoplastic drain pan ensure easy setup and maintenance, while its AHRI and ETL certifications confirm quality and safety compliance.

• Refrigerant Type: R-32
• Unit Height: 58 in
• Unit Width: 21-1/8 in
• Cooling Capacity Nominal: 48000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Motor Speed Type: Nine Speed ECM
• Unit Weight: 153 lb
• Tonnage: 4
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Rigid SmartFrame cabinet for enhanced structural integrity
• Horizontal or vertical configuration capabilities for versatile installation options
• 21" depth for easier attic access during installation
• DecaBDE-free thermoplastic drain pan with secondary drain connections for improved drainage
• Screw-less sides and back help reduce condensation in humid environments
• Foil-faced insulation on the internal casing minimizes cabinet condensation
• Galvanized, leather grain-embossed finish for aesthetic appeal and long-lasting durability
• Glue-less cabinet insulation retention for better insulation performance
• Tool-less filter access for convenient and hassle-free filter maintenance
