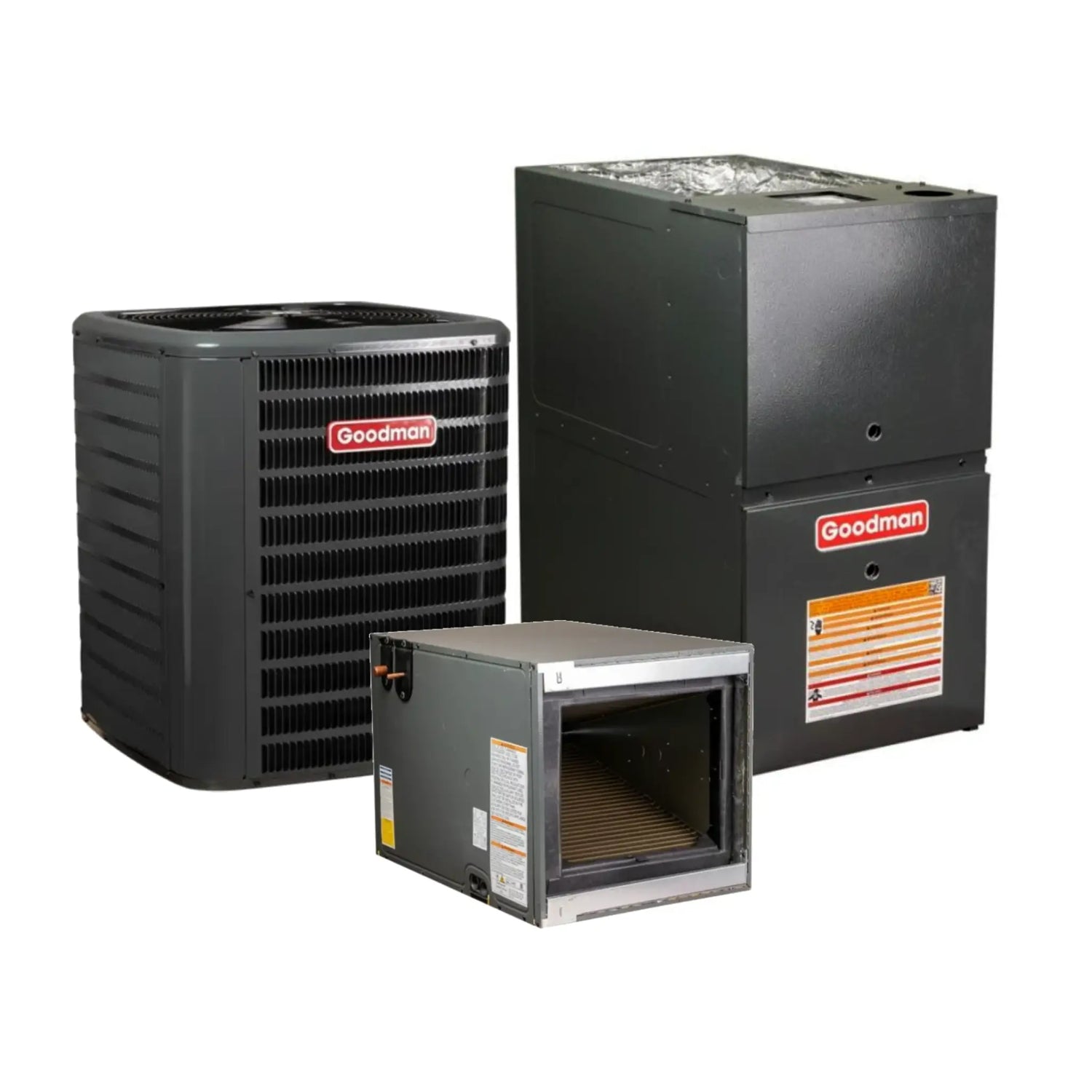

Goodman 3.5 Ton 14.5 SEER2 AC Gas Furnace System 80% Horizontal 80K BTU R32

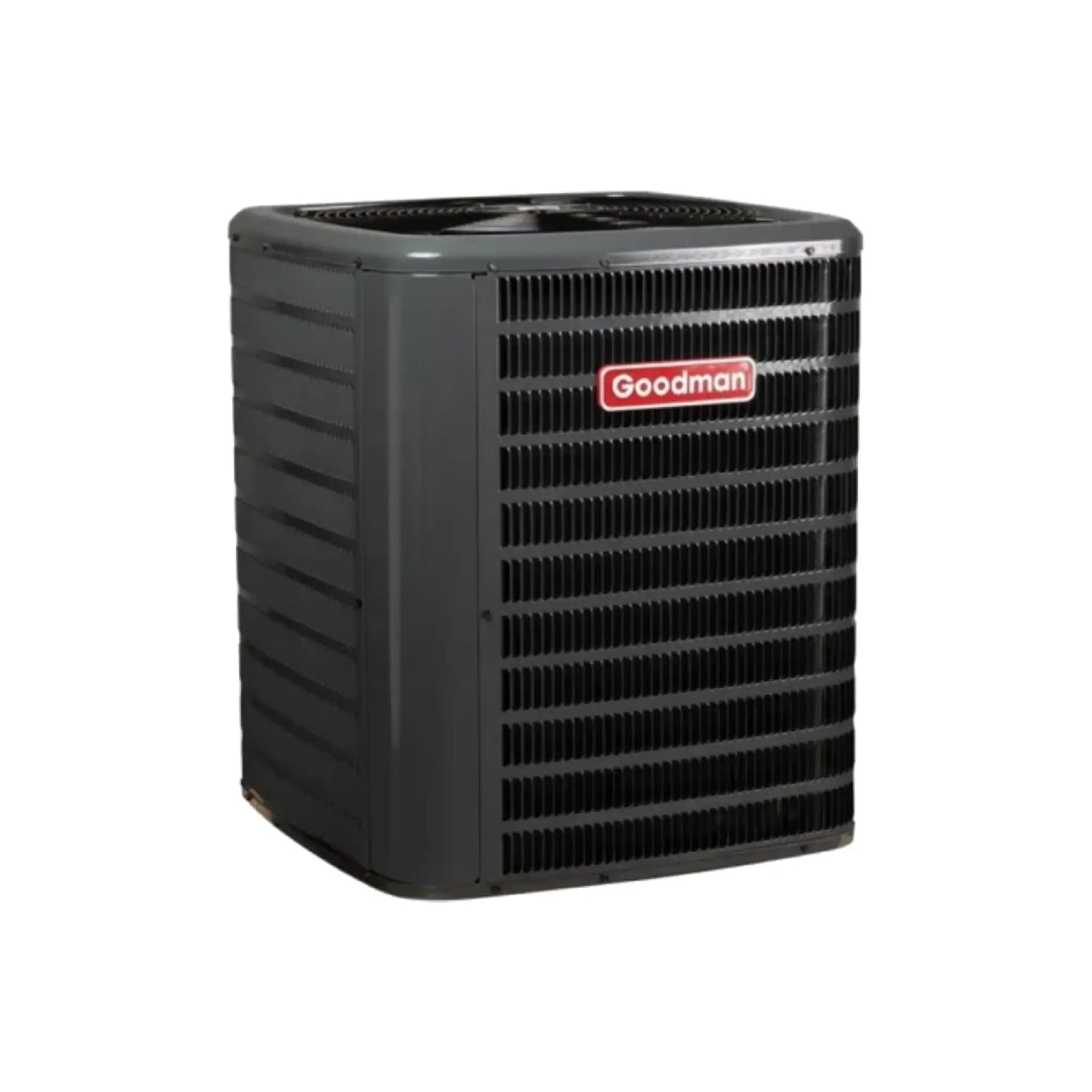

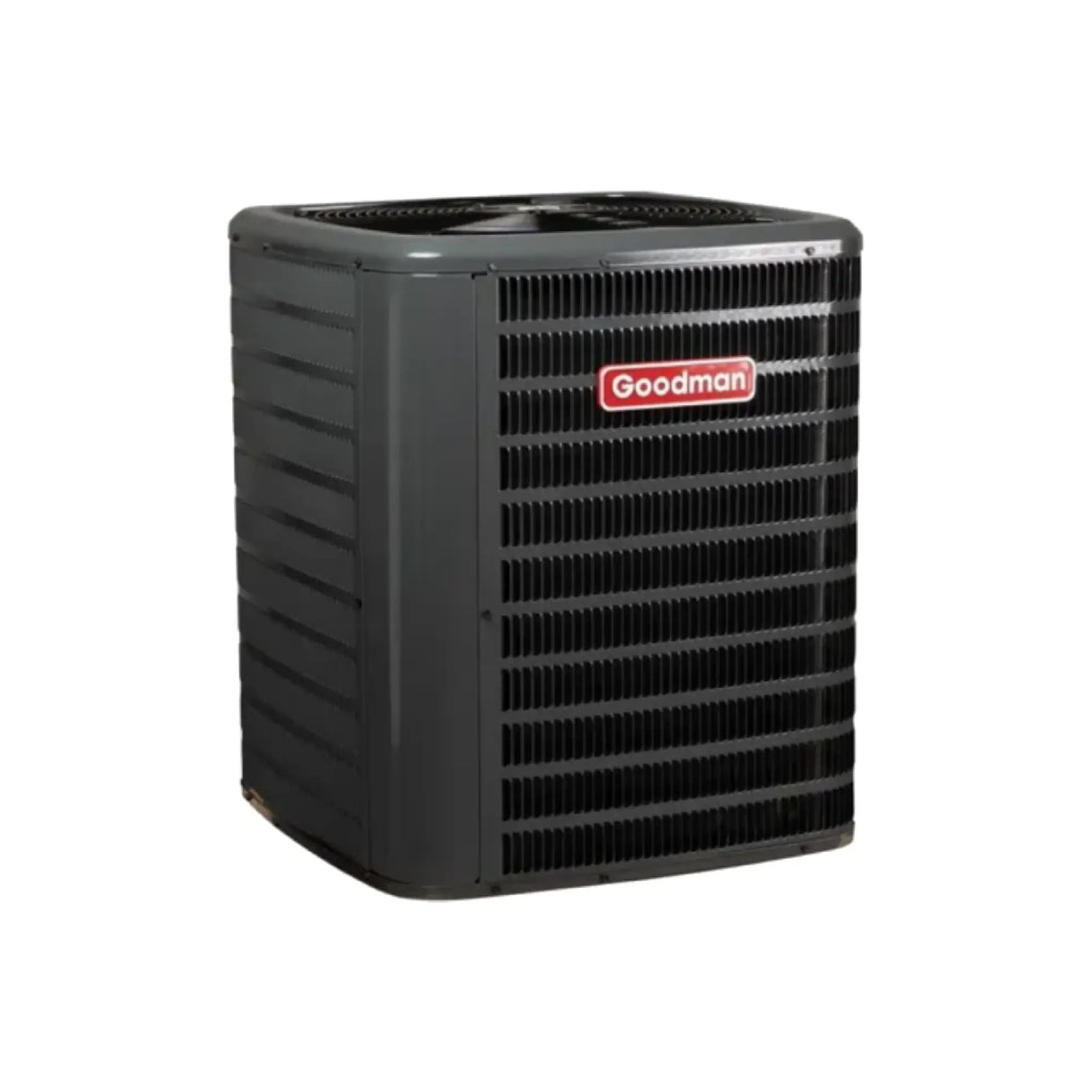

Goodman 3.5 Ton 14.3 SEER2 Split Air Conditioner Condenser Single Stage R32 GLXS4BA4210

This high-performance HVAC system is engineered for optimal cooling efficiency, quiet operation, and reliable long-term use. Featuring a high-efficiency scroll compressor, advanced Copeland CoreSense Technology, and a durable coil design, it delivers energy savings while maintaining dependable comfort. Pre-charged with environmentally friendly R32 refrigerant, this system meets 2025 compliance standards and is ideal for residential applications seeking efficient and future-ready performance.

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Cabinet Features

• Removable Grille-Style Top – UL 60335-2-40 compliant for safe and efficient maintenance access
• Venturi Design – Boosts airflow velocity for improved cooling capacity
• Architectural Gray Powder-Coat Finish – Withstands 500-hour salt-spray test for weather resistance
• Durable Wire Fan Grille – Ensures safety and long-lasting protection
• Steel Coil Guard – Shields the coil from damage and debris
• Top and Side Maintenance Access – Improves serviceability and reduces downtime
• Single-Panel Control Access – Includes space for accessories and simplifies system configuration
• Florida Building Code Compliant – Meets 2023 hurricane wind integrity requirements when properly anchored

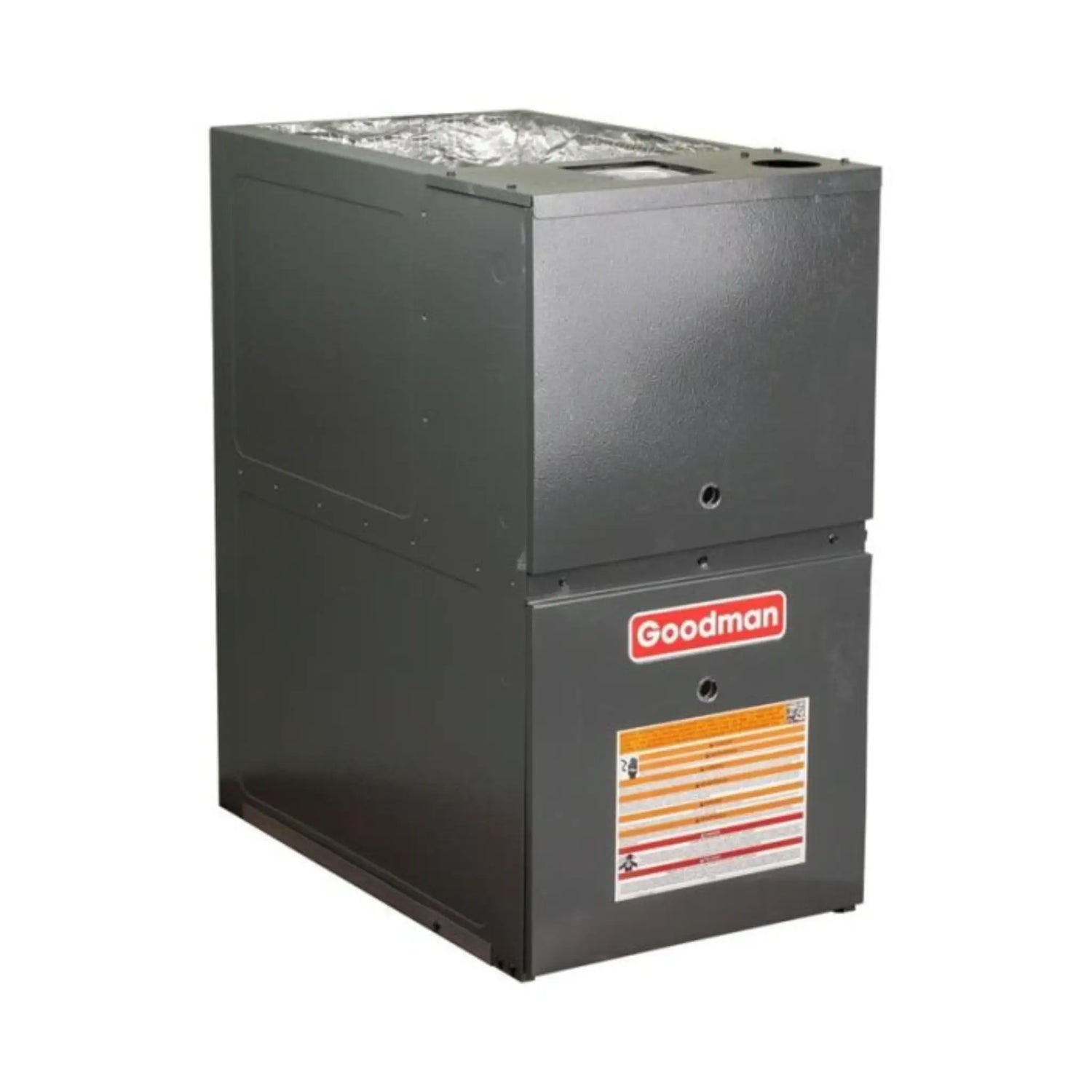

Goodman 80% Gas Furnace 80K BTU 21"W 2000 CFM Low NOx Upflow/Horizontal R32 GR9S800805CX

The Goodman GR9S800805CX 80% AFUE R32 Gas Furnace provides reliable, energy-efficient heating performance with an 80,000 BTU output and a multi-speed ECM blower motor that delivers consistent airflow and reduced energy consumption. Featuring a heavy-duty aluminized steel heat exchanger, durable hot-surface igniter, and self-diagnostic control board, this furnace is designed for long-term performance and easy maintenance. With its insulated cabinet and quiet operation, the GR9S800805CX ensures dependable comfort for residential heating applications while meeting California’s Low NOx standards.

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 80% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

California Compliance Notice

The Goodman GR9S800805CX Low NOx Furnace is compliant with California Low NOx emission standards, helping reduce the environmental impact of home heating systems. However, this furnace cannot be installed in the following counties that require Ultra-Low NOx furnaces.

For these regions, an Ultra-Low NOx compliant model is required. Consult your local HVAC professional or contact our support team to ensure proper equipment selection and compliance with regional regulations.

Efficient Comfort for Every Home

The Goodman GR9S800805CX 80% AFUE R32 Gas Furnace combines energy efficiency, quiet performance, and durability for dependable home heating. Its Low NOx design makes it an environmentally friendly option for California homeowners, while its advanced ECM motor and robust heat exchanger provide lasting comfort and value.

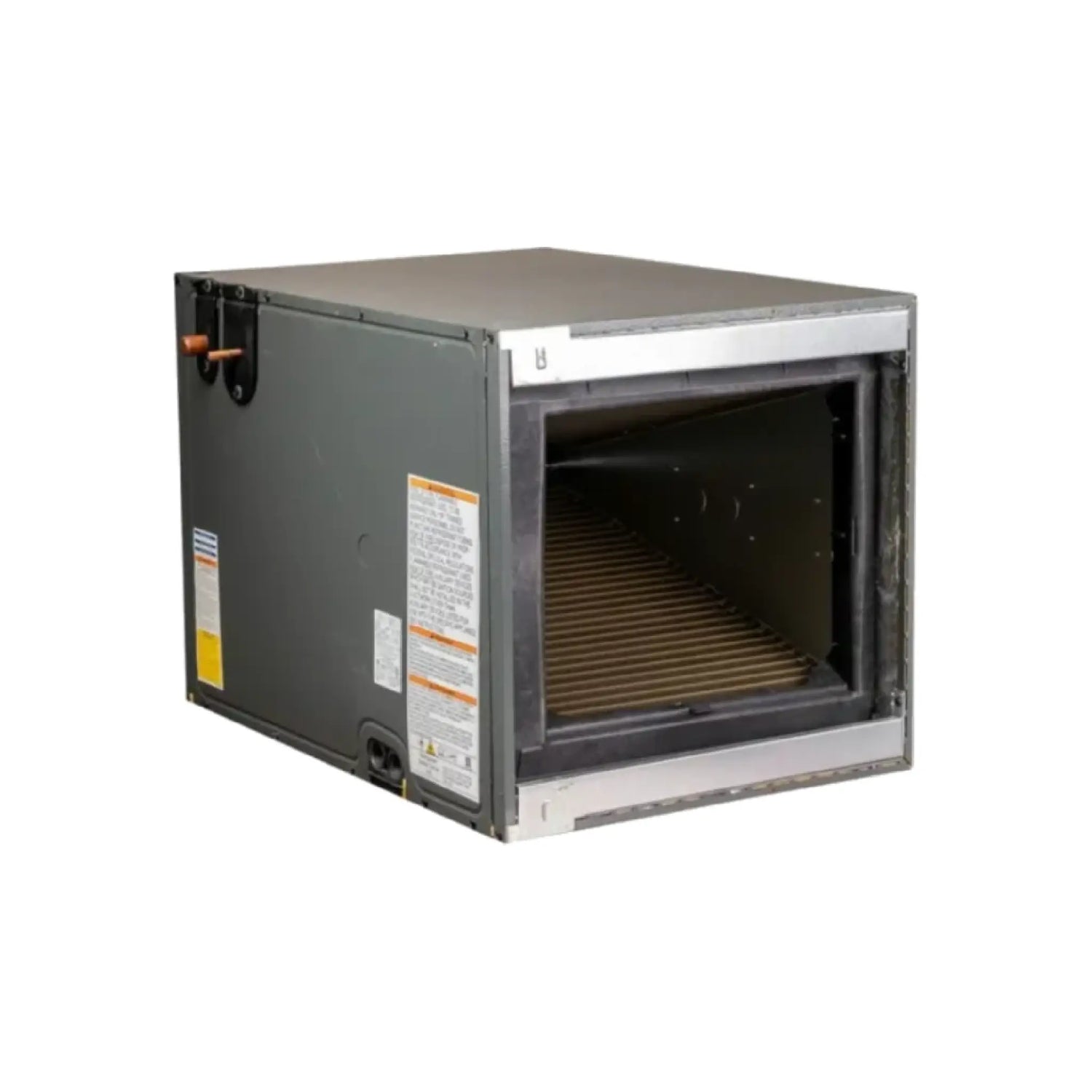

Goodman 3.5 Ton Cased Evaporator Coil R32 Horizontal 21"W With Internal TXV CHPTA4230C3

The Goodman CHPTA4230C3 is a high-performance 3.5-ton horizontal evaporator coil designed for use with R-32 refrigerant systems. Built from durable, all-aluminum components and equipped with factory-installed TXVs for both cooling and heat pump applications, this coil offers exceptional system efficiency, corrosion resistance, and reliable comfort. Compact and installer-friendly, it’s ideal for attics, crawl spaces, or horizontal configurations where space and accessibility are critical.

Key Specifications

• Tonnage - 3.5 tons, optimized for high-efficiency R-32 refrigerant systems.
• Construction - All-aluminum tubing and fin design for superior heat transfer and long-term durability.
• Thermal Expansion Valves (TXVs) - Factory-installed for both cooling and heat pump applications to ensure precise refrigerant control and enhanced system efficiency.
• Design - Compact 21" depth optimized for horizontal installation in space-limited areas such as attics or mechanical closets.
• Insulation - Foil-faced interior insulation minimizes cabinet condensation and thermal loss.
• Drain Pan - Molded thermoplastic drain pan with rust and UV resistance, featuring low water retention and secondary drainage connections.
• Serviceability - Removable rails and a single front access panel simplify maintenance and inspection.
• Refrigerant Lines - Standardized copper suction and liquid line stub lengths for easy system matching.
• Certifications - ETL Listed and AHRI Certified, ensuring compliance with safety and performance standards.

Performance & Installation Advantages

• High Efficiency - Designed specifically for R-32 refrigerant to improve energy transfer and system SEER2 performance.
• Corrosion Resistance - Aluminum construction eliminates the risk of galvanic corrosion for longer coil life.
• Compact Profile - 21-inch depth enables installation in tighter spaces without sacrificing capacity or efficiency.
• Easy Access - Single removable front panel allows quick coil inspection and cleaning.
• Flexible Installation - Ideal for horizontal left or right airflow configurations in residential HVAC systems.

Why Choose the Goodman CHPTA4230C3?

The Goodman CHPTA4230C3 3.5-Ton Horizontal Evaporator Coil is a versatile and reliable component for R-32 HVAC systems. Its all-aluminum build, factory-installed TXVs, and service-friendly design make it a perfect match for homeowners and HVAC professionals seeking durable, efficient, and space-saving performance. Whether used in new installations or retrofit projects, it ensures long-term reliability and compliance with modern refrigerant standards.
