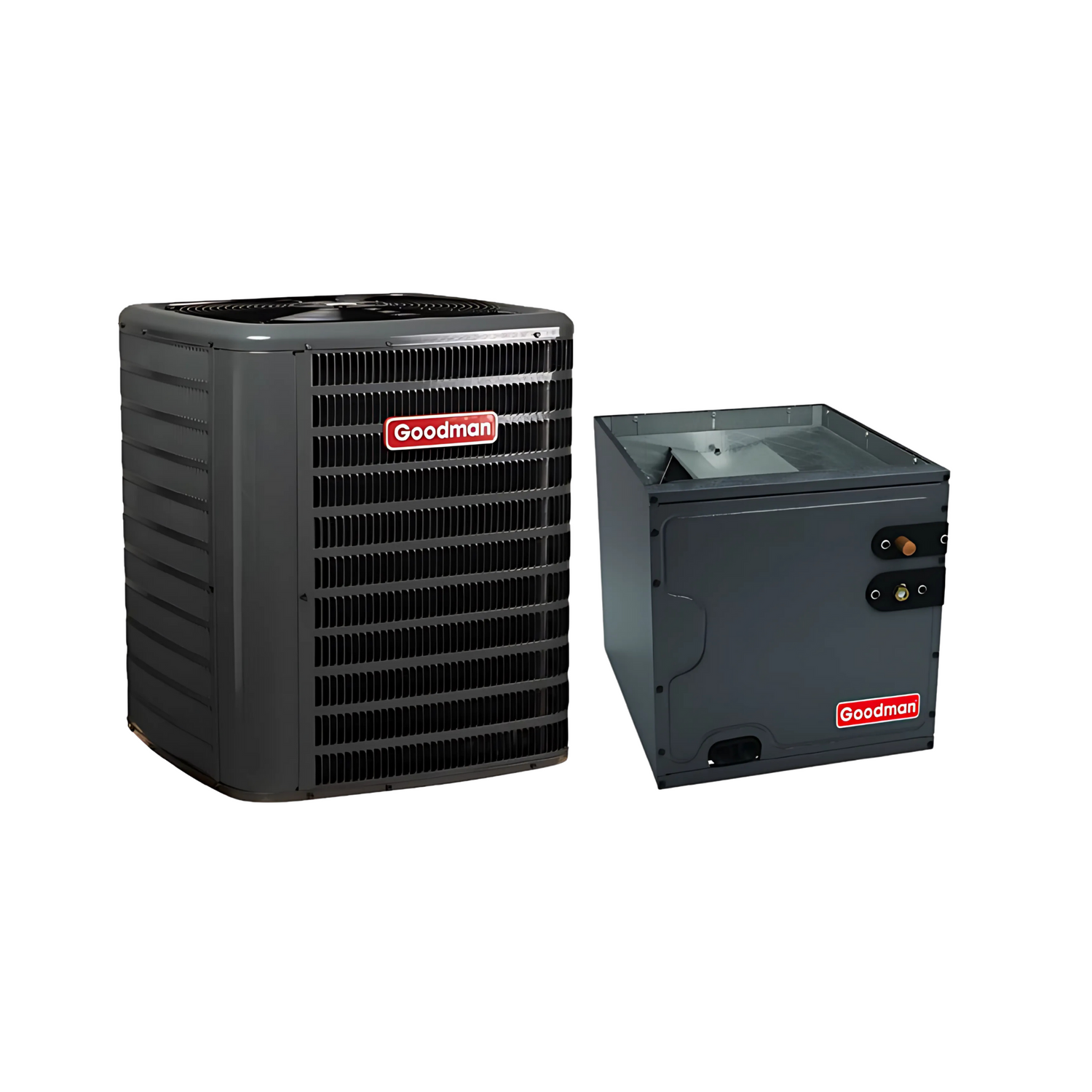

Goodman 3.5 Ton 14.3 SEER2 Central AC Coil Split System 21"W Vertical R32

Goodman 3.5 Ton R32 Split Air Conditioner 15.2 SEER2 Single Stage GLXS5BA4210

The Goodman 3.5 Ton (42,000 BTU) R32 Split Air Conditioner (Model GLXS5BA4210) offers efficient cooling with a 15.2 SEER2 rating and a single-stage scroll compressor. It features R-32 refrigerant, a factory-installed filter drier, and is pre-charged for 15' tubing length for quick installation. Durable 5mm copper tubing with enhanced aluminum fin coils ensures optimal heat transfer, while the unit’s robust cabinet provides corrosion resistance and easy servicing. AHRI certified and ETL listed, the unit is designed for longevity, with a hurricane-ready design that meets 2023 Florida Building Code integrity requirements. With extended-life capacitors, sweat connection service valves, and top and side access for maintenance, it’s built for consistent, long-lasting performance.

• Refrigerant Type: R-32
• Unit Height: 36.5 in
• Unit Width: 35.5 in
• Communication Feature Type: Non-Communicating
• Max Overcurrent Protection: 30 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Tonnage: 3.5
• 42,000 BTU
• Model Efficiency: 15.2 SEER2
• Unit Depth: 35.5 in

Key Features

• Efficiency: Rated at 14.3 SEER2 for energy-efficient performance
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable grille-style top compliant with UL 60335-2-40 for safety and easy maintenance.
• Venturi design enhances airflow velocity for improved performance.
• Architectural gray powder-paint finish offers corrosion resistance with 500-hour salt-spray approval.
• Wire fan discharge grille protects internal components while maintaining airflow efficiency.
• Steel louver coil guard provides robust protection for the coils.
• Top and side maintenance access for convenient servicing.
• Single-panel access to controls with space for field-installed accessories.
• Hurricane-ready design meets 2023 Florida Building Code integrity requirements when properly anchored (anchor bracket kits available).

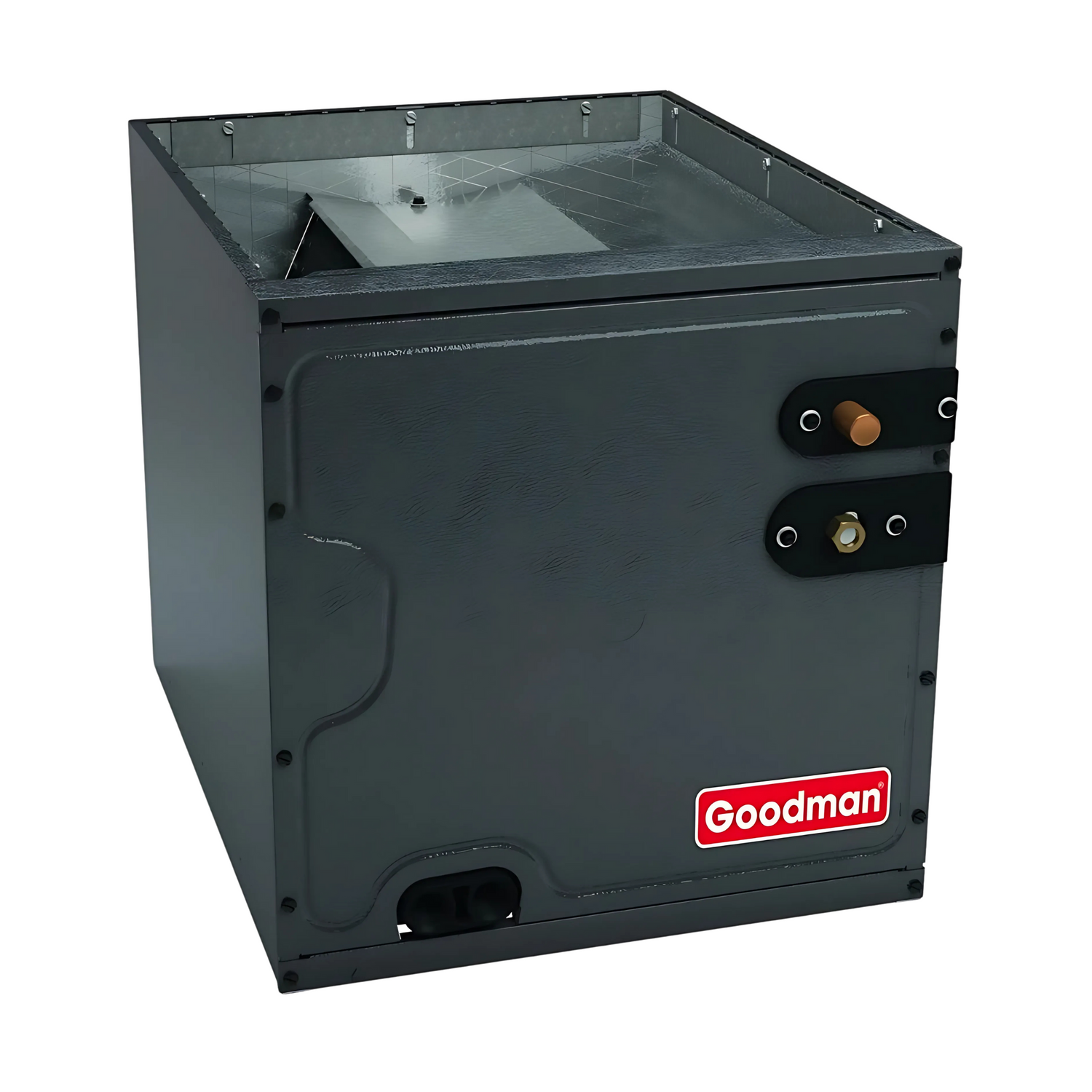

Goodman 2.5 - 3.5 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA4230C3

The Goodman CAPTA4230C3 Evaporator Coil is a high-performance unit designed for R32 refrigerant, perfect for upflow or downflow applications. With a compact size of 30" high and 21" wide, it features built-in thermal expansion valves (TXV) for enhanced efficiency in cooling and heat pump systems. This all-aluminum coil minimizes condensation with its foil-faced insulation and ensures durability with its galvanized finish. AHRI certified and ETL listed, this evaporator coil guarantees reliable performance and energy savings for your HVAC system.

• Refrigerant Type: R-32
• Unit Height: 30 in
• Unit Width: 21 in
• Cased/Uncased: Cased
• Tonnage: 3.5
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

Product Features of Goodman CAPTA4230C3 Evaporator Coil

• High-Performance All-Aluminum Design: Specifically engineered for R-32 refrigerant to optimize efficiency in cooling and heat pump applications.
• Integrated Thermal Expansion Valves: Factory-installed TXVs enhance performance and adaptability in various HVAC systems.
• Flexible Installation Options: Compatible with both vertical and horizontal configurations, ensuring versatility for different setups.
• Compact 21-Inch Depth: Facilitates easy access, making it ideal for installation in tight attic spaces.
• Foil-Faced Insulation: Reduces cabinet condensation, improving overall energy efficiency and performance.
• Durable Construction: Galvanized finish with a leather grain-embossed texture enhances longevity and resistance to wear.
• Rust-Resistant Drain Pan: Low water retention and UV-resistant properties, equipped with secondary drain connections for effective drainage.
• Maintenance Convenience: Easy-to-remove drain pan rails simplify cleaning and maintenance tasks.
• Certified Reliability: AHRI certified and ETL listed, ensuring compliance with industry standards for safety and efficiency.
• Optimized Circuits and Manifolds: Standardized copper suction tube stub length for improved installation and efficiency.
• Single Front Access Panel: Simplifies access to internal components for easier servicing.

This evaporator coil combines efficiency, durability, and user-friendly features for a dependable HVAC solution.
