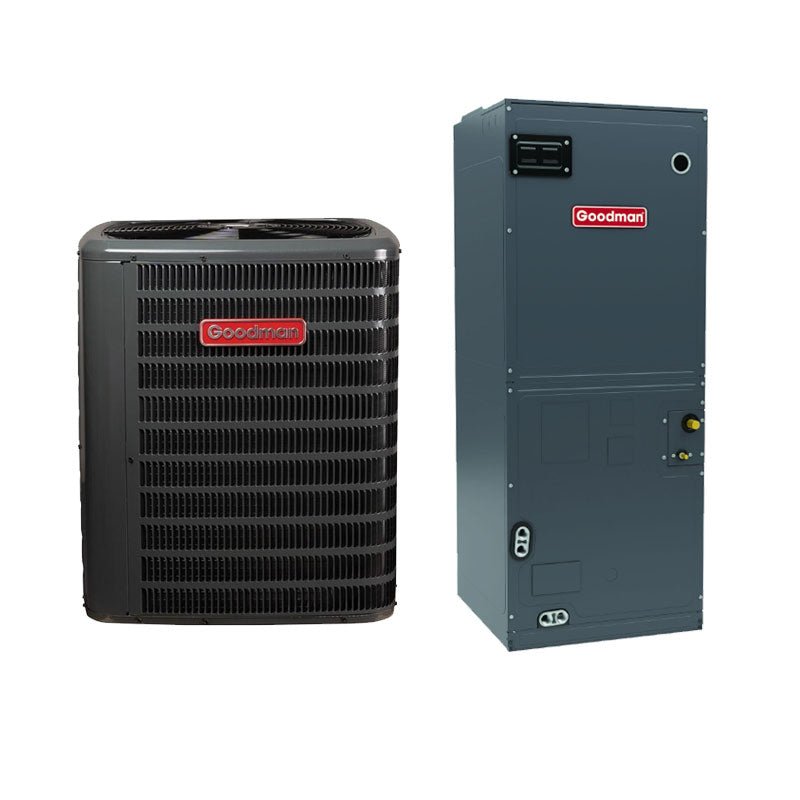

Goodman 3.5 Ton 13.5 SEER2 Air Conditioner Split System 48K BTU R32

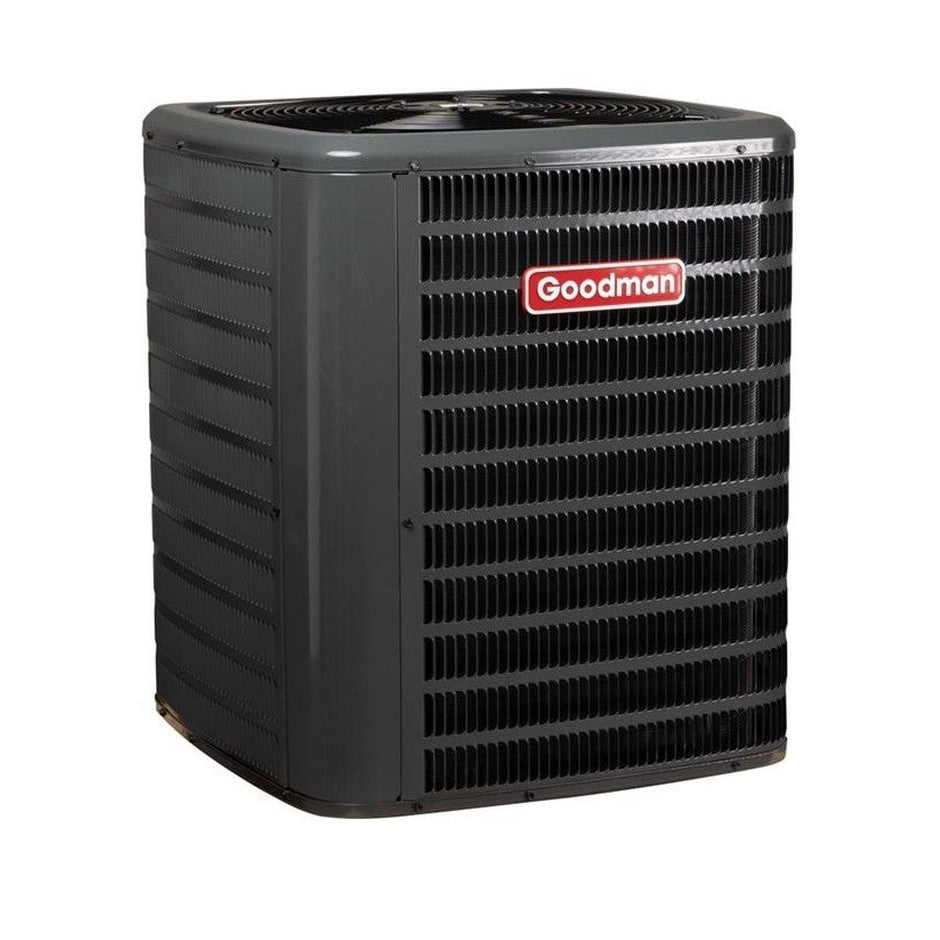

Goodman 3.5 Ton R32 Split Air Conditioner 13.4 SEER2 Single Stage Non-Communicating GLXS3BN4210

The Goodman R32 Split Air Conditioner (GLXS3BN4210) is a 3.5-ton unit with a 42,000 BTU/h cooling capacity and 13.4 SEER2 efficiency, offering reliable performance and energy savings. Its high-efficiency scroll compressor, factory-installed filter drier, and 5mm copper tube with enhanced aluminum fin coil ensure durability and optimal cooling. Pre-charged for up to 15 feet of tubing, it simplifies installation, while features like a high-pressure switch and enclosed contactor enhance safety and reliability. The corrosion-resistant cabinet includes a steel louver coil guard, removable grille-style top, and single-panel access for easy servicing, meeting 2023 Florida hurricane standards when anchored.

• Refrigerant Type: R-32
• SEER 2: 13.4
• Unit Height: 35.75 in
• Unit Width: 29 in
• Communication Feature Type: Non-Communicating
• Cooling Capacity Nominal: 42000 Btu/H
• Max Overcurrent Protection: 30 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Unit Weight: 180 lb
• Tonnage: 3.5
• Model Efficiency: 13.4 SEER2
• Unit Depth: 29 in

Key Features

• Efficiency: Rated at 13.5 SEER2 for energy-efficient performance
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Removable Grille-Style Top: Compliant with UL 60335-2-40 standards for safety.
• Venturi Design: Increases airflow velocity for enhanced cooling efficiency.
• Architectural Gray Powder-Paint Finish: Corrosion-resistant with 500-hour salt-spray approval.
• Wire Fan Discharge Grille: Protects fan components while ensuring optimal airflow.
• Steel Louver Coil Guard: Provides robust protection for the coil.
• Maintenance Access: Convenient top and side access for servicing.
• Single-Panel Control Access: Allows space for field-installed accessories and easy adjustments.
• Hurricane-Resistant Design: Meets 2023 Florida Building Code requirements for hurricane winds when anchored (optional anchor bracket kits available).

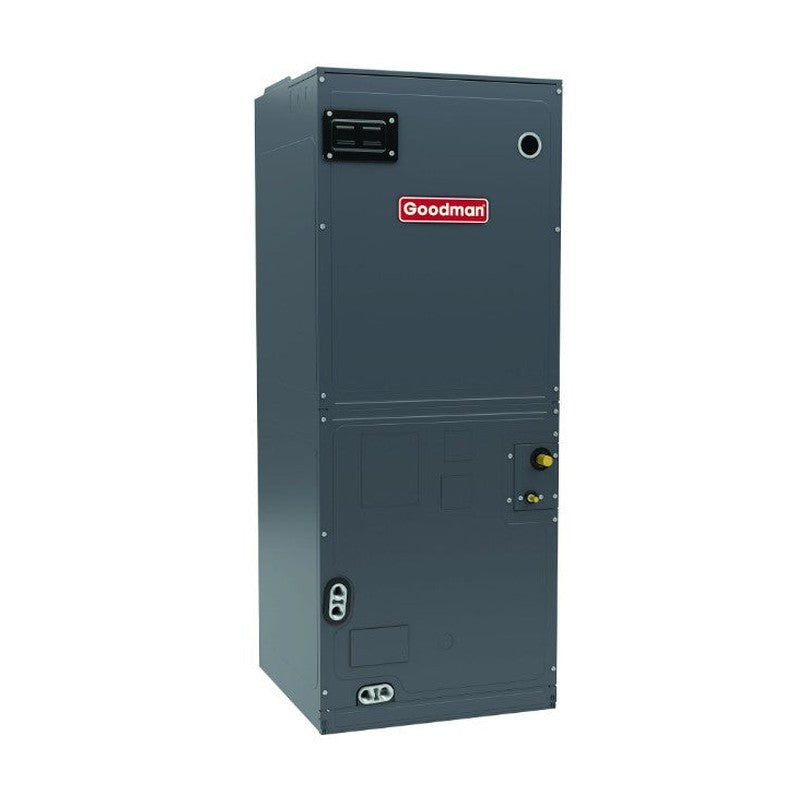

Goodman 4 Ton Ducted Multi-position Air Handler Nine Speed ECM Motor 21-1/8 in Cabinet with TXV Expansion AMST48CU1300

The Goodman 4 Ton R32 Ducted Multi-Position Air Handler (AMST48CU1300) offers efficient cooling with a 48,000 BTU/h nominal capacity and features a nine-speed ECM motor for quiet, adaptable airflow. Equipped with an all-aluminum coil for superior heat transfer and optional rust-resistant nickel chromium heating elements (5–10 kW), this unit ensures reliable performance. The unit's SmartFrame cabinet, easy-to-access service points, and multiple installation configurations provide flexibility and durability. Factory-installed components like the pull-type disconnect and thermoplastic drain pan ensure easy setup and maintenance, while its AHRI and ETL certifications confirm quality and safety compliance.

• Refrigerant Type: R-32
• Unit Height: 58 in
• Unit Width: 21-1/8 in
• Cooling Capacity Nominal: 48000 Btu/H
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/230 V
• Motor Speed Type: Nine Speed ECM
• Unit Weight: 153 lb
• Tonnage: 4
• Unit Depth: 21 in

Key Features

• Efficiency: Rated at 13.5 SEER2 for energy-efficient performance
• Capacity: Delivers 42,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
• Performance: Scroll compressor ensures quiet, consistent, and energy-efficient operation

Cabinet Features

• Rigid SmartFrame cabinet for enhanced structural integrity
• Horizontal or vertical configuration capabilities for versatile installation options
• 21" depth for easier attic access during installation
• DecaBDE-free thermoplastic drain pan with secondary drain connections for improved drainage
• Screw-less sides and back help reduce condensation in humid environments
• Foil-faced insulation on the internal casing minimizes cabinet condensation
• Galvanized, leather grain-embossed finish for aesthetic appeal and long-lasting durability
• Glue-less cabinet insulation retention for better insulation performance
• Tool-less filter access for convenient and hassle-free filter maintenance
