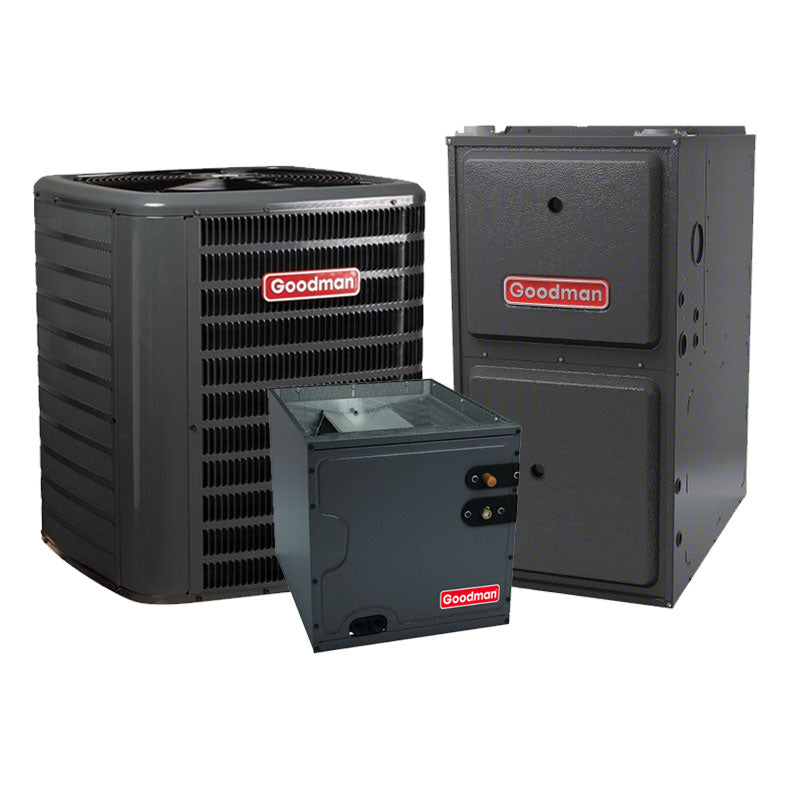

Goodman 2 Ton Split Heat Pump Furnace 15.2 SEER2 92% AFUE 80K BTU Vertical
Key Features
- Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
- Heating: 92% AFUE gas furnace provides efficient whole-home heating
- Capacity: Delivers 24,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
Product Details
Product Details
Goodman 2 Ton Split Heat Pump Furnace 15.2 SEER2 92% AFUE 80K BTU Vertical
Goodman 2 Ton R32 Split Heat Pump 14.3 SEER2 Single Stage GLZS4BA2410
The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting and enhanced aluminum fin coils for better heat transfer. It includes a single-speed PSC fan motor, bi-flow filter drier, suction-line accumulator, compressor crankcase, and high-capacity muffler. With high- and low-pressure switches, service valves, and a full charge for 15 feet of tubing, it ensures easy installation. AHRI Certified and ETL Listed for reliable performance.
- Heating Capacity Nominal: 24000 Btu/H
- Refrigerant Type: R-32
- SEER 2: 14.3
- Unit Height: 32.5 in
- Unit Width: 29 in
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 208/240 V
- Compressor Stages: Single Stage
- Compressor Type: Rotary
- Unit Weight: 160 lb
- Unit Depth: 29 in
- Removable grille-style top design complies with UL 60335-2-40 standards
- Includes steel louver coil guard for added protection
- Constructed from heavy-gauge galvanized steel for durability
- Finished in Architectural Gray powder-coat with 500-hour salt-spray approval
- Provides top and side maintenance access for easy servicing
- Meets 2023 Florida Building Code for hurricane-type winds when properly anchored
- Anchor bracket kits available for compliance with wind requirements
Key Features
- Efficiency: Rated at 15.2 SEER2 for energy-efficient performance
- Heating: 92% AFUE gas furnace provides efficient whole-home heating
- Capacity: Delivers 24,000 BTU/h as a complete matched system
- Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
Goodman R32 92% AFUE Gas Furnace 80,000 BTU Multi-Speed Upflow/Horizontal GR9S920803BN
Upgrade your home heating with the Goodman R32 gas furnace, offering an impressive 92% AFUE efficiency and a robust 80,000 BTU capacity. Designed for versatile installation in upflow or horizontal configurations, this unit features a durable aluminized-steel heat exchanger and a stainless-steel secondary heat exchanger for enhanced performance and longevity. With a multi-speed ECM blower motor, enjoy energy-efficient airflow and minimal noise. Its self-diagnostic control board simplifies maintenance, while compliance with California's low NOx standards ensures eco-friendliness. AHRI certified and ETL listed, this furnace guarantees reliability and safety, making it the perfect choice for efficient home comfort.
- 80,000 BTU
- R32
- Unit Height: 33-3/8 in
- Unit Width: 17-1/2 in
- AFUE: 92 %
- Installation Configuration: Upflow/Horizontal
- Max Overcurrent Protection: 15 A
- Power Phase: 1 Ph
- Power Voltage: 115 V
- Motor Speed Type: Multi Speed ECM
- Unit Weight: 117 lb
- Model Efficiency: 0.92
- Unit Depth: 28 in
- Heat Exchanger Type: Air Cooled
Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace
- Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
- Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
- Single-Stage Gas Valve: Simplifies operation with reliable gas control.
- Durable Silicon Nitride Igniter: Offers consistent ignition performance.
- Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
- Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
- Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
- California Compliance: Meets the 40 ng/J Low NOx emissions standard.
- Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
- AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
- Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
- Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
- Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
- Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.
Cabinet Features
- Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
- Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
- Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
- Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

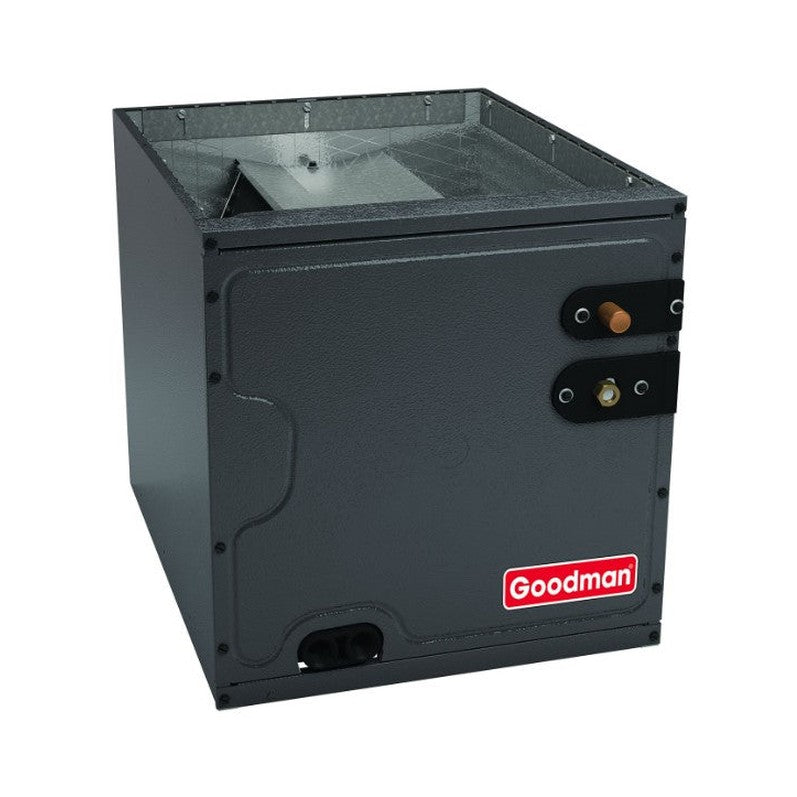

Goodman 3 Ton R32 Evaporator Coil Upflow/Downflow Cased with Built-in TXV CAPTA3626B3
The Goodman 3 Ton R32 Evaporator Coil (CAPTA3626B3) is a compact, cased unit with built-in TXV, optimized for R-32 refrigerant. It offers flexible upflow/downflow installation, durable all-aluminum construction, and rust-resistant drain pan. AHRI certified and ETL listed, it's designed for efficient performance in tight spaces with easy access for maintenance.
- Refrigerant Type: R-32
- Unit Height: 26 in
- Unit Width: 17.5 in
- Cased/Uncased: Cased
- Tonnage: 3.0
- Coil Application: Upflow/Downflow
- Unit Depth: 21 in
- R-32 Evaporator Coil
- High-Performance HVAC Solution
- Integrated Thermal Expansion Valves
- Flexible Installation Options
- Foil-Faced Insulation
- Durable Drain Pan
- Galvanized Finish
- AHRI Certified
- ETL Listed
Product Features for High-Performance R-32 Evaporator Coil
- All-Aluminum Construction: Designed for durability and efficient heat exchange, ensuring long-lasting performance in HVAC systems.
- Optimized for R-32 Refrigerant: Specially engineered with circuits and manifolds for efficient cooling and heating applications.
- Integrated Thermal Expansion Valves: Factory-installed in CAPTA and CHPTA models, enhancing efficiency for both cooling and heat pump use.
- Flexible Installation Options: Available in vertical and horizontal configurations, with a compact 21-inch depth for easy access in tight spaces like attics.
- Foil-Faced Insulation: Reduces cabinet condensation, improving overall efficiency and preventing moisture-related issues.
- Durable Drain Pan: Rust-resistant, UV-resistant thermoplastic design with low water retention and additional drainage connections for reliable operation.
- User-Friendly Design: Easy-to-remove drain pan rails simplify maintenance and repositioning of the coil.
- Galvanized Finish: Leather grain-embossed coating ensures durability and resistance to wear and tear.
- Standardized Copper Suction Tube Stub Length: Facilitates easier installation and compatibility with existing systems.
- Single Front Access Panel: Enhances convenience for maintenance on CAPTA and CHPTA models.
- AHRI Certified and ETL Listed: Confirms adherence to industry standards for performance, safety, and reliability.
