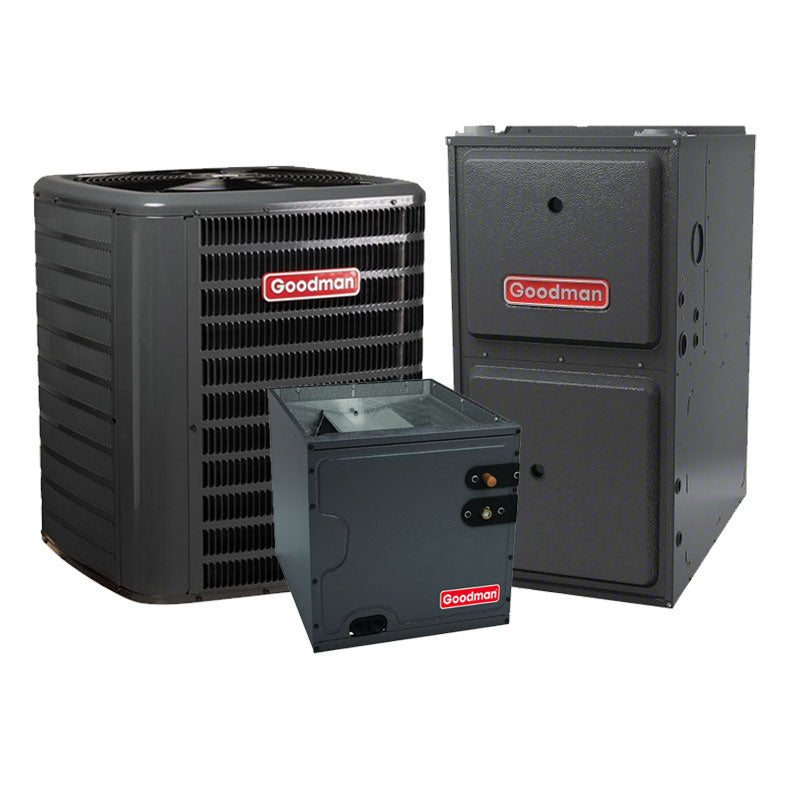

Goodman 2 Ton R32 Heat Pump & Gas Furnace 14.5 SEER2 92% 40000 BTU Vertical

Goodman 2 Ton R32 Split Heat Pump 14.3 SEER2 Single Stage GLZS4BA2410

The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting and enhanced aluminum fin coils for better heat transfer. It includes a single-speed PSC fan motor, bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. With high- and low-pressure switches, service valves, and a full charge for 15 feet of tubing, it ensures easy installation. AHRI Certified and ETL Listed for reliable performance.

• Heating Capacity Nominal: 24000 Btu/H
• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 32.5 in
• Unit Width: 29 in
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 160 lb
• Unit Depth: 29 in

• Removable grille-style top design complies with UL 60335-2-40 standards
• Includes steel louver coil guard for added protection
• Constructed from heavy-gauge galvanized steel for durability
• Finished in Architectural Gray powder-coat with 500-hour salt-spray approval
• Provides top and side maintenance access for easy servicing
• Meets 2023 Florida Building Code for hurricane-type winds when properly anchored
• Anchor bracket kits available for compliance with wind requirements

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 40,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

Goodman R32 92% AFUE Gas Furnace 40K BTU Multi Speed Upflow/Horizontal GR9S920403AN

The R32 Highly Efficient Gas Furnace is engineered for optimal heating performance, featuring a compact design with dimensions of 33-3/8" in height, 14" in width, and 28" in depth. With an impressive AFUE rating of 92% and a heating capacity of 40,000 BTU, this unit ensures efficient energy use and comfort. It includes advanced features such as a durable aluminized-steel tubular heat exchanger, a multi-speed ECM blower motor for quiet operation, and a self-diagnostic control board for easy maintenance. Compliant with California's low NOx emissions standards, this furnace is versatile for various installation configurations while offering enhanced environmental benefits through the use of R32 refrigerant.

• Unit Height: 33-3/8 in
• Unit Width: 14 in
• AFUE: 92 %
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 106 lb
• Model Efficiency: 0.92
• 40,000 BTU
• R32
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled


Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

• Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
• Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
• Single-Stage Gas Valve: Simplifies operation with reliable gas control.
• Durable Silicon Nitride Igniter: Offers consistent ignition performance.
• Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
• Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
• Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
• California Compliance: Meets the 40 ng/J Low NOx emissions standard.
• Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
• Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
• Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
• Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
• Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

• Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
• Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
• Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
• Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

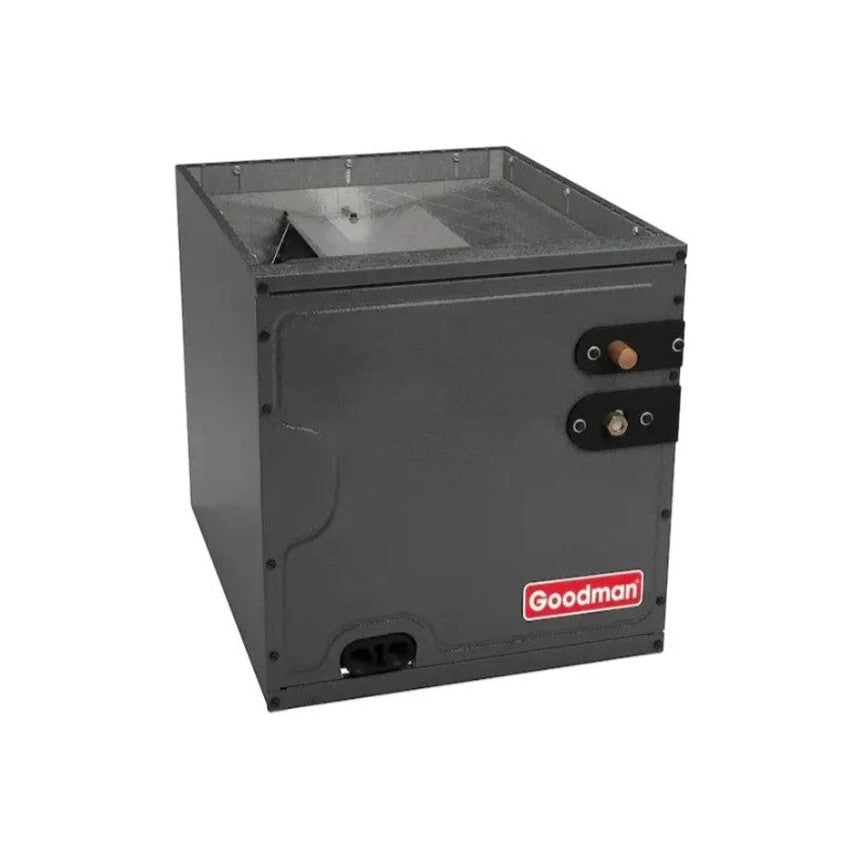

Goodman 2.5 Ton R32 Evaporator Coil Upflow/Downflow CAPTA3022B3

This high-performance all-aluminum evaporator coil, designed for R-32 refrigerant, features integrated thermal expansion valves for cooling and heat pump applications. With flexible vertical and horizontal installation, its 21-inch depth allows easier attic access. The foil-faced insulation reduces condensation, while the rust-resistant, UV-resistant drain pan and galvanized finish ensure durability. Easy-to-remove drain pan rails simplify maintenance. AHRI certified and ETL listed, this coil delivers efficiency, durability, and reliability for HVAC systems.

• Refrigerant Type: R-32
• Unit Height: 22 in
• Unit Width: 17.5 in
• Cased/Uncased: Cased
• Tonnage: 2.5
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

• Brand: Goodman
• Model Number: CAPTA3022B3
• Type: Cased Evaporator Coil
• Tonnage: 2 - 2.5 Ton
• Refrigerant Type: R-32
• Suction Valve Size: 3/4''
• Liquid Valve Size: 3/8''
• Height: 22"
• Width: 17.5"
• Depth: 21''
• Shipping Weight: 40 lbs
• Application: Vertical

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 40,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation
