Goodman 2 Ton R32 Heat Pump & 92% Gas Furnace 14.5 SEER2 40000 BTU Vertical

This Goodman HVAC bundle includes a 2 Ton R32 Split Heat Pump, a 92% AFUE Gas Furnace, and a versatile 2 Ton R32 Evaporator Coil, offering an energy-efficient and reliable climate control solution. The heat pump provides quiet operation and enhanced heat transfer, while the gas furnace delivers high-efficiency heating with a 40,000 BTU capacity and minimal operational noise. The evaporator coil complements the system with its durable, easy-to-maintain design and efficient performance using R-32 refrigerant. Together, these units deliver optimal heating and cooling, making this bundle ideal for those seeking year-round comfort and savings.

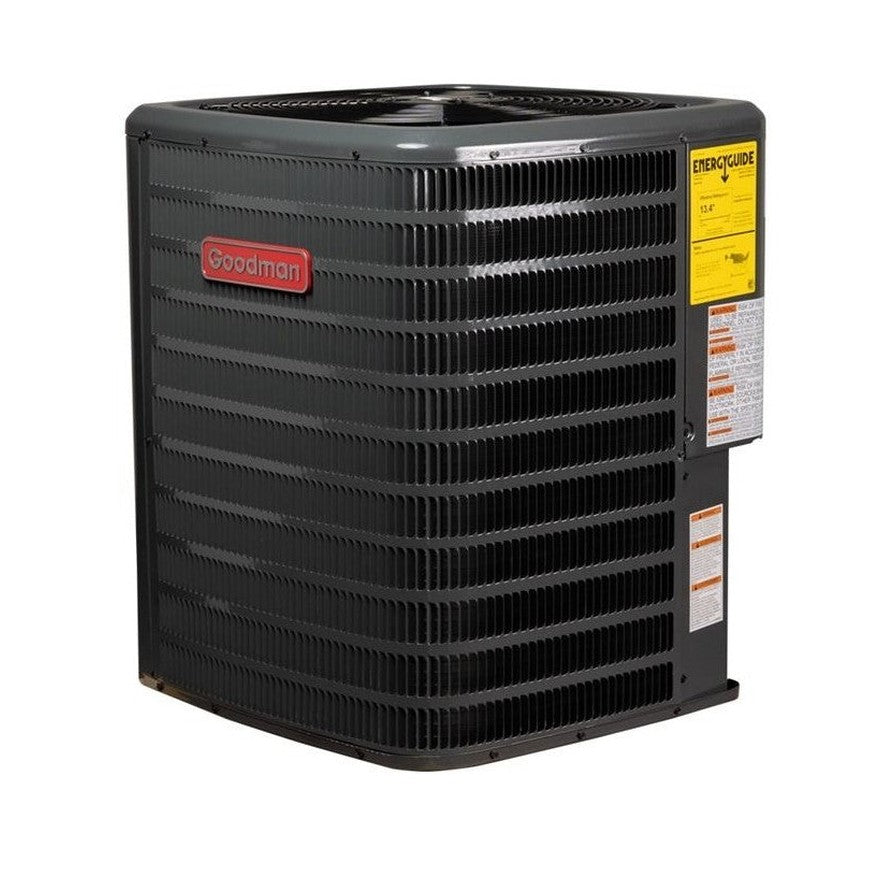

Goodman 2 Ton R32 Split Heat Pump 14.3 SEER2 Single Stage GLZS4BA2410

The system features a high-efficiency compressor with Smart-Shift technology for quiet defrosting and enhanced aluminum fin coils for better heat transfer. It includes a single-speed PSC fan motor, bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. With high- and low-pressure switches, service valves, and a full charge for 15 feet of tubing, it ensures easy installation. AHRI Certified and ETL Listed for reliable performance.

• Heating Capacity Nominal: 24000 Btu/H
• Refrigerant Type: R-32
• SEER 2: 14.3
• Unit Height: 32.5 in
• Unit Width: 29 in
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 208/240 V
• Compressor Stages: Single Stage
• Compressor Type: Rotary
• Unit Weight: 160 lb
• Unit Depth: 29 in

• Removable grille-style top design complies with UL 60335-2-40 standards
• Includes steel louver coil guard for added protection
• Constructed from heavy-gauge galvanized steel for durability
• Finished in Architectural Gray powder-coat with 500-hour salt-spray approval
• Provides top and side maintenance access for easy servicing
• Meets 2023 Florida Building Code for hurricane-type winds when properly anchored
• Anchor bracket kits available for compliance with wind requirements

Key Features

• Efficiency: Rated at 14.5 SEER2 for energy-efficient performance
• Heating: 92% AFUE gas furnace provides efficient whole-home heating
• Capacity: Delivers 40,000 BTU/h as a complete matched system
• Refrigerant: Factory-charged with R32 refrigerant for reliable, eco-conscious operation

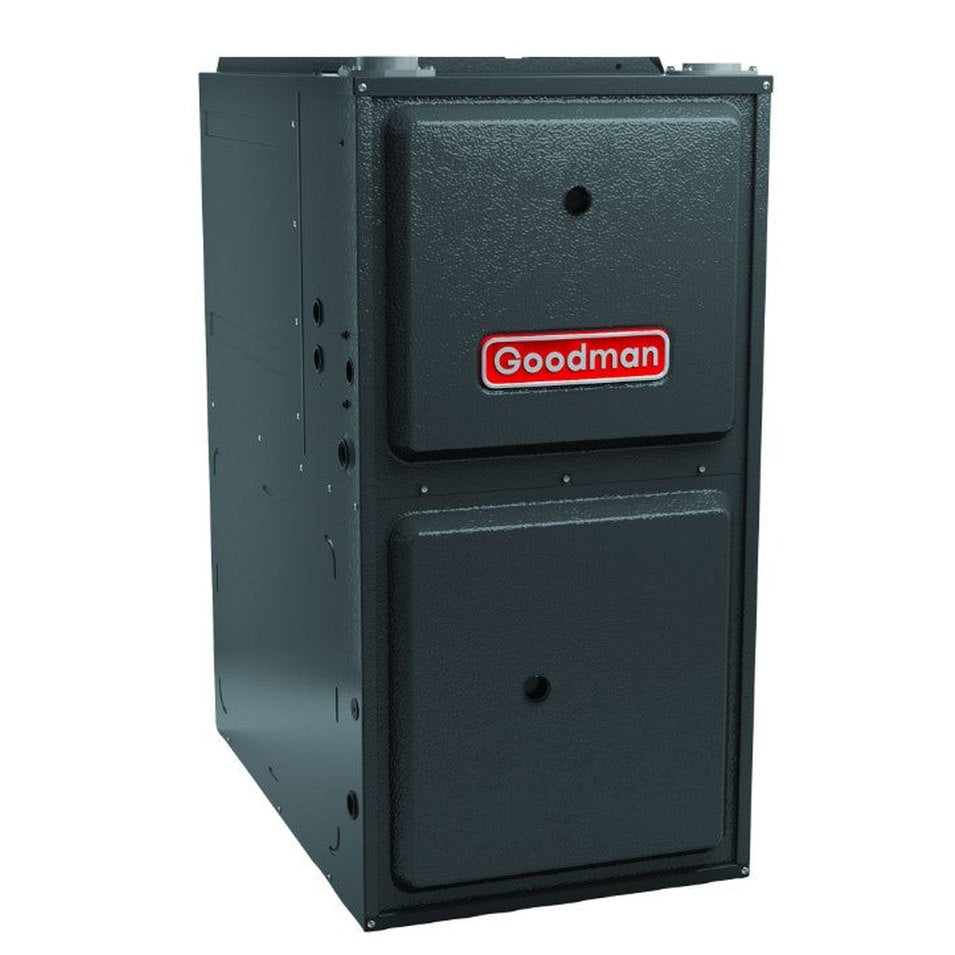

Goodman R32 92% AFUE Gas Furnace 40K BTU Multi Speed Upflow/Horizontal GR9S920403AN

The R32 Highly Efficient Gas Furnace is engineered for optimal heating performance, featuring a compact design with dimensions of 33-3/8" in height, 14" in width, and 28" in depth. With an impressive AFUE rating of 92% and a heating capacity of 40,000 BTU, this unit ensures efficient energy use and comfort. It includes advanced features such as a durable aluminized-steel tubular heat exchanger, a multi-speed ECM blower motor for quiet operation, and a self-diagnostic control board for easy maintenance. Compliant with California's low NOx emissions standards, this furnace is versatile for various installation configurations while offering enhanced environmental benefits through the use of R32 refrigerant.

• Unit Height: 33-3/8 in
• Unit Width: 14 in
• AFUE: 92 %
• Installation Configuration: Upflow/Horizontal
• Max Overcurrent Protection: 15 A
• Power Phase: 1 Ph
• Power Voltage: 115 V
• Motor Speed Type: Multi Speed ECM
• Unit Weight: 106 lb
• Model Efficiency: 0.92
• 40,000 BTU
• R32
• Unit Depth: 28 in
• Heat Exchanger Type: Air Cooled


Standard Features of R32 Highly Efficient 92% AFUE Gas Furnace

• Heavy-duty Aluminized-Steel Tubular Heat Exchanger: Ensures durability and efficient heat transfer.
• Stainless-Steel Secondary Heat Exchanger: Provides enhanced performance and longevity.
• Single-Stage Gas Valve: Simplifies operation with reliable gas control.
• Durable Silicon Nitride Igniter: Offers consistent ignition performance.
• Multi-Speed ECM Blower Motor: Delivers energy-efficient airflow and improved comfort.
• Quiet Single-Speed Induced Draft Blower: Ensures minimal operational noise.
• Self-Diagnostic Control Board: Facilitates easy troubleshooting and maintenance.
• California Compliance: Meets the 40 ng/J Low NOx emissions standard.
• Installation Restrictions: Cannot be installed in California’s South Coast Air Quality Management District (SCAQMD) and San Joaquin Valley Air Pollution Control District (SJVAPCD).
• AHRI Certified & ETL Listed: Guarantees high efficiency and safety standards.
• Multi-Position Installation: Designed for upflow, horizontal left, or right configurations.
• Ventilation Options: Certified for direct vent (2-pipe) or non-direct vent (1-pipe) setups.
• Flexible Venting: Easy-to-install top venting with optional side venting for GR9S92/upflow models.
• Convenient Gas & Electrical Connections: Available on the left or right side for easier installation.

Cabinet Features

• Low Air Leakage: Cabinet air leakage (QLeak) ≤ 2% for energy efficiency.
• Heavy-Gauge Steel Cabinet: Built to withstand wear with a durable finish.
• Insulated Heat Exchanger Cabinet: Foil-faced insulation improves energy efficiency.
• Airtight Bottom or Side Return: Features easy-cut tabs for hassle-free removal in bottom air-inlet applications.

Goodman 1.5 - 2 Ton R32 Evaporator Coil Upflow/Downflow with Built-in TXV CAPTA2422A3

This evaporator coil is a high-performance, all-aluminum unit specifically designed for R-32 refrigerant, featuring integrated thermal expansion valves for both cooling and heat pump applications. It offers flexible installation options with vertical and horizontal models, and its 21-inch depth facilitates easier access in attic spaces. The coil is equipped with a foil-faced insulation to reduce condensation and includes a rust-resistant, UV-resistant drain pan with additional drainage connections. Its durable galvanized finish and easy-to-remove drain pan rails enhance both longevity and maintenance convenience. Certified by AHRI and listed by ETL, this coil combines efficiency, durability, and ease of use for a reliable HVAC solution.

• Refrigerant Type: R-32
• Unit Height: 22 in
• Unit Width: 14 in
• Cased/Uncased: Cased
• Tonnage: 2.0
• Coil Application: Upflow/Downflow
• Unit Depth: 21 in

• Evaporator Coil
• R-32 Refrigerant Coil
• High-Performance HVAC Solutions
• Thermal Expansion Valves
• Flexible Installation Options
• Foil-Faced Insulation
• Durable Drain Pan
• AHRI Certified Coil
• UV-Resistant Drain Pan
• Galvanized Finish Coil

Product Features for High-Performance All-Aluminum Evaporator Coil

• R-32 Refrigerant Compatibility: Optimized specifically for R-32 refrigerant, ensuring efficient cooling and heating performance.
• Integrated Thermal Expansion Valves: Factory-installed thermal expansion valves in CAPTA and CHPTA models for seamless cooling and heat pump applications.
• Flexible Installation Options: Available in both vertical and horizontal configurations, providing versatile installation choices.
• Compact Design: With a 21-inch depth, this coil is designed for easy access in tight spaces like attics.
• Foil-Faced Insulation: Helps reduce cabinet condensation, enhancing overall system efficiency.
• Durable Drain Pan: Features a rust-resistant, UV-resistant thermoplastic drain pan with low water retention and additional drainage connections.
• Maintenance Convenience: Easy-to-remove drain pan rails simplify maintenance and repositioning.
• Galvanized Finish: Durable, leather grain-embossed galvanized finish enhances longevity and resistance to wear.
• AHRI Certified and ETL Listed: Certified for performance and safety, ensuring reliable operation in any HVAC system.
• Optimized Circuits and Manifolds: Standardized copper suction tube stub length for improved installation and efficiency.
• DecaBDE-Free Drain Pan: Environmentally friendly drain pan design with secondary drain connections for added functionality.
